Product Overview
Description
Taidacent Waterproof Ultrasonic Sensor Parking Occupancy Sensor in Outdoor Vehicle Presence Detector Ultrasonic Range Detector
Product Description

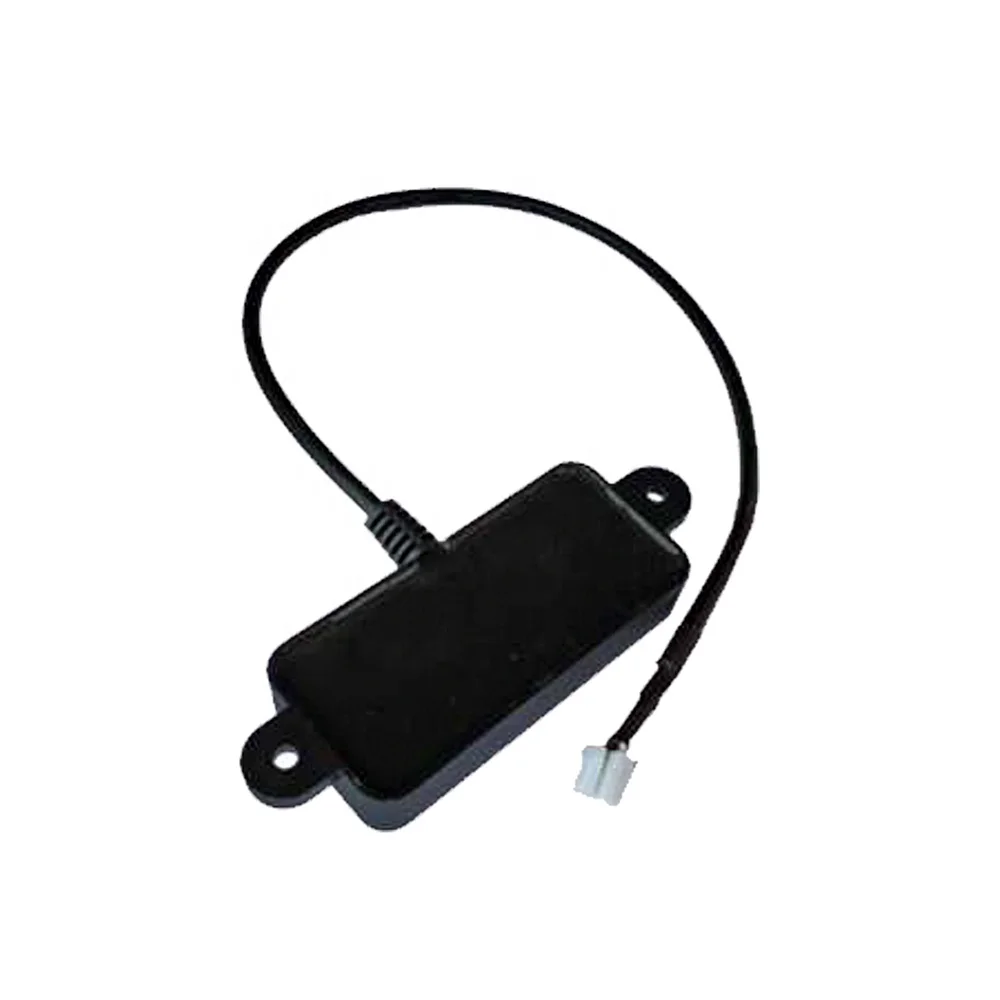

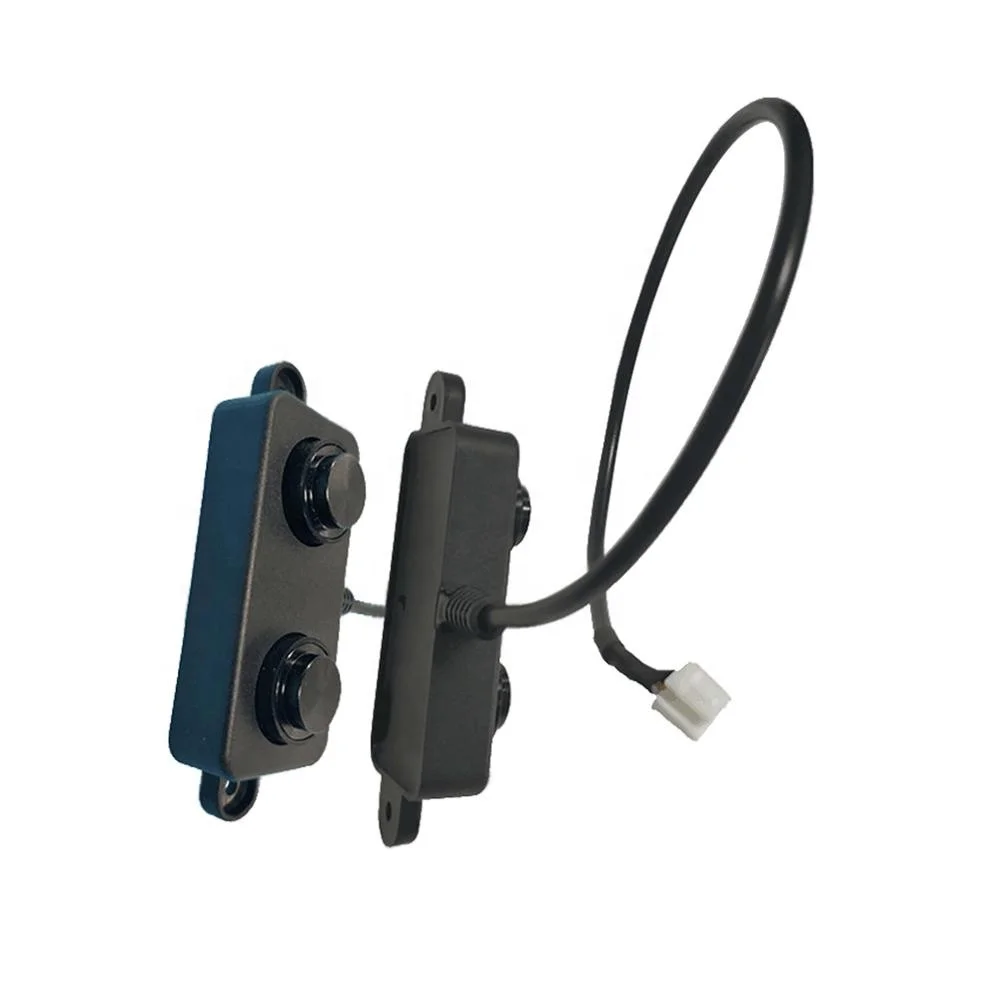

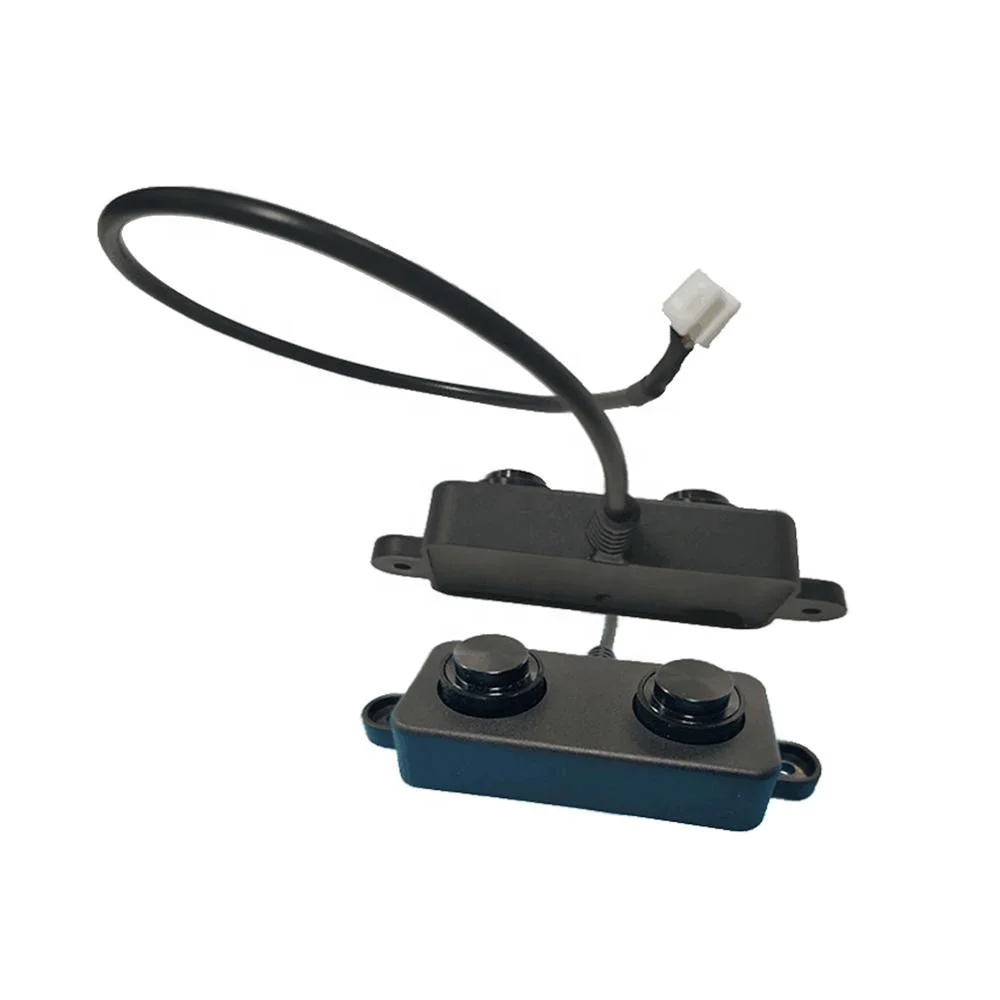

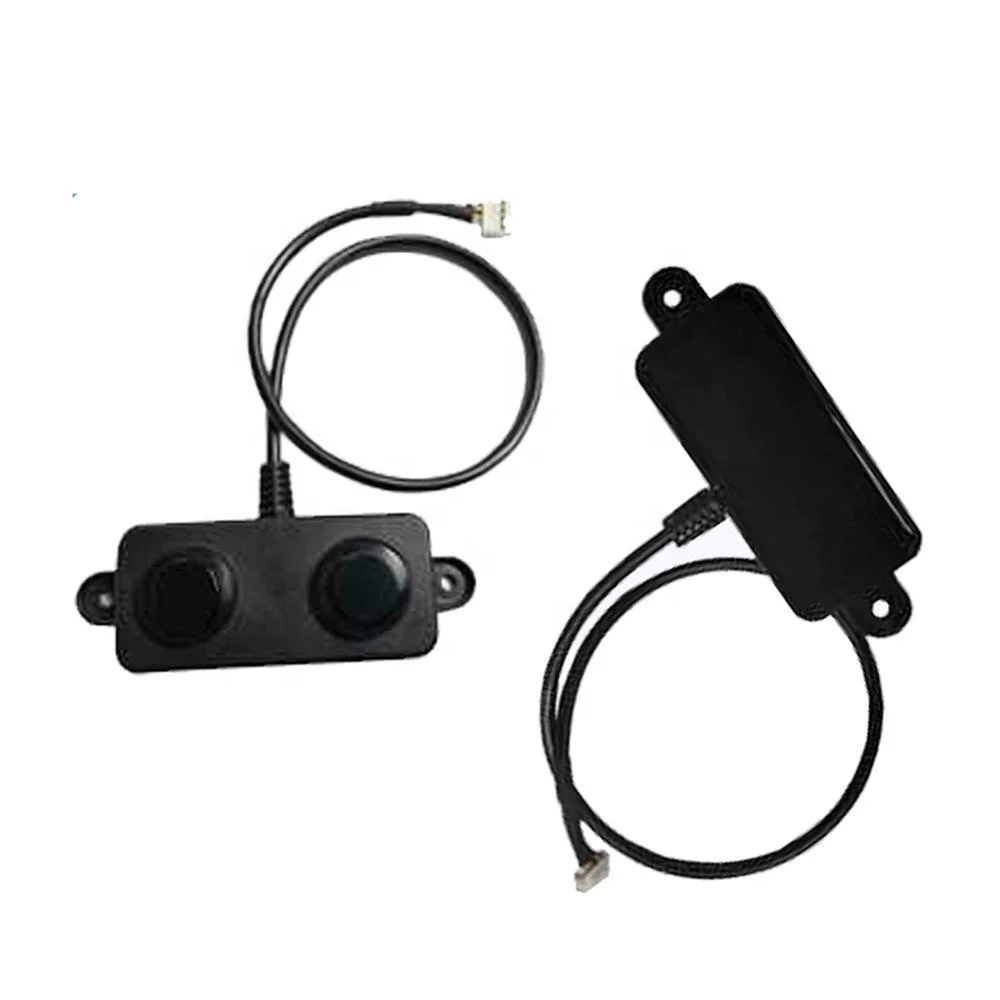

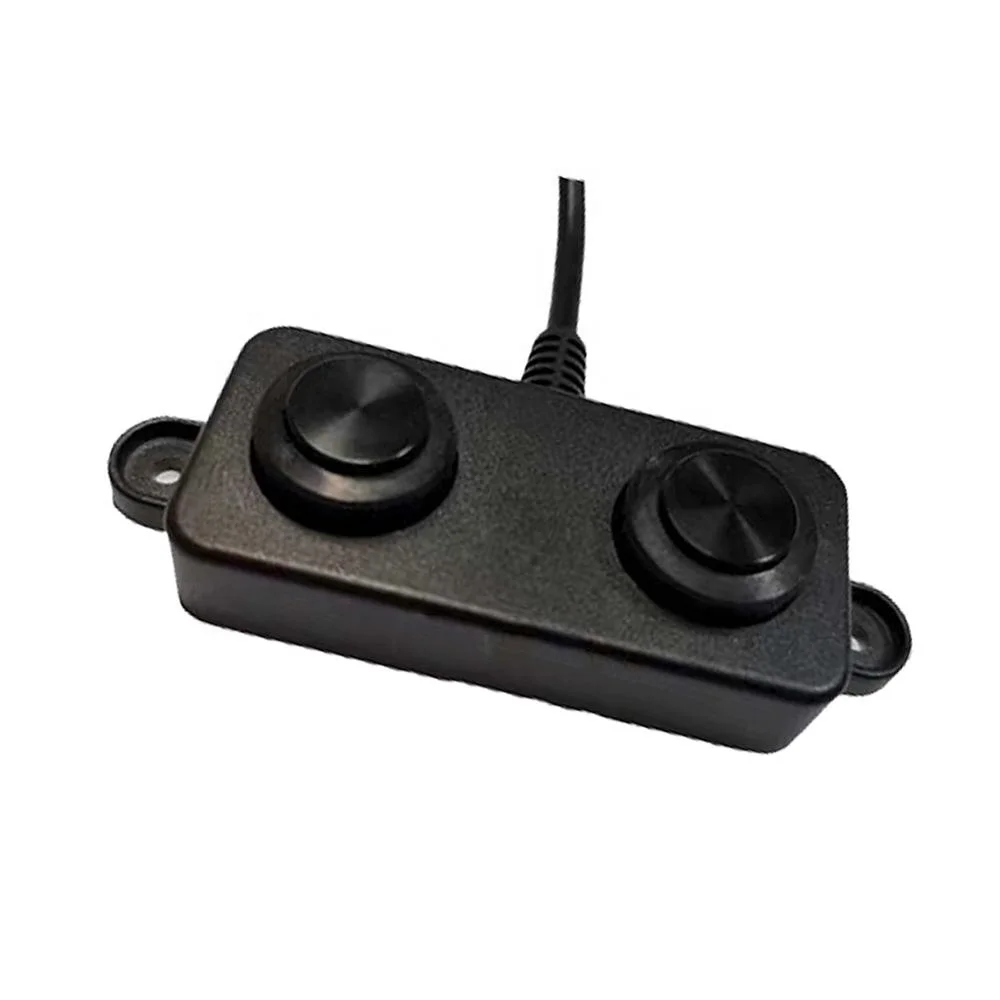

The DYP-AO2-V2.0 series is a high-performance ranging module designed with a closed split waterproofprobe. It has a certain level of dust and water resistance, suitable for wet and harsh measurement occasions.The 3cm small blind zone is suitable for different detection conditions. lt is a simple operation high-performance, high-reliability commercial-grade functional module.
Features
3cm small blind area
3.3~5V power supply
Four output modes are optional
Four output modes are optional
Closed split waterproof probe
Working temperature -15℃ to +60℃
Working temperature -15℃ to +60℃
Storage temperature -25℃ to +80℃
Low power consumption design, standby current <5uA
Electrostatic protection design，connecting leads with electrostatic protection devices， in line withIEC61000-4-2 standard
Low power consumption design, standby current <5uA
Electrostatic protection design，connecting leads with electrostatic protection devices， in line withIEC61000-4-2 standard
Application
. Horizontal ranging
. Parking Management System
. Robot avoidance and automatic control
. object proximity and presence awareness
. Parking Management System
. Robot avoidance and automatic control
. object proximity and presence awareness
Advantages
. Small blind spot
. Strong anti-interference
. Data output is stable and reliable
. Strong anti-interference
. Data output is stable and reliable
. Low power consumption
. Fast response time
. Fast response time
. Strong antistatic
. Wide working temperature
. High measurement accuracy
. Wide working temperature
. High measurement accuracy
Product Paramenters
Parameter | PWM output | UART controlled output | UART automatic output | Switching value output | ||||
Working voltage | 3.3～5VDC | 3.3～5VDC | 3.3～5VDC | 3.3～5VDC | ||||
Standby current | ≤5μA | ≤5μA | ||||||
Average working current | ≤8mA | ≤8mA | ≤8mA | ≤8mA | ||||
Peak-to-peak current | ≤40mA | ≤40mA | ≤40mA | ≤40mA | ||||
Blind zone distance | 3cm | 3cm | 3cm | 3cm | ||||
Flat object range | 3 ～ 450cm | 3 ～ 450cm | 3 ～ 450cm | 3 ～ 450cm | ||||
Duty cycle | Controlled | Controlled | 100ms | 100ms | ||||
Output method | PWM | UART | UART | Swittching | ||||
Measurement accuracy at room temperature | ±(1 + S * 0.5%) | ±(1 + S * 0.3%)cm | ±(1 + S * 0.3%)cm | ±(1 + S * 0.3%)cm | ||||
Temperature compensation | No | No | Yes | Yes | ||||
Reference angle | ≈60° | ≈60° | ≈60° | ≈60° | ||||
Note: (1) Typical Average working current obtained by testing at a temperature of 25 ℃, humidity of 65% RH, power supply of 5V, and 100ms duty cycle (2)Flat object range: The temperature is 25°℃, the humidity is 65% RH, the measured object is a 50cm×60cm flat carton, andthe transducer should be as vertical as possible.S represents the measurement distance; (3)The reference angle measured object is the reference data obtained from the test of Diameter 75mm×100cm white PVC pipe witha distance of 100cm. | ||||||||

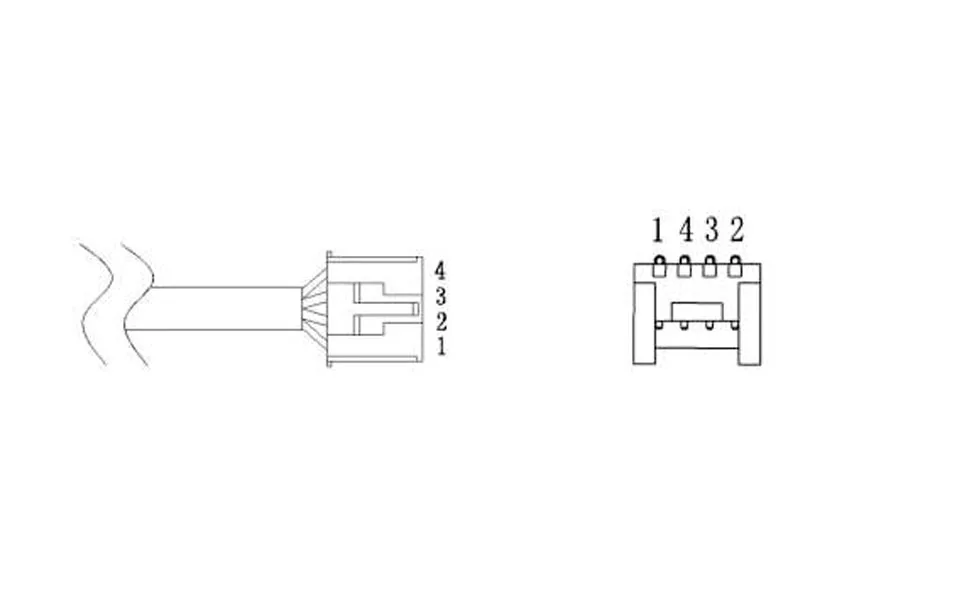

Interface Definition
1 VCC, power supply Input lead
2 GND, power ground lead
3 RX, Function Pin (1)
4 TX, Function Pin (1)
Remarks: (1) The output mode of the lead, pin function and product model are oneto- one correspondence, and cannot coexist with other output methods.
