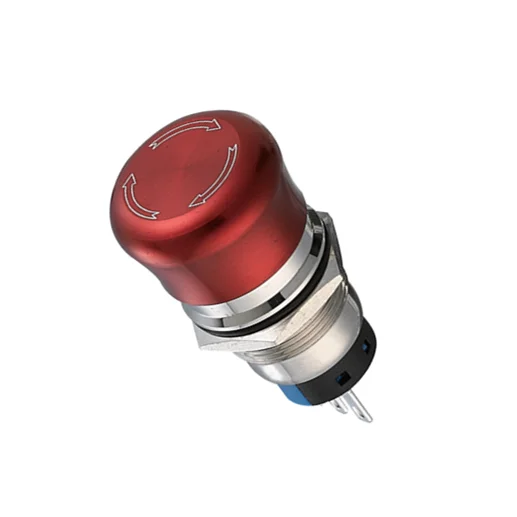

Hot selling LA38 series 19mm stainless steel emergency stop twist reset button switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (62417697769):
Product Overview
Description
Product Overview

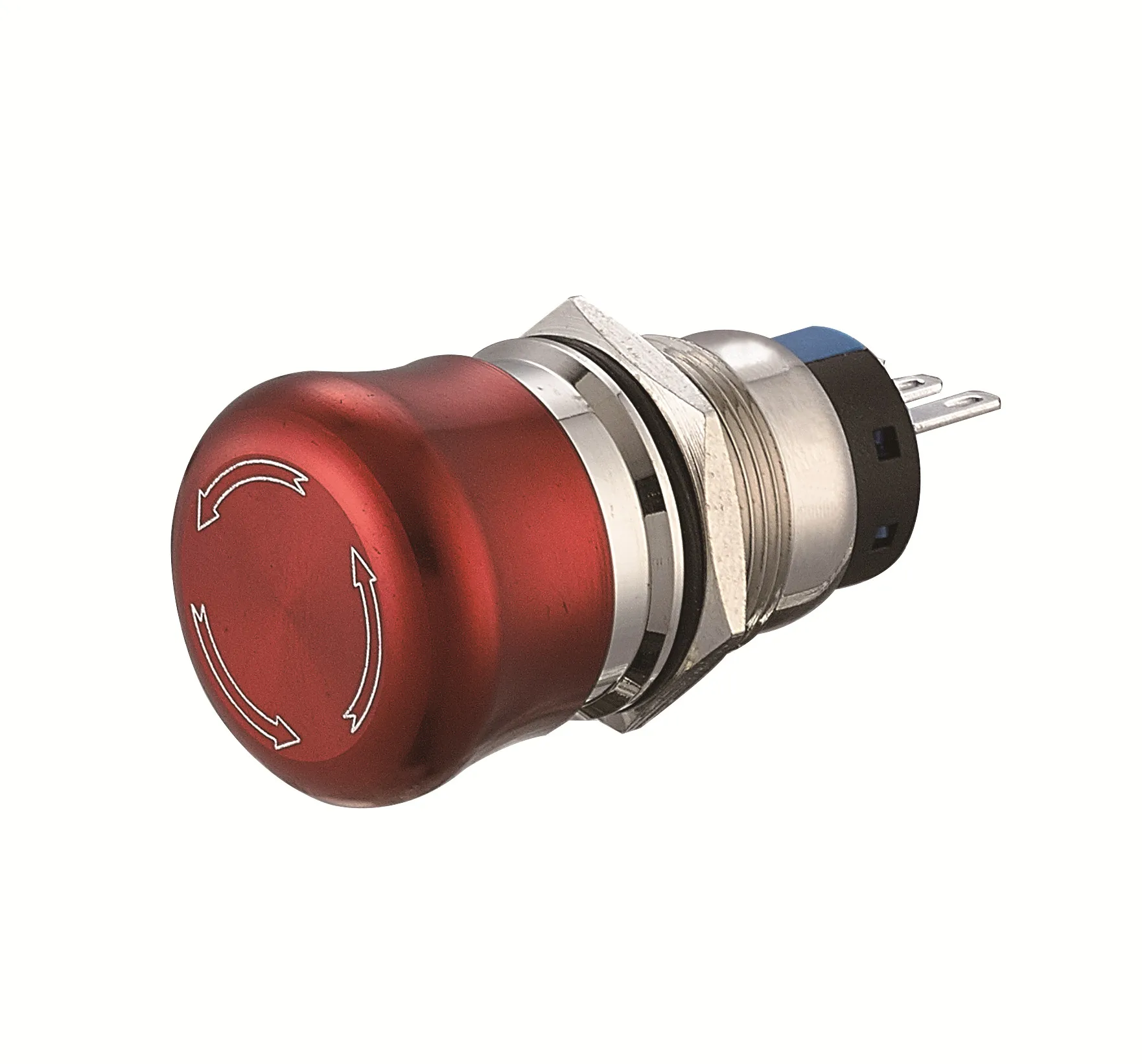

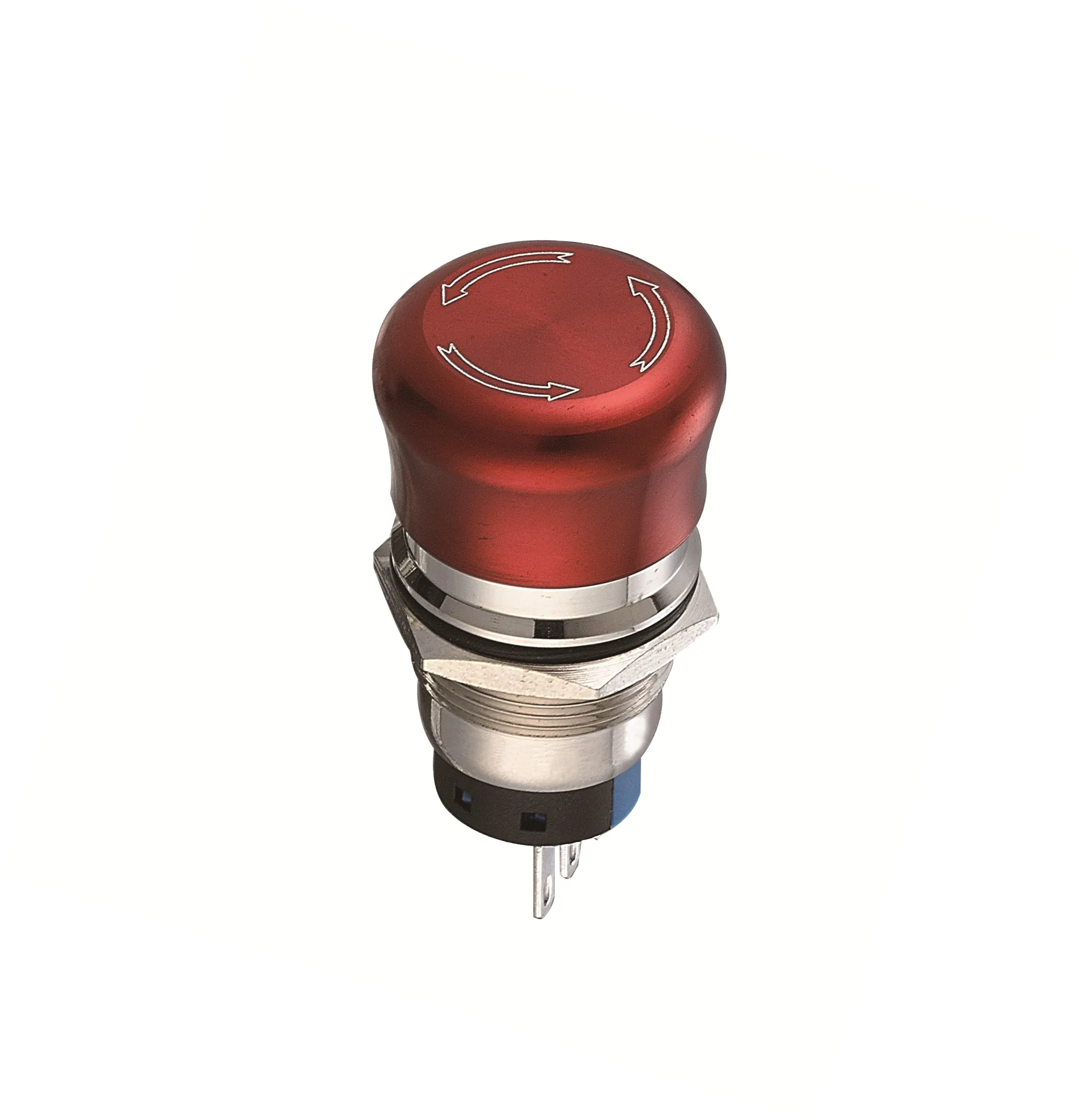

LA38-11MXS2/10E 19mm stainless steel emergency stop button switch
LA38-*0E(F)series metal buttons with complete functions, all metal shell, metal keys, can fully meet the needs of domestic and foreign numerical control, program device,electronic and electrical control, widely used in voltage 220V and below,DC or AC 50Hz machine tool, textile, shipbuilding, aviation, automobile, tobacco, electric power, telecommunications, medical equipment and other fields for control circuit, signal, interlocking and other supporting applications.
Features
-CE/RoHS
-Mounting hole size:Φ19.2mm
-Contact configuration: 1NO 1NC/2NO 2NC
-Can be equipped with international universal socket (2.8×0.5mm) connection
Product Specification
Product Name | stainless steel emergency stop button switch | ||||||||||
Product Type | LA38-#MXS2/10E (# means contact code) | ||||||||||
Contact code meaning | 11: 1NO+1NC 22: 2NO+2NC | ||||||||||
Products Standard | GB/T14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃～+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Common Parameter | Rated insulated Voltage | AC 250V | ||||||||
Insulated resistance | ≥1000MΩ | ||||||||||
Protection grade | IP54 | ||||||||||
Power frequency withstand voltage | 1.5KV/5S | ||||||||||
Work Frequency | 50Hz | ||||||||||
Switch Prameter | Rated thermal current Ith | 5A | |||||||||
Contact resistance | ≤50mΩ | ||||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
220V/2A | 220V/0.1 A | ||||||||||
110V/3A | 110V/0.2A | ||||||||||
Electrical life | 10,000 times | 50,000 times | |||||||||
Mechanical life | 50,000 times | ||||||||||

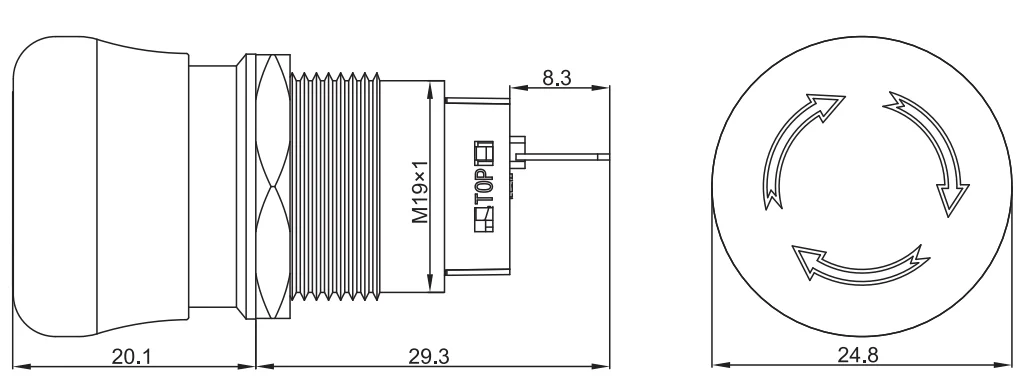

Outline drawing of button(mm)
