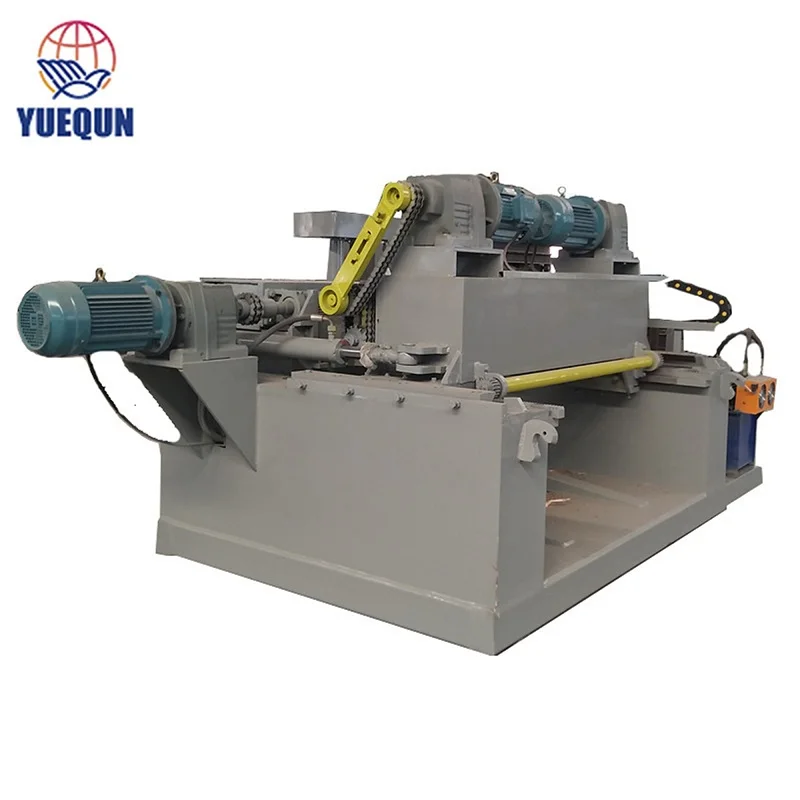

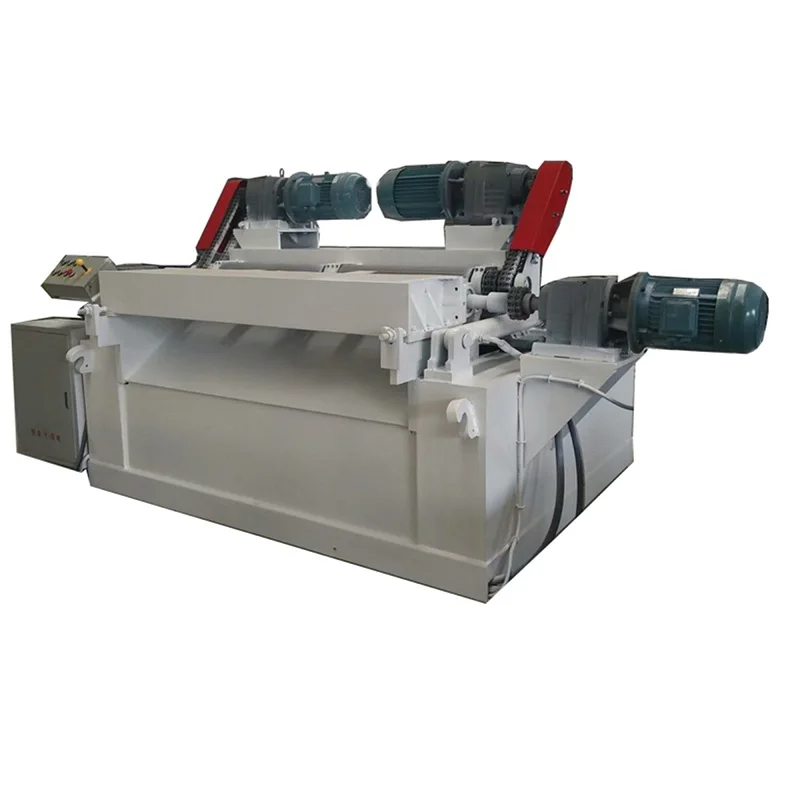

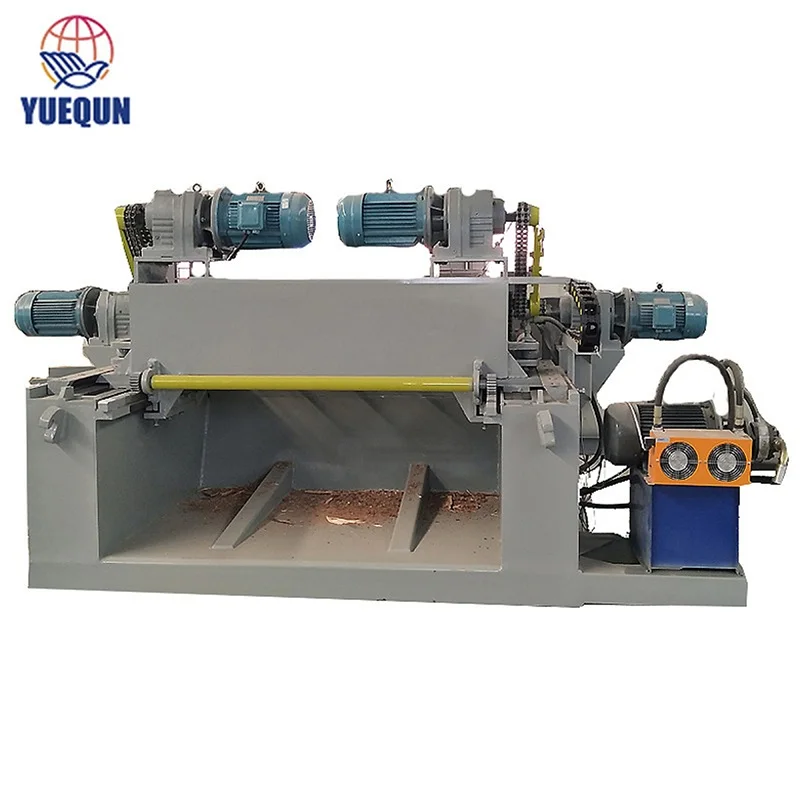

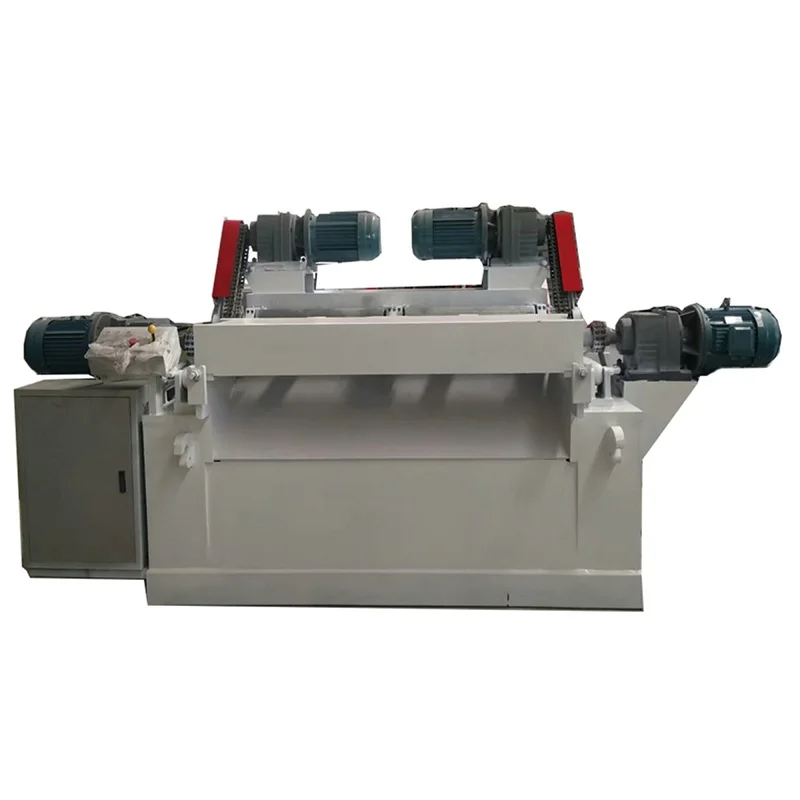

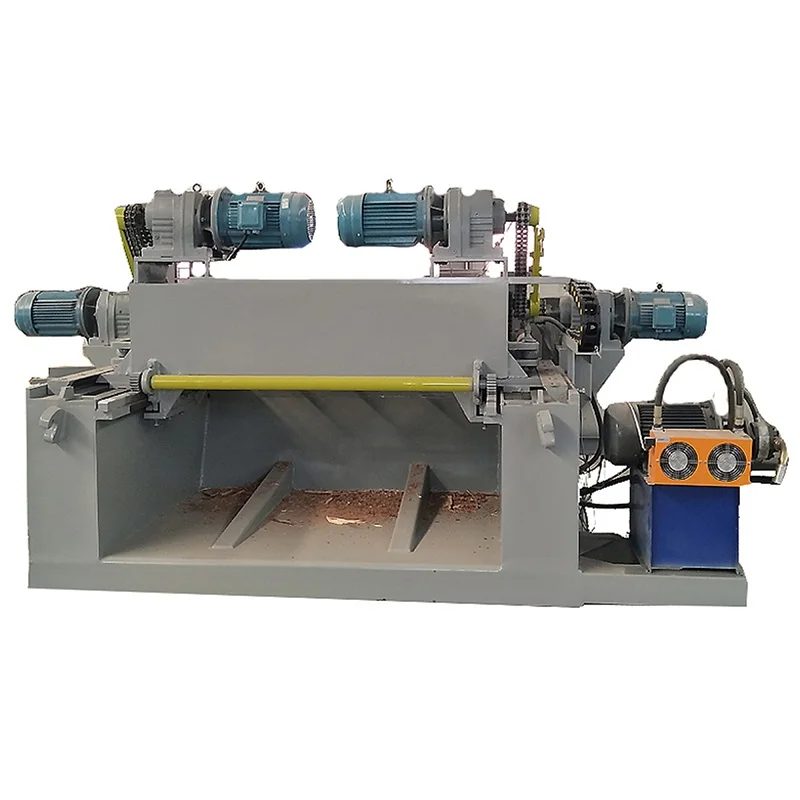

Круглая машина для резки древесины/облицовочная машина для фанерного шпона
- Category: Wood Debarker >>>
- Supplier: Shandong Yuequn Machinery Co. Ltd.
Share on (62417698157):
Product Overview
Description
Products Description

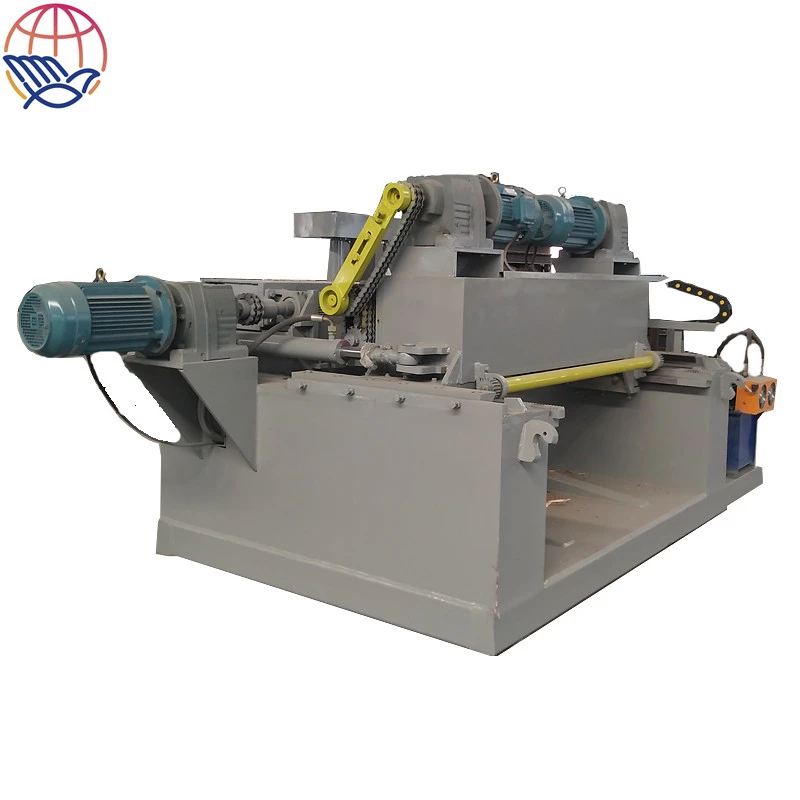

4 Feet Log Debarker Machine | ||||||||
Model | YQLD1400 mm | |||||||
Log dimension processing | 500 *1400 mm | |||||||
Rotary knife specification | 1500 * 180 *16 mm | |||||||
Diameter of rollers | 150 mm | |||||||
Linear speed | 50m/min | |||||||
Reference output | 30 m³/ day | |||||||
Hydraulic system power | 7.5 kW | |||||||
Driving roller power | 5.5 kW * 2 or 7.5 kW * 2 | |||||||
Pressure roller power | 5.5 kW * 2 or 7.5 kW * 2 | |||||||
Feeding cylinder diameter | 80 mm * 2 | |||||||
Product dimension | 4000 * 2200 * 1800 mm | |||||||
Weight | 4000 kgs | |||||||

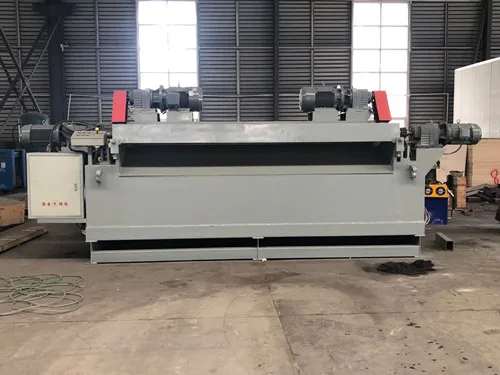

8 Feet Log Debarker Machine | ||||||||
Model | YQLD2700 | |||||||
Log dimension processing | 500 * 2700 | |||||||
Rotary knife specification | 2700 * 180 * 16mm | |||||||
Linear speed of host machine | 45 m/min | |||||||
Power of hydraulic system motor | 7.5 kW | |||||||
Power of single roller | 11 kW * 2 | |||||||
Power of double roller | 7.5 kW * 2 | |||||||
Diameter of cylinder | 80 mm | |||||||
Overall dimension | 5200 * 2000 *2200 mm | |||||||
Weight | 6 tons | |||||||

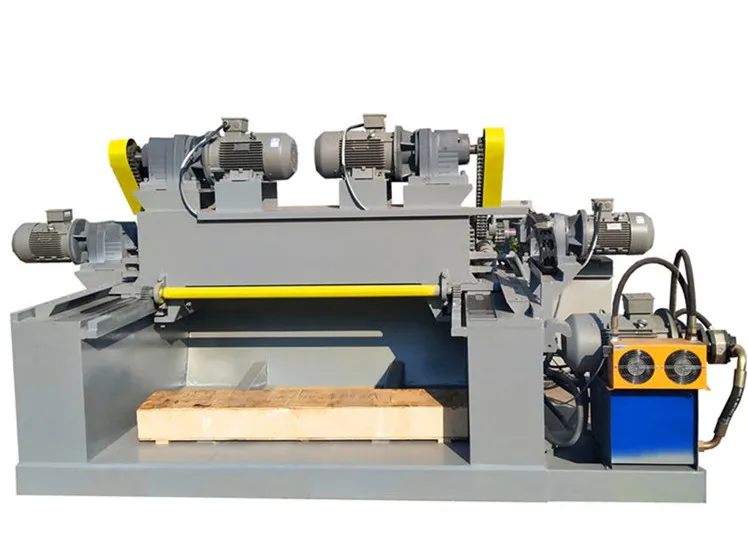

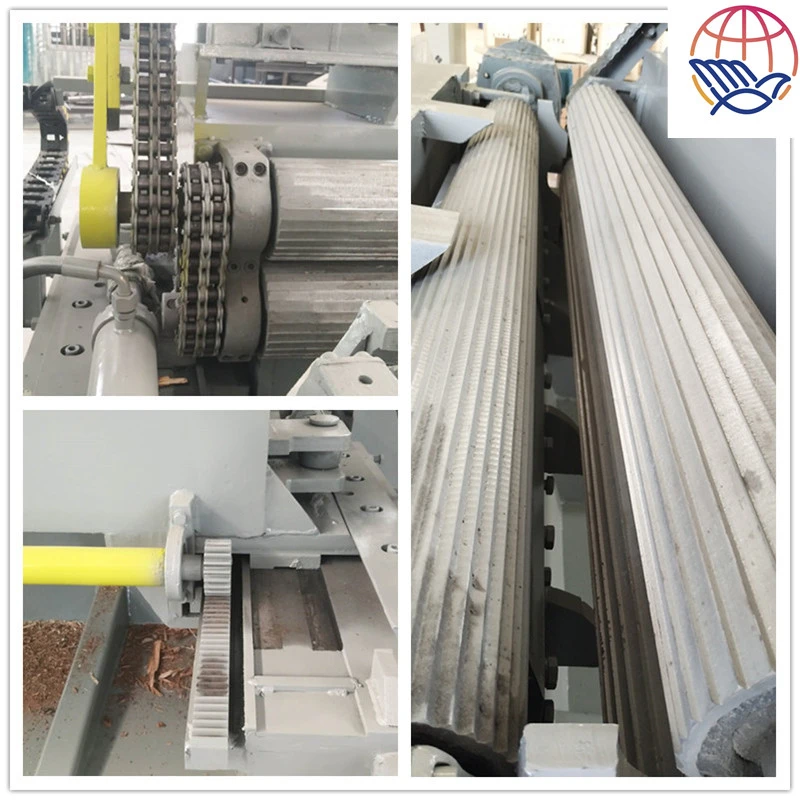

Product Details

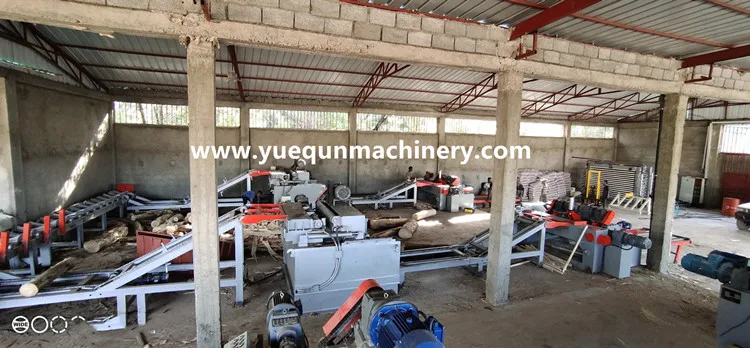

Customer Feedback

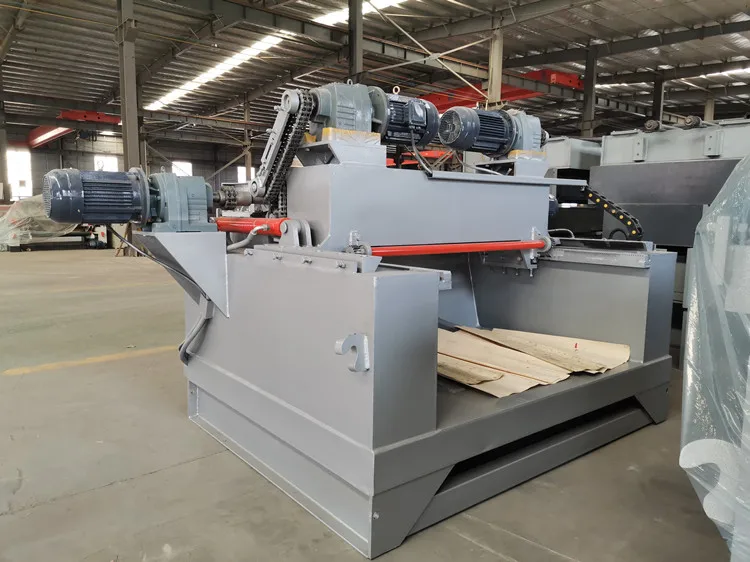

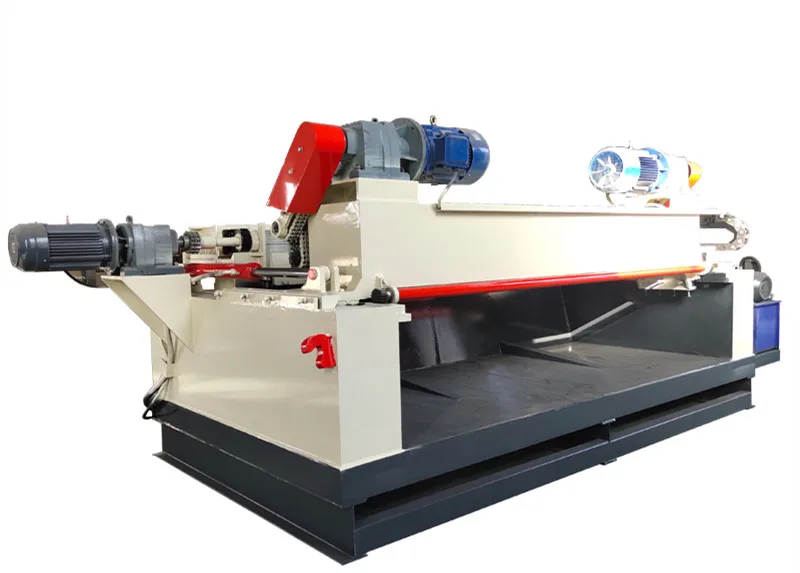

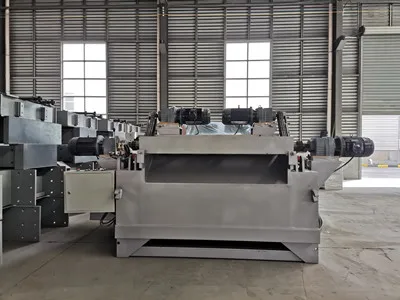

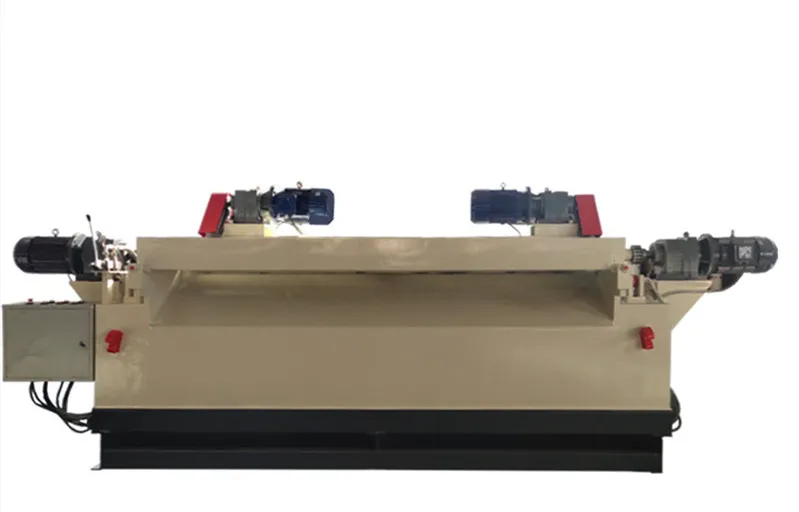

Description of Deabrker Machine
1. It is heavy duty veneer peeling machine , machine weight up to 5000 kg , to guarantee the veneer quality Suitable for Eucalyptus , Kuring , Mango , Rubber and other hard wood .
2. It is equipped touch screen , very convenient to change thickness and other parameters .
3. Its peeling speed is up to 40-50 m/min ,adjustble speed, very high efficiency
4.One log debarker could supply two or three peeing machine.
4.One log debarker could supply two or three peeing machine.
Company Profile

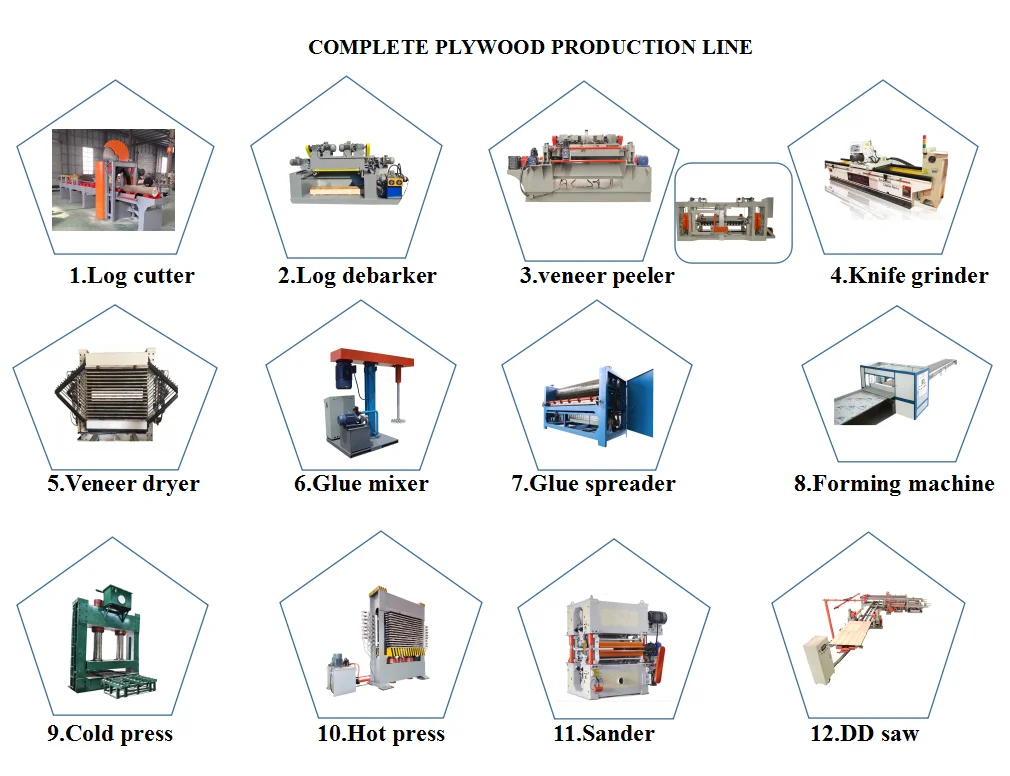

Shandong Yuequn Machinery established in 1994 , it's the biggest and professional plywood production machinery Manufacturer in Linyi city China .all the machine for exporting , over 50 countries .The complete plywood production line include : log debarker -veneer peeling machine - veneer dryer machine - veneer composer machine - glue spreader - cold press machine - hot press machine -plywood edge cutting saw - sanding machine and so on
Why Choose Us
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
3) Provide technical exchanging
Our Certifications

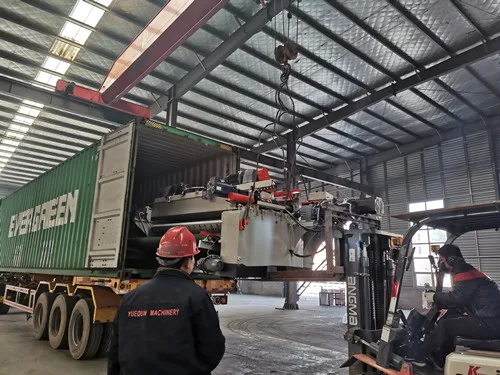

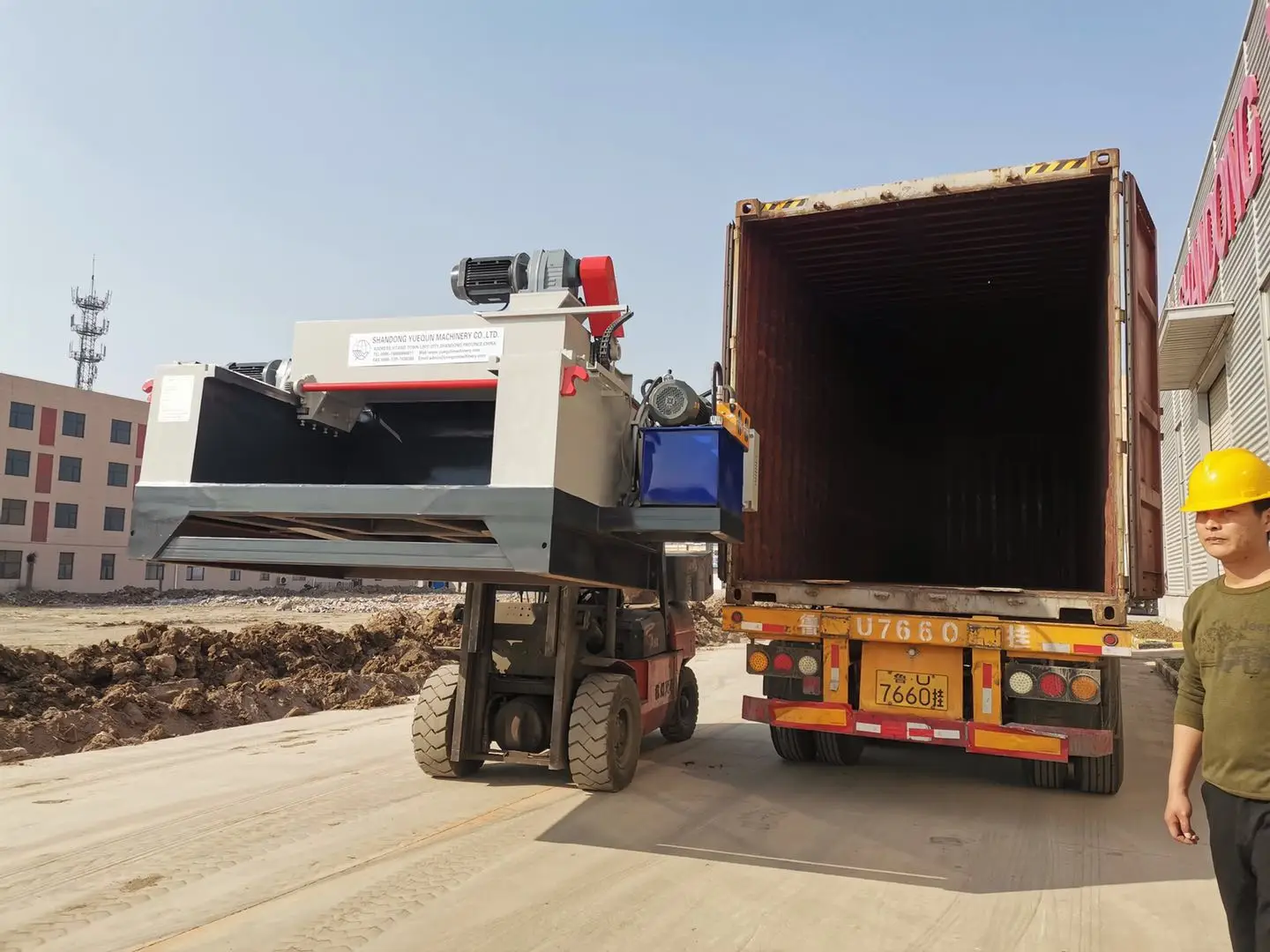

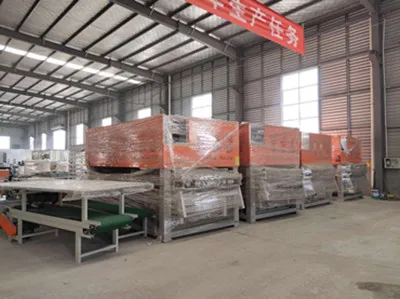

Packing&Delivery
