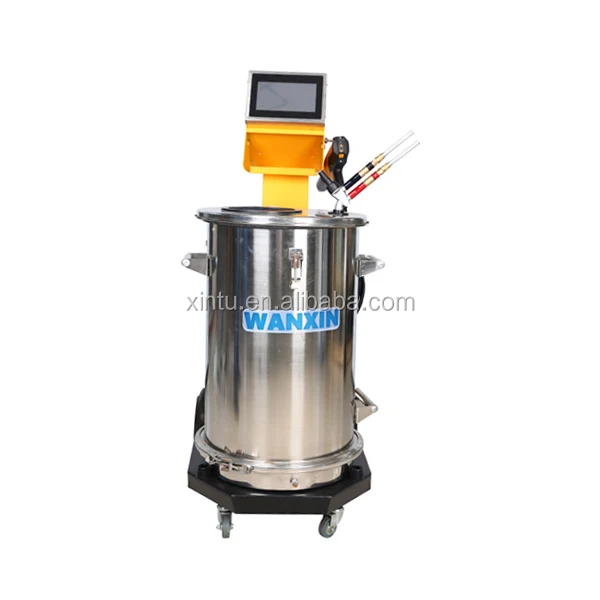

WX 901 Intelligent touch screen Electrostatic Powder Coating Machine

Product Overview

Description

 Intelligent  touch screen  Electrostatic Powder Coating Machine





1. BRIEF INTRODUCTION

   WX-901 is a fully touch-screen type intelligent powder coating system,the date reminder and the device locking function are added on the basis of the original intelligent machine.the dealer can set up start-up password,the seriel number and the lock function of each device on its own,so as to ensure that the dealer can recover the payment in time.







2. DESIGNED FEATURES

• three coating modes of flat coating,re-coating and corer ensure that all shapes of workpieces can be perfectly coated.

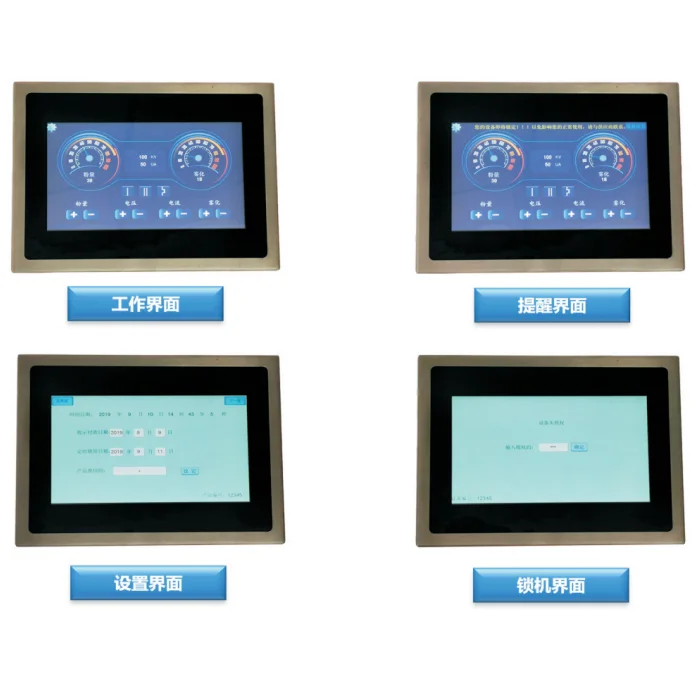

• touch screen panel,a clear interface makes it easy for user to operate.


• power-on password function to ensure that non-professionals cannot use this machine.


• high sensitivity and durablility.

  2.1 Coating mode: Normal flat coating for workpiece

  2.2 Recoating mode: Corner coating for better coating effect

  2.3 Corner mode:  For normal corner workpiece coating or recoating corner of workpiece

  2.4  Pulse mode:Save powder and enhance efficiency of coating effect







3. TECHNICAL PARAMETER

Model	WX-901
Frequency	50-60HZ
Power	40W
Protection Grade	IP-54
Output HV	0-100KV
Output Current	0~150μA
Valve control voltage	24V DC
Air-in Pressure requirement	0~0.6 Mpa
Air-out Pressure requirement	0~0.4 Mpa
Compressed Air Consumption	13.2 M³/hour (At the working condition of 0.4Mpa)
Electrostatic Charges Polarity	Negative
Capacity of powder hopper	55Liters

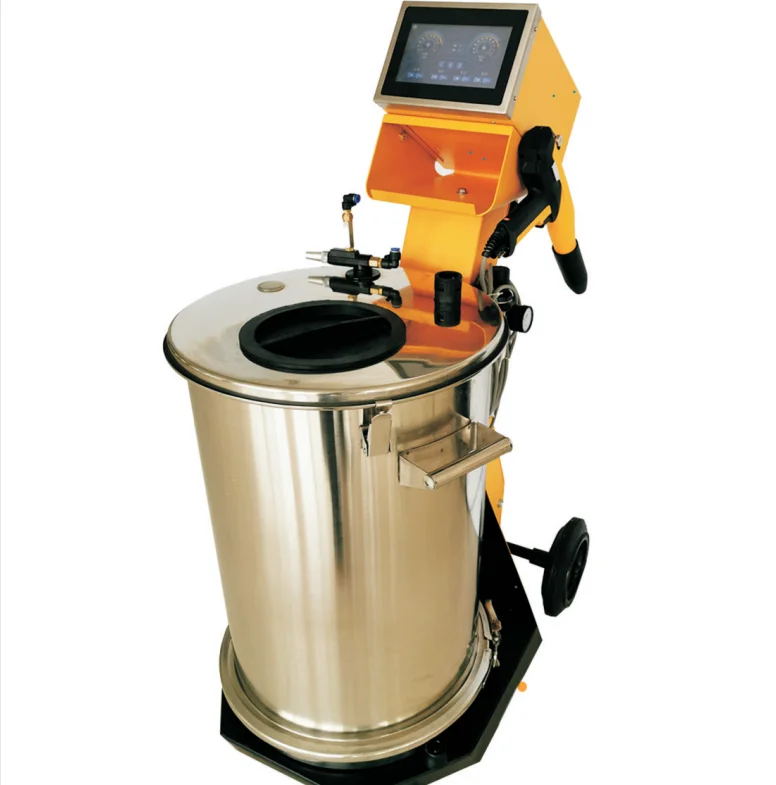

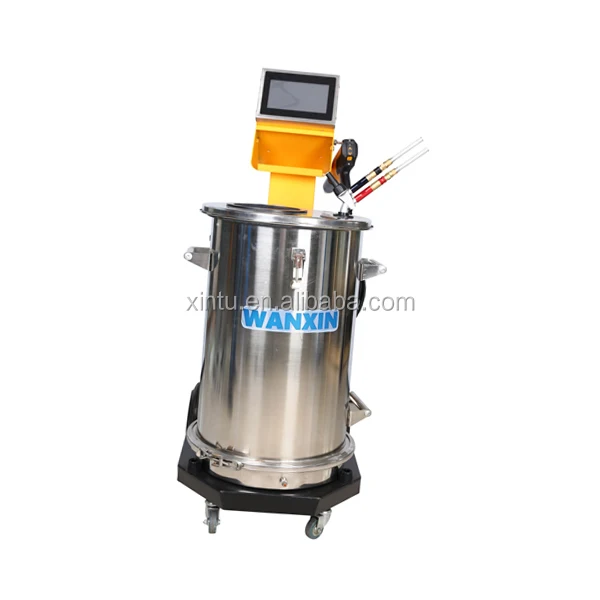

4. PICTURE SHOW







5. PACKING & DELIVERY

•  1 ×Control unit (Generator)


•  1 ×Powder spray gun


•  1 ×Oil-water separator


•  1 ×Air-out pressure adjustor


•  1 ×Movable Trolley


•  1 ×Stainless Steel powder feeding hopper (55L)


•  1 ×Power cable, Air transit hose & Accessories


•  1 × Operation Manual
