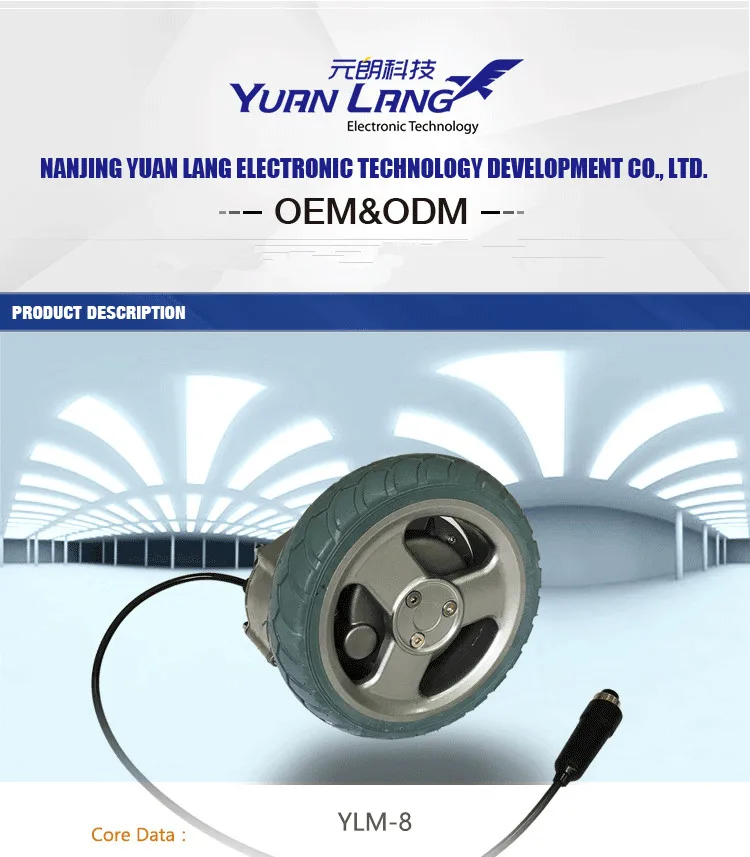

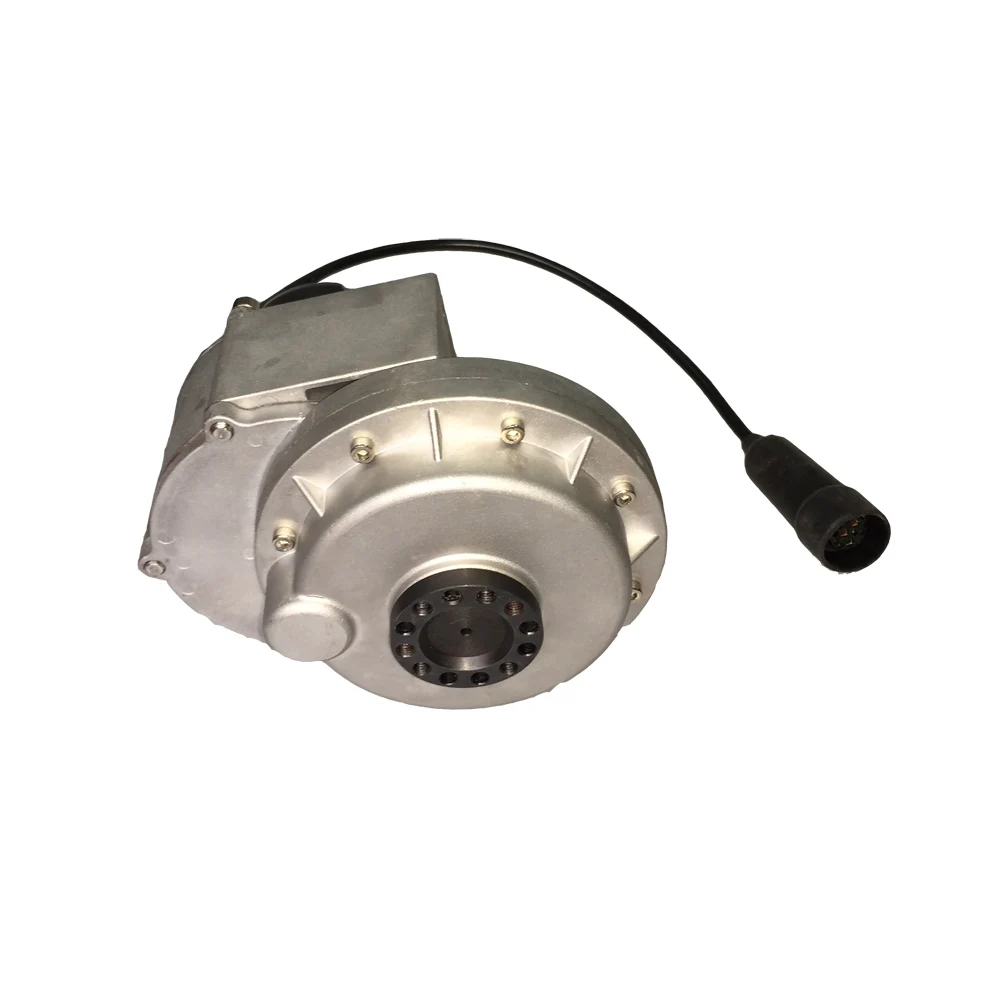

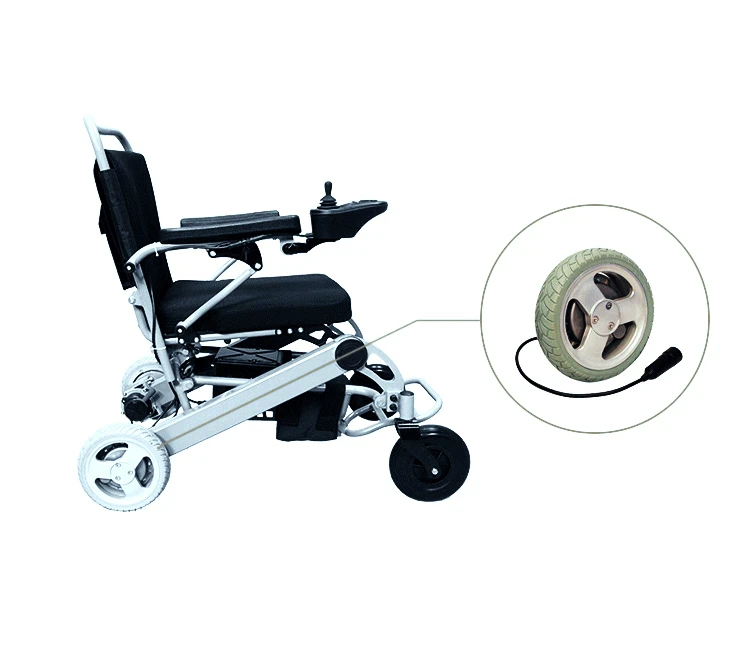

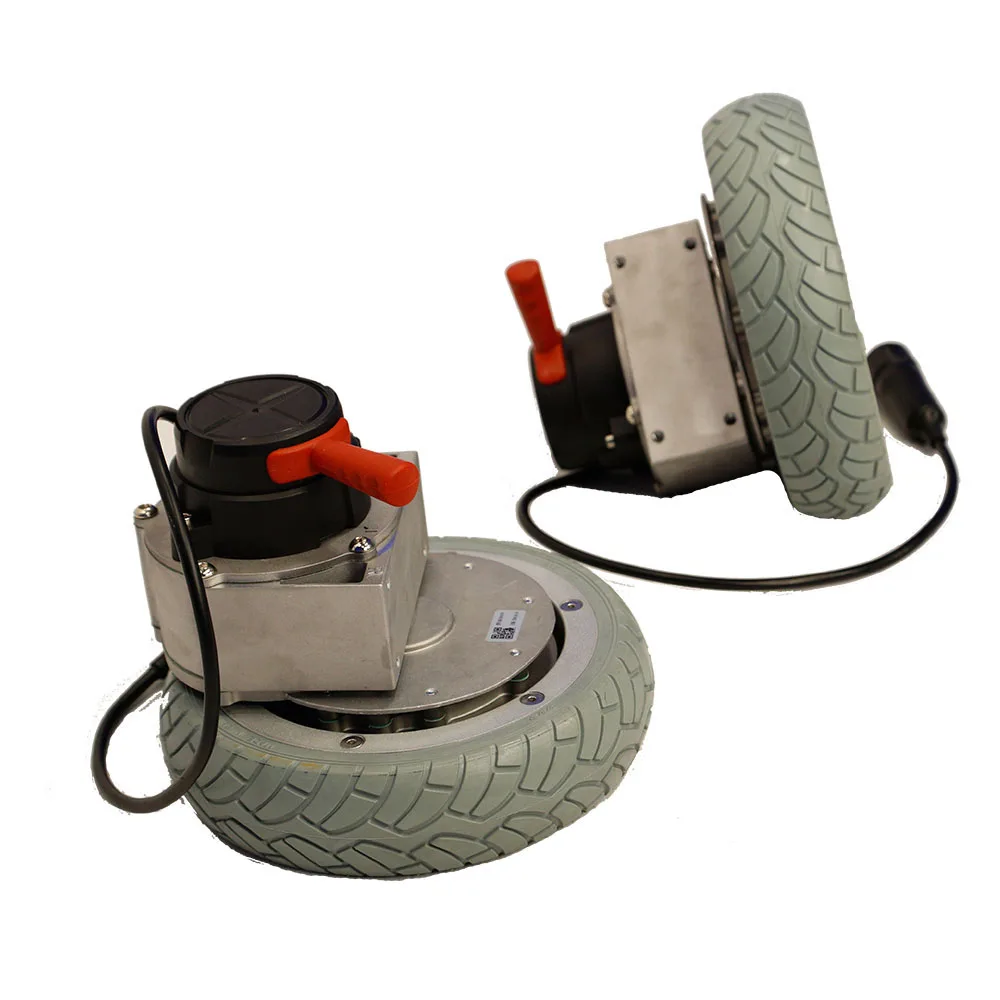

24V 250W high torque brushless hub dc motor wheelchair electric part
- Category: >>>
- Supplier: Nanjing Yuanlang Electronic Technology Development Co. Ltd.
Share on (62418098961):
Product Overview
Description
24V 250W high torque brushless hub dc motor wheelchair electric part
Voltage | 24V dc | Weight(KG/piece) | 4.26 |
Power | 250W | Operating temperature | -30-80℃ |
Structure | Gear drive | Brake type | Electromagnetic brake |
No-load speed | 3400rpm | Brake level | 3N.m 24Vdc |
Output speed | 150rpm | Reduction ratio | 23:1 |
Start current | ≤1.8A max | Noise Grade | ≤60db |
No-load current | ≤1.1A | Torque | 0-30N.m |
Efficiency | ≥85% | Insulation class | F |
Tyre type | 8 inch solid tire | Insulation voltage | 0-550Vac/1mA/1sec |
Main Features:

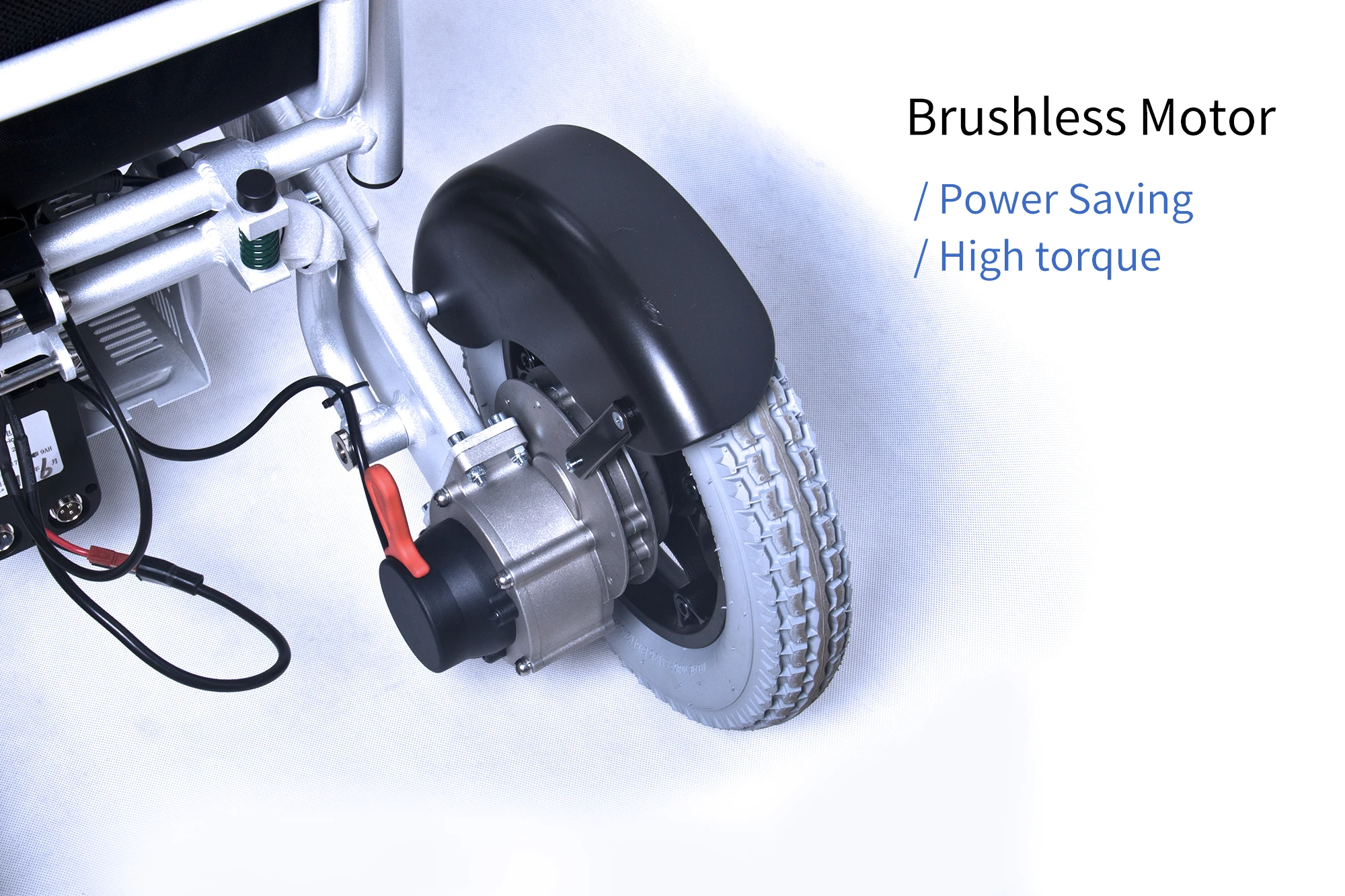

1. Brushless motor, high efficiency, long working lift span, free of maintenance
2. Single-stage gear power transmission, low loss and long driving range
3. Adaptive 8 /10 /12 inch tyre

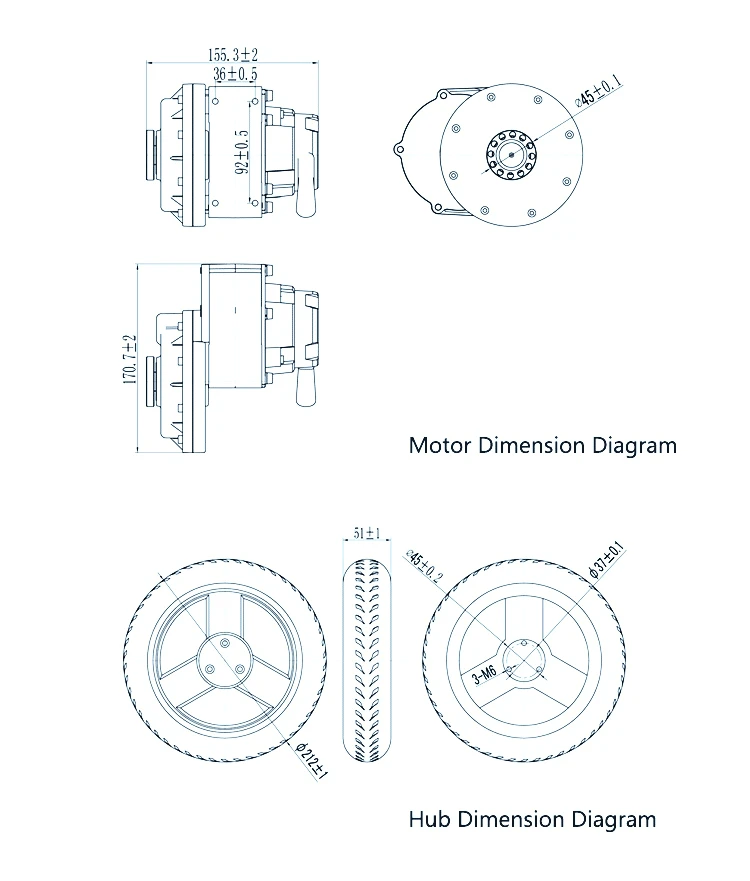

4. Rectangle plate installation, compatible with a variety of models
5. Speed and power of the motor at users option
Details Images
Recommend Products
Our Company
One-stop electric wheelchair manufacturer
Nanjing Yuanlang Electronic Technology Development Co., Ltd,founded in 2005, is a manufacturer of large-scale medical equipment. We have strong product development and manufacturing capabilities. Our main products are electric wheelchair series, electric wheelchair motor series, electric wheelchair joystick controller series products.We could provide customers with a full range of electric wheelchair solutions.
Our company have passed ISO9000 quality system certification and ISO13485:2003 quality system certification. Our products have passed the test of Chinese authorities and CE certification of the European Union.They are popular with customers in Europe, America and Southeast Asia. We are always ready to provide customized solutions for our customers.
We will continue to be the leader of China's rehabilitation equipment industry with the spirit of innovation, responsibility and dedication.
Our Service:
1. Online-sevice: well-trained and experience staffs to answer all your requires in 24 hours.
2. After-servive: Our product has passed strict inspection, if you find the parts can not work well, please show us the proof. We will give you satisfactory solution.
3. Distributership are offered for your unique design and some our current models.
4. Prodection of your sales area, ideas of design and all your private information.
Packing & Delivery
Packing Details:
1.Within 5 days after payment for electric wheelchair motor
2. Each electric wheelchair motor is packed in single package box, package size:660*340*210mm
Delivery Details:
1. Every Order can be shipped in 7-15 days
FAQ
Q: What are the payment items?
A: We accept payment by Trade Assurance Order in Alibaba, T/T, Paypal, L/C, Western Union.
Q: Can I get some samples?
A: Yes. Samples are available for testing first before bulk order.
Q: What's your warranty policy?
A: We provide 3 years free warranty for whelchairs, 1 year for motor and controller, 0.5 year for battery.
