18v 24v 36 cell Poly Solar Panels 20w 30w 40w 50w 60w 70w Polycrystalline for Home
- Category: >>>
- Supplier: Hefei Greensun Solar Energy Tech Co. Limited
Share on (62418099078):
Product Overview
Description
Product Description
Model | GSP10-36 | GSP20-36 | GSP30-36 | GSP40-36 | |||
Peak Power Watts(Pmax/W) | 10 | 20 | 30 | 40 | |||
Power Output Tolerance[W] | 0~+3% | ||||||
Maximum Power Voltage(Vmp)[V] | 18.1 | 18.1 | 18.4 | 18.1 | |||
Open Circuit Voltage(Voc) [V] | 22.1 | 22.1 | 22.6 | 22.1 | |||
Maximum Power Current(Imp) [A] | 0.55 | 1.10 | 1.63 | 2.21 | |||
Short Circuit Current(Isc) [A] | 0.60 | 1.19 | 1.76 | 2.39 | |||
Module Dimenstion(mm) | 496*190*25 | 496*350*25 | 656*350*25 | 450*665*30 | |||
Module Weight(kg) | 1.2 | 2.0 | 2.5 | 3.7 | |||
Model | GSP50-36 | GSP60-36 | GSP70-36 | GSP80-36 | |||
Peak Power Watts(Pmax/W) | 50 | 60 | 70 | 80 | |||
Power Output Tolerance[W] | 0~+3% | ||||||
Maximum Power Voltage(Vmp)[V] | 18.3 | 18.2 | 18.2 | 18.2 | |||
Open Circuit Voltage(Voc) [V] | 22.3 | 22.2 | 22.2 | 22.2 | |||
Maximum Power Current(Imp) [A] | 2.73 | 3.3 | 3.85 | 4.40 | |||
Short Circuit Current(Isc) [A] | 2.95 | 3.56 | 4.15 | 4.75 | |||
Module Dimenstion(mm) | 537*665*30 | 600*665*30 | 770*665*30 | 870*665*30 | |||
Module Weight(kg) | 4.3 | 5.2 | 5.7 | 6.5 | |||
Model | GSP100-36 | GSP120-36 | GSP130-36 | GSP135-36 |
Rated Maximum Power(Pmax) [W] | 100 | 120 | 130 | 135 |
Open Circuit Voltage(Voc) [V] | 22.4 | 22.2 | 22.4 | 22.6 |
Maximum Power Voltage(Vmp) [V] | 18.4 | 18.2 | 18.4 | 18.6 |
Short Circuit Current(Isc) [A] | 5.87 | 7.12 | 7.42 | 7.84 |
Maximum Power Current(Imp) [A] | 5.43 | 6.59 | 6.87 | 7.26 |
Module Dimension(mm) | 1000*665*35 | 1270*674*35 | 1270*674*35 | 1270*674*35 |
Module Weight(kg) | 7.5 | 9.5 | 9.5 | 9.5 |
Details Images
Solar Cells
156*156mm and Anti PID
High Efficiency PV Cells, more than 22% efficiency
Glass
Anti-reflective glass
Service life is as long as 25 years (30 years optional)
Frame
Conventional frame
Silver or black frames are optional
JunctIon box
IP67 protection level
Quality diode ensures module running safety

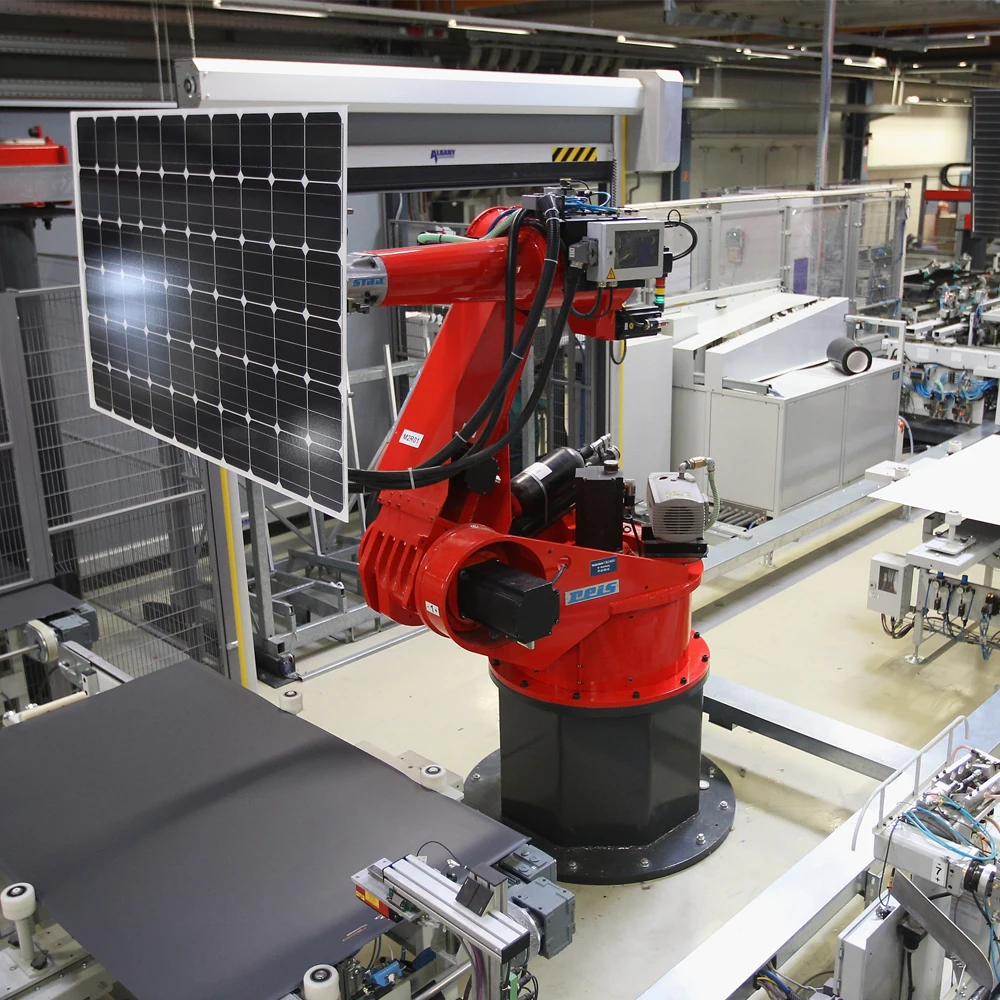

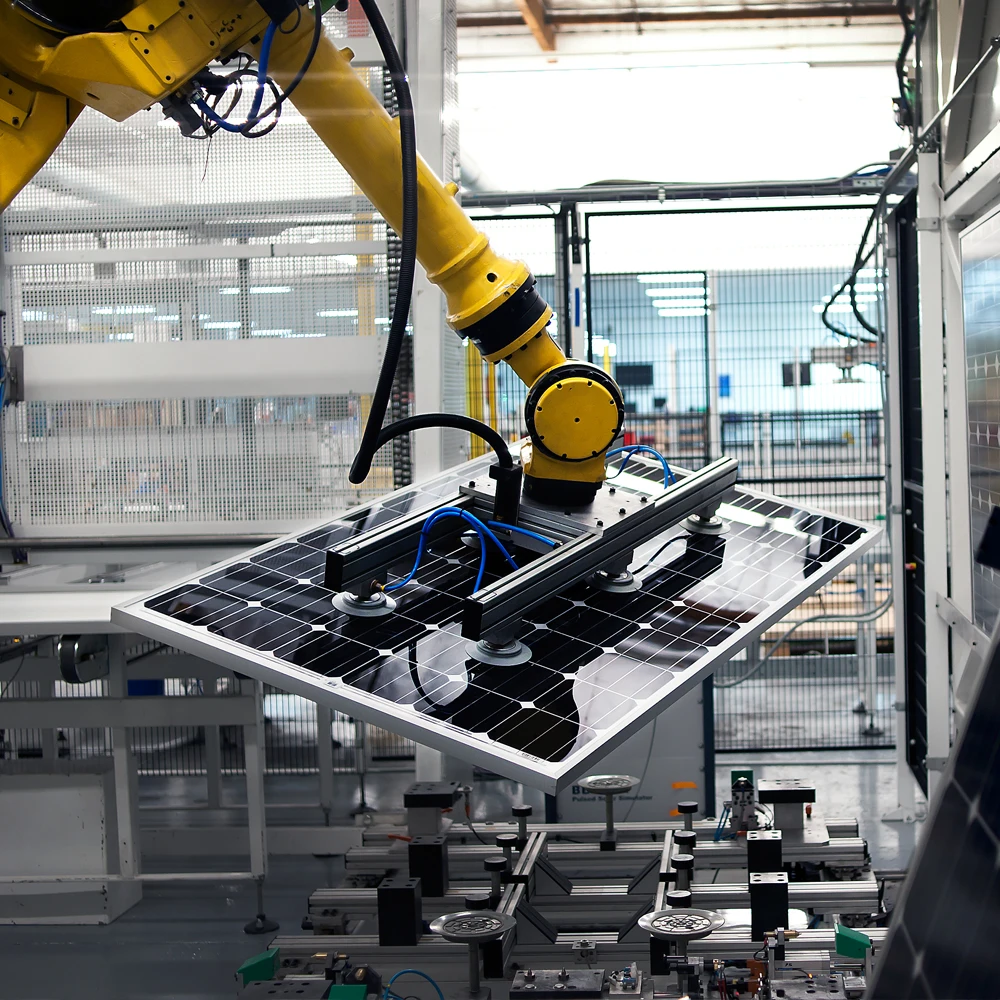

Factory
Solar Cell Sorting
Solar Cell Welding
Middle Test
Framing
Junction Box
Nameplate
Cleanout
Solidification
Final Test
♦ Founded in 2004 , 500MW solar panel production capacity , millions of battery, charge controller , inverter and pump production capacity
♦ Three factories , solar panel factory , battery factory , and pump factory
♦ Products are exported to more than 150 countries
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
♦ Professional after sale service .

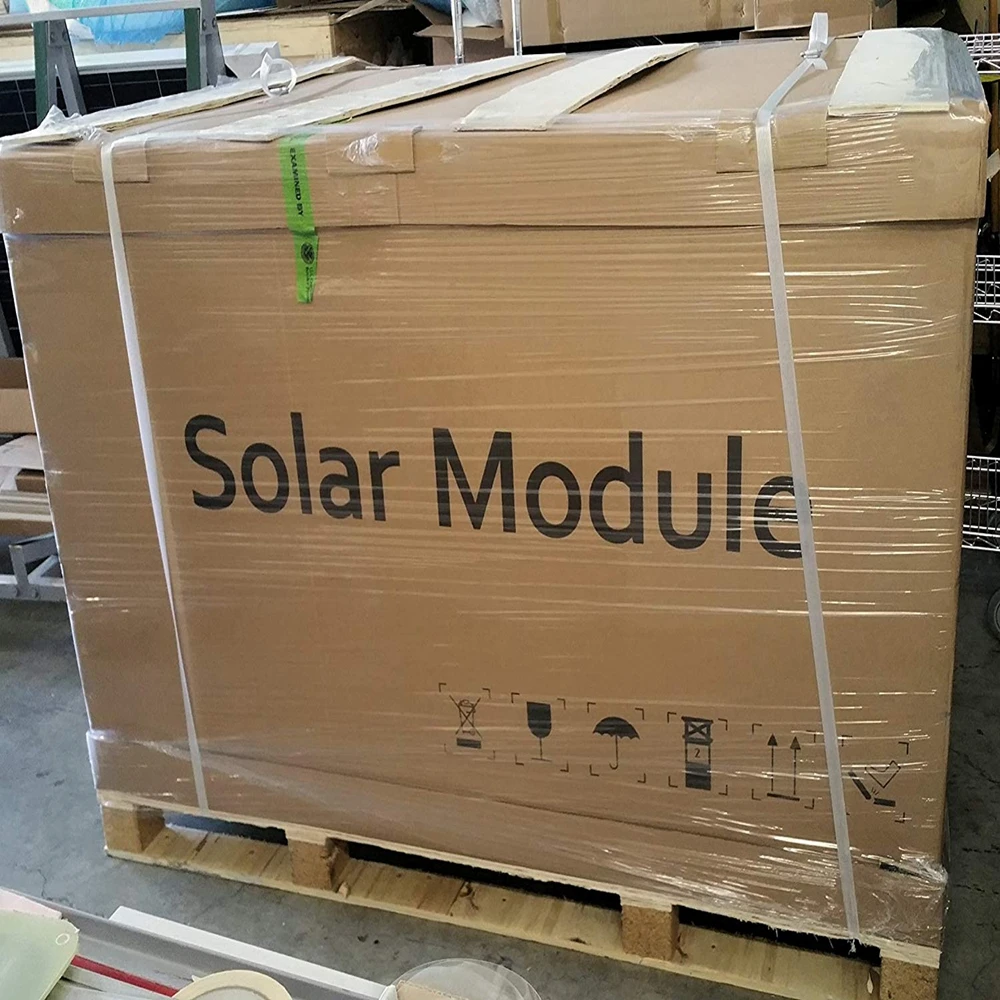

Package & Delivery
By Express | TNT, UPS, DHL, FEDEX , Door to Door Service | ||||
By Air | Any Cargo Airport in China | ||||
By Sea | Any available in China, such as Shanghai and Ningbo | ||||

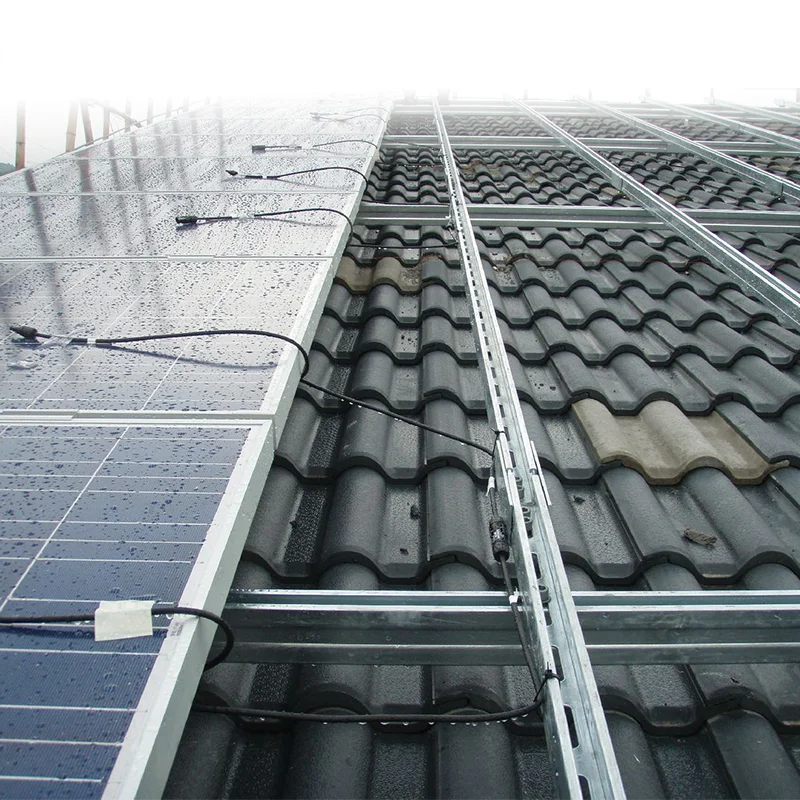

Project
Greensun 170Watt to 190Watt Monocrystalline pv module is very popular in Application of Off-grid Solar
System, Solar Street Light and Travel Trailer.
