0 2000um Germany Fischer Dualscope MPO Coating Thickness Meter For Galvanized
- Category: >>>
- Supplier: Shantou Wingtai Packing Equipment Co. Ltd.
Share on (62418156503):
Product Overview
Description
Please contact me for more product information.
Product Description
Germany Fischer Coating Thickness Gauge
Origin: Germany
Brand: Fischer
Brand: Fischer
Model: Dualscope MPO
Simple introduction:
Simple introduction:
MPO/MP0 coatings thickness gauge: DUALSCOPE ® MPO coating thickness gauge, also call : D - MPO amphibious coating thickness gauge, DUALSCOPE MP0 coating thickness gauge, Helmut - Fischer MP0 film thickness instrument, double screen, magnetic and eddy current dual-purpose Germany Fischer coating thickness gauge Large range: 0 ~ 2000um.High accuracy, resolution: 0.00um;Low power: 60 seconds automatic shutdown, measuring automatic startup value and other functions.
MPO/MP0 features:
The German MPO coating thickness gauge adopts double-function built-in probe, No need to replace the probe,which can automatically identify the iron base or non-ferrous matrix material ,and choose the corresponding measurement method to measure.
Accord with human body engineering design dual display structurecan,can read the measurement data in any measurement position, 999 storage values, average, standard deviation, large value, small value.
Use mobile menu to quickly select functions
The instrument can set upper and lower limits, and the instrument will emit a corresponding sound or Scintillation indicator when measurement results exceed or conform to the upper and lower limit values .
Usually German MPO thickness gauges can measure without calibration.60 seconds automatic shutdown, when measure auto power on show value fuction
Accord with human body engineering design dual display structurecan,can read the measurement data in any measurement position, 999 storage values, average, standard deviation, large value, small value.
Use mobile menu to quickly select functions
The instrument can set upper and lower limits, and the instrument will emit a corresponding sound or Scintillation indicator when measurement results exceed or conform to the upper and lower limit values .
Usually German MPO thickness gauges can measure without calibration.60 seconds automatic shutdown, when measure auto power on show value fuction
MPO/MP0 parameters:
Measuring range: 0 ~ 2000 um.Resolution: 0.00 um
Precision: ±1um (0 ~ 50um);±2% (50um ~ 1000um);±3%(1000um ~ 2000 um).
Repeatability: ± 0.5um (0 ~ 100um);± 0.5% (> 100 mu m).
Small measurement curvature diameter: within the range of precision, Fe φ 35mm,NFe φ50mm;
(in allowable error < 10%, Fe is φ 10mm,NFe is φ2mm)
Small measurement area diameter: φ 4mm (in allowable error < 10% is φ2mm).
Thickness of small substrate: Fe 0.2mm (error < 10%); NFe 0.09 mm (error < 10%).
Weight: 60g (excluding battery).
Dimensions: 64mm x30mx 85mm.

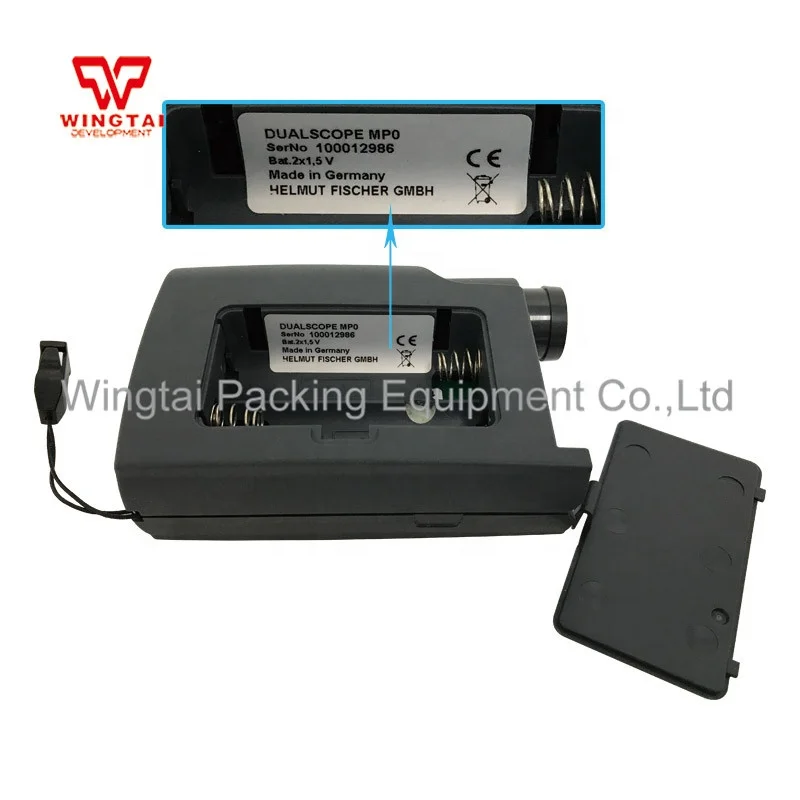

Source: two pcs 5AA batteries.
Precision: ±1um (0 ~ 50um);±2% (50um ~ 1000um);±3%(1000um ~ 2000 um).
Repeatability: ± 0.5um (0 ~ 100um);± 0.5% (> 100 mu m).
Small measurement curvature diameter: within the range of precision, Fe φ 35mm,NFe φ50mm;
(in allowable error < 10%, Fe is φ 10mm,NFe is φ2mm)
Small measurement area diameter: φ 4mm (in allowable error < 10% is φ2mm).
Thickness of small substrate: Fe 0.2mm (error < 10%); NFe 0.09 mm (error < 10%).
Weight: 60g (excluding battery).
Dimensions: 64mm x30mx 85mm.
Source: two pcs 5AA batteries.
MPO/MP0 standard configuration:

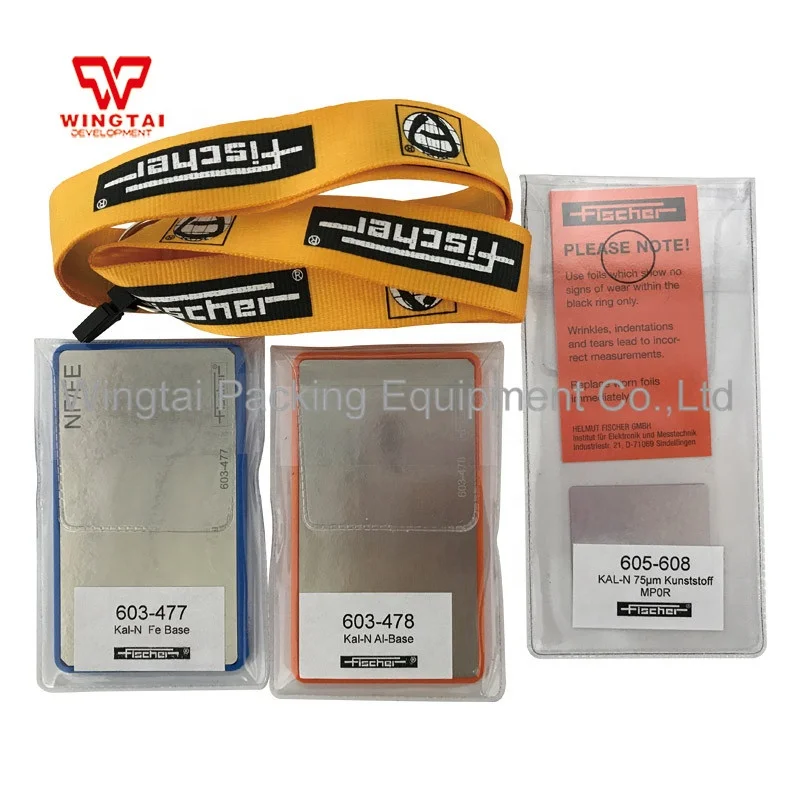

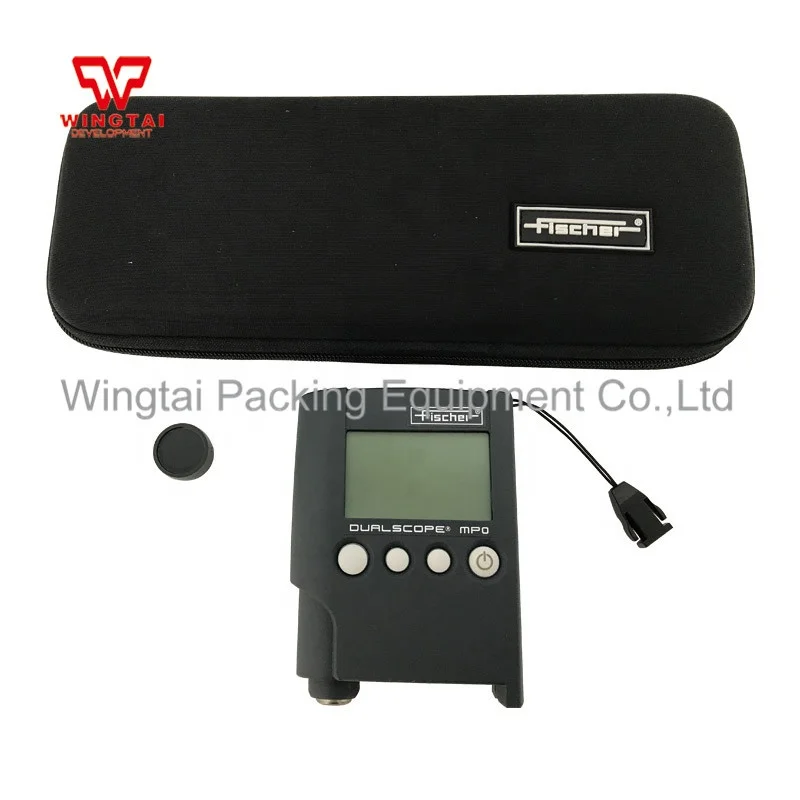

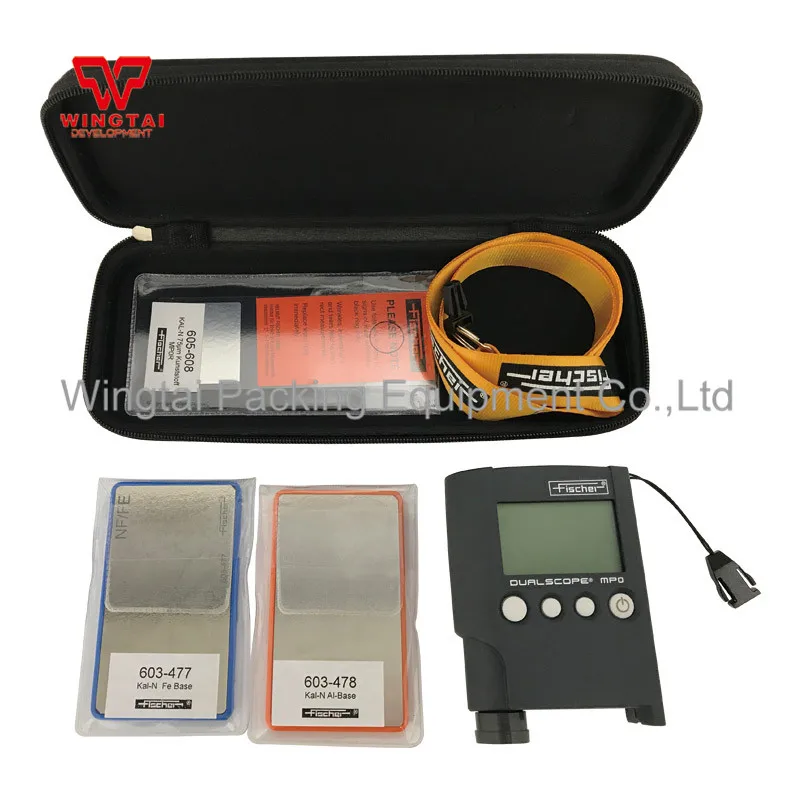

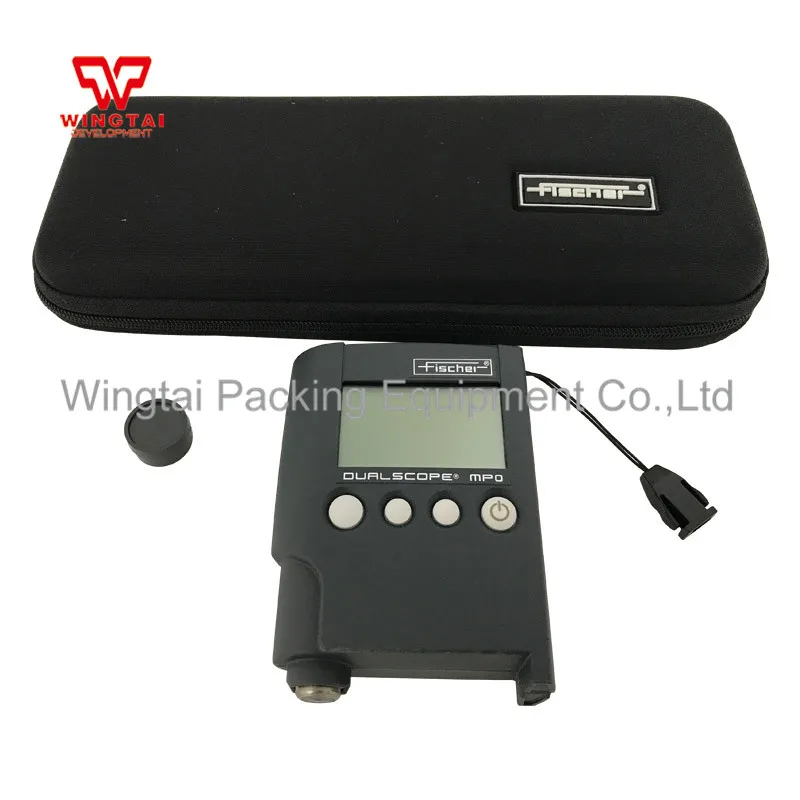

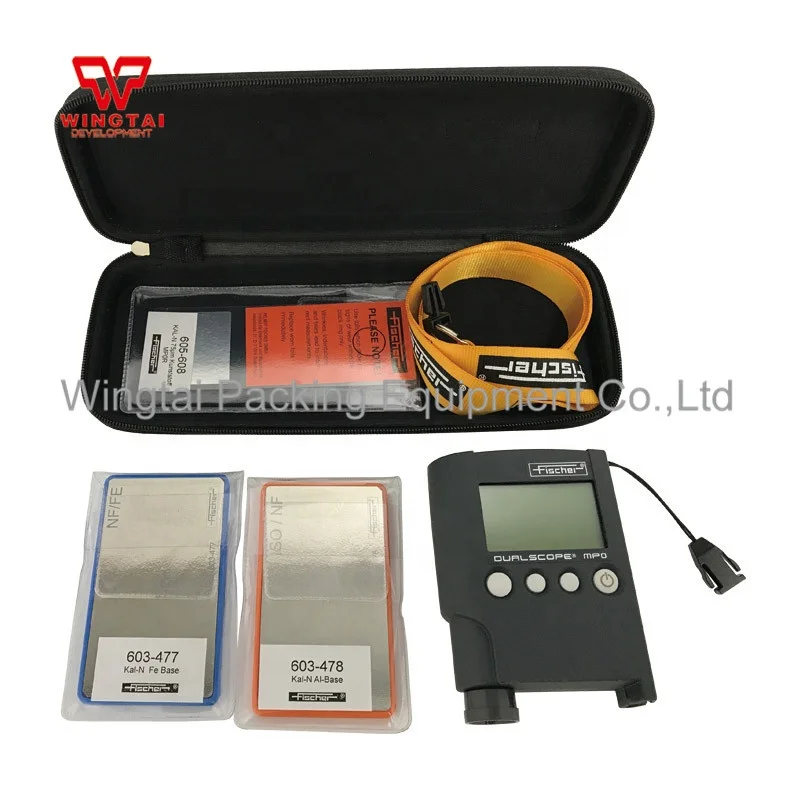

1 piece main engine, each piece of iron-based and aluminium base, a set of calibration film,portable instrument case,chaining,2pcs AA batteries,operation manual,factory certificate.
