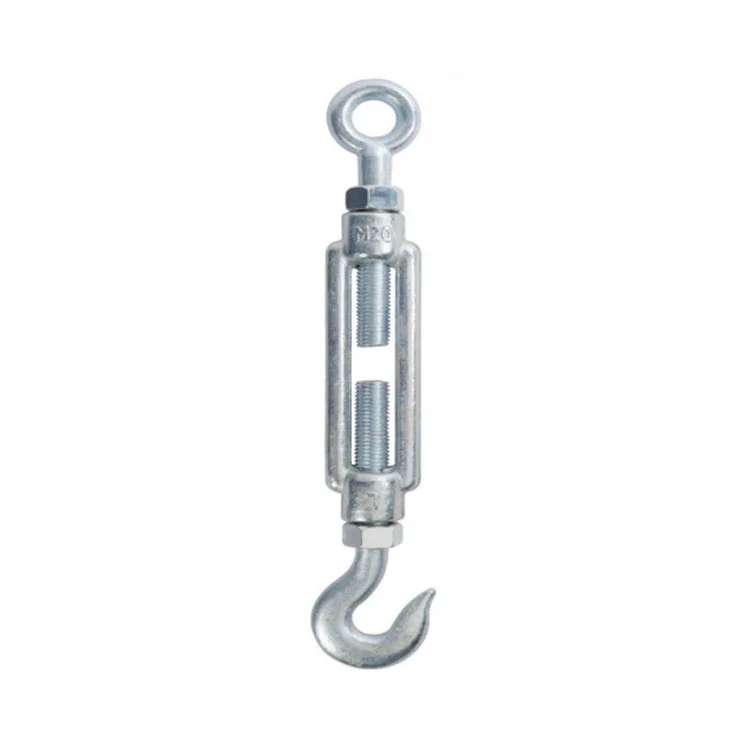

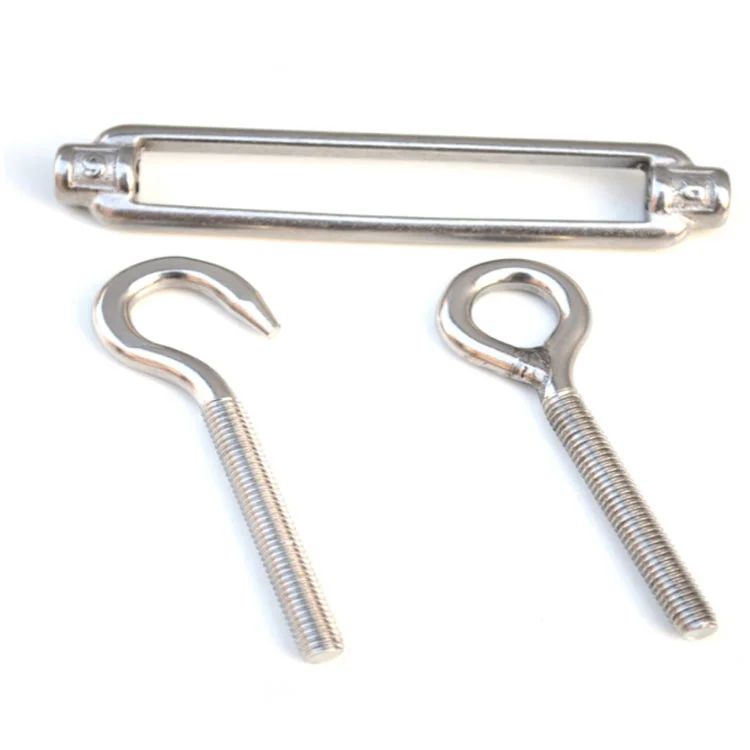

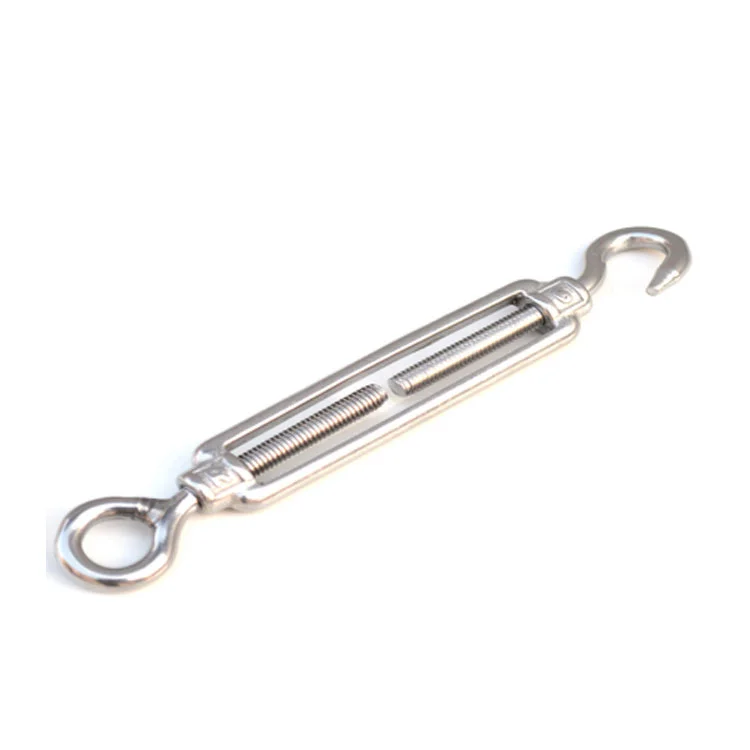

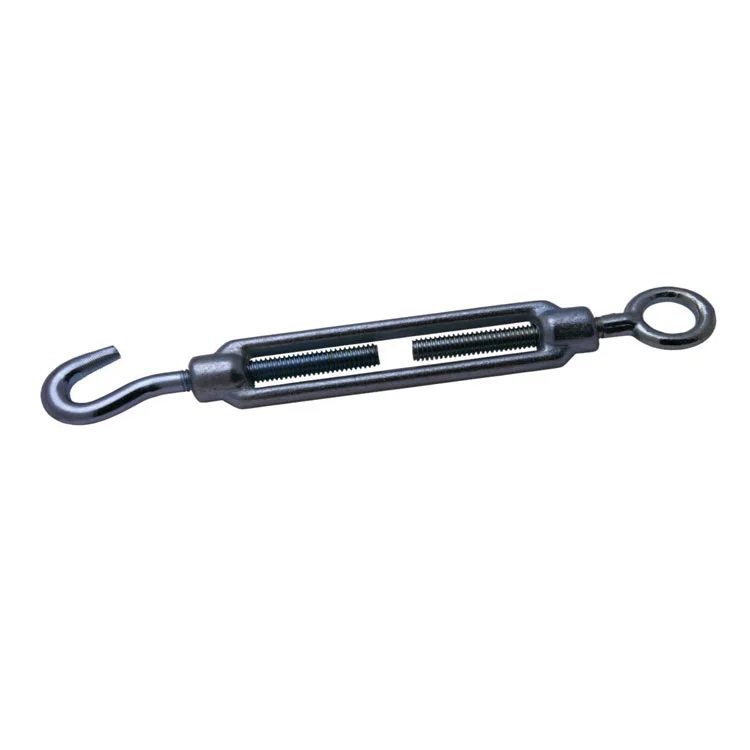

M6 M56 Standard Drop Forged Stainless Steel Din1480 Turnbuckles With Hook And Eye

Product Overview

Description

  Jiaxing Rock Industry Imp & Exp Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

Items	Description		Picture
Product name	Standard Drop Forged Stainless Steeldin1480 turnbuckles With Hook And Eye
Material	carbon steel,STAINLESS STEEL
Size	M6-M56
Standard	Din/ISO/ASME/JIS/BS

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service. Click here for more information!

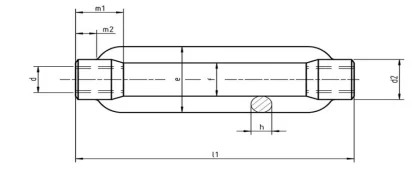

thread	M6	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56
l1	110	110	125	125	170	200	255	255	295	330	355	355
m1	12	15	18	21	27	34	39	45	55	63	78	78
m2	6	8	9	11	14	17	20	23	28	32	39	39
e	19	23	30	34	42	52	60	74	86	104	135	135
f	9	11	14	16	20	24	28	34	40	50	65	65
h	6	8	9	11	14	17	20	23	28	32	40	40
d2	12	15	18	21	27	34	39	45	55	63	80	80

Process forging, strict control
High quality raw materials processing
High plasticity good fatigue resistance
