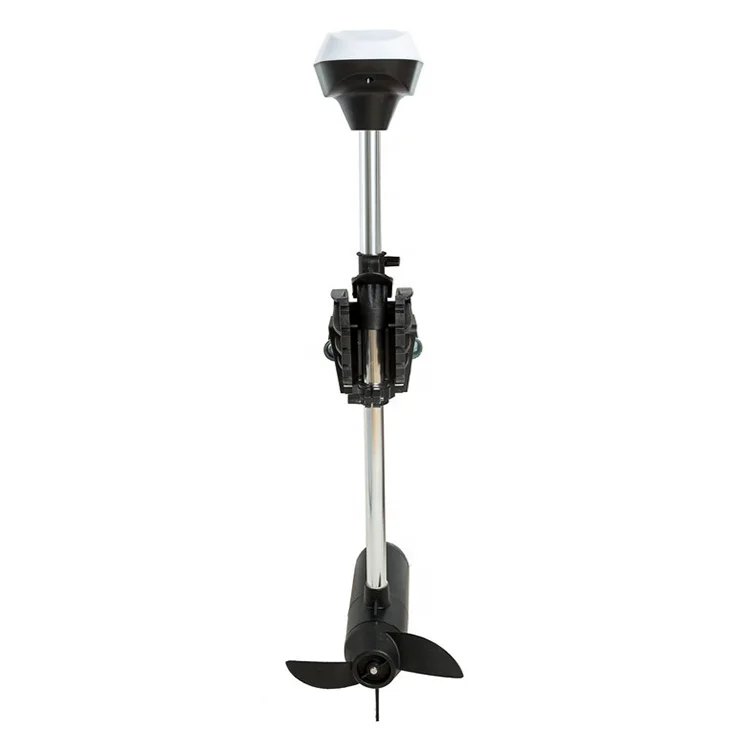

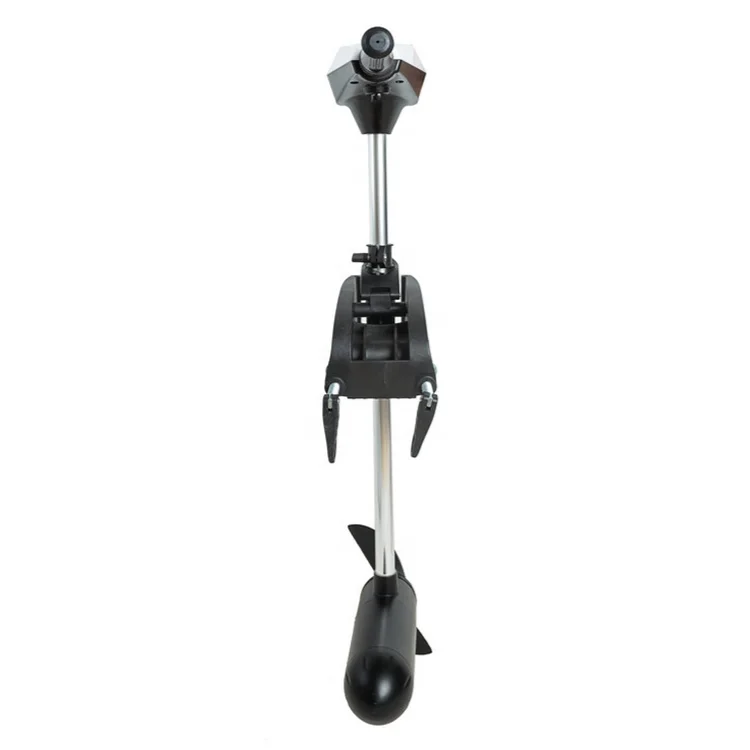

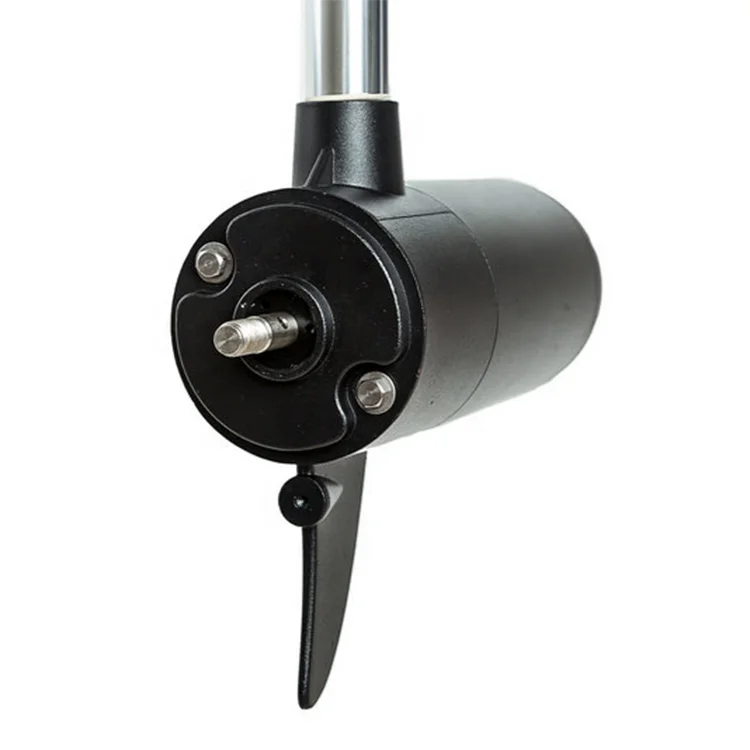

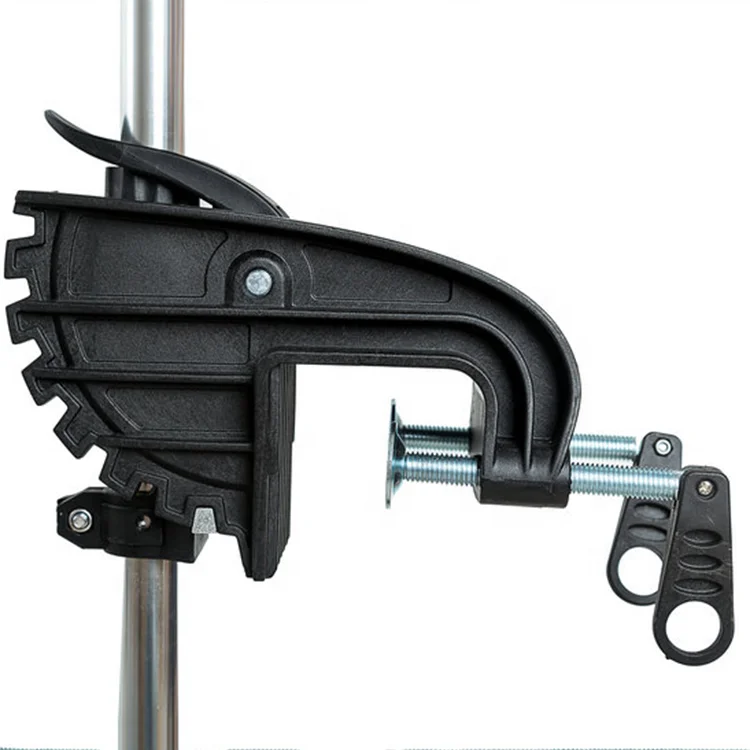

12V Performance Boat motor outboard Engines brush dc motor
- Category: >>>
- Supplier: Ningbo Beilun Yinghui Industrial Parts Co. Limited
Share on (62418201701):
Product Overview
Description
Type | V | A | Power | Motor efficiency | Motor Thrust | Speed regulation | kg | Shaft | Apply Boat | |||||||||

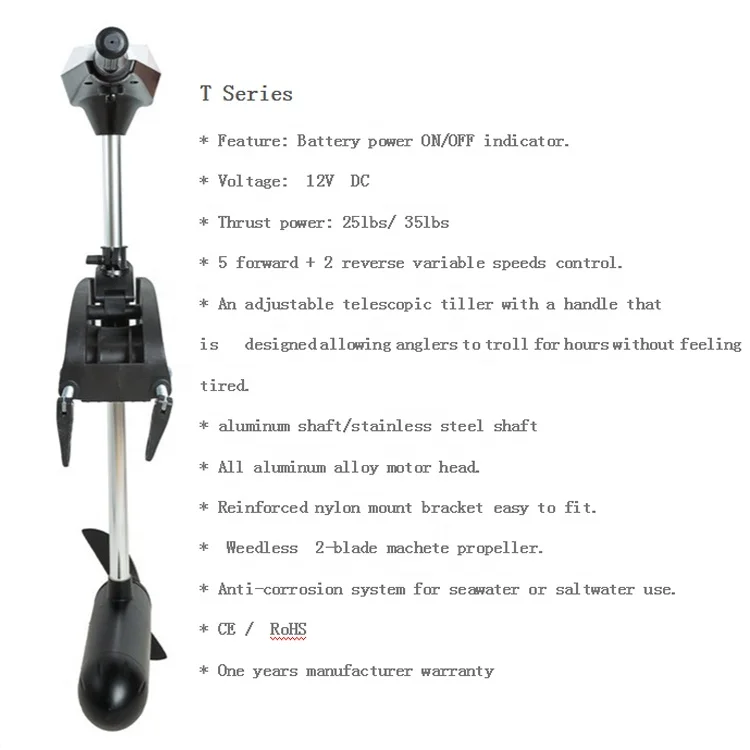

T25 | 12V | 25A | 300W | ＞65% | 25 LBS | 5 FWD 3 REV | 6.2 | 63cm | Small boat | |||||||||
T35 | 12V | 35A | 400W | ＞65% | 35 LBS | 5 FWD 3 REV | 6.4 | 63cm | Small boat | |||||||||
Brush 45 | 12V | 45A | 520W | ＞65% | 45 LBS | 5 FWD 3 REV | 10.5 | 81/91 | ＜3M | |||||||||
Brush 55 | 12V | 55A | 660W | ＞65% | 55 LBS | 5 FWD 3 REV | 10.5 | 81/91 | ＜3.6M | |||||||||
Brush 65 | 12V | 65A | 750W | ＞65% | 65 LBS | 5 FWD 3 REV | 11.5 | 81/91 | ＜3.6M | |||||||||
P Series Are Brushless Motors. | ||||||||||||||||||
P150 | 12V | 65A | 780W | ＞80% | 70 LBS | CVT | 10 | 81cm | ＜4M | |||||||||
P250 | 12V | 40A | 480W | ＞85% | 56 LBS | CVT | 11 | 81cm | ＜3.6M | |||||||||
24V | 53A | 1275W | ＞85% | 105 LBS | CVT | 11 | 81cm | ＜5M | ||||||||||
P200 | 12V | 80A | 960W | ＞80% | 85 LBS 4HP | CVT | 11.5 | 91cm | ＜4M | |||||||||
P260 | 48V | 30A | 1400W | ＞80% | 110 LBS 6HP | CVT | 10 | 81cm | ＜5M | |||||||||
P300 | 24V | 80A | 1920W | ＞80% | 135 LBS 9HP | CVT | 12 | 91cm | ＜6M | |||||||||
P350 | 48V | 45A | 2150W | ＞80% | 150 LBS 10HP | CVT | 13 | 91cm | ＜6M | |||||||||
The Advantages Of Brushless Motor( Compared With Brush Motor)
Longer Life Time
Electricity Saving ≥ 30%
Lower Noise
Stronger Power (Compared With The Same Thrust Motor Type)

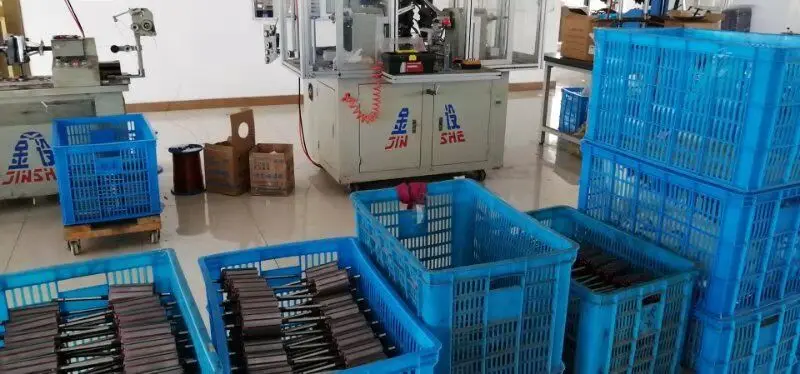

We ourselves design, manufacture and sell different trolling motors,The main products are classified into 2 series: brush electric engine and brushless electric engine. We hope to be your reliable partner in China.
Our 12v,24v,and 48v brushless motor, infinitely variable speed. Intelligent protection.When the propeller blade is wound to water plant, fishing net, hit stone, hard object, block operation, or when the voltage is too low, the motor program will start
automatic protection, motor stop operation, protect the motor. One machine with two usages. Economic and movement. One key to switch, LED digital display,all as you wish.
automatic protection, motor stop operation, protect the motor. One machine with two usages. Economic and movement. One key to switch, LED digital display,all as you wish.
