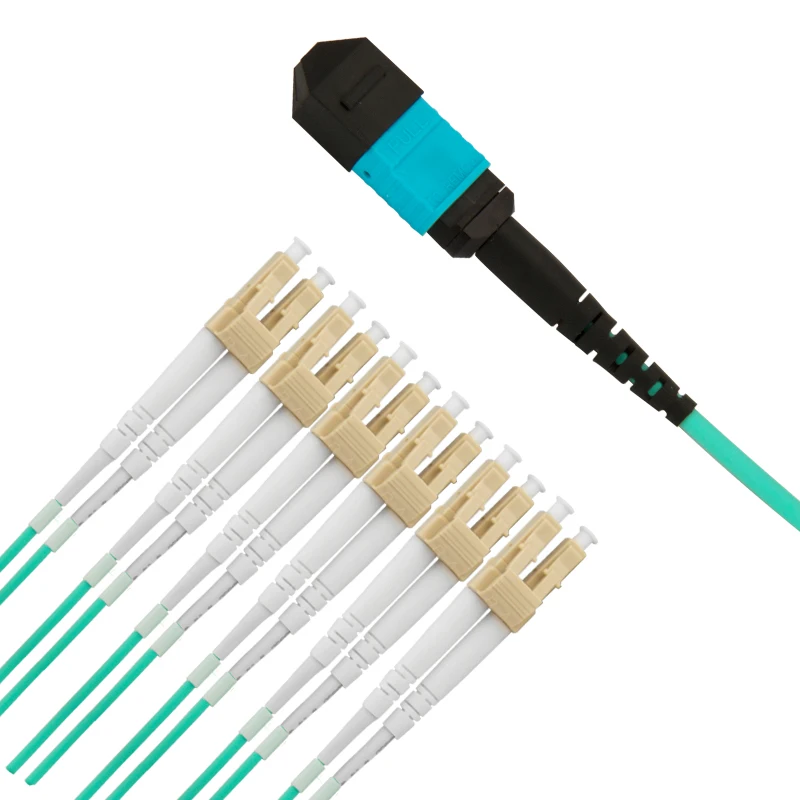

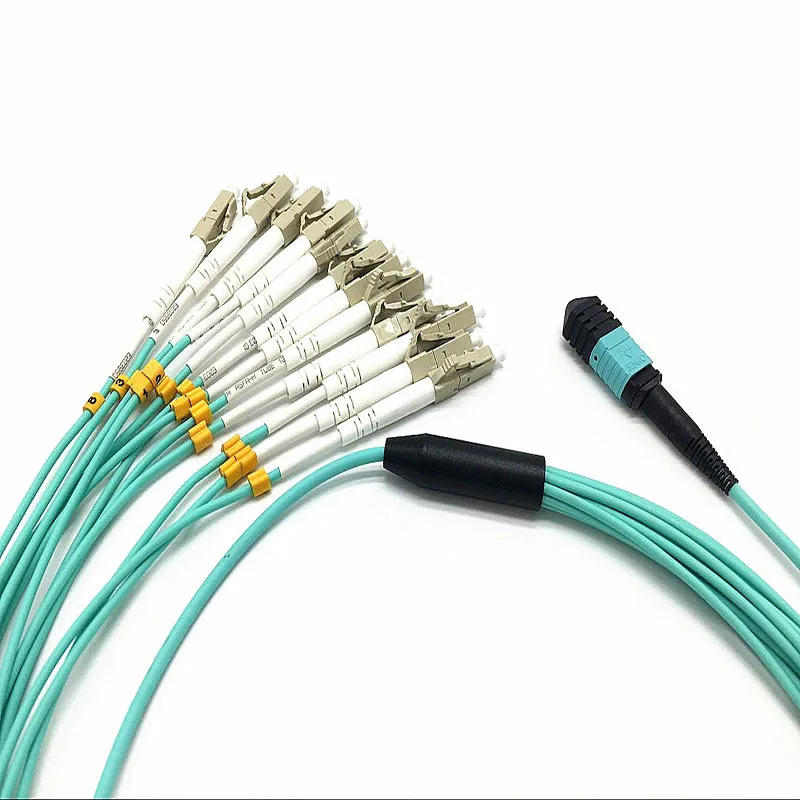

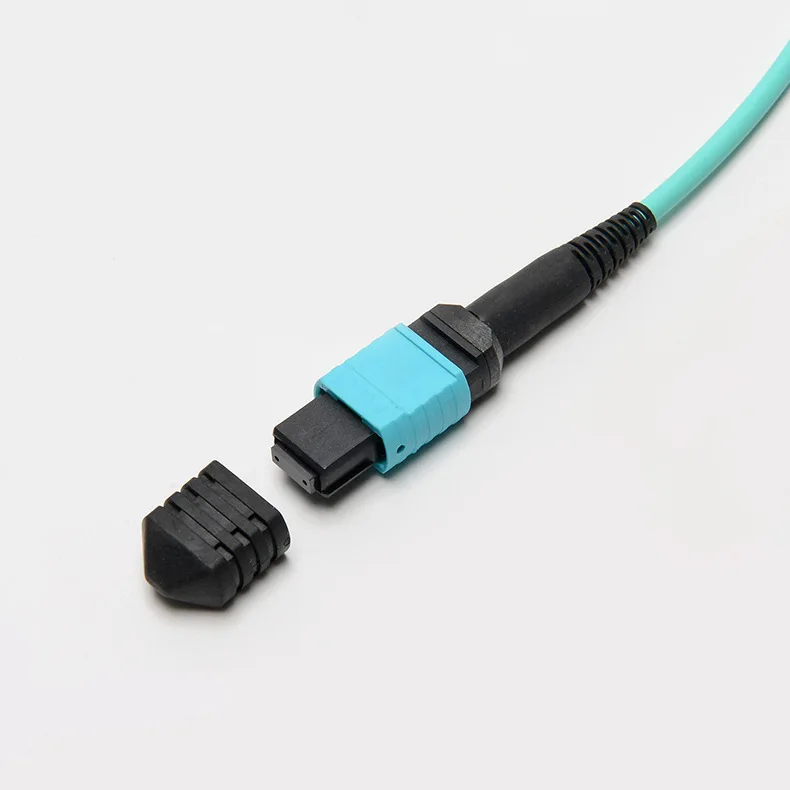

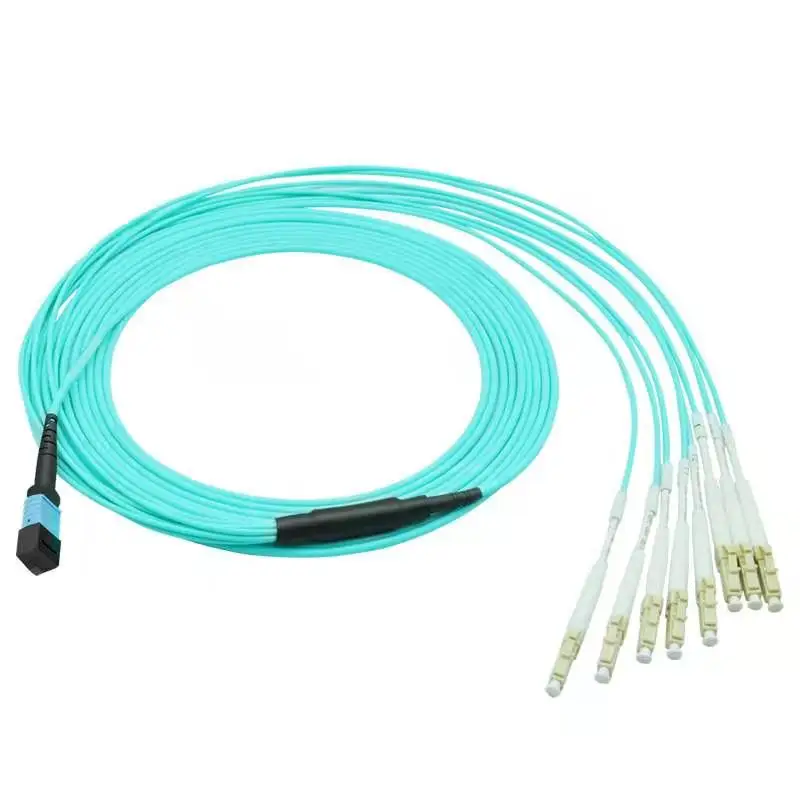

- 12 to 144 core cable connection for option ; - Adopts 4, 8, 12 or 24 core MPO connector. - Optional multimode OM3, OM4, single mode G 652D, G 657A2 fiber requirement ; - Adopts mini round type cable with smaller trunk cable and smaller bending radius ; - Use dustproof, compressive strength, tensile strength protective sleeve at both ends.
Specifications
MTP/MPO Connector
Fiber Mode
Single Mode
Multimode
Insertion Loss (dB)
≤0.70 (Standard)
≤0.70 (Standard)
≤0.35
≤0.35
Durability (dB)
≤0.2 (500 times mating)
Tensile Strength (kgf)
10
Working Temperature (℃)
-40~ +85
LC/SC/FC/ST/Connector
Fiber Mode
Single Mode
Multimode
Insertion Loss (dB)
≤0.30
≤0.30
Durability (dB)
≤0.2 500 times mating
Tensile Strength (kgf)
10
Working Temperature (℃)
-40~ +85
Company Information
Our Service : 1. Advanced production and testing equipments; 2. Professional manufacturer, 100% tested; 3. Full compliance with ISO 9001:2008 quality management system and RoHS ; 4. Our company has experienced professiona R&D and Sales team 5. Provide reliable solutions and satisfactory services 6.Warmly services with careful attentions.
Work shop
Exhibition
FAQ
Q: What is the payment way for the order? A: L/C,T/T,Western Union,MoneyGram payments, Online Bank Payment for optional. Q:How about your after service? A: We will send you the component for free to replace the demaged one during the warranty time. Q: Can i have my own customized products? A: Yes,OEM and ODM order are very welcomed. Q:How about the warranty? A: 3 years Q: Why choose us? A: Our ZhongKe Photoeletric Co., LTD. has more than 10 years experience of manufacturing of optical communication units and doing network system integration system, ,we have our own production factory and stable raw material suppliers of many years cooperation. So our products have very stable quality and competitive price.
