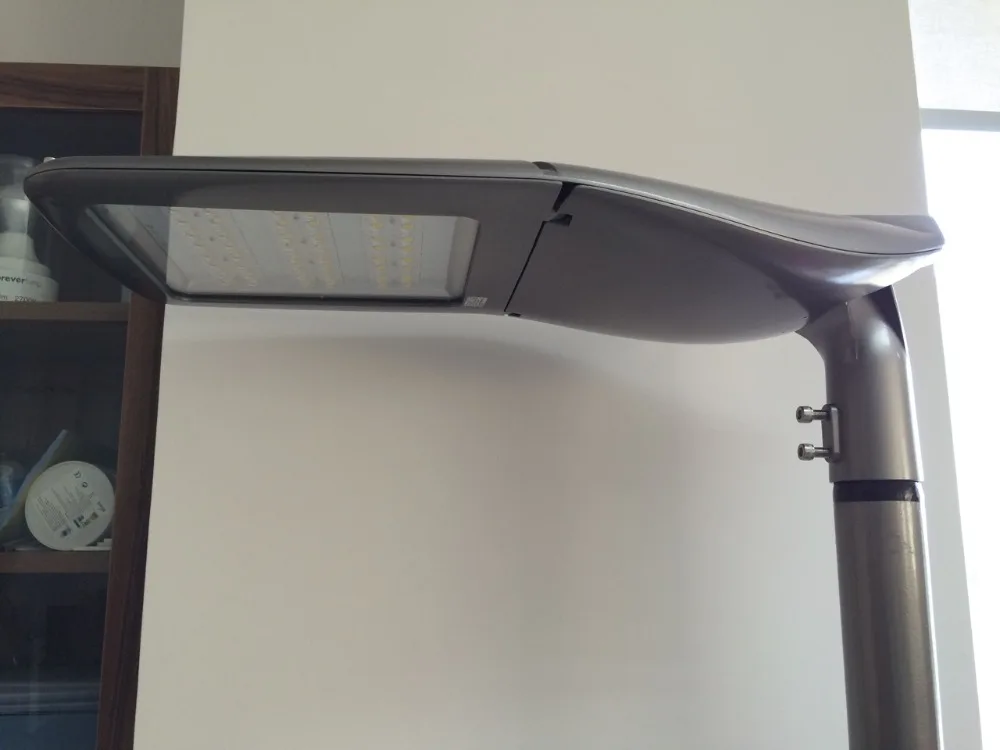

1.The luminaire is shaped as original fluid sculpture,designed to lift up by snapping,and in-built quick plug connector.The luminaire enables to switch off automatically after removing the lid,which keeps the installation and maintenance secure and convenient.
2.The housing is high strength die-casting aluminum,the appearance with electrostatic spraying;diffuser is high-performance tempered glass which owns 94% light transmittance.

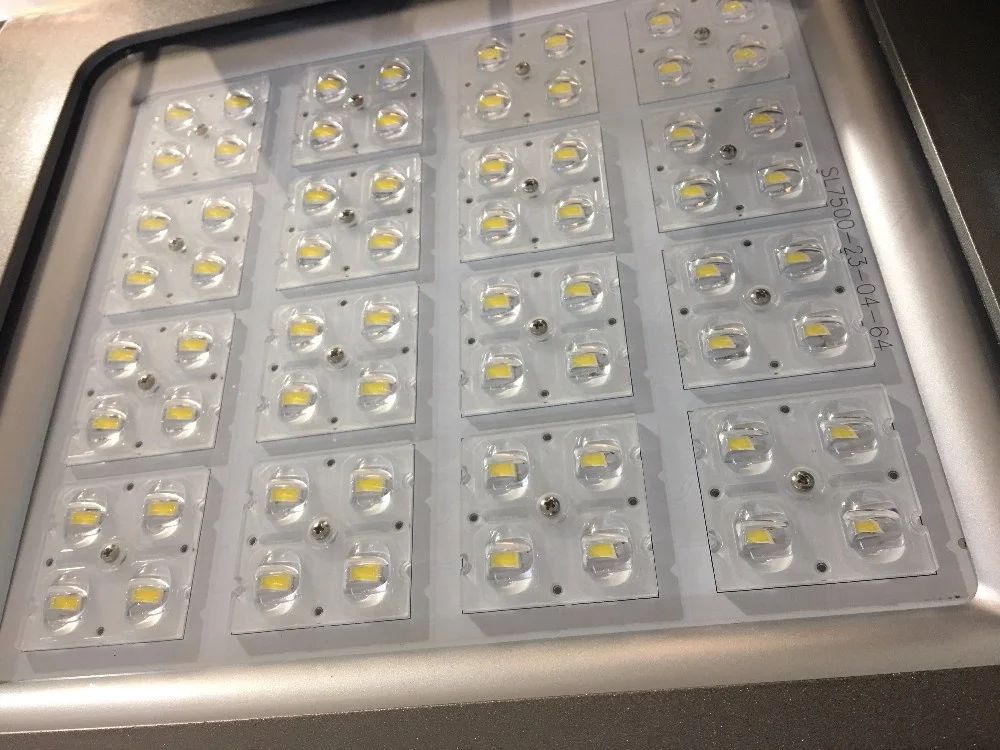

3.Adopt American CREE original led light source,provide types of optional beam angle,control the light distribution rationally,ensure street surface with ideal brightness and uniformity.
4.The driver in-built which owns power efficicency as high as 93% is with the input voltage 100-305V AC and 6KV lightning stroke resistance,in-built active power factor with correction surpasses 0.95;Construct PWM constant current technology internal with the performance of high efficiency,low heat and superior precision of constant current.
5.Support the installation of lightning protection module which can prevent the luminaire from attack of surge as high as 20KA
6.Two installation no need to change any accessory
Product Code
SL7502-M110
SL7502-M80
SL7502-C80
SL7502-M110HE
SL7502-M80HE
Led Qty
36pcs
24pcs
36pcs
54pcs
42pcs
Led Brand
LUMILEDS
LUMILEDS
CREE
LUMILEDS
LUMILEDS
Rated Power
105W
80W
80W
110W
80W
Input Voltage
AC100-305V
AC100-305V
AC100-305V
AC100-305V
AC100-305V
Frequency Range
50/60HZ
50/60HZ
50/60HZ
50/60HZ
50/60HZ
Color
3000K/4000K/5000K/6000K
Beam Angle
120*50° 150*65° 150*60° 140*30° 148°
150*60° 90°
Life
50000H
50000H
50000H
50000H
50000H
Power Factor
>0.95
>0.95
>0.95
>0.95
>0.95
Surge Voltage
>6KV
>6KV
>6KV
>6KV
>6KV
Protection Grade
IP66
IP66
IP66
IP66
IP66
Ambient Temperature
-25℃～50℃
-25℃～50℃
-25℃～50℃
-25℃～50℃
-25℃～50℃
Ambient Humidity
10%-90%
10%-90%
10%-90%
10%-90%
10%-90%
Applications

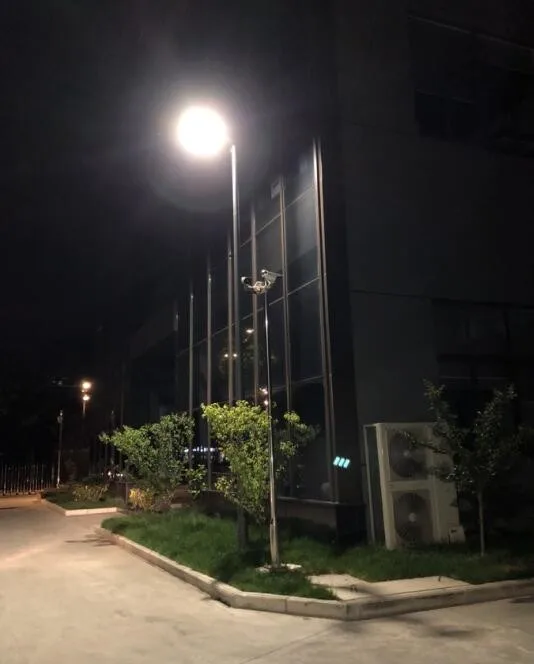

Led street light is widely used for highway,roadway,square etc.
