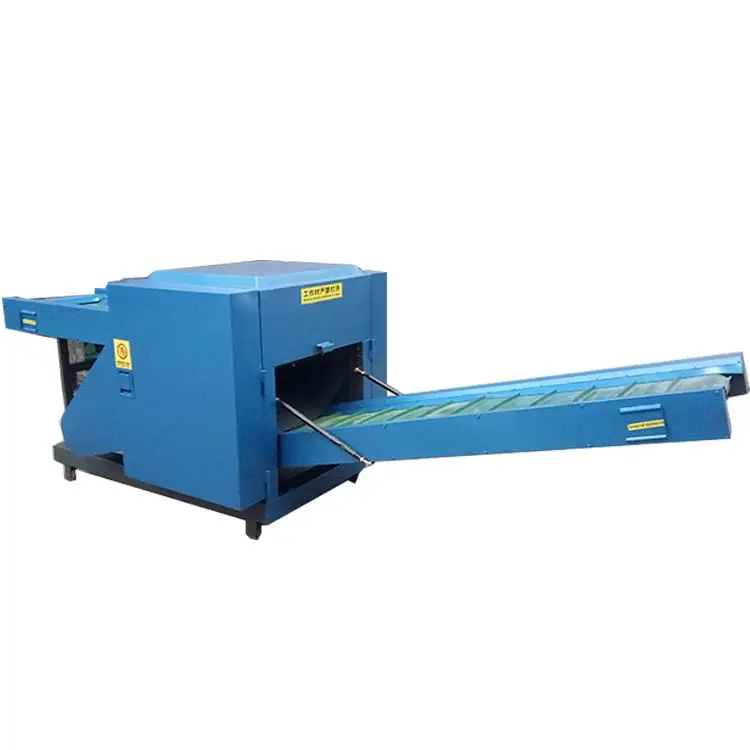

This Machine Cutting Sticker can quickly cut up all kinds of clothes ,scrap cloth, waste cotton yarn, chemical fiber, linen, leather, paper, non-woven fabrics and other materials.The Machine Cutting Sticker is the main machine of the waste clothes and fiber recycle.

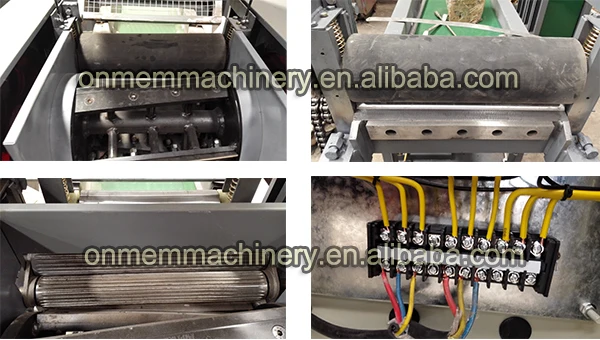

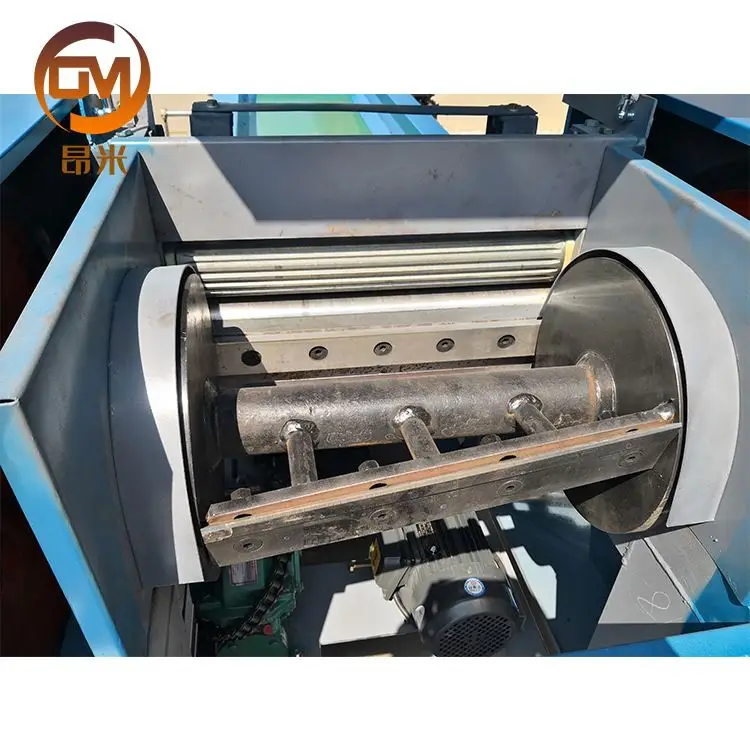

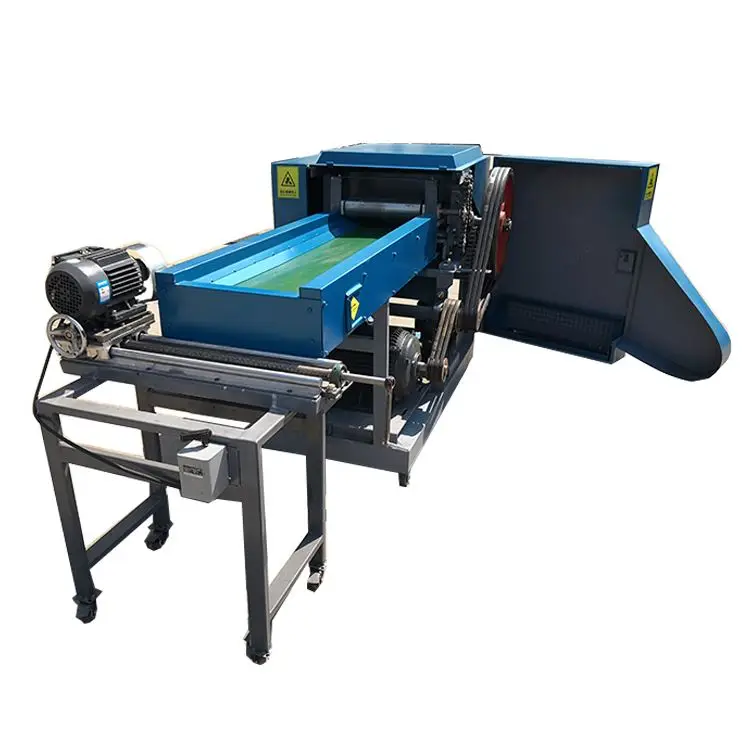

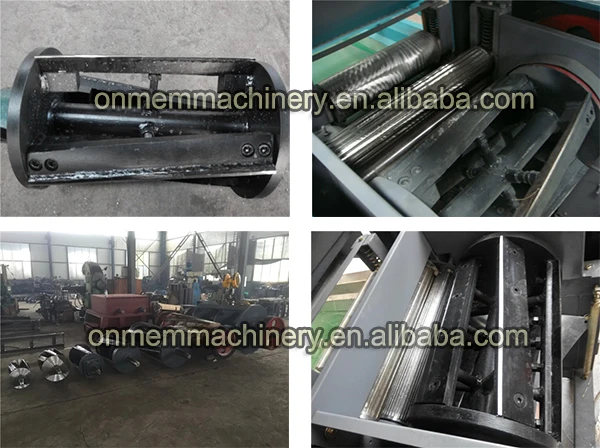

Main parts of Machine Cutting Sticker 1. PVC feed and output conveyor. 2. Electric cabinet which has dual control + power indicator + thermal protection + current meter + voltmeter. 3. Iron roller and rubber roller can suitable for the different raw materials. 4. Alloy steel spinning blade and fixed blade combine together to get good effect . 5. Different final product size through changing the spinning blade quantity. 6. Can also combine with other machines to make the waste recycling line. 7. Application: this fiber cutting machine can quickly cut up all kinds of scrap cloth, waste cotton yarn, chemical fiber, linen, leather, paper, non-woven fabrics and other materials.

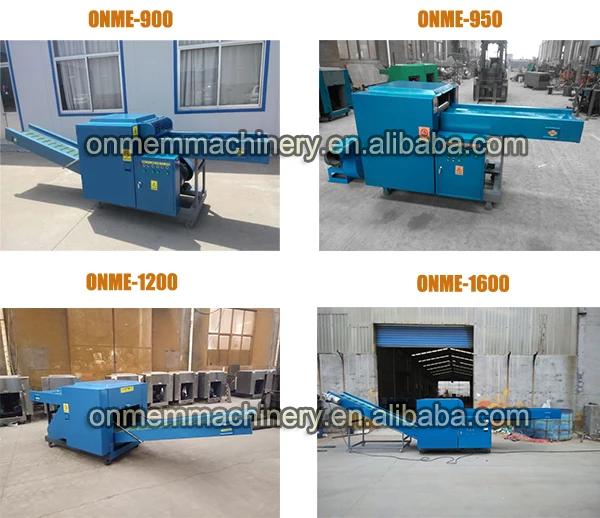

Technical Parameter of Machine Cutting Sticker
Model
ONME-900
ONME-950
ONME-1200
ONME-1600
Cutting motor
5.5kw-8
11kw-4
7.5kw
15kw-8
Conveyor motor
1.5kw-4
1.5kw-4+3kw-2
1.5kw-4
2.2kw-4
Voltage
380v /50hz
380v /50hz
380v /50hz
380v /50hz
Triangular belt
B*2600mm
B*2700mm
B*2800mm
C*3550mm
Capacity(kg/h)
300-500
100-300
500~800
1000-2000
Inlet Conveyor(mm)
1400*350
1400*350
1400*530mm
2800*680
Dimension (mm)
3200*1000*1200
3200*1000*1150
4400*1200*1250
6200*1600*1500

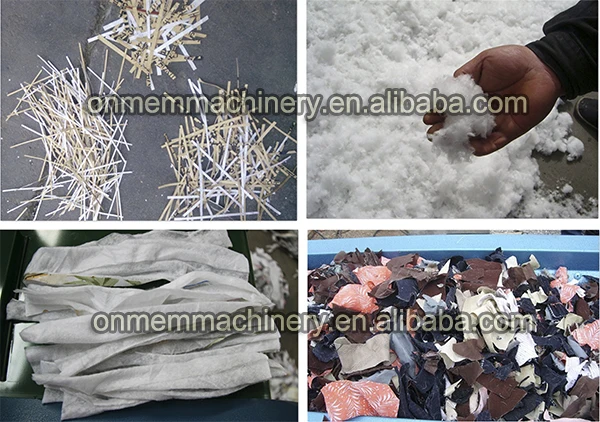

Warm Tips: >And model 900 is mainly used to cut the material into the same width strips. And the width can be adjusted from 3mm-40cm. The width of the strips is customized. >The model 950 is mainly used to cut the materials into very small pieces combine with the screen. Final size can be 3mm. >Model 1200, 1600 is big capacity and have the save function with the model 900.
Features of Machine Cutting Sticker 1, Easy to operate and maintenance. 2, integral cast steel knives make sure the machine is durability, security design ,Ensure safe and smooth production . 3, The final product size can be customized based on your requirements. 4, Powerful, can deal with different kinds of materials. 5, Install the wheel ,easy to move . 6, We have different models ,make it suitable for different customers. 7, The final product can be strips or the very small pieces .

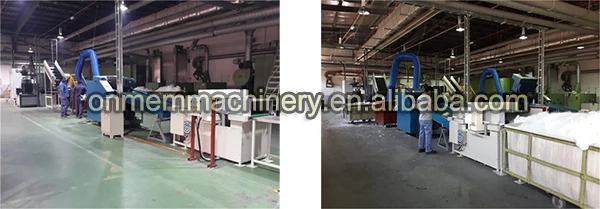

Working Place of Machine Cutting Sticker

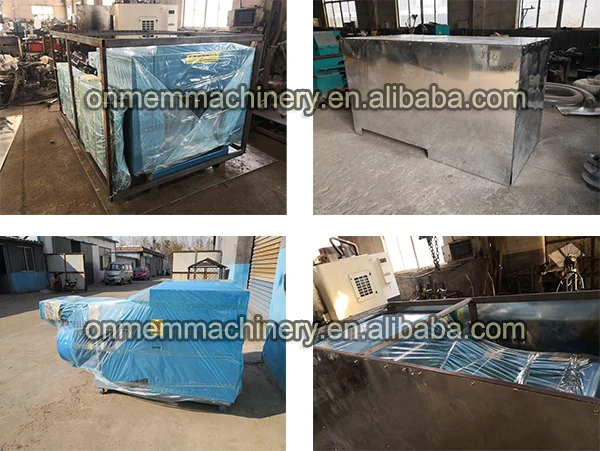

Packaging & Shipping

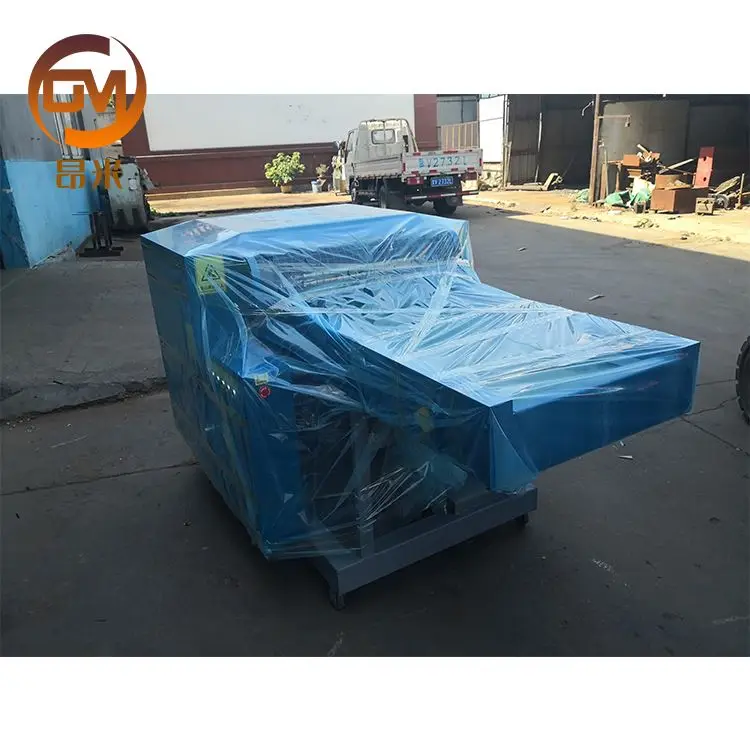

For packing, to ensure the safety of machines, we usually use iron box to cover the machine and will make full cover of the machine with special materials. For several sets of machines, we can load them in container ourselves.
For shipping, we have our own forwarder to deal with the custom apply and machine transporation, all the machine will be deliveried in safe and short time

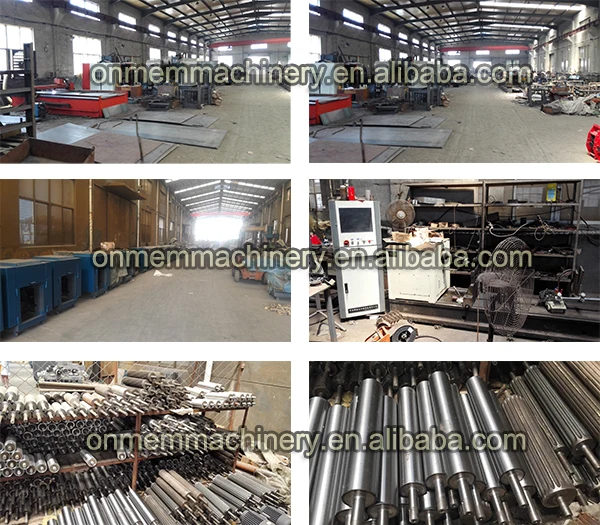

Company Information
Henan Onme Machinery Company Limited is manufacturer of machines with well-equiped testing equipment and strong technical force. With advanced technology, best materials using and high grade after-sale services providing, we have got high appreciate from customers all over the world. We insist on the concept of "customer first, believe on me", always make customer in the first, help customer and provide them the most suitable and high quality products and will be responsible for all the products from us. For all these efforts, our products are widely used in different industries and recognized as well as trusted by users. All the products will meet developing economic society needs. Under the concept, we have founded one strong and long-term relationship and friendship with customers all over the world and welcome old and new customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
1.Q: Can I adjust paper cutting size? A: Generally, you can choose one size in 25/50/75mm. If you want others, we can adjust it well before delivery. If you want to adjust cutting size freely, an reducer should be added. While the cutting size is still in a range.
2.Q: What if the blade wears? A: Our blade material is wear-resistant Cr12mov, so please don’t worry about it. Just be noted that don’t shred hard material like stone and iron. Besides, we can give you one set of blade as spare parts.
3.Q: Do I need a blade sharpener in case it blunts? A: It depend on shred material. When you shred papers, it’s needed and the blade should be sharpened on a weekly basis. While it’s not necessary for cloth.
4.Q: What’s the difference between iron roller and plastic roller? A: Iron rolls suits hard material, like paper. Plastic roller suits fiber in case it coils on the roller.
5.Q: What about the package? A: Iron frame and galvanized iron sheet packing ensures your machine safe.
