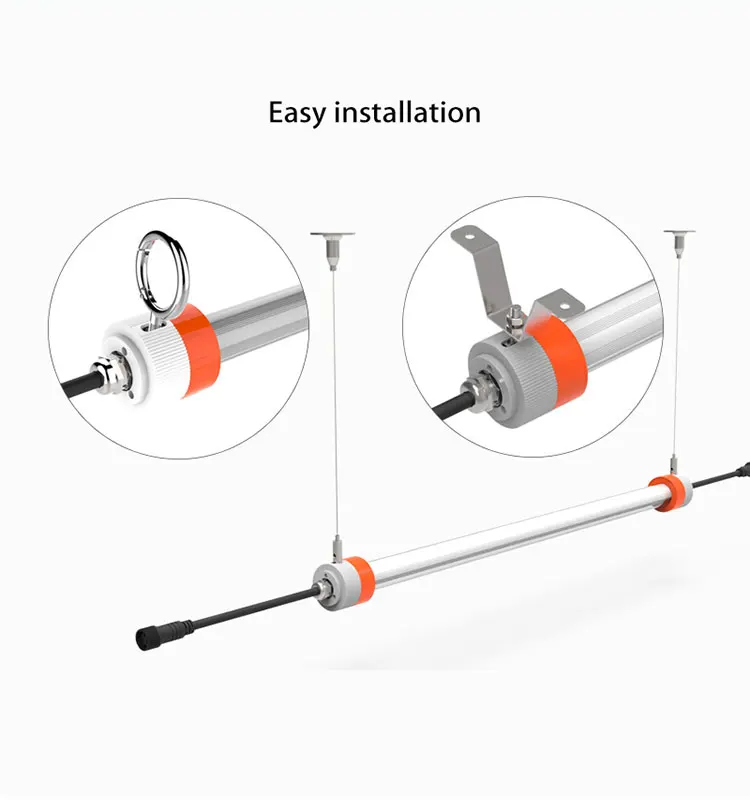

For poultry lighting, there are three installation ways are provided depend on the client project needed,RingHook installation way are welcomed by most of our client,other installation way for the poultry lighting could be developed by project request,which normally takes 20-25days.
Poultry lighting package details

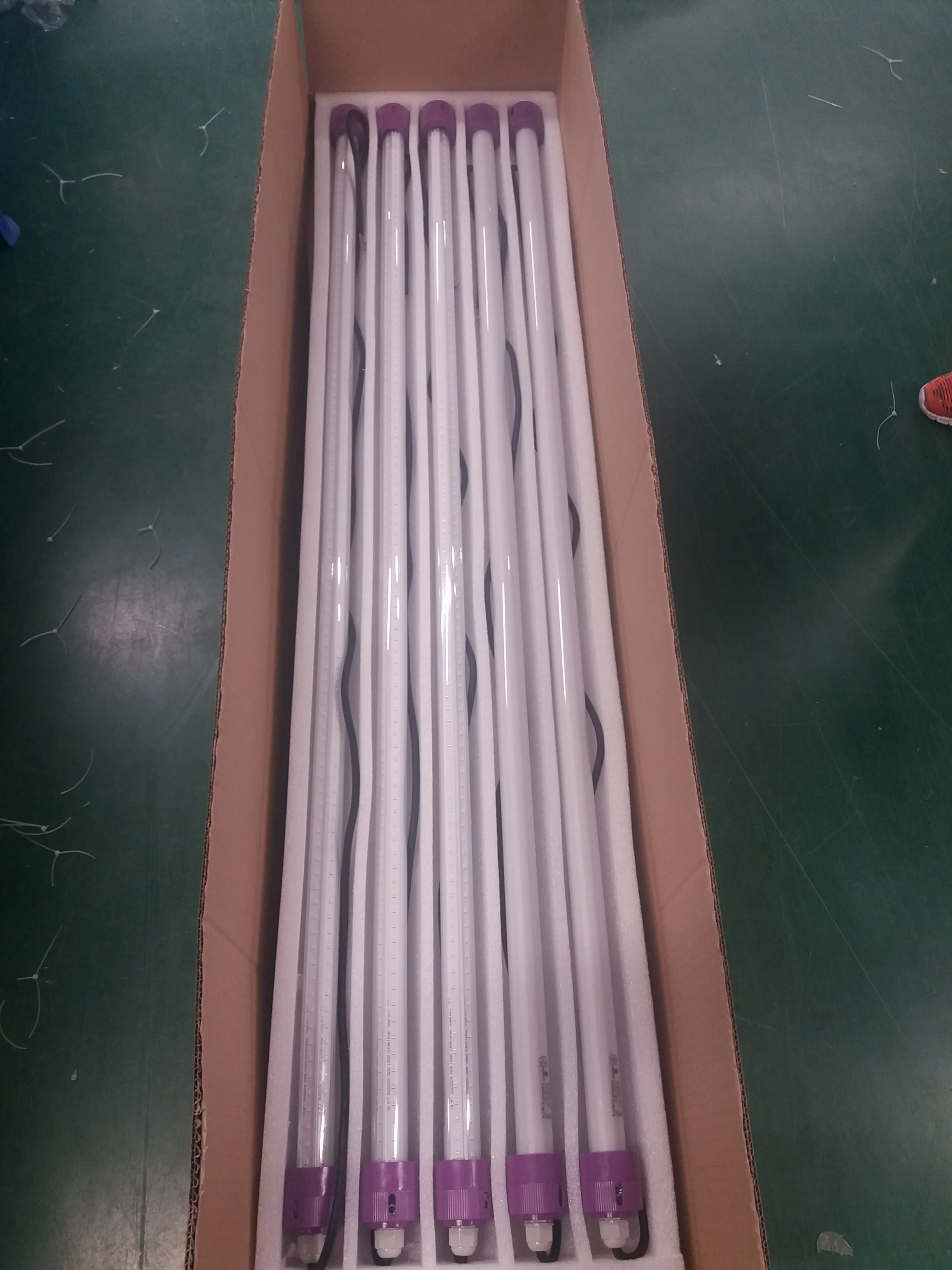

Polyfoam will be provided for the poultry lighting to ensure there is a safety package during the long shipping way.
Understanding poultry light biology and environment
Light is critical for egg production and pullet growth. Domestic poultry see and respond to a different range of light color spectrum and have different spectral intensity responses than humans. While humans respond to light from around 400–750 nm, chickens can see UV-A light (315–400 nm) in addition to 400–750 nm. Additionally, the magnitude of sensitivity for red and blue spectra is much higher for chickens with additional peaks of light sensitivity around 480 nm and 630 nm..
Chickens are affected by the duration, intensity and spectrum of light. Light can be utilized as a management tool to help optimize pullet growth, age of sexual maturity, egg weight and egg production in laying hens in a variety of environments.
Detailed Images
Poultry lighting advantage details

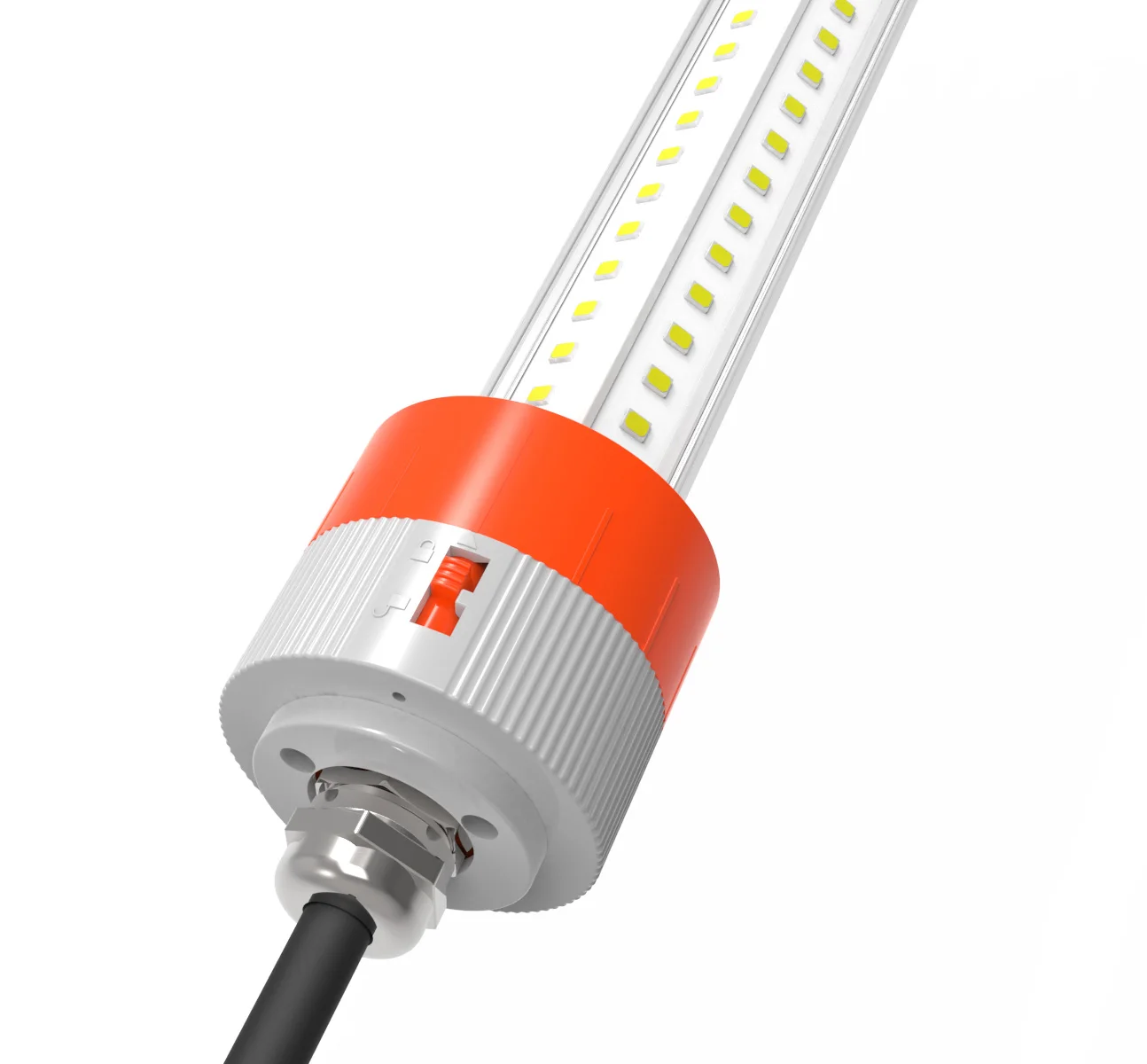

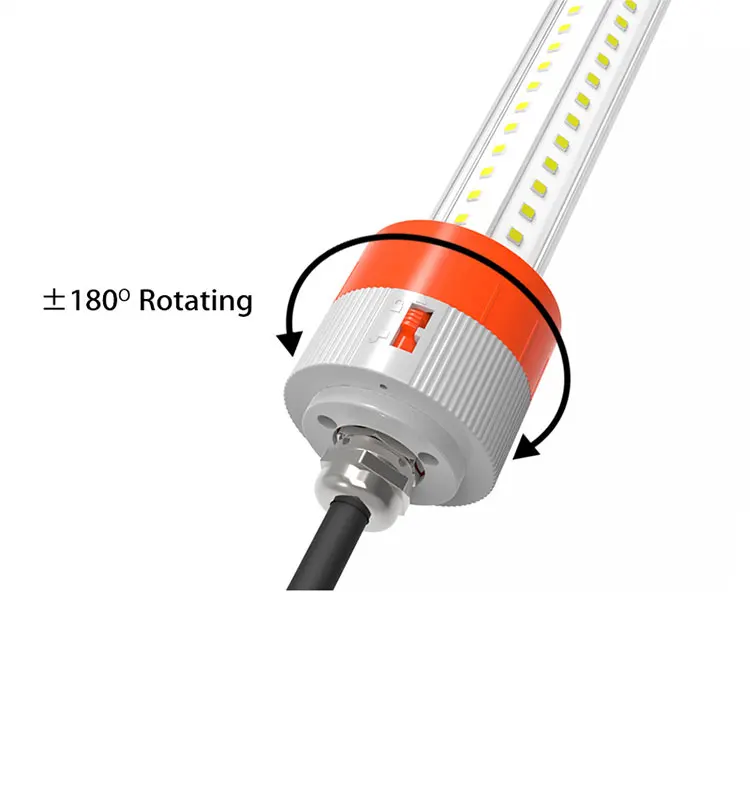

Unique rotation cap design allow customer can change the beam angle easily without taking the lamps down.

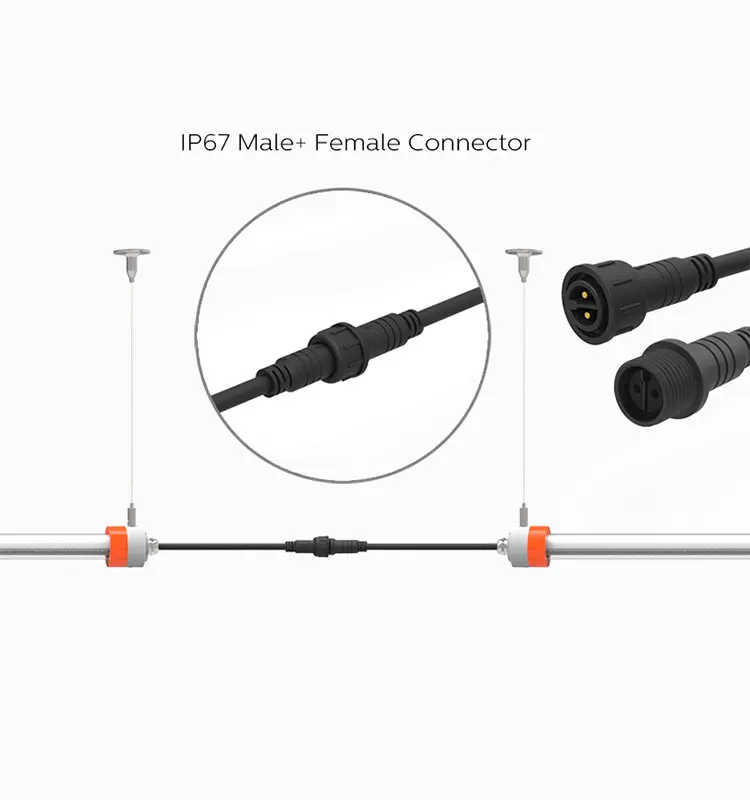

High protection IP level of the female & male connector ensure there is very safe when famer flush the poultry house without any worry about the electricity shock.

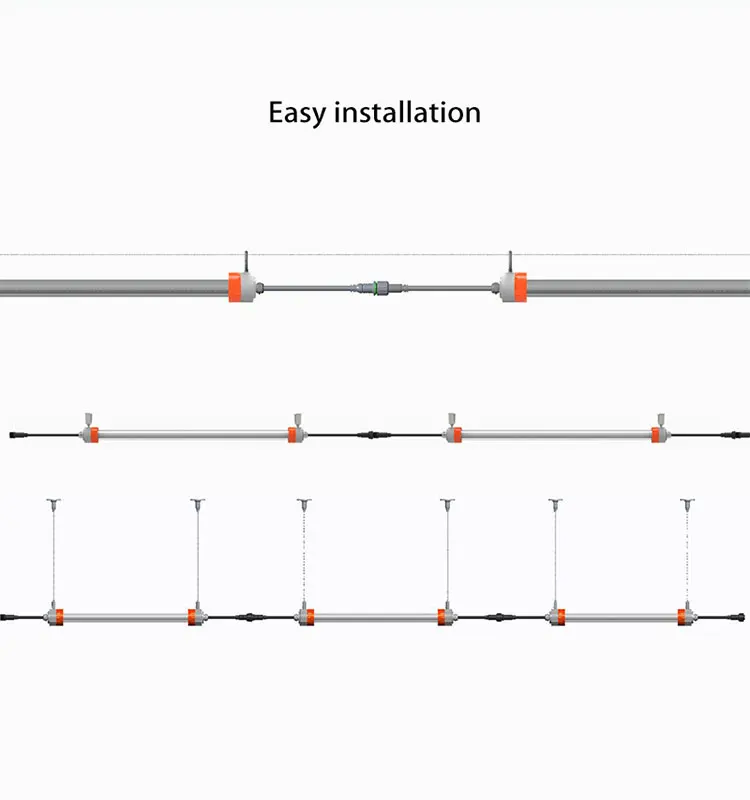

Quotation linkable connection provide a very fast way of installation and save the labor cost even for the replacement of the broken ones.
Poultry lighting component details
LED CHIP
Adopt high lumen output SMD 2835, the entire lumen will be 2600lm
Cable details
2x1.5mm2 rubber cable allow the poultry lighting can connect as many as possible,60-70pcs per line.

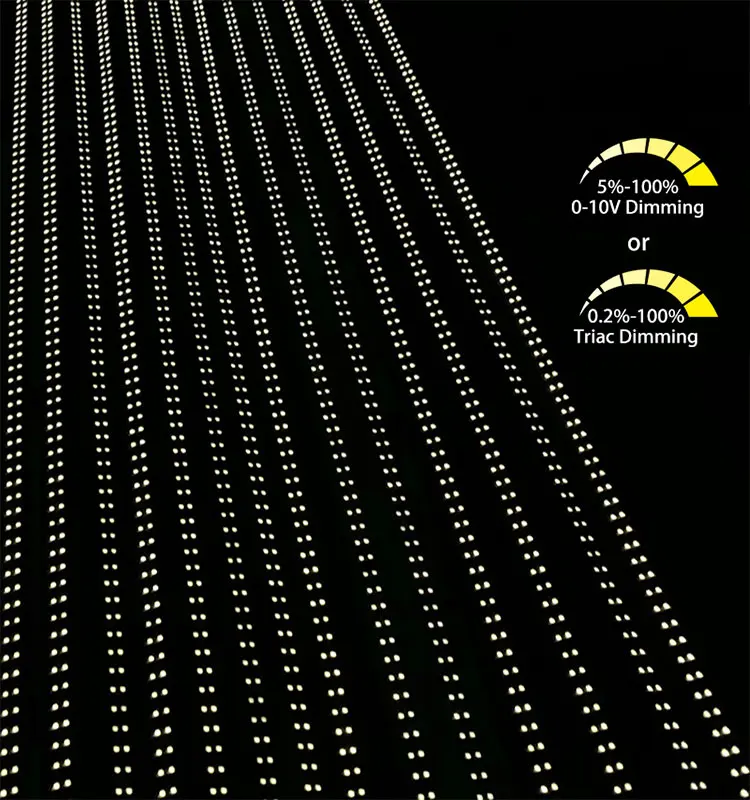

Dimming range
Precise Triac dimming provide a very smooth dimming as low as 0.2% without any flicker to ensure that there is a very comfortable environment for the chickens.
Super heat aluminum design

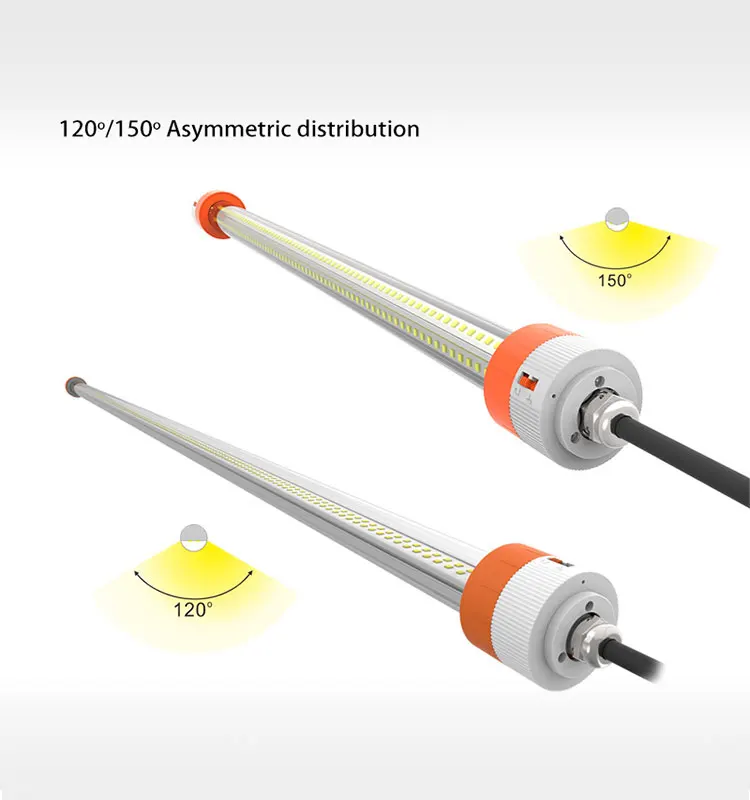

V shape design at angle 150 degree offer a very wide and uniform light output in the poultry house. which is also provide a good struction for the heat dissipation

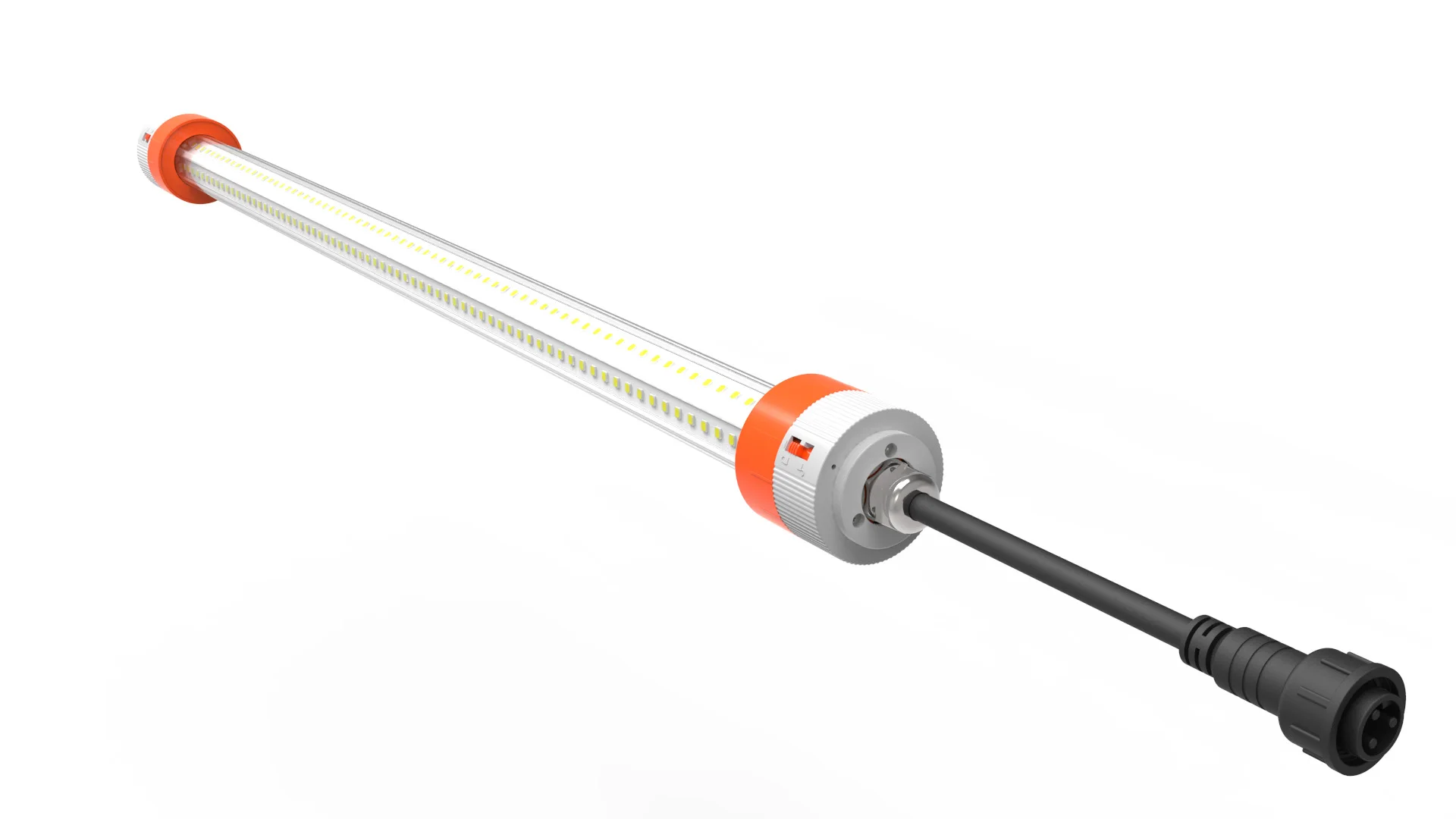

Product Presentation
The element part of the poultry lighting
Product Name
Poultry lighting
Material
Aluminum+PC
Power
20W
Voltage
AC100-120 for North America,AC220-240 for Europe
Type of Lamp-house
PC
Model
WP4E-T8-20W-V
Style
IP66 LED TUBE
Poultry lighting dimension
Power
Type
Length
Total lumen
Dimming Method
Material
9W
WP2E-T8-9W-V
600mm
1170lm
Triac
PC+Aluminum
20W
WP4E-T8-20W-V
1200mm
2600lm
Triac
PC+Aluminum
24W
WP5E-T8-20W-W
1500mm
3120lm
Triac
PC+Aluminum
