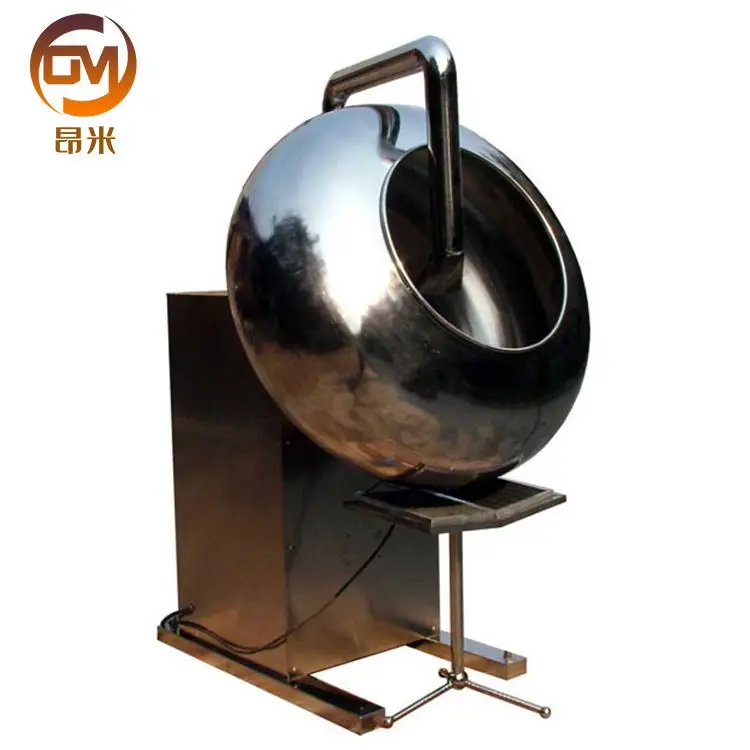

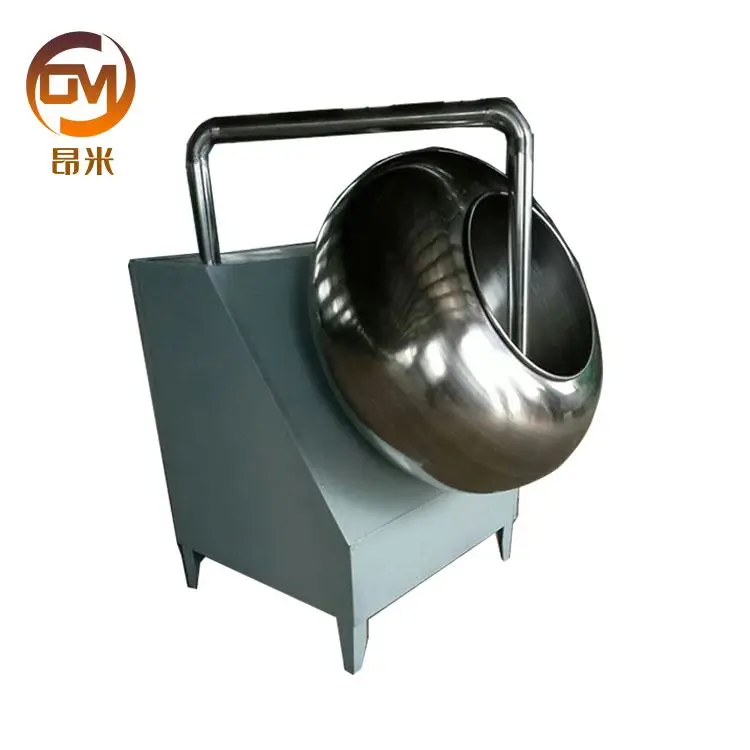

This sugar coating machine is mainly suitable for pills in pharmaceutical industry, tablets of sugar production, can also be used in food, light industry, chemical industry, the spherical or rolled granular material, mixing and polishing.For example: chocolate on polishing, peanuts, sugar, spices, pearl powder round, rolled desiccant, production of chemical packing, aluminum hydroxide, alumina ball, ceramic ball molecular sieve, catalyst and so on.
Model
OM-TY800
Dimension
925*900*1500mm
Weight
140kg
Pan Diameter
800mm
Capacity
30-50kg/time
Main motor power
1.1kw
Working Principle
工作原理
The pot is rotated clockwise, the speed of the pot is adjusted by the frequency converter, and the spray gun sprays the coating liquid on the chip of the pot so that the coating liquid is evenly coated on the chip and the product is evenly rolled in the pot, The coated products are obtained by removing hot water from the surface of the products.
The machine with reasonable control, stable line speed and pot fixed deflector plate in the pot to form the best logistics curve to meet the film coating process requirements.
Installation and use
安装和使用
This machine can be used after unpacking pad level.
1. Turn on the power. Note: phase line, the zero line can not be wrong.
2. The gas source through the Φ8PU tube and the lower body side of the air pipe connection connected.
3. To the liquid cylinder to install a uniform coating of liquid coating.
4. Turn on the power switch, then turn on the power.
5. Adjust the host speed according to the instructions of the host governor.
6. Open the air supply switch, the air intake fan to work. Open the internal heating switch.
7. Adjust the temperature controller, the temperature transferred to the temperature you need, this time if the actual temperature is lower than the set value, the heater power is turned on, the heater starts heating. If the actual temperature is higher than the set value, the heater power is turned off and the heater stops heating. In the package film clothing when the external heating is as auxiliary heating, you can not.
8. After the above functions are adjusted properly, you can open the air compressor, air pressure is about 4 ~ 6kg / cm3.
9. Open the gun switch, adjust the spray flow, cone angle, atomization and the distance between the gun and the material (120-180mm), the gun began to work. Refer to the gun manual for the specific use of the gun.
10. After the operation, immediately clean the machine and gun.

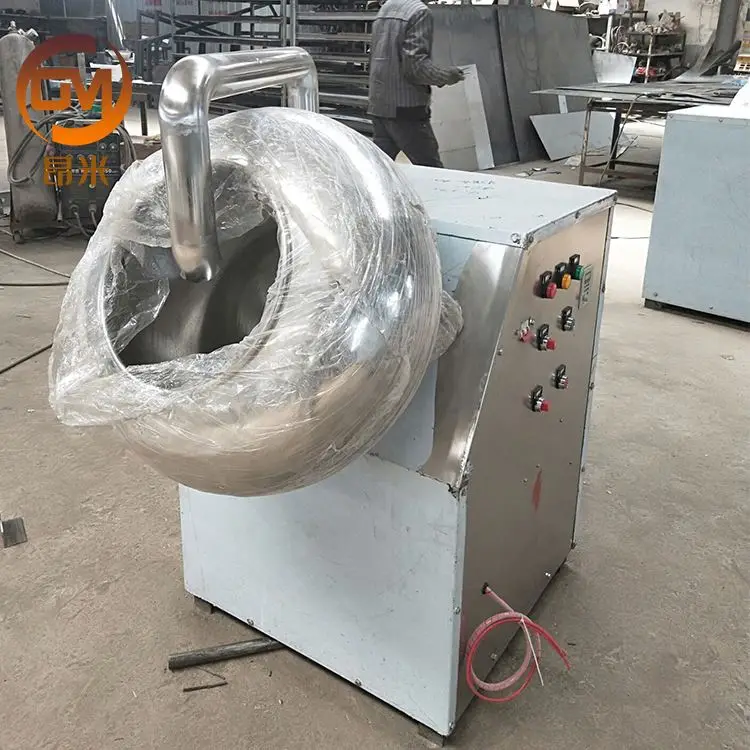

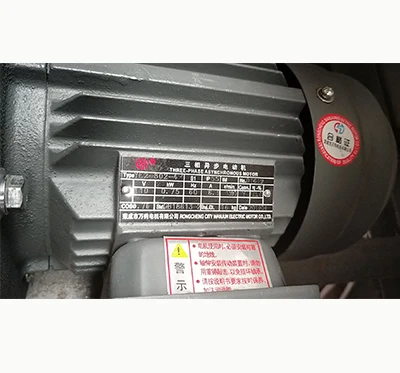

Detailed Images

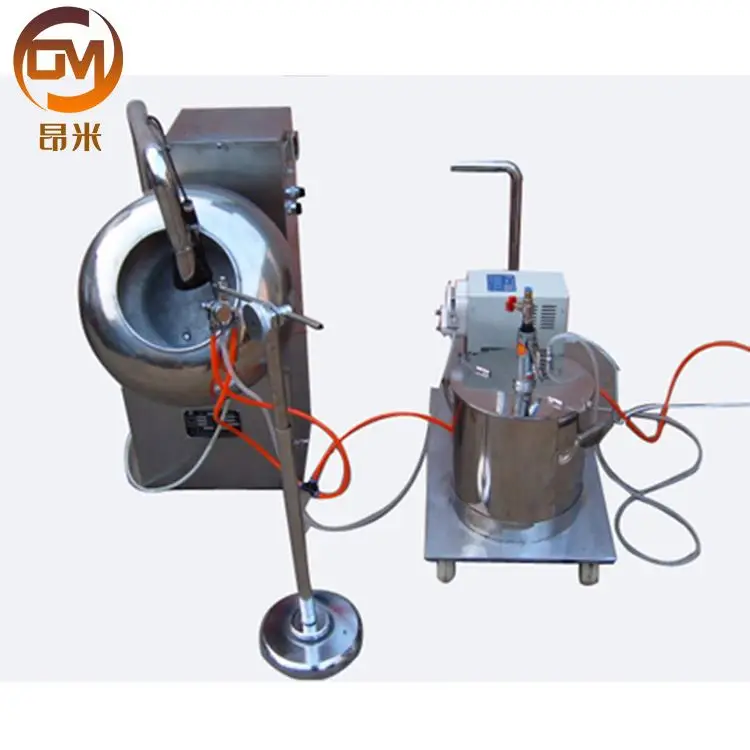

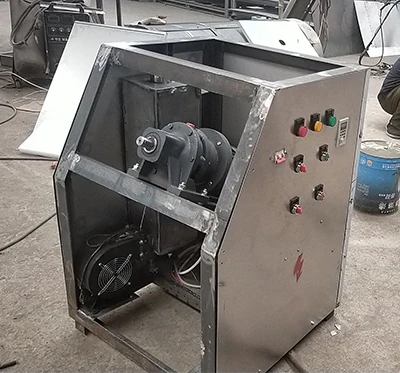

The machine is a new type of equipment which integrates the strong electricity, the weak electricity, the hydraulic pressure and the pneumatic in the integration, which is the transformation of the original ordinary type sugar-coating machine. Mainly by the host (the original sugar machine), control room temperature hot air system, automatic liquid supply system for the spray system and other components. The main motor frequency control, which is automatically controlled by electrical methods will be coated with high atomization spray gun sprayed onto the surface of products, while products in the coating pot for continuous complex trajectory movement, the coating liquid evenly Wrapped in product cores, the pot is controlled at room temperature hot air at the same time on the product dry, so that the rapid formation of product surface fine, complete, smooth surface film.
Size Information
Technical Parameter
Model
Dimension
Pan Diameter
Capacity
Main Power
Weight
OM-TY400
485*585*810mm
400mm
5kg/time
0.55kw
70kg
OM-TY800
925*900*1500mm
800mm
30-50kg/time
1.1kw
140kg

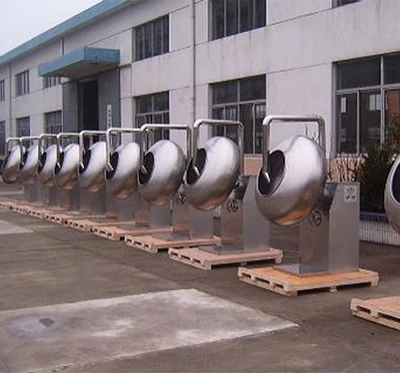

Packing&Shipping
For packing, usually we will pack the machines in wooden box, this will ensure the machine safety during transportation.
For shipping, we have our own forwarder for customer to help them deal with the custom and machine delivery in short time
Company Introduction
Henan Onme Machinery Company Limited is manufacturer of machines with well-equiped testing equipment and strong technical force. With advanced technology, best materials using and high grade after-sale services providing, we have got high appreciate from customers all over the world. We insist on the concept of "customer first, believe on me", always make customer in the first, help customer and provide them the most suitable and high quality products and will be responsible for all the products from us. For all these efforts, our products are widely used in different industries and recognized as well as trusted by users. All the products will meet developing economic society needs. Under the concept, we have founded one strong and long-term relationship and friendship with customers all over the world and welcome old and new customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:Is it available to adjust air blow speed and rotation speed?
A:Yes, they are available.
Q:is the machine ready to be used or do I need to assemble anything?
A:Once you receiving the goods, you can use it directly and no need to assemble anything.
Q:Can I clean the pan from inside directly?
A:Yes, we can clean the pot of inside by water directly
Q:is there a hand manual in English?
A:Yes, packing list including user manual.
