Tube Ice Making Machine for 10tons/Day

Product Overview

Description

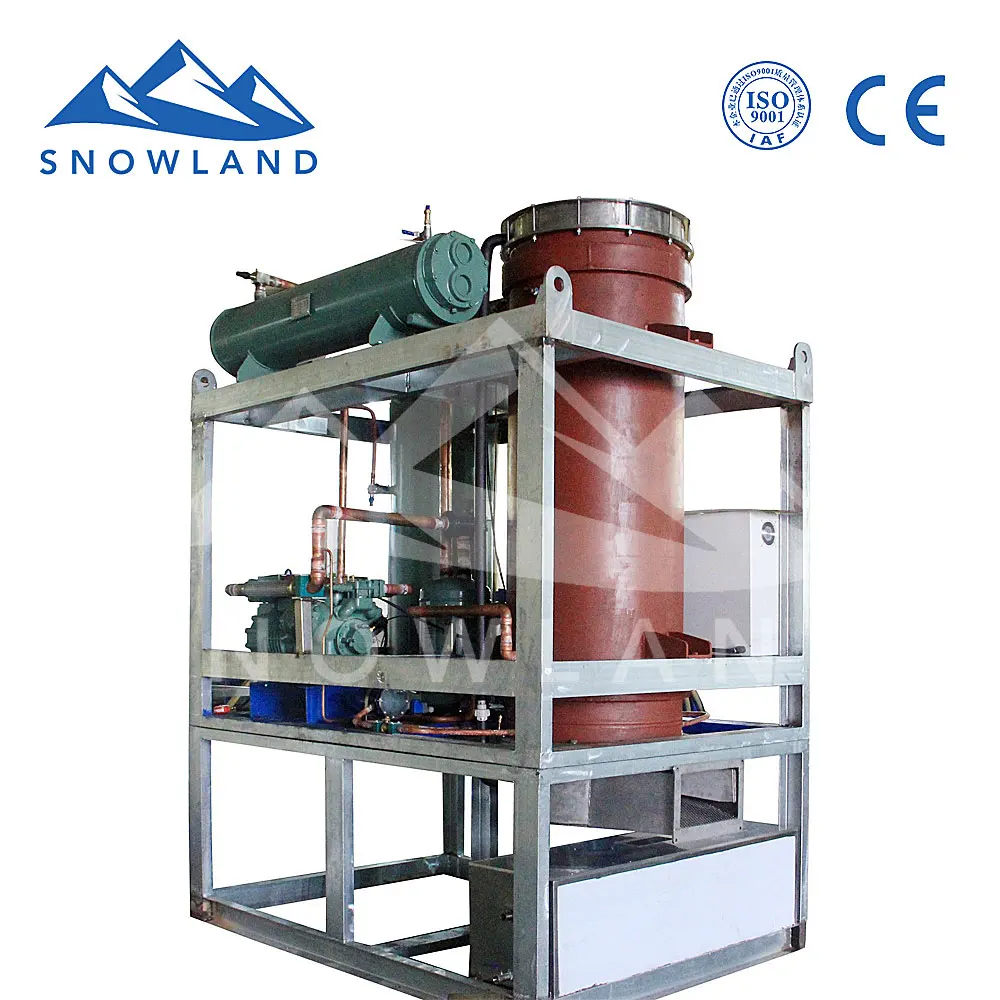

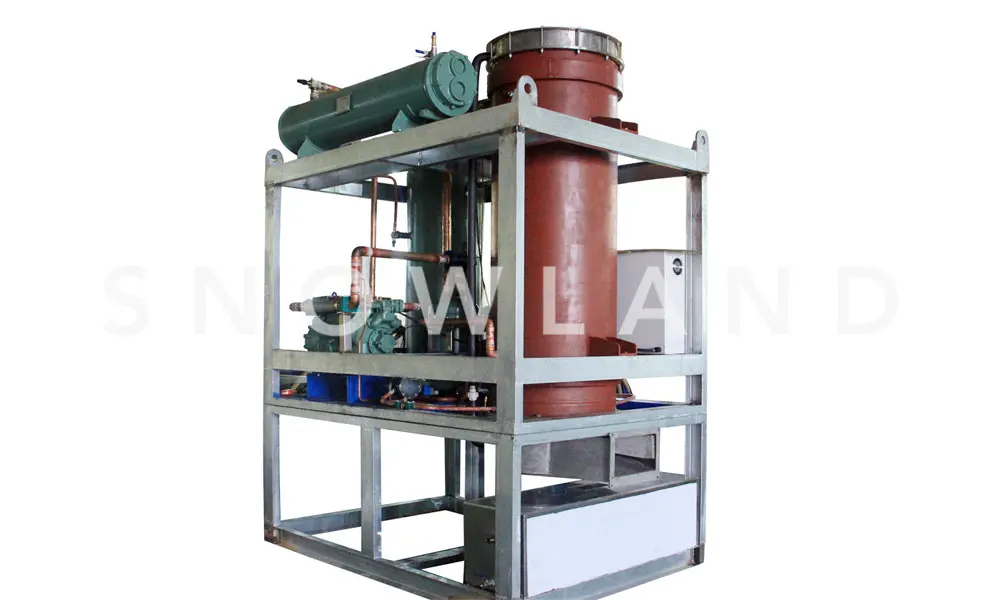

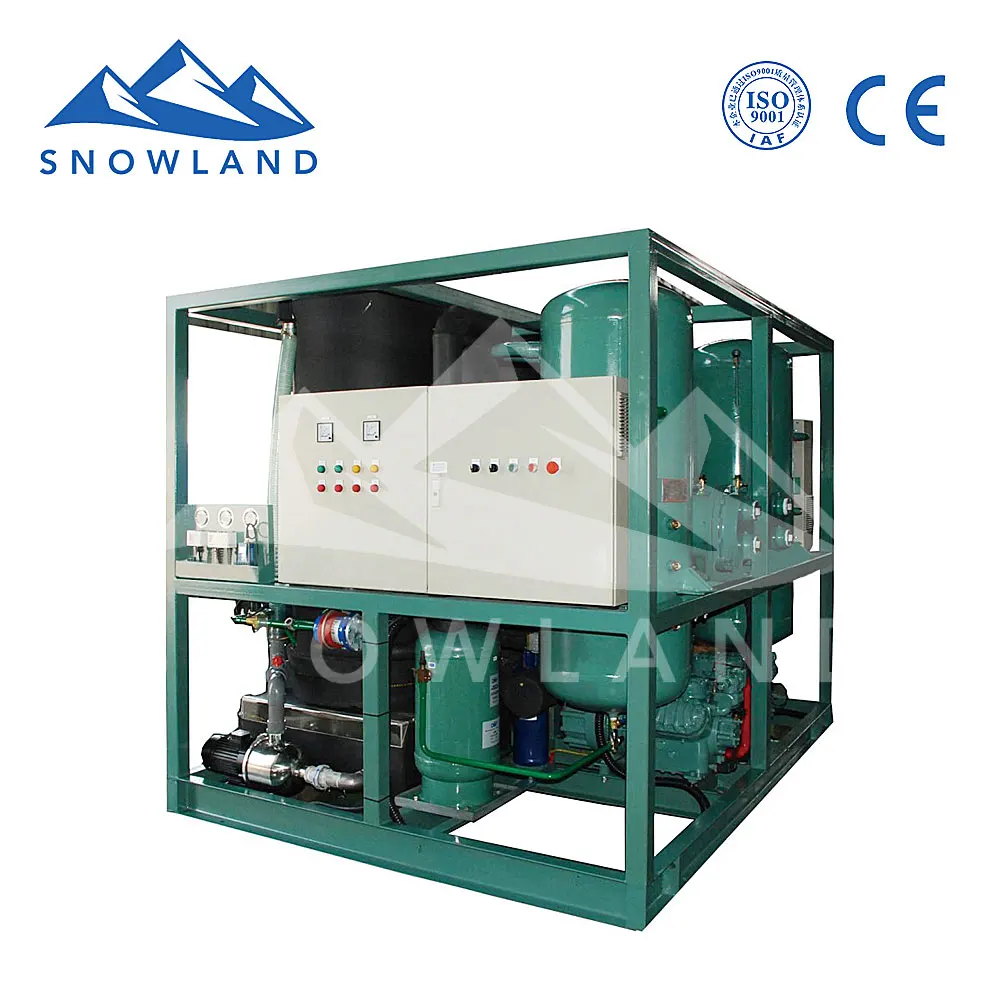

Snowland Tube Ice Making Machine for 10Ton/Day



Fast ice making process, high efficiency, enviromental protection
Greatly shorten ice-doffing time, the whole process only takes 90 seconds. Compared with other ice making equipments, SNOWLAND tube ice machine has the advantages of compact structure, small area, low production cost, high cooling efficiency and energy saving.

High-quality materials, Safe and Sanitary
It is made of stainless steel SUS304 and SUS316, nice appearance and sanitary, easy for cleaning. Tube ice is tasteless, clean, accords with HACCP and PDA health and safety requirement.




High reliability and low failure rate
Greatly shorten ice-doffing time, the whole process only takes 90 seconds. Compared with other ice making equipments, SNOWLAND tube ice machine has the advantages of compact structure, small area, low production cost, high cooling efficiency and energy saving.


Full automatic control
PLC&HMI system control the ice making process, convenient and simple operation, safety and stability.

Various outer diameter

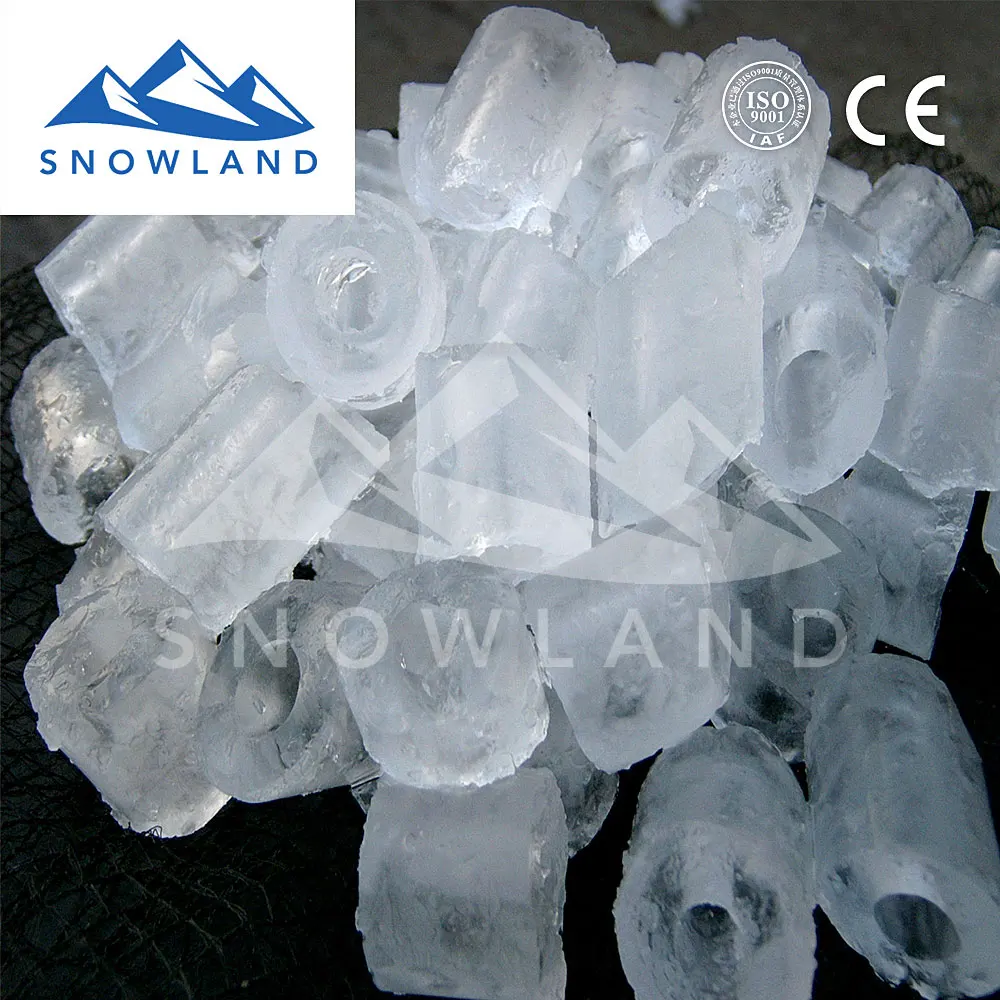

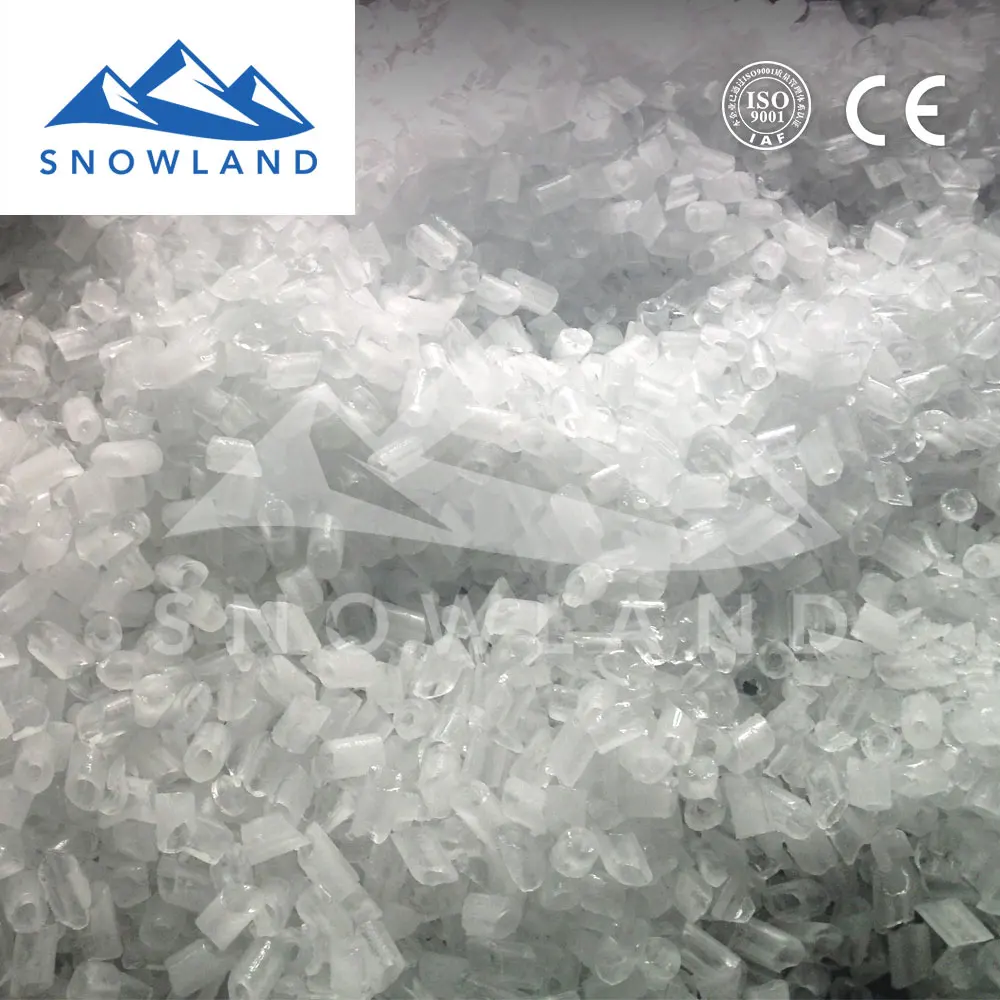

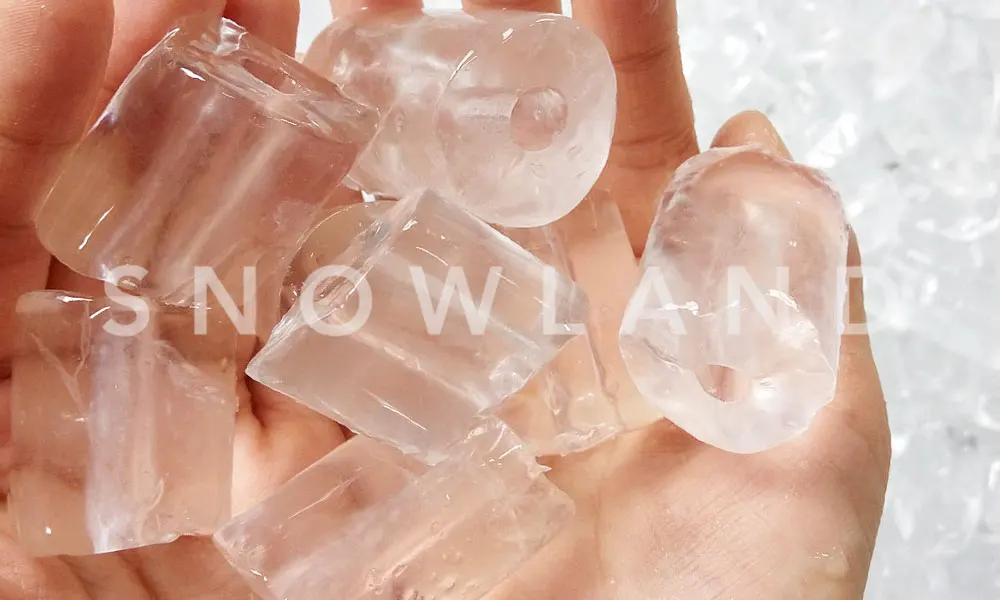

Tube ice outer diameter is 2.2cm,2.5cm,2.8cm,3.2cm,3.5cm,4.2cm; The ice is even, clean and sanitary.


Hight reliability, low failure rate
More than 80% of SNOWLAND ice maker machines' accessories are world famous brand.; Continuous fault-free operation; Modular design, to make the machine more compact structure and easy for installation; It can be installed in the container, easy to move.

Technical parameters

Model	Daily output(Ton)	Run Power(Kw)	Machine weight(KGS)	Machine dimentions(mm)
ST-1T-R22W	1	4.6	900	L1400*W900*H2000
ST-2T-R22W	2	8.3	1100	L1400*W900*H2000
ST-3T-R22W	3	11.3	1400	L1500*W1100*H2200
ST-4T-R22W	4	14.8	1650	L1800*W1300*H2400
ST-5T-R22W	5	18.8	1750	L1800*W1300*H2500
ST-6T-R22W	6	22.5	1880	L1800*W1300*H2500
ST-8T-R22W	8	32.2	2200	L2200*W1400*H2600
ST-10T-R22W	10	40.4	2550	L2200*W1500*H3000
ST-12T-R22W	12	47.6	2850	L2200*W1500*H3200
ST-15T-R22W	15	58.7	3770	L2600*W1600*H3500
ST-18T-R22W	18	70.2	4200	L2800*W1700*H3800
ST-20T-R22W	20	79.8	5200	L3000*W1800*H4500
ST-25T-R22W	25	98,2	7200	L3100*W1900*H4500
ST-30T-R22W	30	115.5	8500	L3200*W2000*H5000
Note: 1. Refrigerant: R22/R404A           2. Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;           3. SNOWLAND reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

Wide application
1. Fish, meat, vegetable, fruit keep fresh.
2. Concrete cooling.
3. Industrial usage
4. Supermaket, restaurant goods keep fresh.
5. Aquatic product keep cooling

Packaging & Shipping
1. Standard export standard.
2. A full set of ice machine includes:  the unit, cover,cooling tower, water pump and water pipes.
3. The machine come into be used, the customer only need prepare power and water for the machine.
4. All required components for installing the machine will be provided.
5. Cold room is also available.

Company Profile

TIPS :

1. Product customization.

2. Payment term:  100% by T/T. 40% down payment for confirming the order, the balance is to paid off before loading.

3. Delivery: 45 working days after receipt of the deposit.

4. The price should be negotiated and accepted by both parties.


FAQ:
1. Q: Is the ice machine with the refrigerant?
A: Yes, The machine come into be used, the customer only need prepare power and water for it.

2. Q:  Are the ice machine tested in your factory?
A: Yes, each ice machine must be strictly tested before its delivery.

Now we (SNOWLAND) want to recruit agents and distributors sincerely from the global. We are welcomed and glad to have you in the same line with us. If you have strong passion for entrepreneurship and ambition,  believe our technology and skill, products and service, we (SNOWLAND) hope you become our strategic partners. And we (SNOWLAND) are devoted to provide the best products and service to the global clients with you.

Please contact us at anytime, we'll definately contact you immediately.
