Note: We reserve the right to change the design and OEM/ODM supported.
Product Hardware Specification
CPU
Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53
GPU
Penta-core ARM Mali-450 , up to 750MHz+(DVFS)
RAM
2G DDRIII
ROM
16G EMMC
3D Graphics
OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decode
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
Audio Decode
MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolby+
Panel display
4-digit LED display
LED Indicator
Power ON: Green; Standby: Red
Button
NOT
Wifi
Built in 2.4G WiFi Support IEEE 802.1.1b/g/n
BT
NOT
IR
Exit IR for 38KHz,Infra Remote control

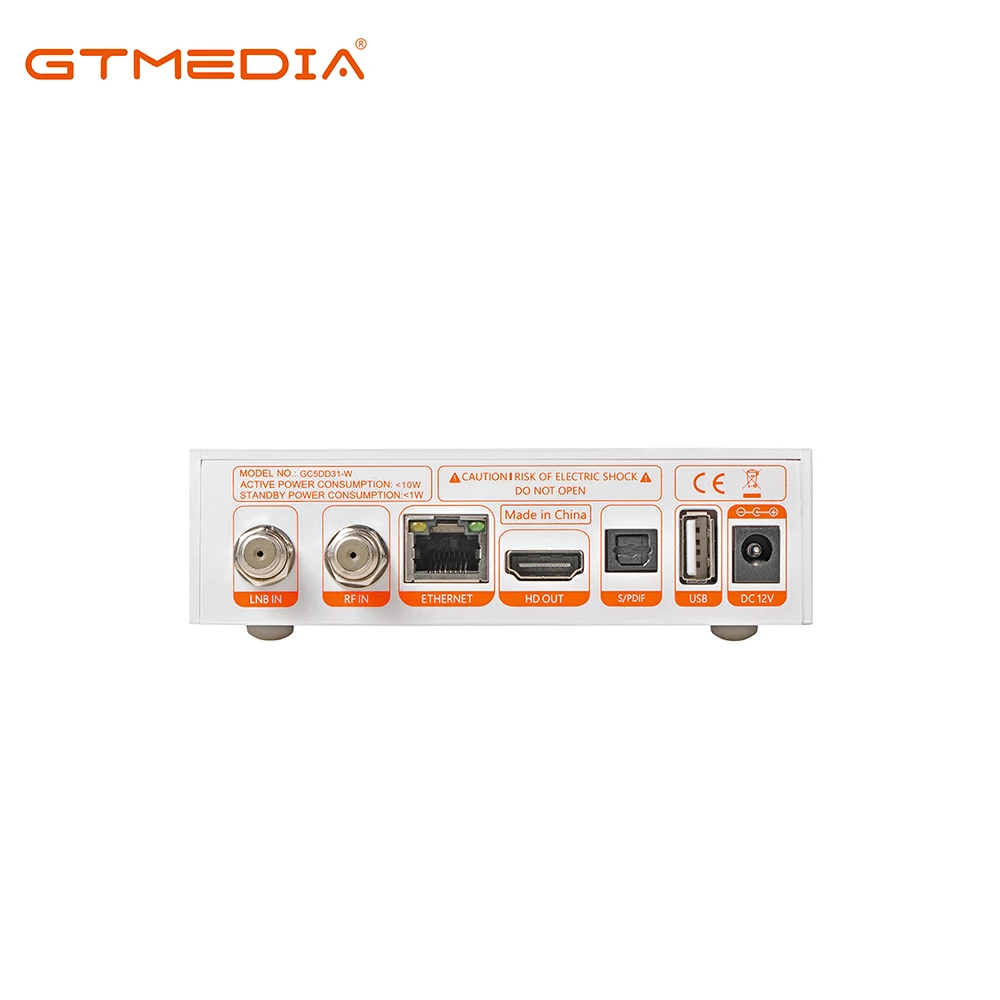

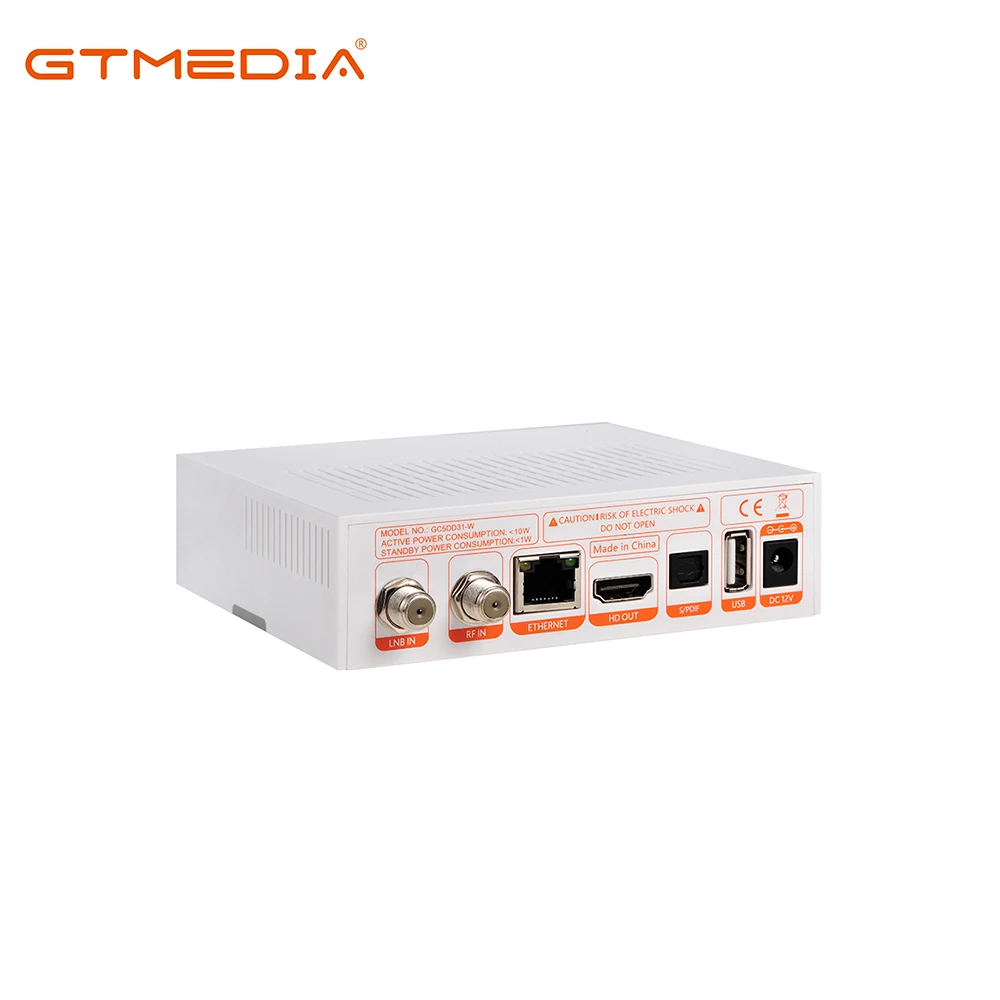

Rear Panel
RF IN ( EC-type IEC169-2 Female)
LNB IN (Frequency Range950MHz to 2150MHz)
HDMI 2.0 ( 4K 60fps)
2*USB 2.0 HOST
1*TF CARD
1*SPDIF
1*RJ45
DC IN (DC 12V/1.5A)
GT UI
User-friendly interaction design, the opration entrance is faster and more intuitive.
One-click optimization of memory, one-click cleaning of garbage.

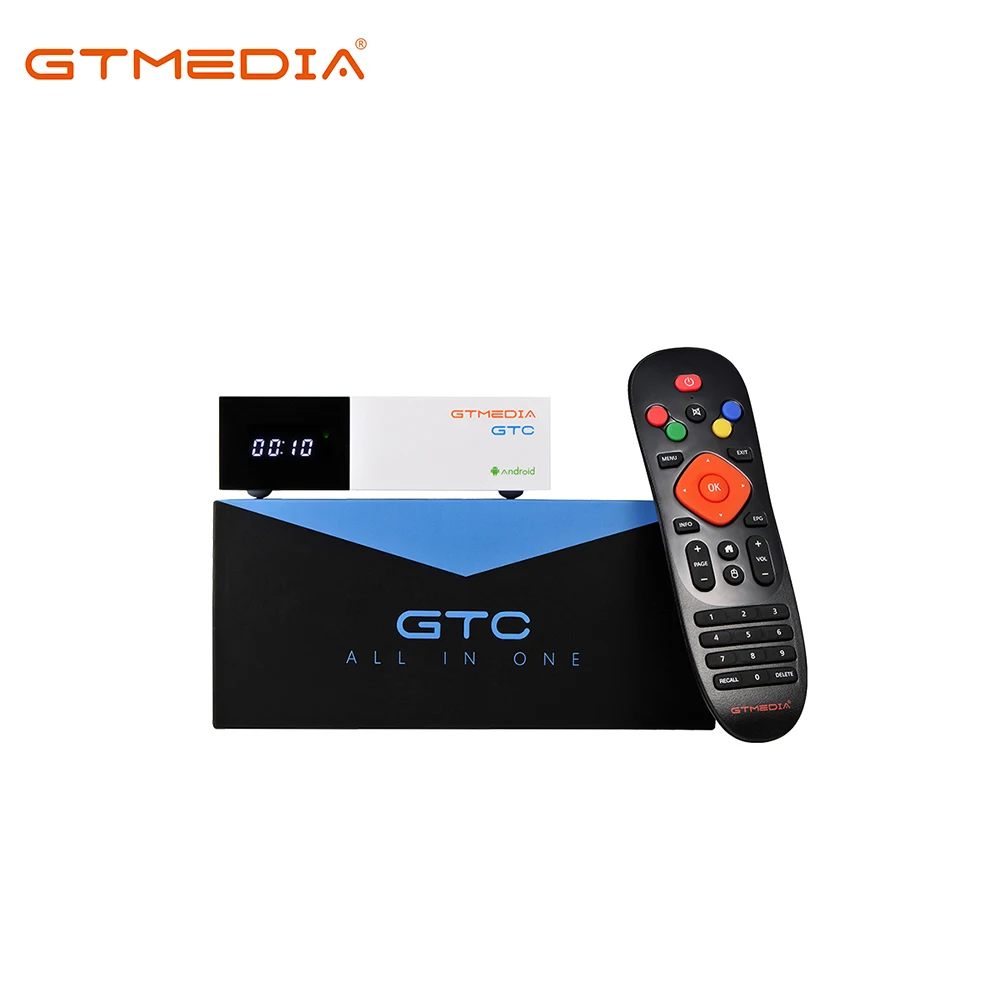

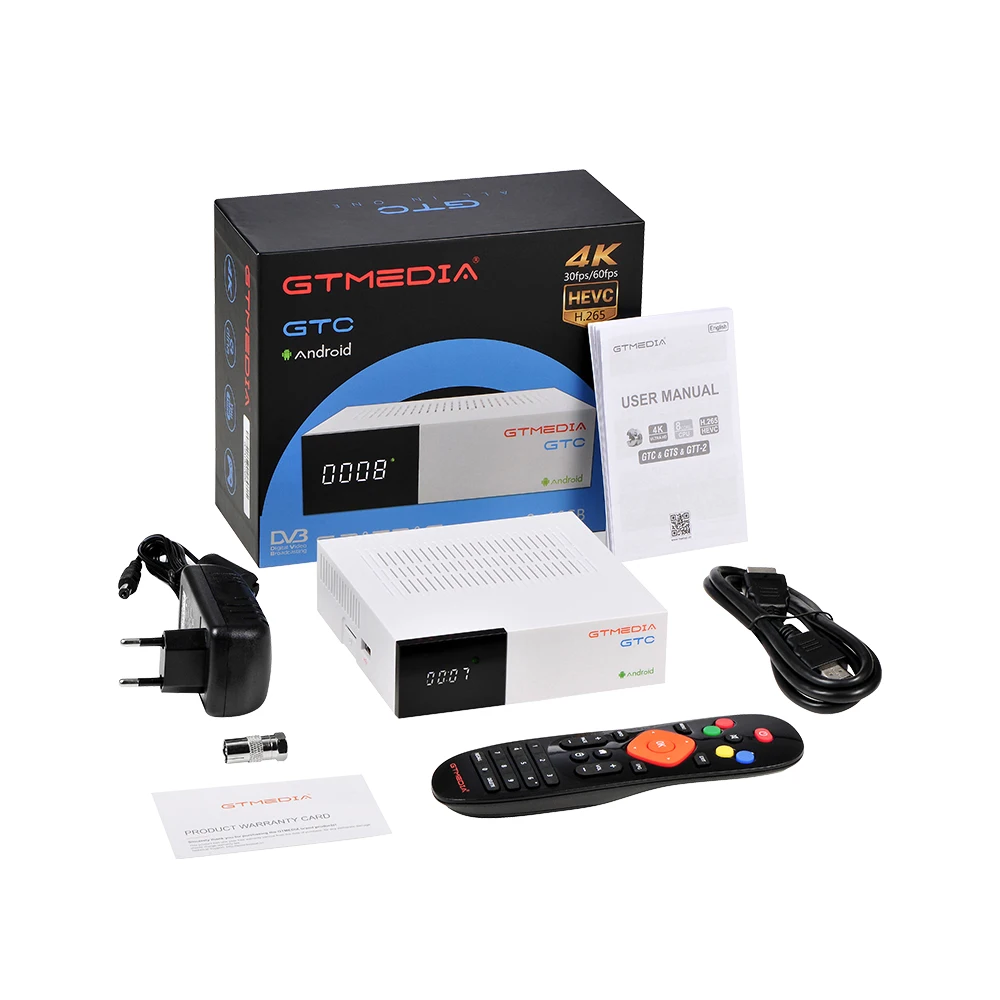

Product packaging
Product Packing Information:
* Product Dimension: 12.4*11.9*3.6cm
* Packaged Size: 18.8*15.2*8.5cm * Carton Size: 43.5*38.5*31.5cm * Unit Weight: 0.66 Kg with gift box * Carton Qty & Weight:20 pcs/Carton, 14.1 kgs * Accessories: GTMEDIA GTC DVB+Android TV Box*1, Power Adapter*1, IR remote control*1, HDMI Cable*1, User Manual*1
Physicals:
Power Supply: AC IN100-250V, DC 12V/1500mAh
Power Consumption: 12W in operation≦1W Standby Power Mode
Temperature: Operation 0～+45℃; Storage -10~+60℃
Humidity: 20~90%, non-condensed
Recommend Products

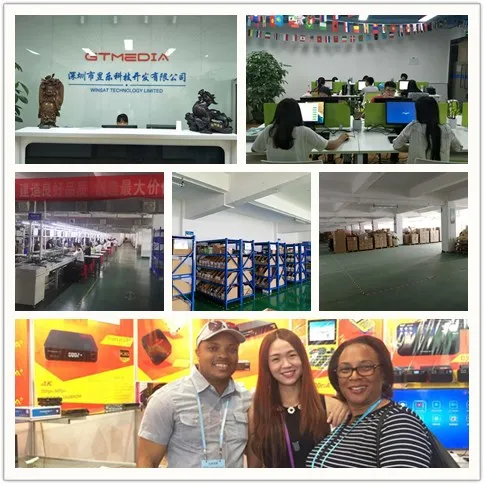

Company Introduction
