FULONGMA parking lot sweeper machine for sale
US $32000-$35000
JAPAN I suzu 4 куб. М бак для пыли 1,5 куб. М резервуар для воды вакуумный мини очиститель дорог для продажи
- Category: Road Sweeper >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (62418938449):
Product Overview
Description

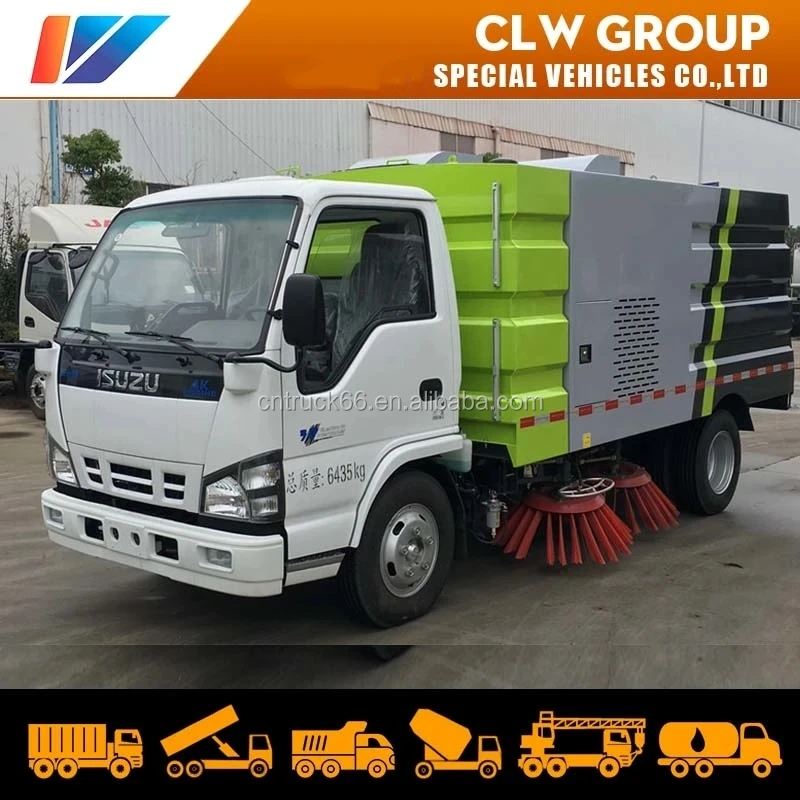

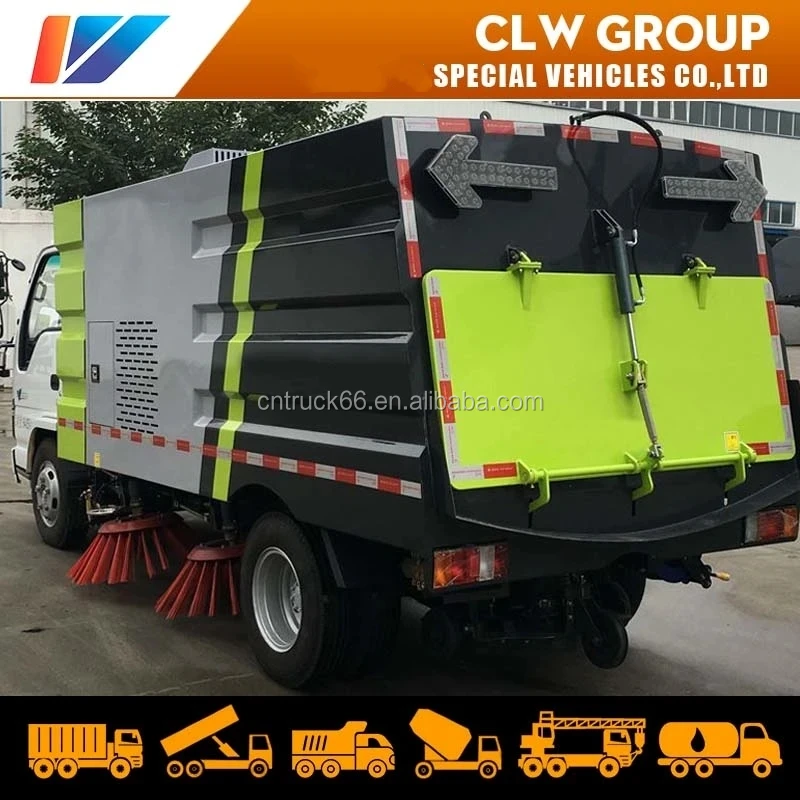

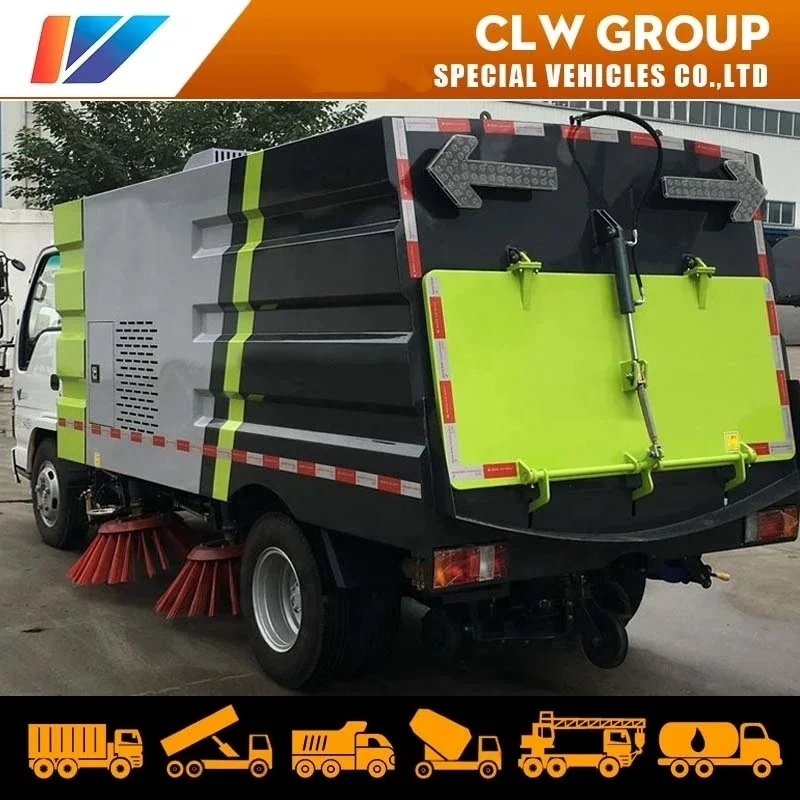

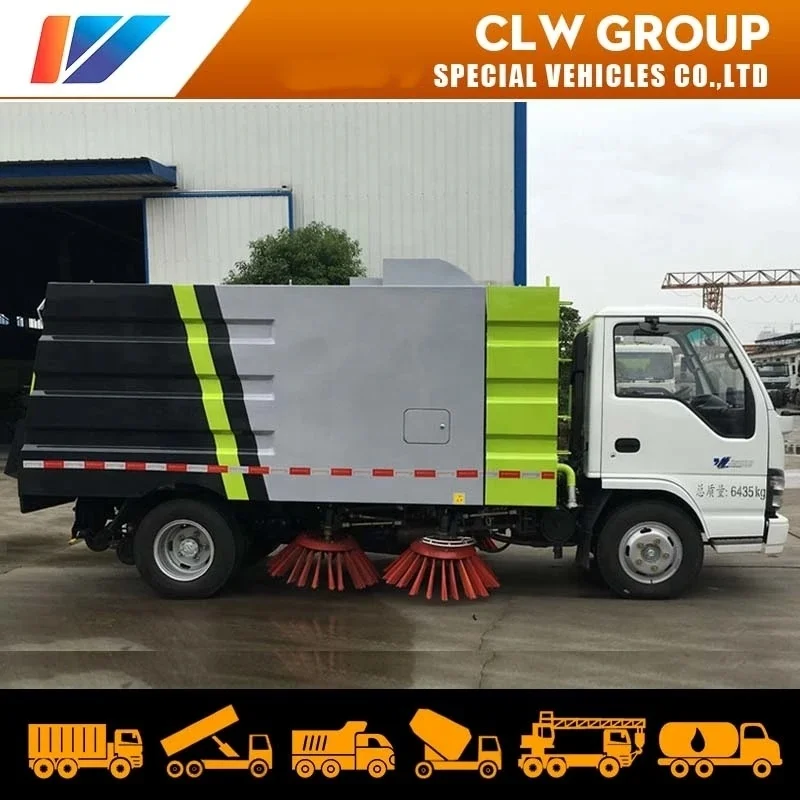

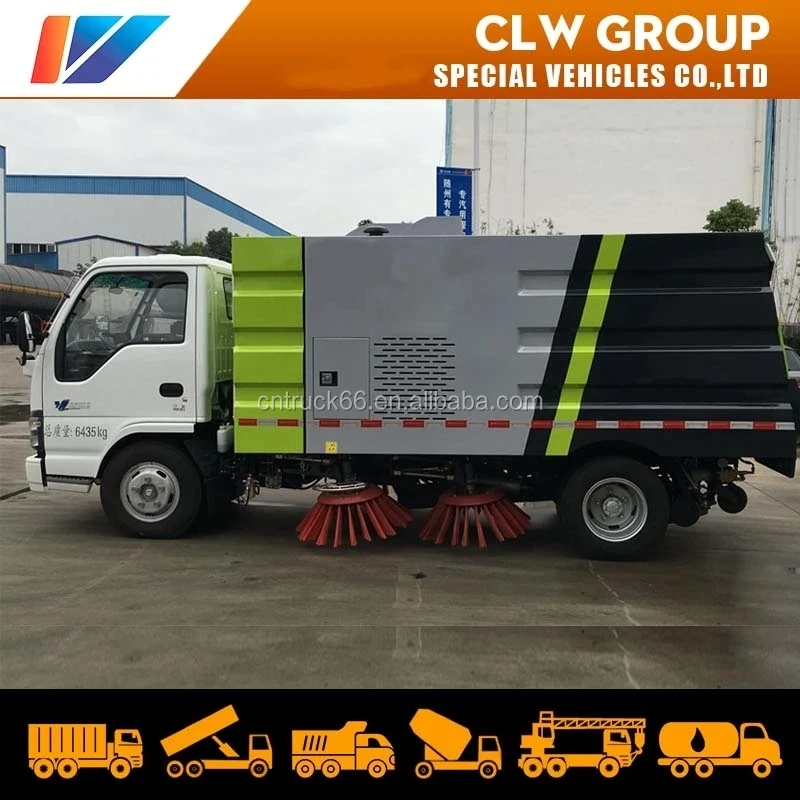

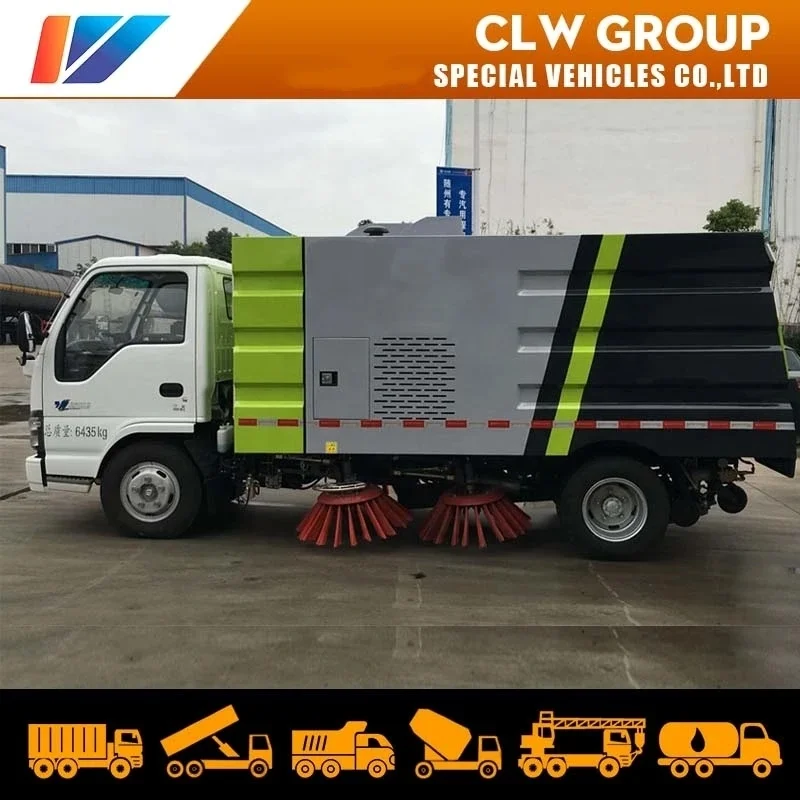

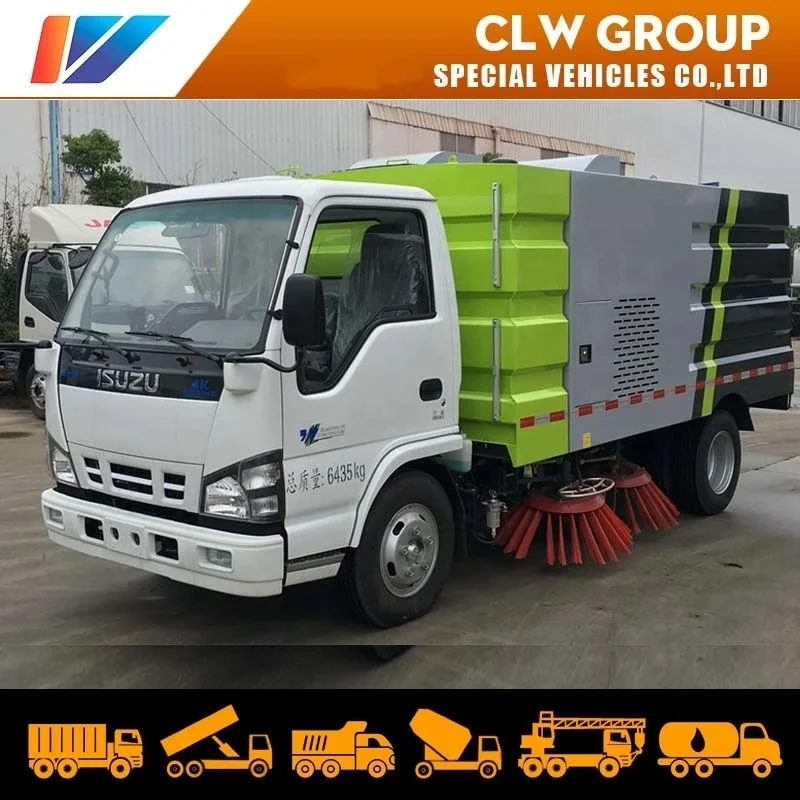

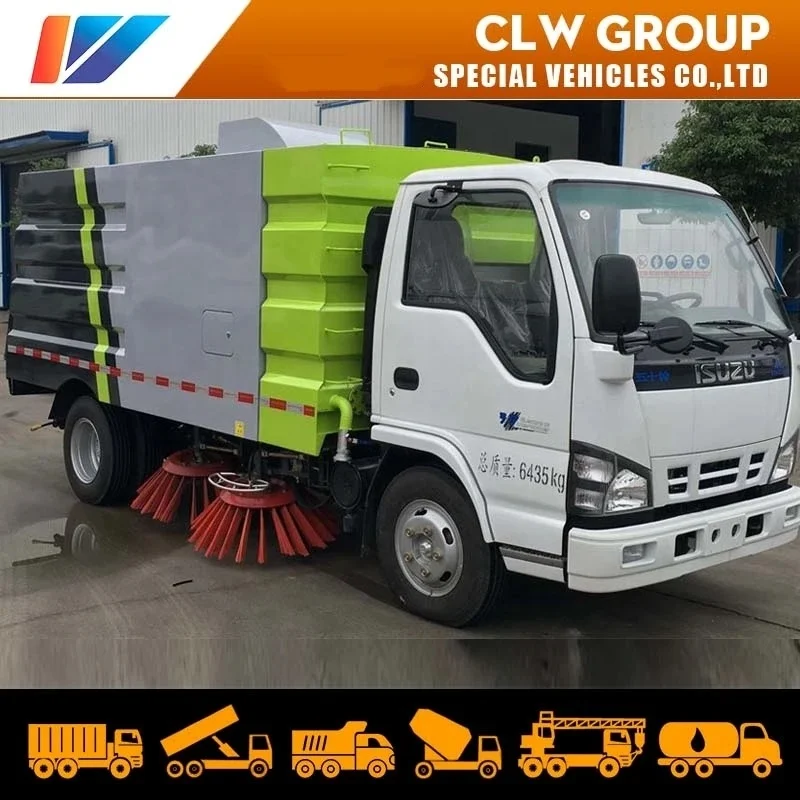

JAPAN I suzu 4cbm Dust Tank 1.5cbm Water Tank Vacuum Suction mini Road Cleaner Sweeper Truck for sale
Specification:
ISUZU 4CBM Dust Tank 1.5CBM Water Tank Vacuum Suction Road Cleaner Sweeper
Product Description
- Best Choice for Road Sweeping, both Garbage Tank & Water Tank
- Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
- Water Tank: with Water Filter & Level Gauge.
- Auxiliary ISUZU Engine 98HP to Supply Power for the whole system.
- Wind Suntion System to suck up the garbage.
- Sweeping System: 2 Brush at each side
Specifications of 4CBM SUZU Road Sweeper Truck
| Technical Parameters | Condition | New condition/Left hand drive/4x2 | |||||
| Overall Dimension(mm) | 5900x1980x2450 | ||||||
| Gross Vehicle Weight(Kg) | 6995 | ||||||
| Loading Weight(Kg) | 1900 | ||||||
| Curb weight(kg) | 4965 | ||||||
| Chassis | Brand | ISUZU | |||||
| Model | 100p | ||||||
| Wheelbase(mm) | 3360 mm | ||||||
| Overhang (front/rear) (mm) | 1015/1815 mm | ||||||
| Wheel track (front/rear) (mm) | 1504/1425 mm | ||||||
| Approach/Departure angle(°) | 24/16° | ||||||
| Axle Load(kg) | 2580/4720 kg | ||||||
| Max. driving speed(km/h) | 110 km/h | ||||||
| Clutch | Reinforced diaphragm clutch | ||||||
| Brakes | Oil brake | ||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||||
| Tire | Quantity(pcs) | 6pcs with one spare tire | |||||
| Specifications | 7.00-16 nylon tire | ||||||
| Gear box | Manual type, 5 Forwards & 1 Reverse | ||||||
| Cab | Single row seat. With air conditioner. | ||||||
| Engine | Model | 4JB1CN | |||||
| Displacement(ml) | 2771 ml | ||||||
| Power(kw)/Horsepower(HP) | 72 kw/98 HP | ||||||
| Cylinder quantity(pcs) | 4 pcs | ||||||
| Diámetro x carrera(mm) | φ93×102mm | ||||||
| Emission standard | Euro IV | ||||||
| Upper | |||||||
| Tank | Garbage tank | Tank material | Stainless steel | ||||
| Tank volume(cbm) | 4.0 cbm | ||||||
| Water tank | Tank material | Stainless steel | |||||
| Tank volume(cbm) | 1.5 cbm | ||||||
| Auxiliary engine | Model | ISUZU | |||||
| Power(kw)/Horsepower(HP) | 55 kw/75 HP | ||||||
| Fuel type | Diesel | ||||||
| Sweeping System | Type | Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down. | |||||
| Sweeper Diameter(mm) | 900 mm | ||||||
| Working area(m) | 2.7-3.0 m | ||||||
| Sweeper rotation speed(r/min) | 80 r/min | ||||||
| Cleaning capacity | 40000m2/h | ||||||
| Sweeper angle Adjustment | Forerake 4°-6°and extroversion 2°-4° | ||||||
| Remarks | 1, Rear LED pilot lamp 2, Self unloading box body 3, Rear vacuum cleaner 4, The tank color is optional | ||||||
Can be installed: sprinkler, snow shovel, job monitoring, high pressure water gun.
.
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;
7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;
9. Crane tonnage: 5m3 to 200m3;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
