Price of China CNC milling machine VMC650 VMC850 VMC for molds
Product characteristics:
VMC850 is a new generation vertical machining center. It can be used in aerospace, military industry, hydropower, wind power, automobile parts, machining, precision machining and mould manufacturing. Small parts and non-ferrous metals high-speed and high-precision automatic processing. Integral casting FEM finite element analysis, dynamic simulation completely eliminate structural stress, to ensure the best rigidity and stability.
Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Machine main specifications:
Specification | Unit | VMC850 |
Table size | mm | 1000×500 |
T-slot(NO.x width x pitch) | mm | 5-18-100 |
Max.table load | kg | 500 |
Guide rail type | Linear rail guide | |
X/Y/Z axis travel | mm | 800×500×500 |
Distance from spindle nose to worktable | mm | 100-600 |
Distance from spindle center to column | mm | 580 |
Spindle taper | BT40 | |
Spindle Speed | rpm | 8000 |
Spindle Drive | Belt | |
Spindle Motor | kw | 7.5 |
X/Y/Z axis rapid feed speed | m/min | 24/24/24 |
X/Y/Z axis cutting feed rate | mm/min | 1-10000 |
Tool changer | Arm type-24T | |
Positioning accuracy | mm | ±0.008/300 |
Repeat Positioning accuracy | mm | ±0.005 |
Machine dimensions(L*W*H) | mm | 2200×2350×2550 |
Machine weight(N.W/G.W) | T | 5.0 |
Details:
Optional accessories(need add extra cost):

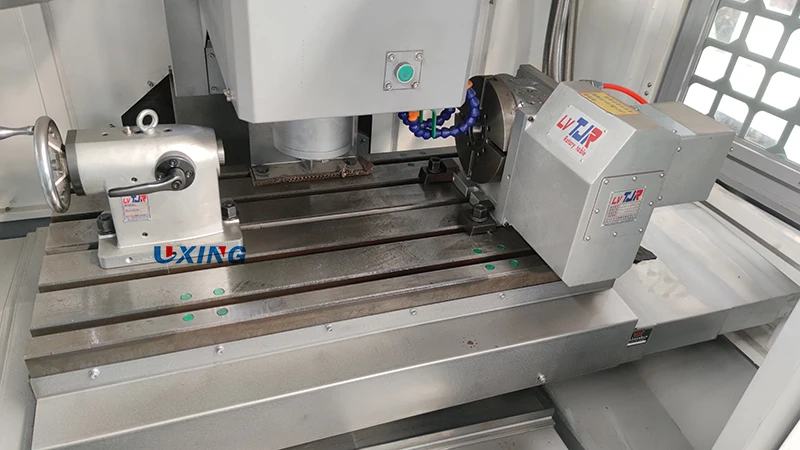

The 4th axis;
chip-conveyor;
Tool setter.
chip-conveyor;
Tool setter.
