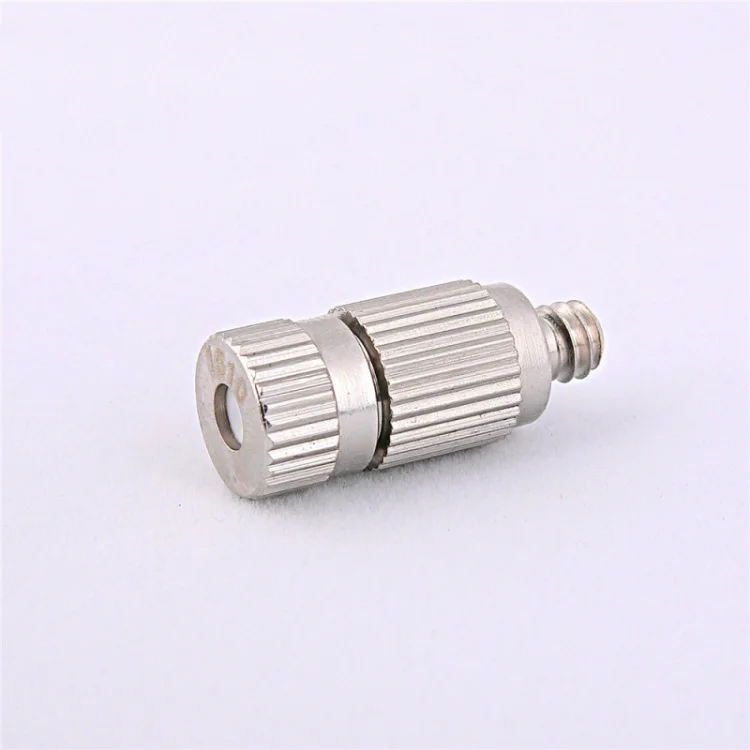

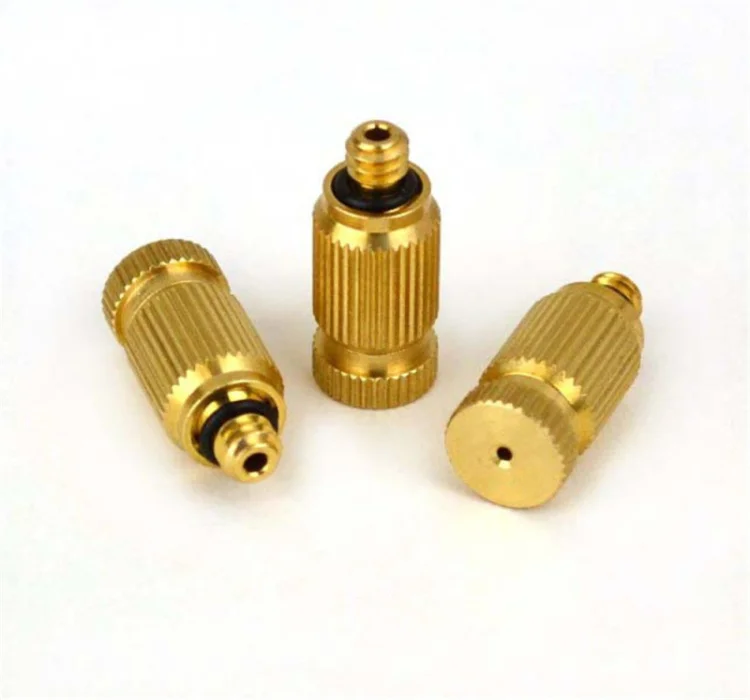

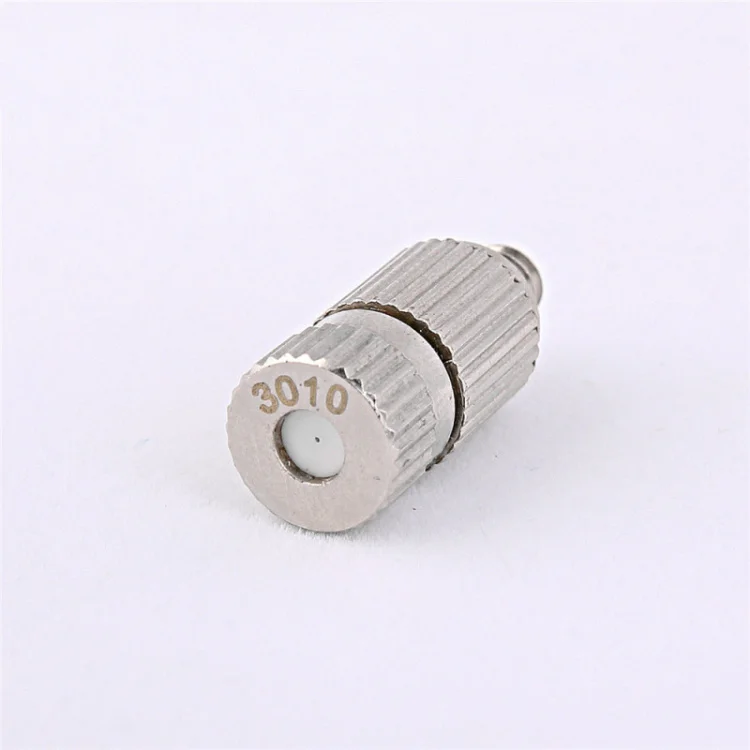

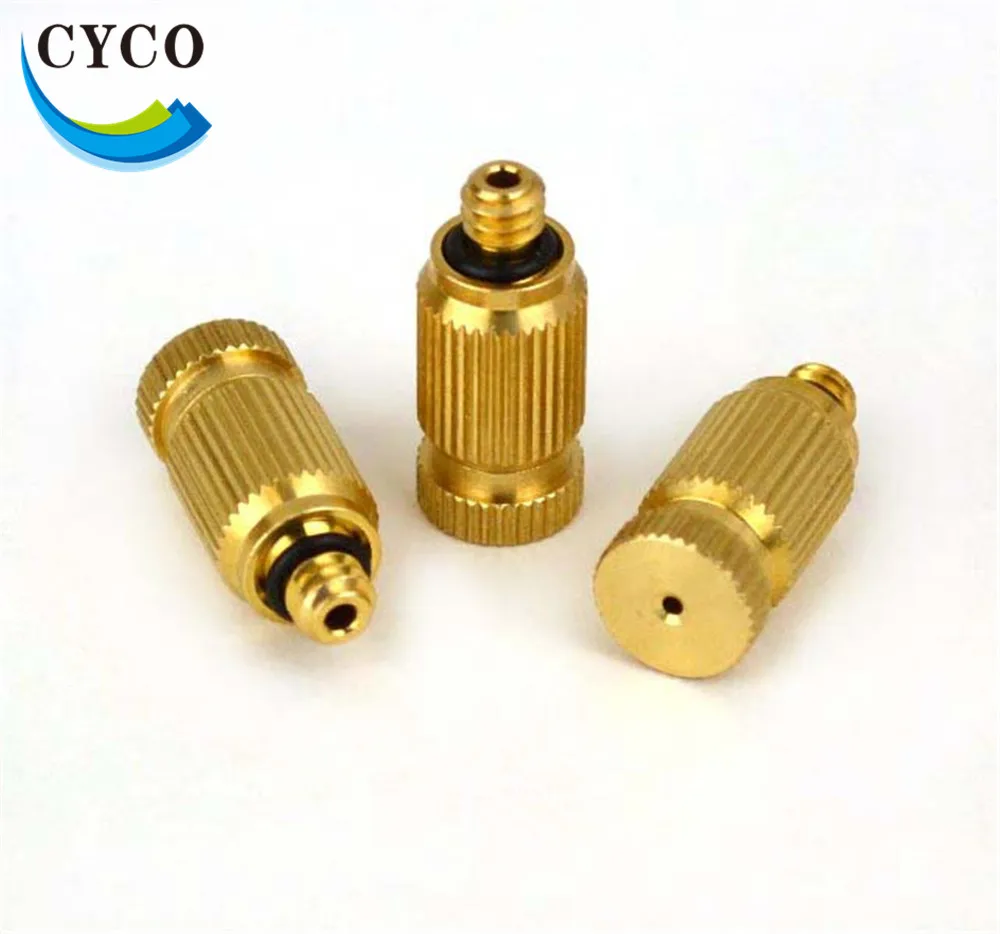

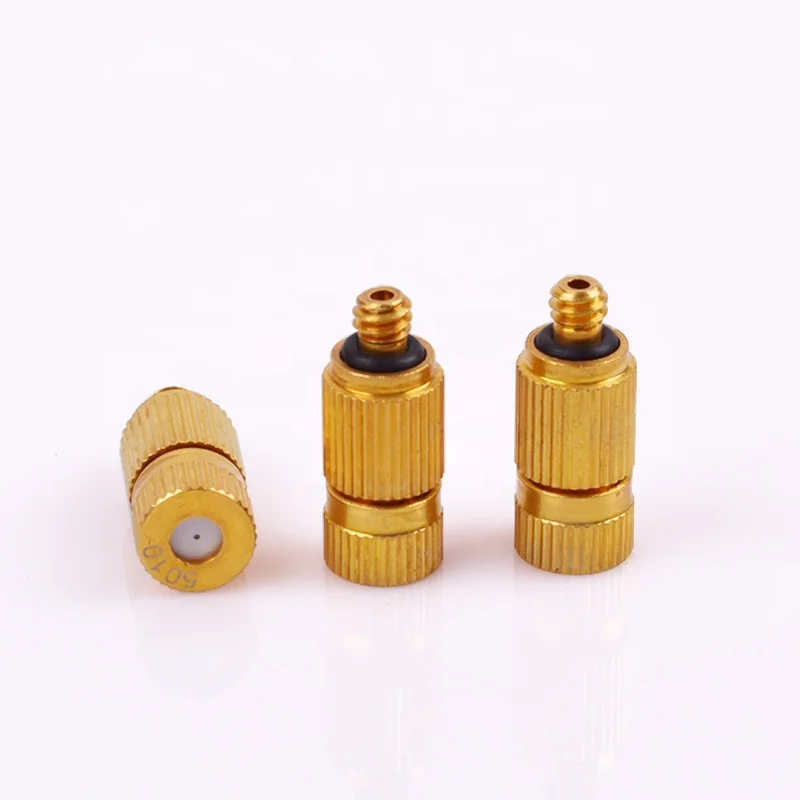

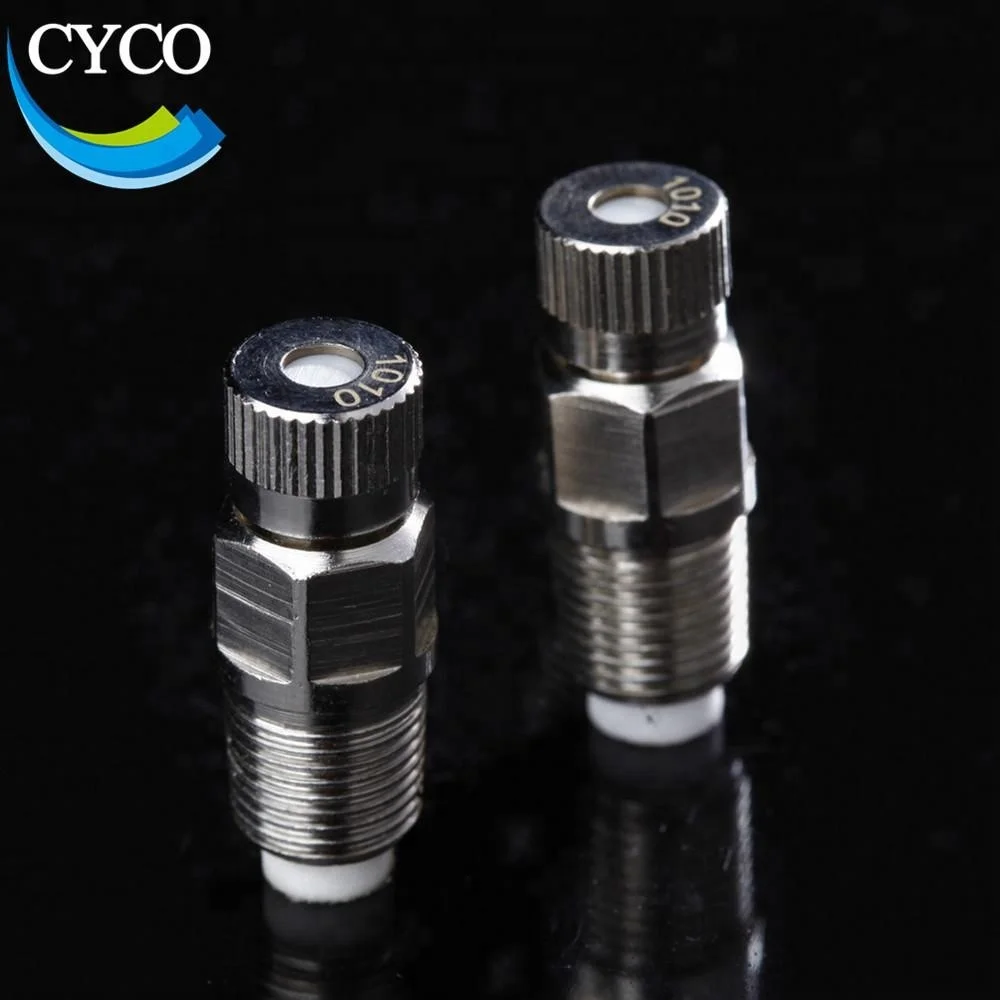

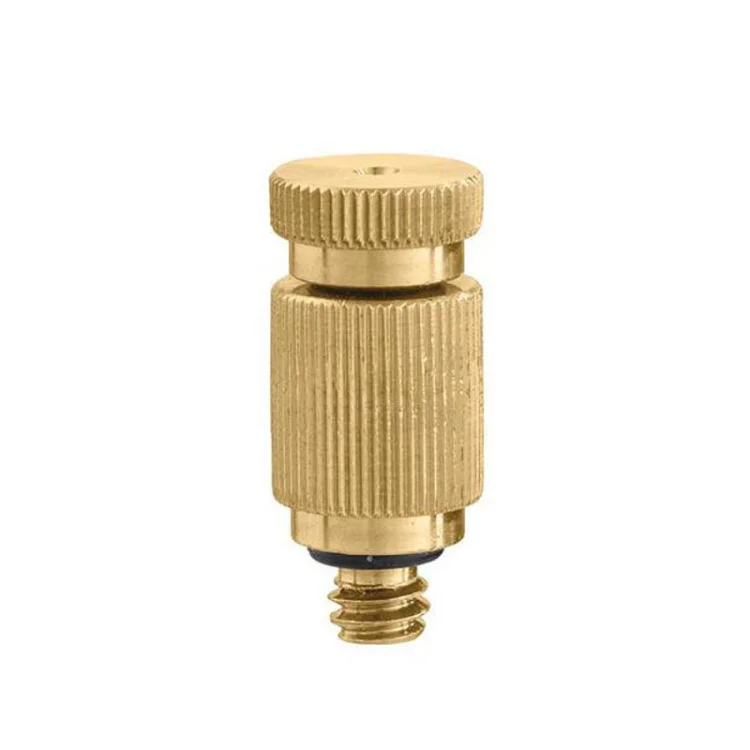

15-100 Degree Brass Water Fine Mist Spray Nozzle Mist Cooling Nozzle
Product Description
Specification
Product Name
Anti Drip 70 Bar 50 Micron Fog High-Pressure Misting Spray Nozzles
Material
Brass, Stainless Steel
Thread Type
NPT, BSPT
Thread Size
10/24'', 12/24'', 1/8'', 3/16''
Flow Rate
26---243 ml/min
Working Pressure
20---70 Bar
Spray Pattern
Hollow Cone
Particle Size
50um
Features
Extreme fine mist
With ceramic insert and anti-drip
Durable and wear resistance misting nozzle
Customized OEM make
Application
Wetting & Rust Removal, Chemical Treatment, Chemical Agent Spraying, Liquid Coating, Humidify for Tabacco Leaf, Pill Coating, Evaporative Cooling for Flue Gas, Disinfection&Sterilization, Parts Cooling, Fruit Wax Injection, Ceramic Tile Glazing, Humidify for Factory, Salt Fog Test, Artificial Fog, Dust Suppression, etc.
Packing
Plastic Bag+ Carton, Special requirements are available
Delivery
Within 7 Days after receiving the payment
Custom Made
Available

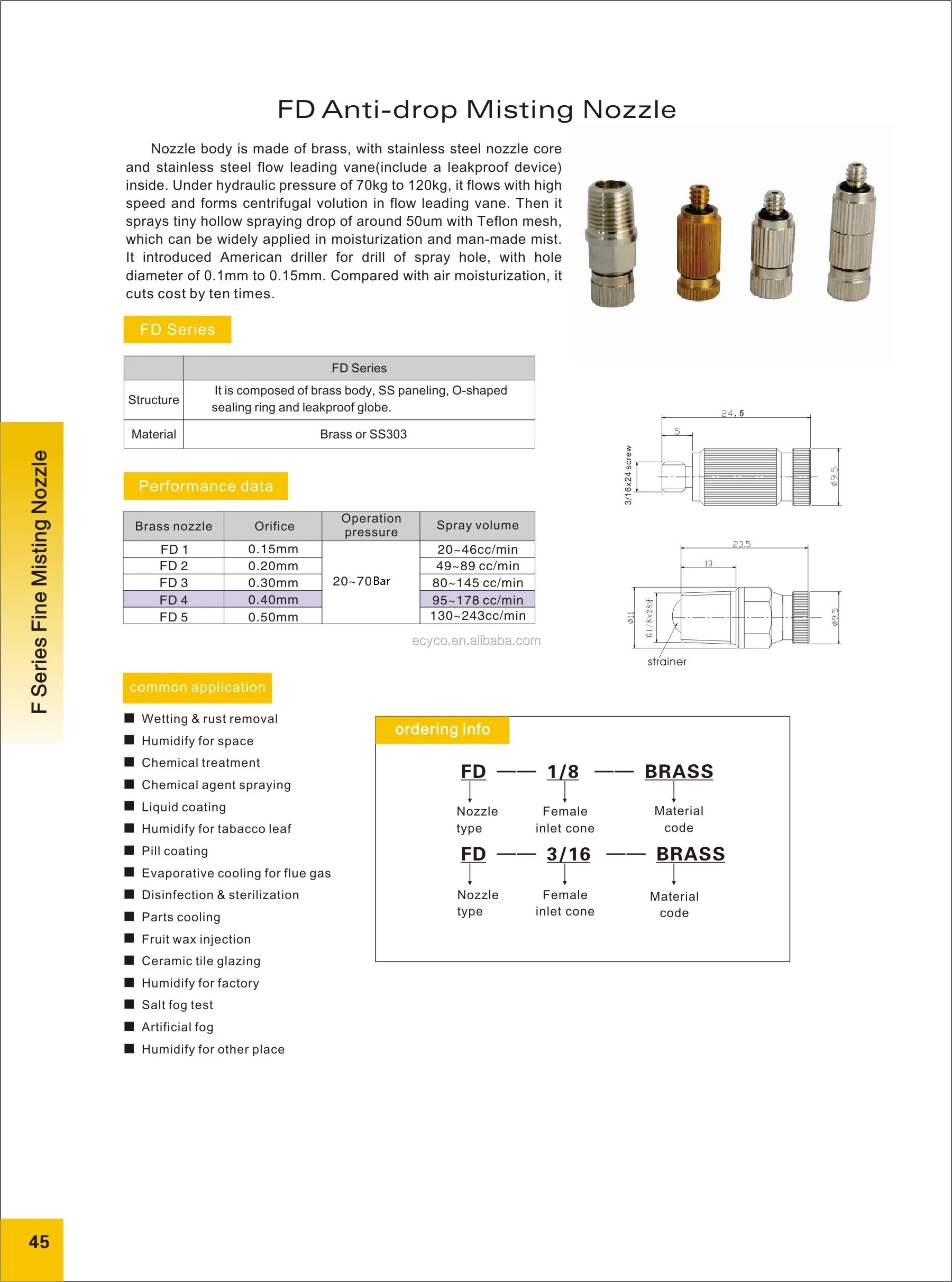

FD Series
Structure
It is composed of brass body, SS paneling, O-shaped sealing ring and leakproof globe.
Material
Brass or SS 303
Brass Nozzle
Orifice
Operation Pressure
Spray Volumn
FD1
0.15mm
20-70kg/cm
20-46 cc/min
FD2
0.20mm
49-89 cc/mm
FD3
0.30mm
80-145 cc/mm
FD4
0.40mm
95-178 cc/mm
FD5
0.50mm
130-243 cc/mm
Performance Data
Related Products
Pls Click the different nozzle pictures as below,
then you will go to the related nozzle page for more information.
Tank Washing Nozzle Hollow Cone Nozzle FD Mist Nozzle
Dry Fog Humidifier Fire Fighting Nozzle Air Atomizing Nozzle
Company Information

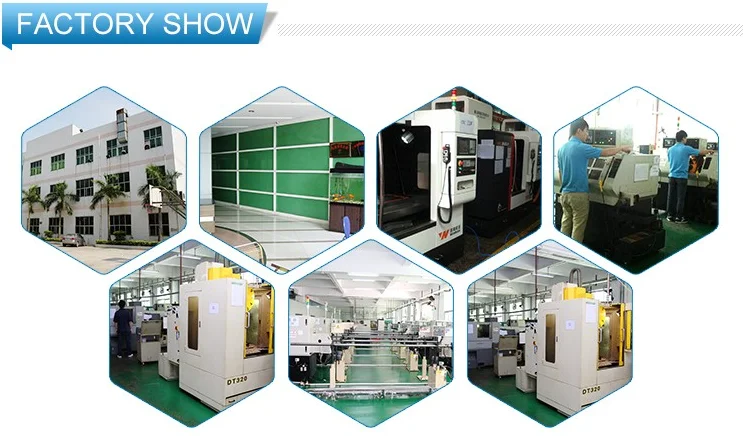

CYCO with 18-year of experience is one of the biggest spray nozzle manufacturer in China. With thousands of kinds of spray nozzle in stock, owning over 100 pieces of production equipment and over 20 R&D engineers, the precision of our spray nozzle can reach 2 microns or below. We not only have various kinds of product in stock but also can custom made base on your requirements.
Process Flow
FAQ
Q1. Are you a trading company or a manufacturer? A: CYCO, founded in 1991, is one of the biggest spray nozzle manufacturer in China
Q2. What are your terms of payment? T/T, D/T, Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.
Q3. How about your delivery time? Generally, it will take 7-10 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples or can you provide the sample for the quality test? Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Q5. Do you test all your goods before delivery? Yes, we have 100% test before delivery
