Price:$84,217.50 - $85,329.00

Quantity:


Product Overview

Description



DESCRIPTION

FLIFT can provide you the following types of Forklifts:
1. Pallet Trucks & Walkie Stackers: Typically used for moving pallets and crates of small loads at ground height.
2. Electric Warehouse Equipment: Stand-on or ride-on used in small spaces and are quite maneuverable and can lift small to medium loads. (i.e. Reach trucks, order pickers.)
3. Electric Counter-Balance Forklift: Used to lift medium to large loads with a battery-powered engine, making it less pollutant (more suitable for indoors) with lower operating costs.
4. IC (Internal Combustion) Engine Forklift: The most commonly used forklift normally outdoors. This type of forklift is typically cheaper to purchase and lifts heavier loads, and works in all types of weather running off liquefied petroleum gas (LPG), liquid propane, diesel and compressed natural gases (CNG).
5. Big/Heavy-duty Forklift: can lift extremely large loads up to 48 tons (e.g. shipping containers to a very high height).




PRODUCT GUIDELINES

The forklift is a small industrial vehicle, having a power-operated forked platform attached at the front that can be raised and lowered for insertion under a cargo to lift or move it. It is being extensively used for lifting and moving materials and goods over short distances. Forklifts have become an indispensable part of manufacturing and warehousing.




PARAMETER

FLIFT BRAND 8.0-12.0 TON 4-WHEEL ELECTRIC FORKLIFT
General1Model FB80FB100FB120
2Power Type ElectricElectricElctric
3Rated Capacitykg80001000012000
4Load Centremm600600600
Characteristic & Dimension5Lift Heightmm300030003000
6Fork SizeL×W×Tmm1220*150*701520*175*851520*180*100
7Mast Tilt AngleF/RDeg6°/10°6°/10°6°/10°
8Front Overhang (Wheel Center to fork face)mm650750750
9TreadF/Rmm1650/17001650/17001650/1700
10Ground Clearance (Bottom of mast)mm160210210
11Fork SpreadMin./Max. 300/2000515/2055515/2055
12Overall DimensionLength to face of fork(Without fork)mm368044804480
13Overall Widthmm220022702270
14Mast Lowered Heightmm260028102810
15Mast Extended Height(With backrest)mm455045504550
16Overall Guard Heightmm250026502650
17Turning Radius(outside)mm335038503850
18Min. insecting aislemm304032003200
Performance19SpeedTravel(Empty load)km/h151515
20Lifting(Full load)mm/s275260220
21Max. Gradeability%151010
Chassis22TireFront 9.00-1698.00-209.00-20
23Rear 8.25-158.25-208.25-20
24Wheel Basemm245028502850
25Service Weightkg127801671016910
Power & Transmission26MotorDrive Motor 2*14(BEST MOTOR)2*20(SCHABMULLER)2*20(SCHABMULLER)
27Lift Motor 2*25(SCHABMULLER)2*28(SCHABMULLER)2*28(SCHABMULLER)
28BatteryVoltage/CapacityV/Ah80/115096/125096/1250
29ControllerManufacturer CURTISCURTISCURTIS
30Type ACACAC
31Operating Pressure for AttachmentMpa17.517.517.5

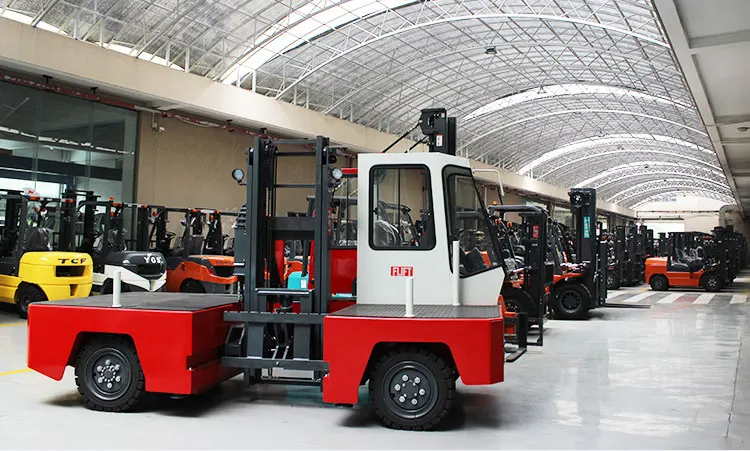

HENAN JINGCHENG XIANDAI FORKLIFT CO., LTD.

Henan Jingcheng Xiandai Forklift Co., Ltd. is the leading and professional supplier of forklift trucks in China. The company began production & sales of forklift in 2007. Nowadays, FLIFT has grown up as a large-scale enterprise manufacturing a comprehensive range of material handling equipment including 1-48ton I.C. forklift,1-12ton Electric forklift, side loader forklift, towing tractor, and other warehouse equipment.



FAQ

Q: Can you customize as per my requirement?

A: Yes, we will try our best to meet your various request.

Q: How long is the warranty for your products?

A:12month/2000working hours whichever occurs earlier.

Q: Can you produce the products labeled with the client's brand?

A: Yes, we can. Please provide us the Letter of authorization of your brand.

Q: What're the terms of payment?

A: It’s our practice to adapt by T/T 30% deposit, 70% balance before delivery. For some countries and big order amount, we also accept 100% confirmed irrevocable L/C payable by draft at sight.

Q: How can you ensure the quality of the products?

A: We have joined the Trade Assurance.Credit Limit US $203,000.
