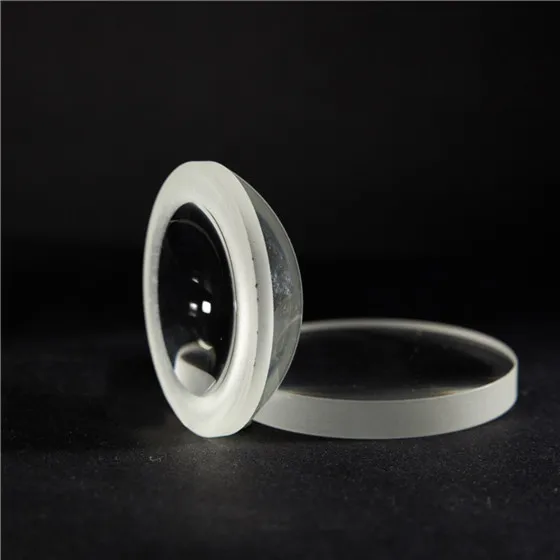

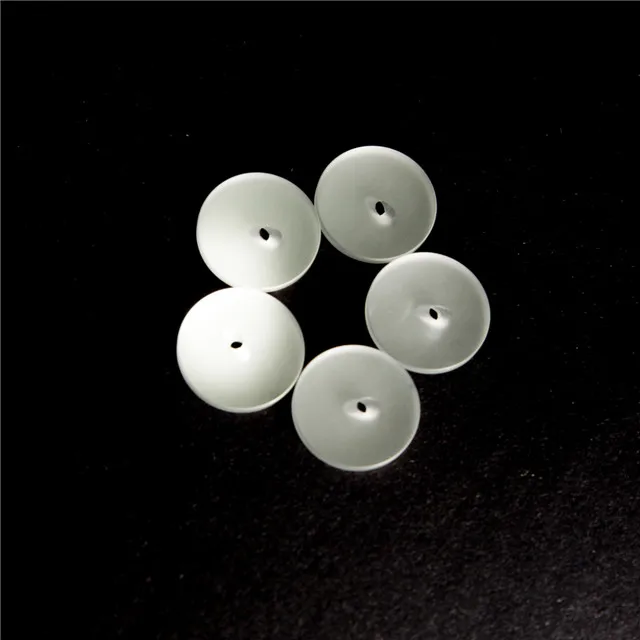

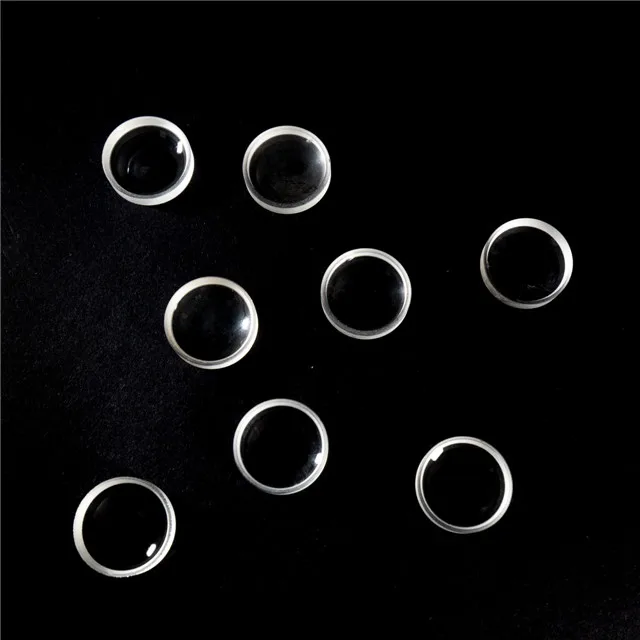

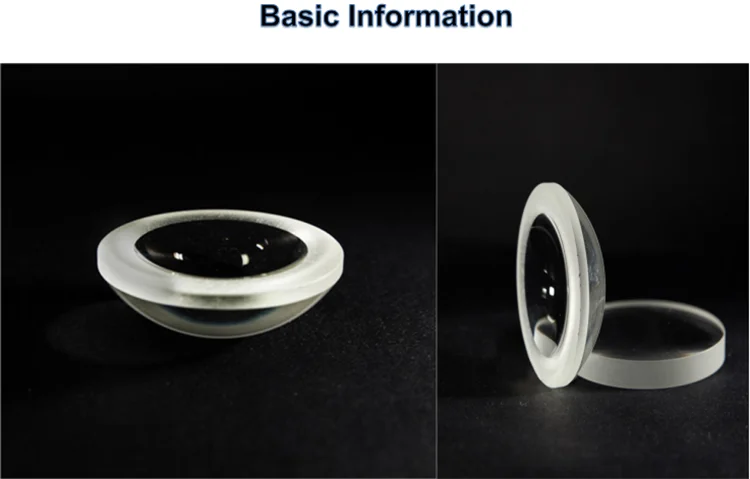

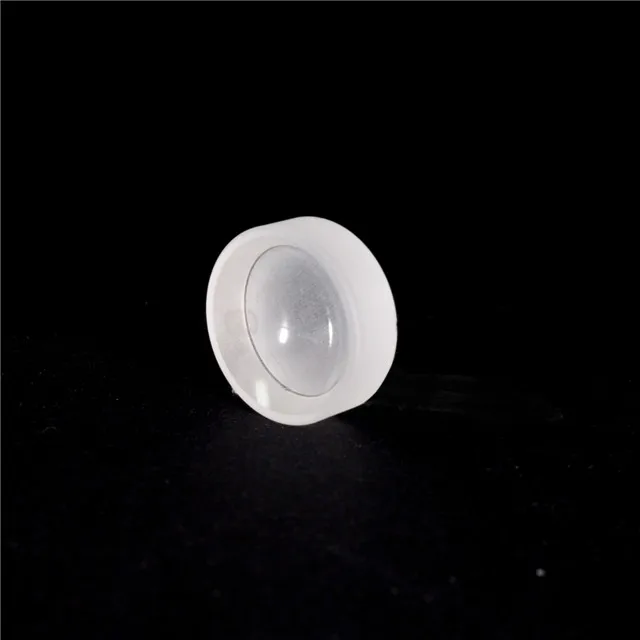

k9 hemispherical dome lens are designed for demanding infrared applications including infrared imaging or surveillance, remote sensing, or infrared spectroscopy. These meniscus lenses are offered uncoated or anti-reflection coated for increased performance in the designated coating wavelength range.
Focal length
±5mm -±1000mm±1%
Top circle
5mm - 200mm±0.1mm
Center thickness tolerance
±0.05mm
Centering error of lenses
≤ 3min
Surface Accuracy
λ/4@
Surface quality
40/20
Effective Aperture
90%

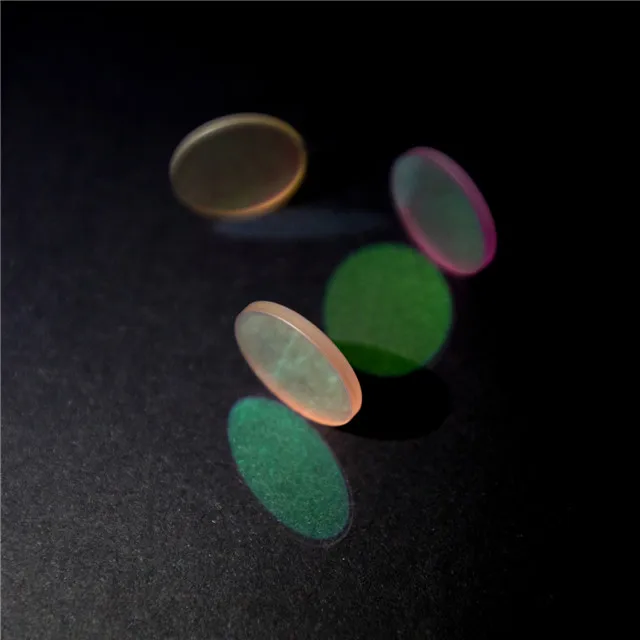

coating
190-380 nm ultraviolet anti-reflection membrane 2400-1100 nm visible near infrared anti-reflection membrane (532 nm single point anti-reflection membrane, 532+1064 nm double point anti-reflection membrane, 808 single point anti-reflection membrane, 1064 single point anti-reflection membrane), and the bandwidth anti-reflection membrane in the region,
Medium high reflection film: 1,355 nm /532 nm /635 nm /808 nm /1064 nm single point, double point, three point laser reflection film
Application :
1,k9 hemispherical dome lens : Application in Industrial lens.
2,k9 hemispherical dome lens: Application in Medical field
3,k9 hemispherical dome lens: Application in Aerospace field
Packaging & Shipping

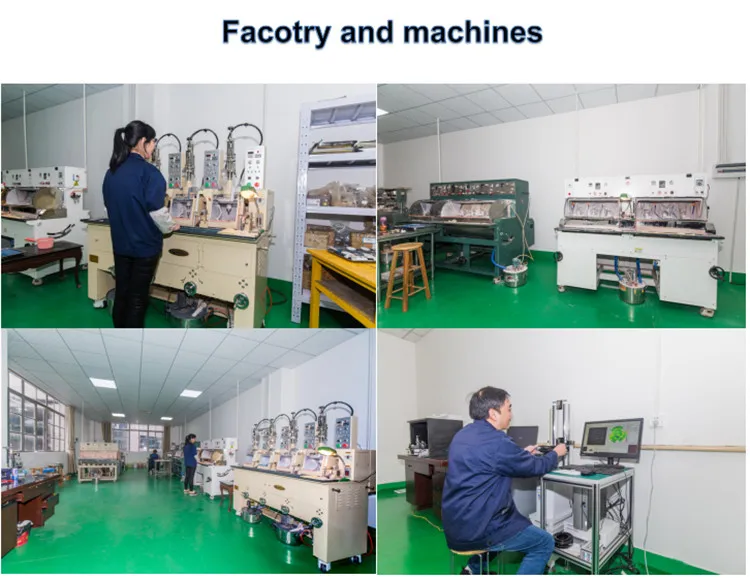

Company Information
Our Services
FAQ
1. Are you a factory or trading company?
A: We are facotry . we are located in the upper reaches of the han river in southwest shaanxi province and nanping dabashan mountain in the north qinling mountains, hanzhong city, known as the birthplace of the han family and the little jiangnan in northwest China, is a first-class manufacturer of optical products for national defense, military industry, aviation, aerospace, industry, scientific research, medical treatment, instruments and mechanical equipment
Q2. Could you offer samples?
A: we process the lens or prism according to the drawings, so there is no sample before placing an order. If regular lens, we could provide the samples.
Q3. What is your terms of packing?
A: Pls note we pack our goods in special protective packing for optical products. If you need special demands, pls tell me before delivery.
