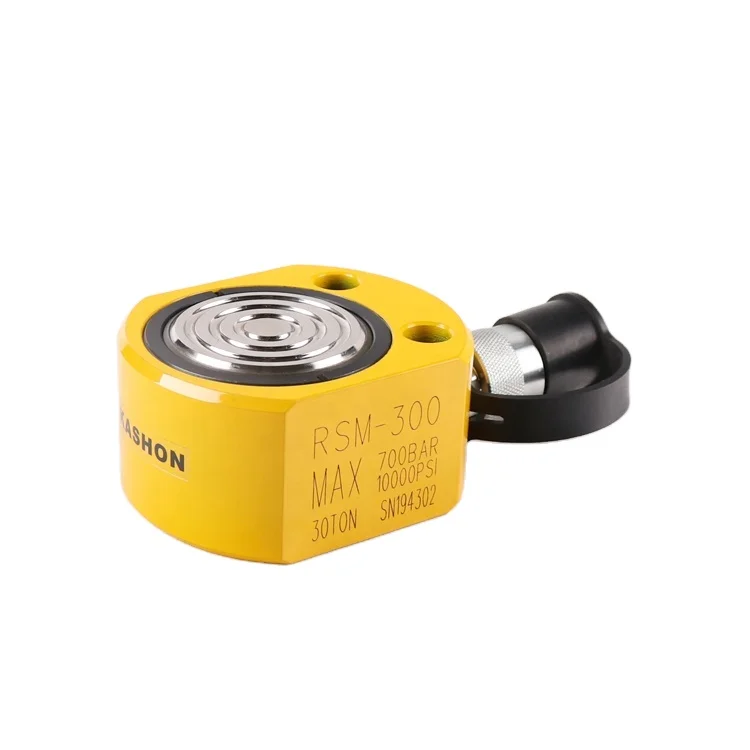

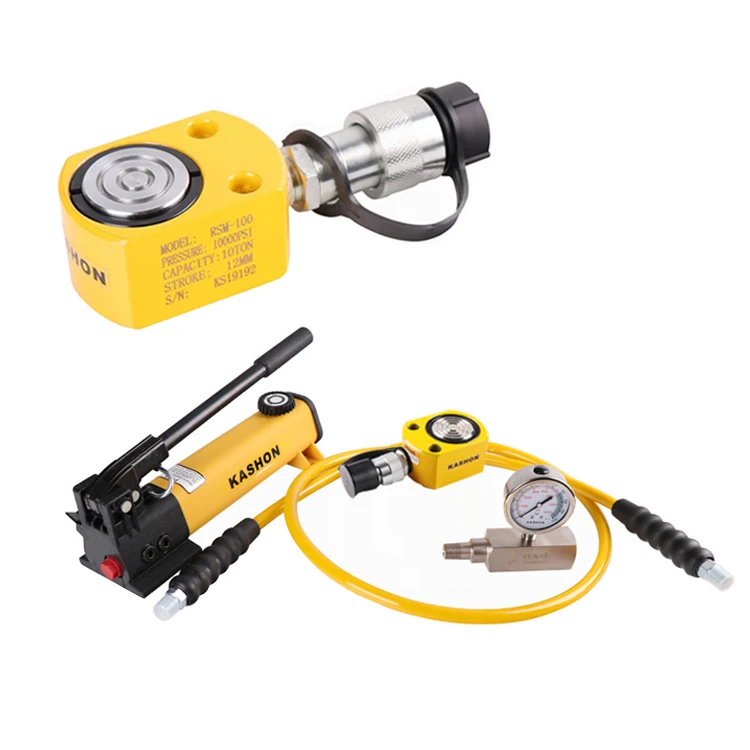

KSRSM 300 Enerpac Equiivalent Mini Small Flat 30 Ton Hydraulic Lifting Jack Cylinder
- Category: >>>
- Supplier: Taizhou Kashon Power Equipment Co. ltd.Taizhou ltd.
Share on (62419617672):
Product Overview
Description
Features
1. Max working pressure 700 bar.
2. Single acting cylinders with heavy duty return springs and are designed to be used in all orientations.
3. These flat cylinders will fit where other cylinders collapsed height will not enable placement.
4. Coated with corrosive resistant baked enamel.
5. Steel cylinder piston rods are hard chrome plated.
6. Saddles are not required due to grooved cylinder piston rod ends.
7. The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension.

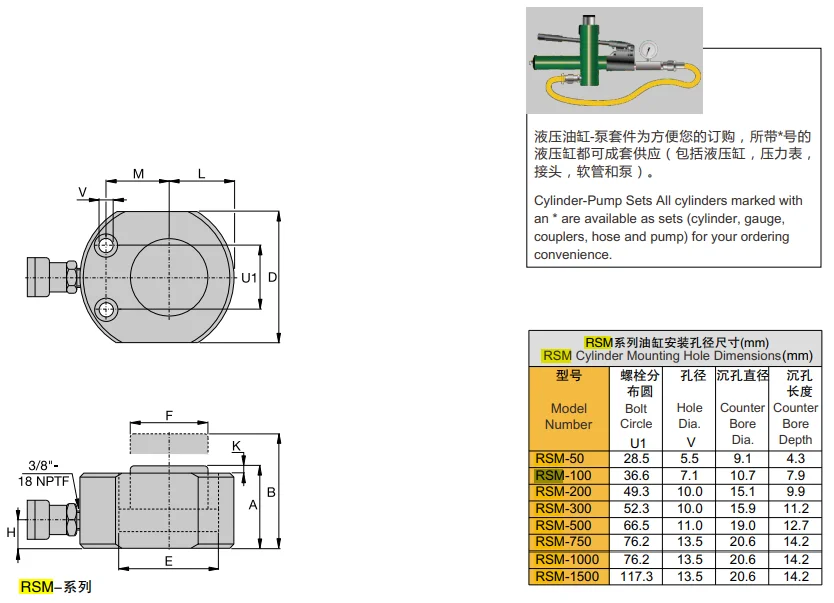

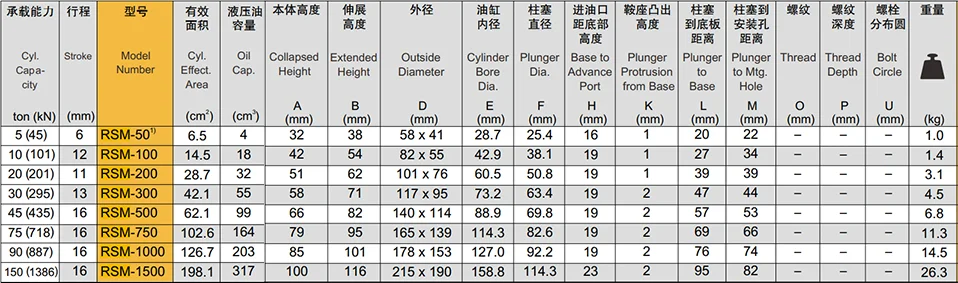

Quick Selection Chart :
For complete techniacl information please contact the sales.
Related Products:

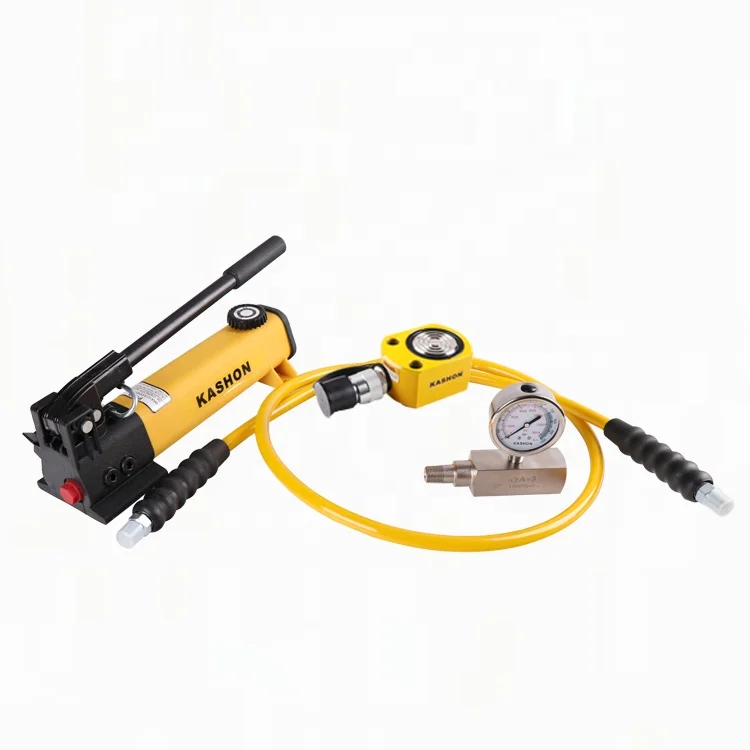

SUITABLE HYDRAULIC MANUAL PUMP: | ||
Model | P-392 | |
Pump type | Two speed and single acting | |
Oil capacity | 901ml | |
Max. pressure | 700bar(10,000Psi) | |
Weight | 4kgs | |
SUITABLE HYDRAULIC ELECTRIC PUMP: | ||
Model | KHE-3SM | |
Power supply | 1ph /220V/50hz | |
Oil capacity | 5L | |
Low pressure flow | 1.5L/min | |
High pressure flow | 0.2L/min | |
Motor power | 0.375kw | |
Max. pressure | 700bar | |
Weight | 19kgs | |
HYDRAULIC HOSE: NPT3/8" | ||
Couplers | 3/8" or 1/4'' Screw Connection ( Ball or needle Type ) | |
Working Pressure | 10,000 psi ( 700 Bar ) | |
Burst Pressure | 40,000 psi ( 2800 Bar ) | |
Construction | Steel Braid | |
Length | 2m, 4m, 6m, 10m,15m or customized | |
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:

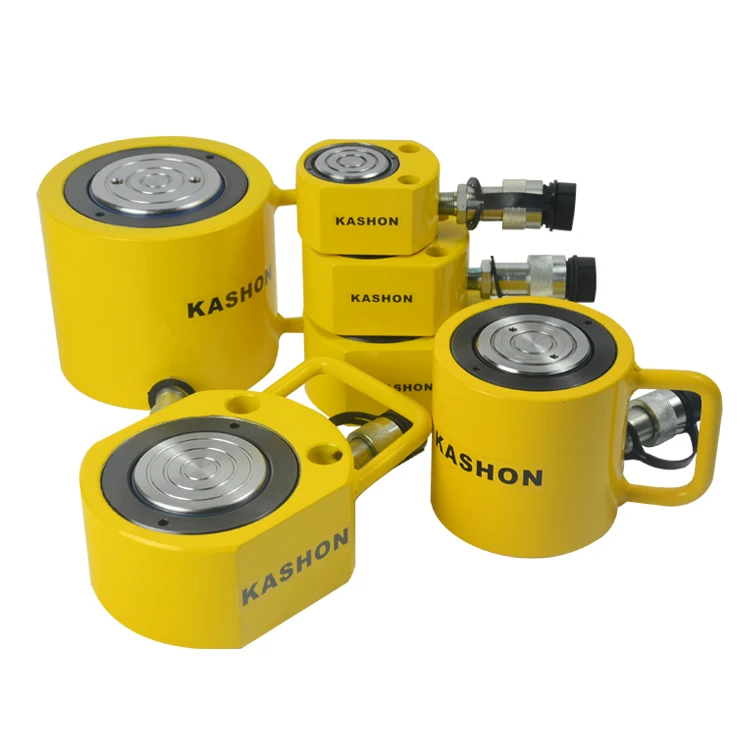

Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches (100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories (hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches (100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories (hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
Q1: How to contact sales?
A1: Please via email eileen at kashonequipment dot com or call: +86-199-5169-4395 for pre-sales.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.

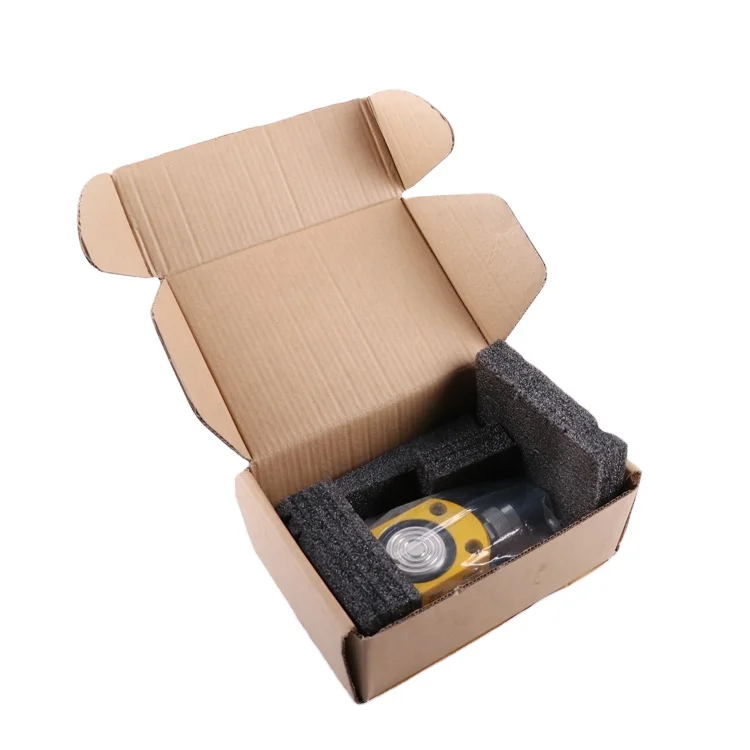

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
Q6: What is the warranty？
A6: 12 months against B/L date.
A1: Please via email eileen at kashonequipment dot com or call: +86-199-5169-4395 for pre-sales.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty？
A6: 12 months against B/L date.
