PQWT TC150 Automatic Mapping Underground Water Detector For Sale

Product Overview

Description



Introduction of Underground Water Detector

PQWT-TC150 Automatic Mapping Underground Water Detector using natural electric field source as a working farm, with resistivity contrasts underground rocks and minerals or groundwater, based on measuring the natural electric field on the surface of the N different frequency electric field component, according to their different variation to study Abnormal changes in geological bodies produce, reaching solve geological problems one electrical prospecting methods. According to this theory the design and production of equipment called potential frequency of detecting instrument, referred to natural selected frequency electric field instrument or instruments for geological exploration work.zmwm07

Parameters of  Underground Water Detector

Model	PQWT-TC150
Measuring Depth	150 meter
Measurement Range	0mV-2000mV, instrument automatic conversion range
Measurement Accuracy	0.001mV
Measurement Channel	6
Measuring Frequency	Single, triple and 40 frequency
Optional Language	Chinese, English, French, Arabic
A/D Conversion	12-bit 1Msps
Input Impedance	>=10MΩ
Power Supply	DC12V4000mAh Built-in Battery
Power Consumption	About 4W
Working Temperature	-10℃~50℃
RH	<=85%

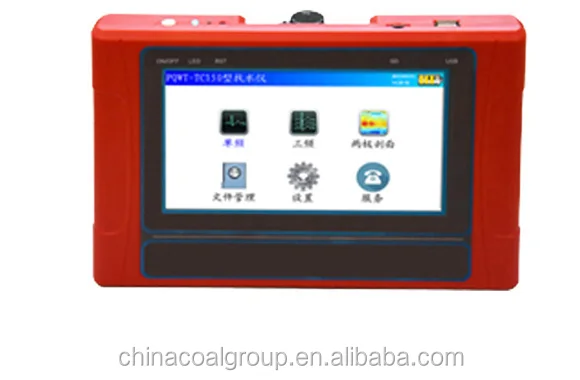

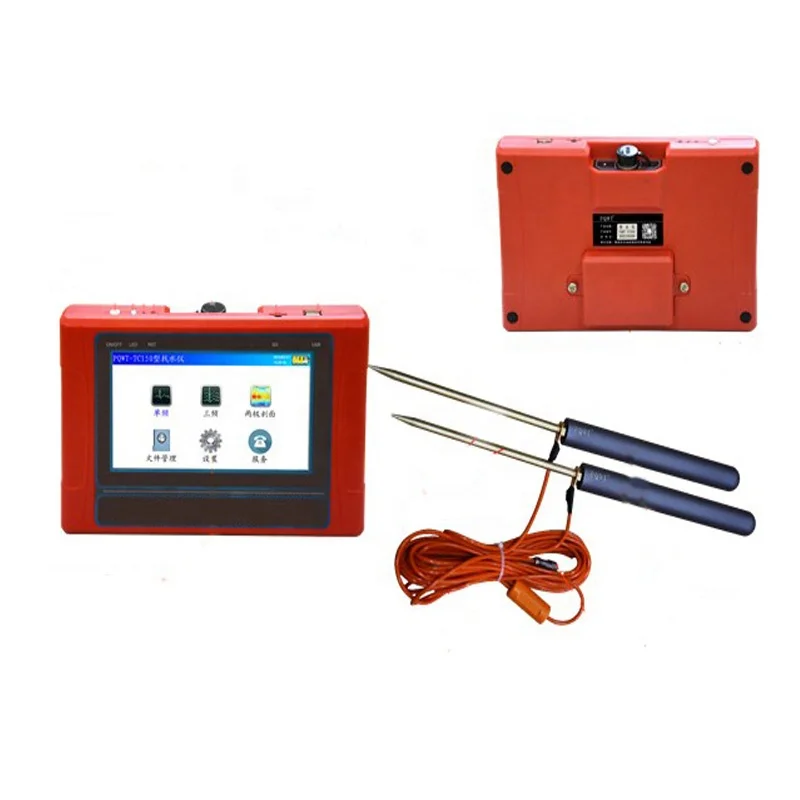

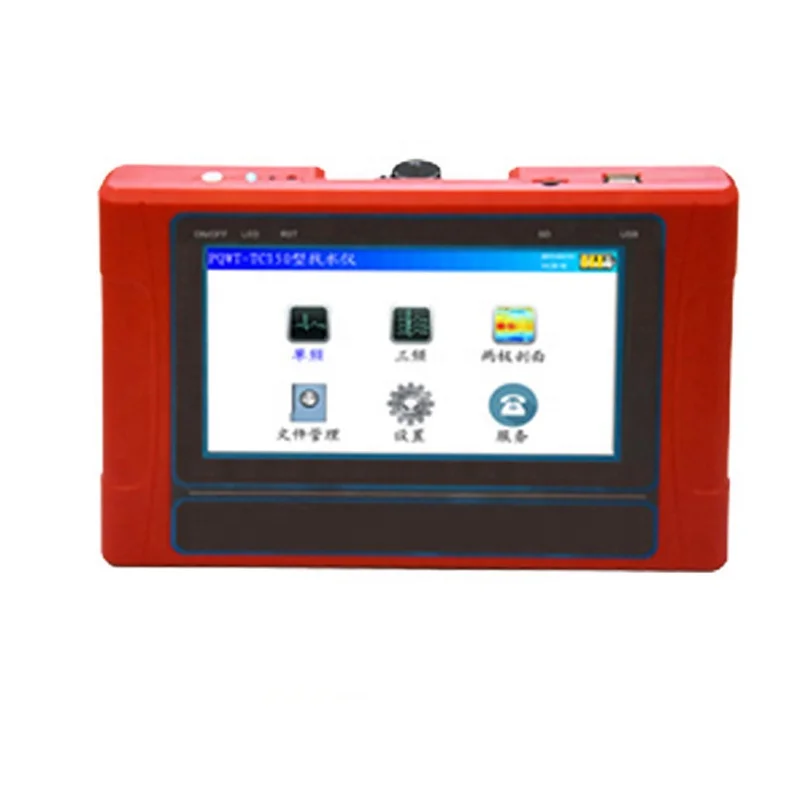

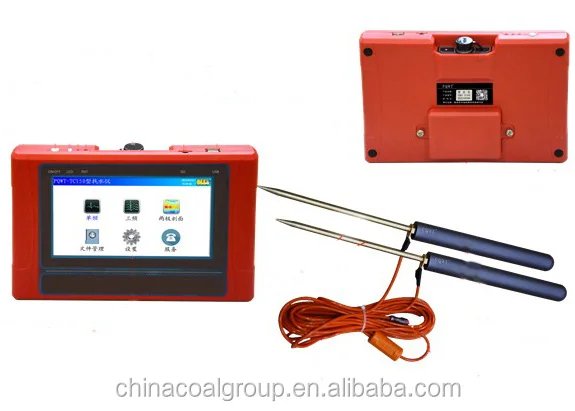

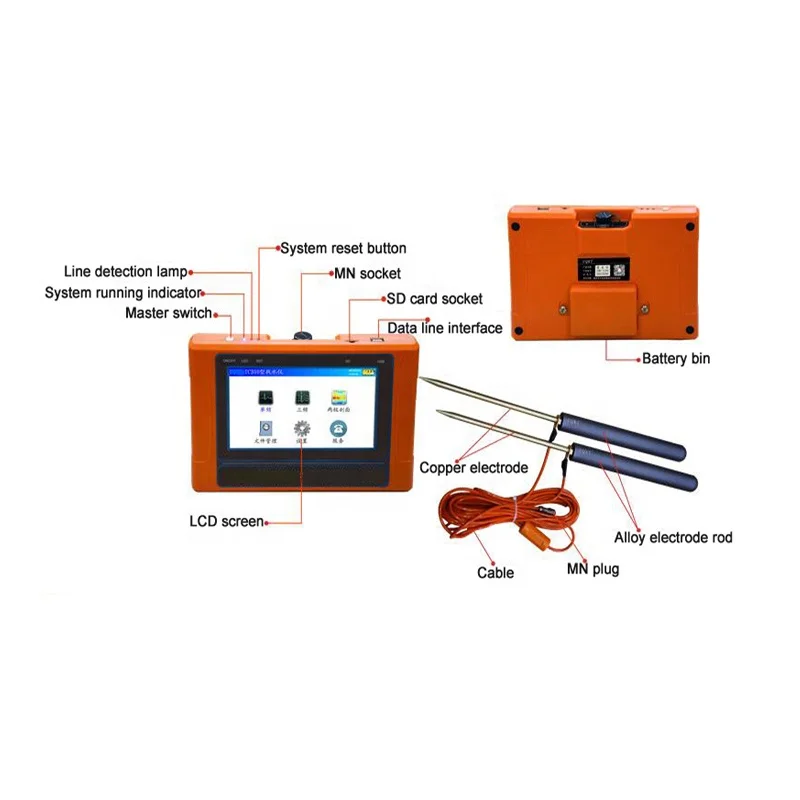

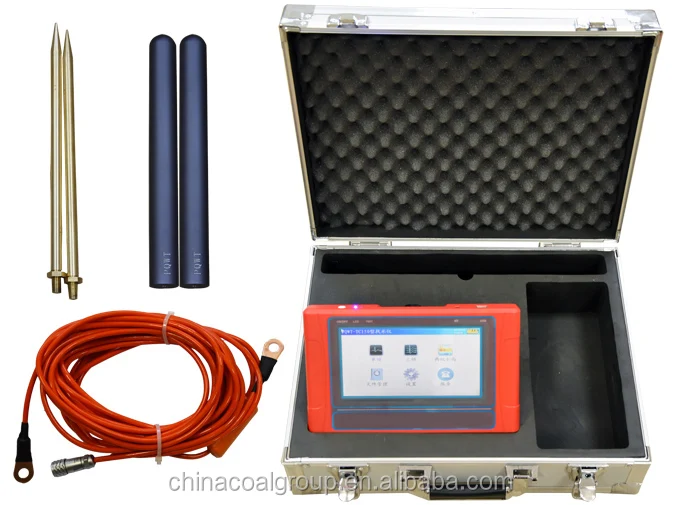

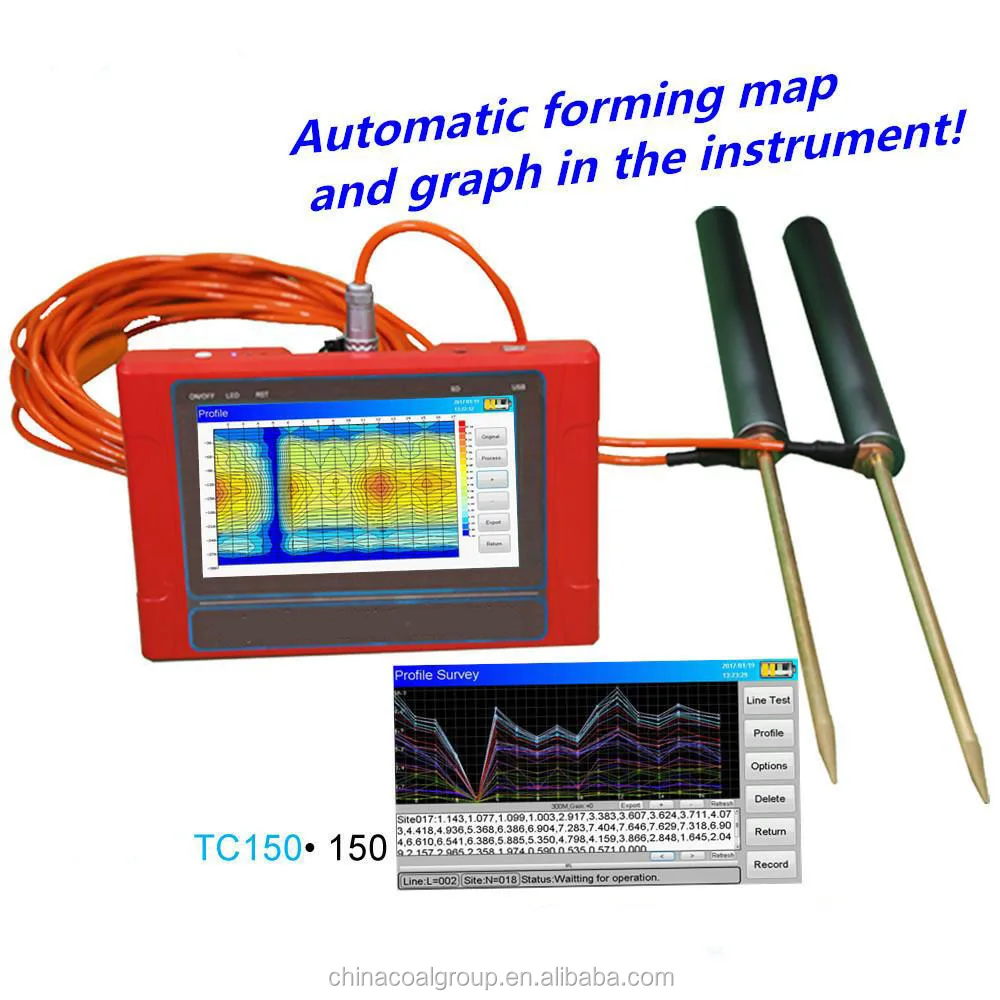

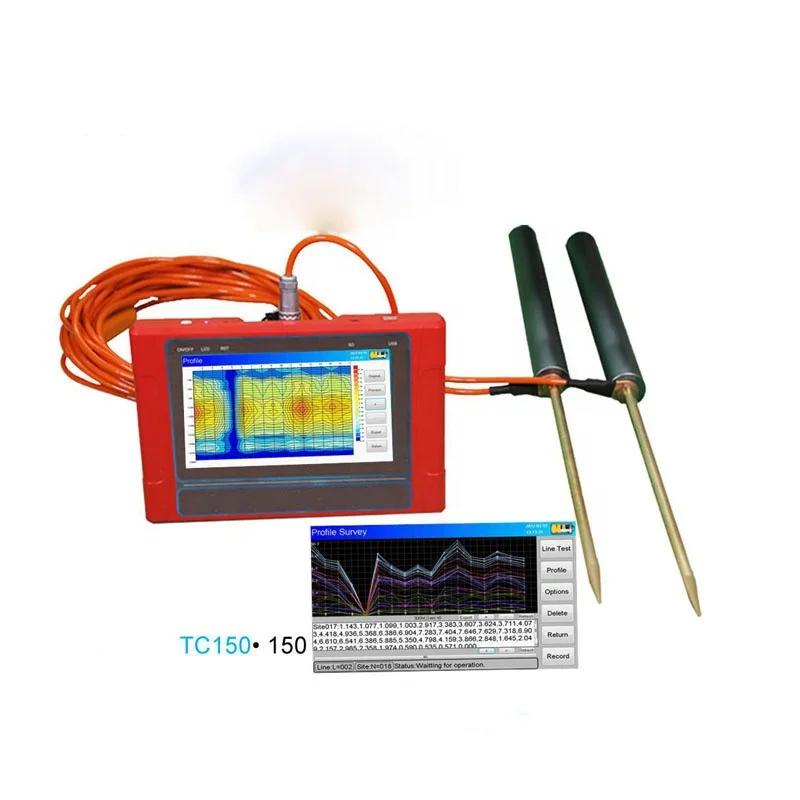

Images of  Underground Water Detector
