EP 4.5 ton 5 ton CE certificate smart counterbalance electric forklift with 3 stage mast
- Category: >>>
- Supplier: Foshan Haoanda Machinery Co. Ltd.
Share on (62419913402):
Product Overview
Description
EP 4.5 ton 5 ton CE certificate smart counterbalance electric forklift with 3 stage mast
Features
CPD45/50F8 can be applied in heavy loads (up to 5t), especially metal industry and construction materials.
F8 can be quick charged and can provide wide cabin space that accords with the request of ergonomics.
Driving Wheel
Common type driving wheel, easy to operate
LCD Panel
Ergonomics positioning, wide operating space
Drive and Branke Pedal
Machanical steering

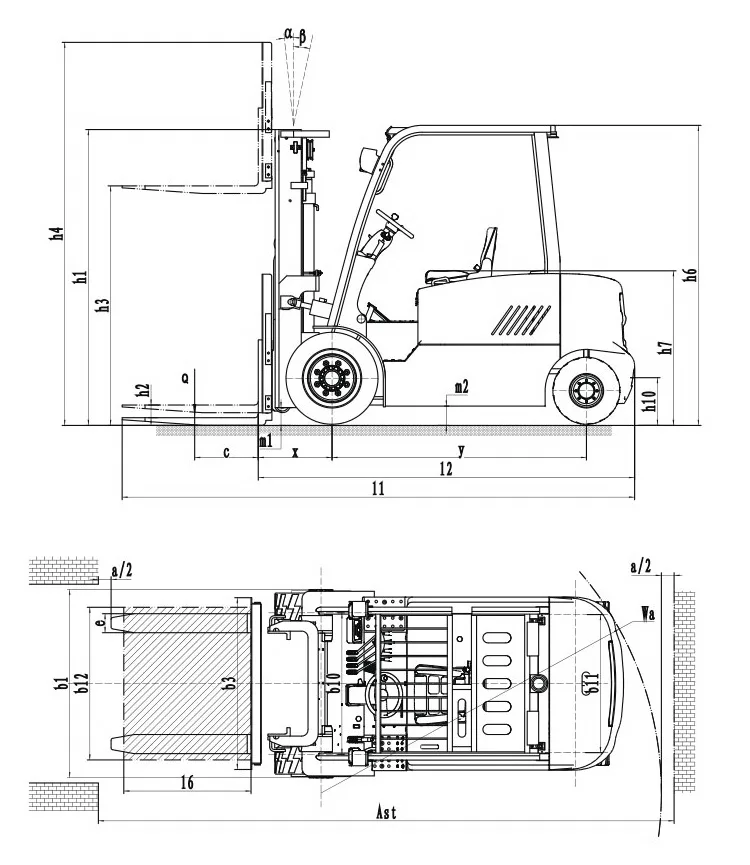

1.1 | Brand | EP | EP | |
1.2 | Model No. | CPD50F8 | CPD45F8 | |
1.3 | Power Type | Battery | Battery | |
1.4 | Operate Type | Seated | Seated | |

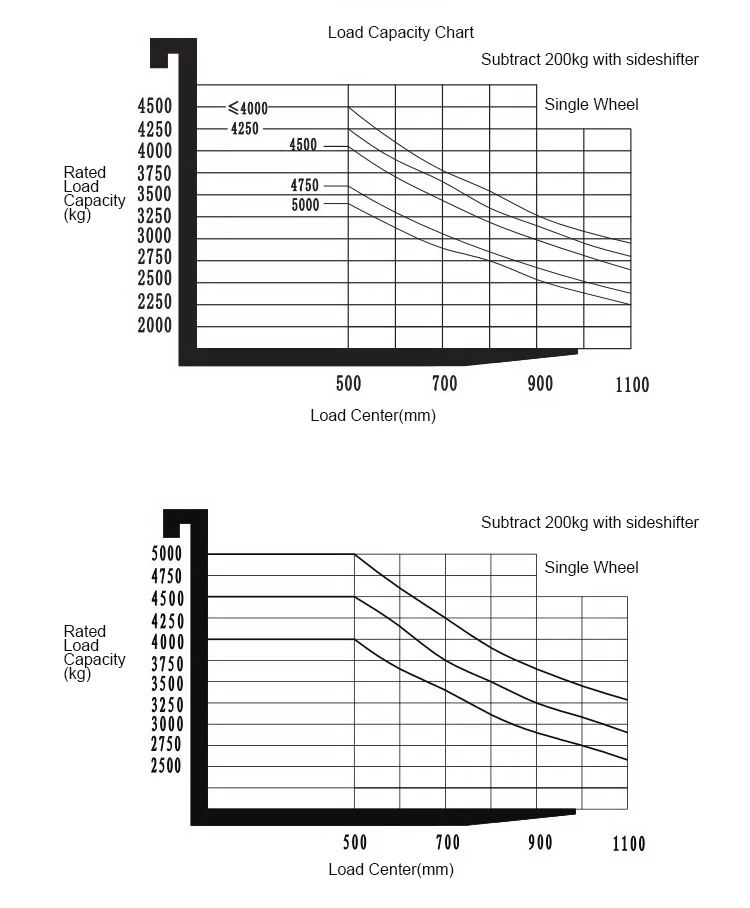

1.5 | Load Capacity | Q (kg) | 5000 | 4500 |
1.6 | Load Center | c (mm) | 500 | 500 |
1.8. | Overhang | x (mm) | 548 | 548 |
1.9 | Wheelbase | y (mm) | 2000 | 2000 |
2.1 | Weight(with battery) | kg | 7348 | 6965 |
3.1 | Tyre Type | Solid | Solid | |
3.2 | Drive Wheel Size | 28x12.5-15 | 250-15 | |
3.3. | Steering Wheel Size | 23X10-12 | 23X10-12 | |
4.1 | Mast Tilt Range | α/ β (°) | 6/10 | 6/10 |
4.2 | Mast Lowered Height | h1 (mm) | 2235 | 2235 |
4.3 | Free Lift Height | h2 (mm) | 100 | 100 |
4.4 | Lifting Height | h3 (mm) | 3000 | 3000 |
4.5 | Mast Extended Height | h4 (mm) | 4120 | 4120 |
4.7 | Cabinet Height | h6 (mm) | 2260 | 2260 |
4.8 | Seat Height | h7 (mm) | 1208 | 1208 |
4.12 | Towing Coupling Height | h10(mm) | 375 | 375 |
4.19 | Overall Height | l1 (mm) | 4127 | 4027 |
4.20. | Length to Fork | l2 (mm) | 3058 | 2958 |
4.21 | Overall Width | b1/ b2 (mm) | 1600 | 1479 |
4.22 | Fork Size | s/ e/ l (mm) | 55/150/1070 | 50/150/1070 |
4.23 | Fork Type A,B | 3A | 3A | |
4.24. | Fork Outer Width | b3 (mm) | 1350 | 1350 |
4.32. | Ground Clearance | m2 (mm) | 140 | 140 |
4.34.1 | Aisle Width for 1000x1200mm pallet | Ast (mm) | 4450 | 4424 |
4.34.2 | Aisle Width for 800x1200mm pallet | Ast (mm) | 4650 | 4624 |
4.35 | Turning Radius | Wa (mm) | 2735.5 | 2735.5 |
5.1 | Travel Speed | km/ h | 14/14.5 | 14/14.5 |
5.2 | Lifting Speed | m/ s | 0.26/0.45 | 0.26/0.45 |
5.3 | Lower Speed | m/ s | 0.55/ 0.5 | 0.55/ 0.5 |
5.5 | Traction, Full/ Empty | N | —— | —— |
5.6 | Max. Traction, Full/ Empty | N | 26000 | 26000 |
5.7 | Gradeability | % | —— | —— |
5.8 | Gradeability | % | 14/15 | 14/15 |
5.10. | Brake Type | Hydraulic/Mechanical | Hydraulic/Mechanical | |
5.11 | Parking Brake Type | Mechanical | Mechanical | |
6.1 | Drive Motor Power S2 60min | kW | 16.6 | 16.6 |
6.2 | Lift Motor Power S3 15% | kW | 25.4 | 25.4 |
6.4 | Battery Voltage/ Storage | V/ Ah | 80/700 | 80/700 |
8.1 | Controller Type | AC | AC | |
10.5 | Steering System Type | —— | —— | |
10.7 | Noise Level | dB (A) | 70 | 70 |
Foshan Haoanda Machinery Co., Ltd. was established in 2015, specializing in material handling equipment, lifting platform and storage equipment, with material handling equipment own brand YULI. Focus on High Quality, Make Stable Products is the rule that Haoanda follows.
At these years, we are developing the electric handling equipment, guardrail lifting platform, scissor lifting platform, electric lifting platform and the storage equipment. Now we have over 10 series equalling to over 40 types of products and special size customized is acceptable. All are qualified with GB standard, up to international standard, widely using in the enterprise’s transport, storage and delivery.
We have provided our products to different countries and obtains variety of good feedback. With the customers and Haoanda people’ssupport, we will keep improving and creating to a higher goal.
At these years, we are developing the electric handling equipment, guardrail lifting platform, scissor lifting platform, electric lifting platform and the storage equipment. Now we have over 10 series equalling to over 40 types of products and special size customized is acceptable. All are qualified with GB standard, up to international standard, widely using in the enterprise’s transport, storage and delivery.
We have provided our products to different countries and obtains variety of good feedback. With the customers and Haoanda people’ssupport, we will keep improving and creating to a higher goal.
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
