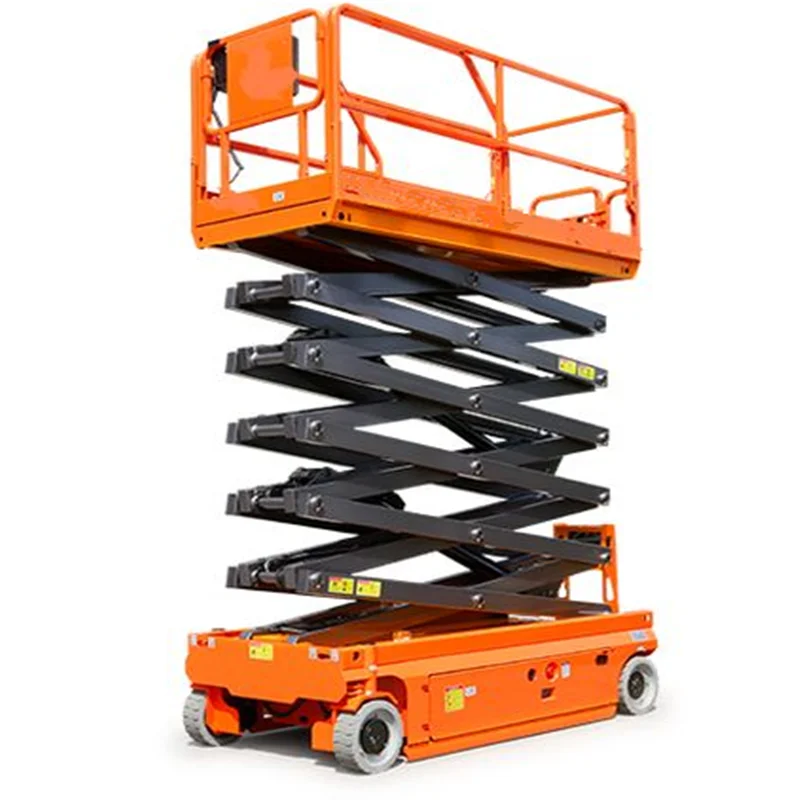

Tavol Brand 6M Machinery Construction Self Propelled Scissor Lift Platform with Factory price
- Category: >>>
- Supplier: Shandong Tavol Heavy Industry Co. Ltd.
Share on (62419951947):
Product Overview
Description
Company Profile
Product Overview

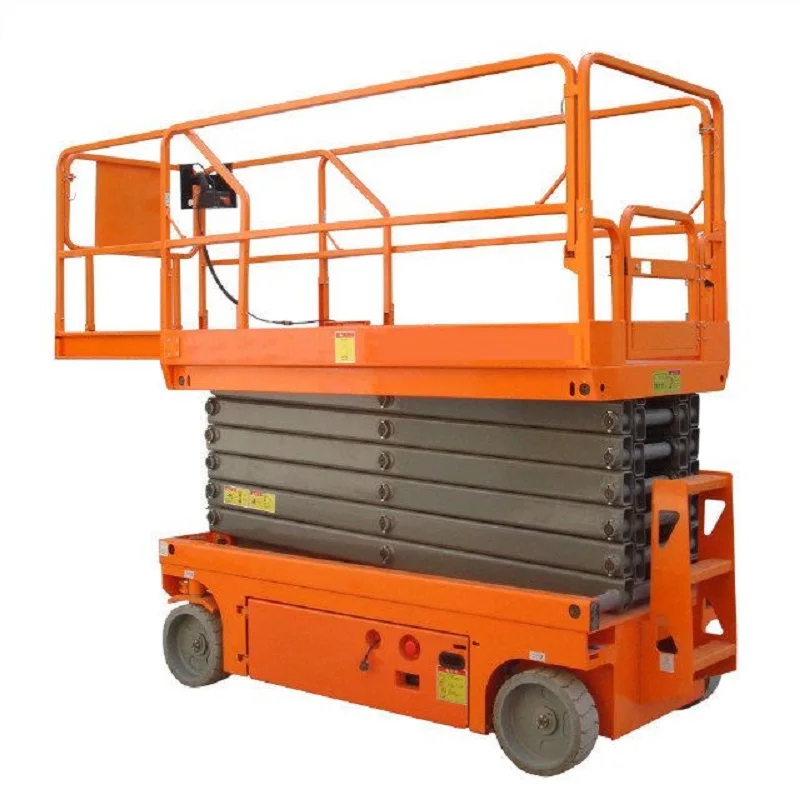

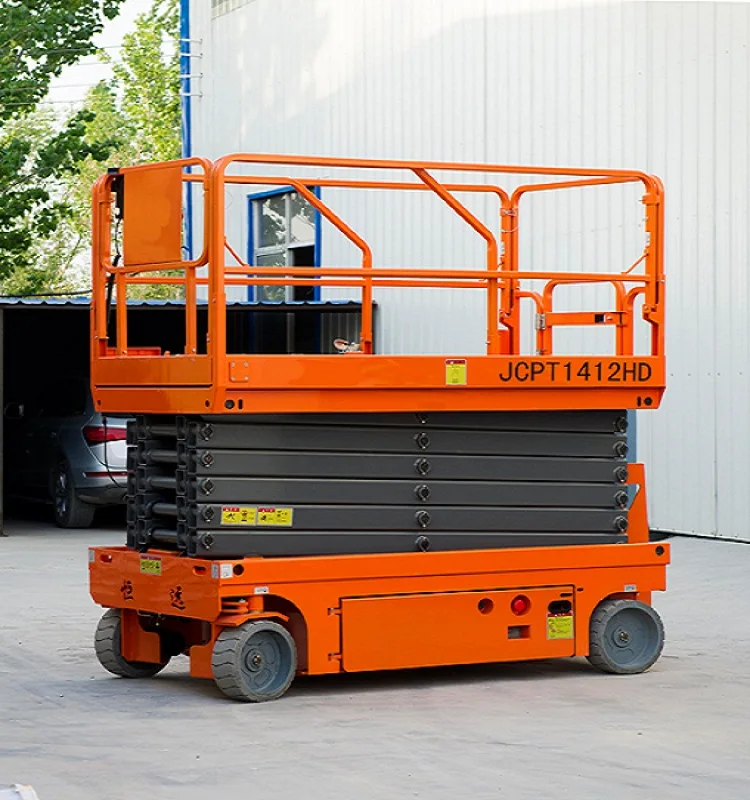

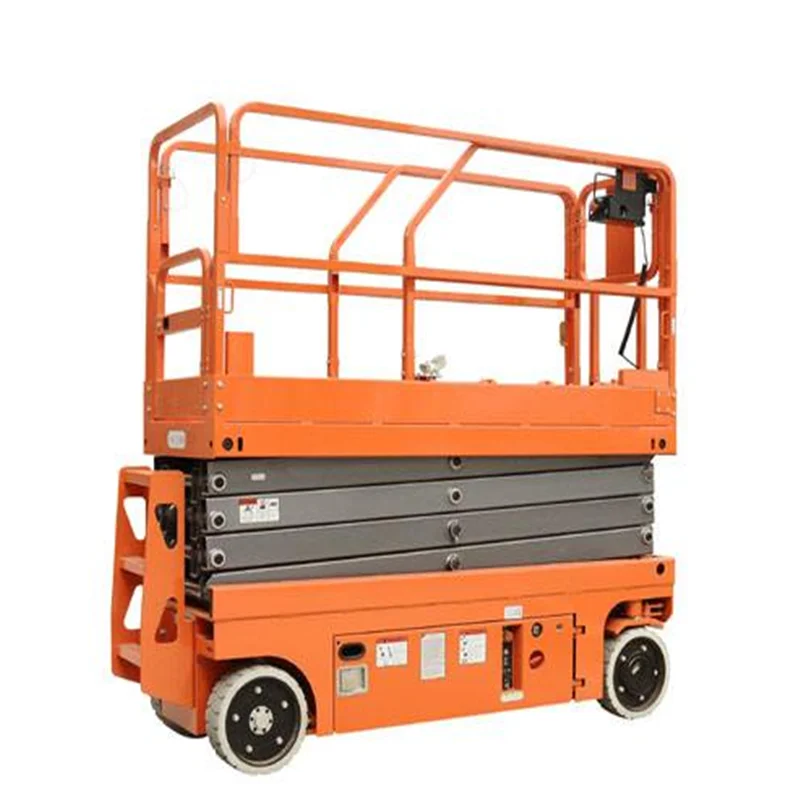

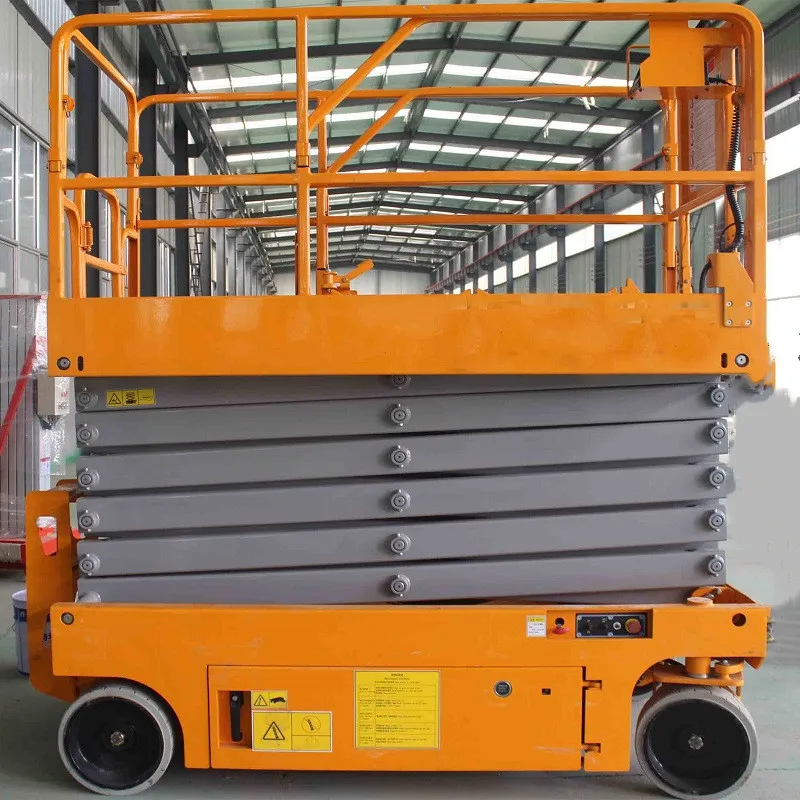

self-propelled scissor lift

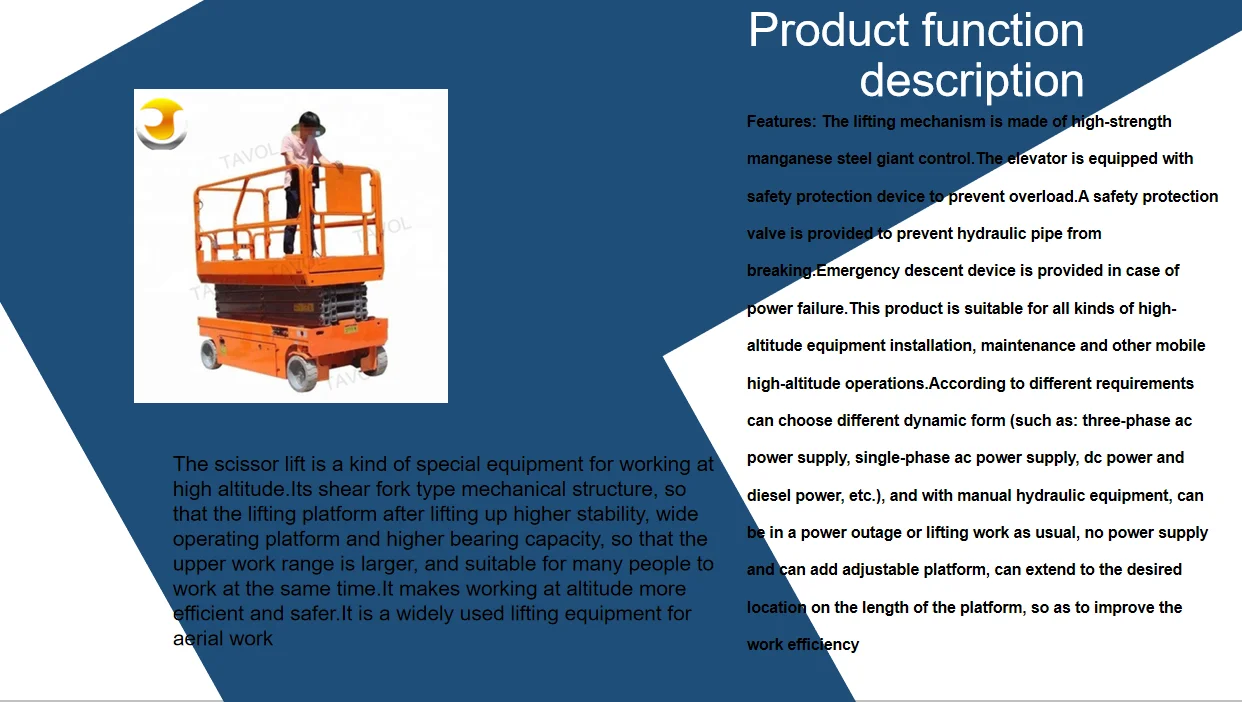

>>>> The scissor lift is a kind of special equipment for working at high altitude.Its shear fork type mechanical structure, so that the lifting platform after lifting up higher stability, wide operating platform and higher bearing capacity, so that the upper work range is larger, and suitable for many people to work at the same time.It makes working at altitude more efficient and safer.It is a widely used lifting equipment for aerial work
>>>>Features: The lifting mechanism is made of high-strength manganese steel giant control.The elevator is equipped with safety protection device to prevent overload.A safety protection valve is provided to prevent hydraulic pipe from breaking.Emergency descent device is provided in case of power failure.This product is suitable for all kinds of high-altitude equipment installation, maintenance and other mobile high-altitude operations.According to different requirements can choose different dynamic form (such as: three-phase ac power supply, single-phase ac power supply, dc power and diesel power, etc.), and with manual hydraulic equipment, can be in a power outage or lifting work as usual, no power supply and can add adjustable platform, can extend to the desired location on the length of the platform, so as to improve the work efficiency.
Details of Main Parts Shows
Organizations | Parts name | Detailed Specification |
Driven motor | Drive forward and backward. | |
Hydraulic automatic brake disc | Automatic braking when action stops | |
Direction cylinder | Turn left turn right | |
Manual brake release | Manually release the brake before pushing. | |
Buffer device | Adjust the brake sensitivity after the action stops | |
Cartridge valve (inlet) | Manifold | |
Large oil cylinder (imported oil seal) | Lifting member | |
Small oil cylinder (imported oil seal) | Lifting merember | |
Hydraulic pump head (import) | Form a certain pressure on the hydraulic oil and enter the valve group through the oil filter. | |
Oil filter | Installed in the oil tank to filter debris | |
Manual drop valve | Manual emergency lowering. | |
Control handle (import) | Control the ascent, descent, forward, backward, steering, fast and slow speed conversion on the platform | |
Control system (import) | Circuit board. | |
Ground control system | Control the rise and fall under the platform; transfer switch | |
Fault diagnosis system | When a fault occurs, the code corresponding to the cause of the fault is displayed on the control handle and the circuit board, which is convenient for maintenance. | |
Solenoid valve (coil) | Control oil circuit | |
Ascent limit switch | Limited maximum height. | |
Lifting travel limit switch | Limited lifting at a certain height automatically converts to slow walking. | |
Limit switch | When the ground is uneven, it rises at a certain height, the movable baffle cannot be opened, it will not continue to rise, and the alarm. | |
Horizontal switch (inclination) | When the machine encounters uneven ground and the inclination angle exceeds the limited range (front and back 5 degrees about 3 degrees), it will not be able to rise, and at the same time alarm. | |
Charge protection | To prevent damage to the charger due to incorrect charging | |
Power cut off switch | Power on and off. | |
Buzzer and Horn | alarm | |
Motor | Drive the hydraulic pump head to work. | |
Mechanical mechanism | Movable baffle on both sides | Pothole protection |
Gas spring | Indirectly control the folding and opening of the movable baffle on both sides. | |
Extended platform | The platform extends horizontally, expands the working scope and solves the problem of L-shaped field | |
Direction link | Steering synchronization of left and right wheels is controlled by the direction cylinder | |
Guardrail | Foldable to reduce height. | |
Safety maintenance bracket | Assembled on the fuselage, safely supported. Easy to overhaul. | |
Transport forklift hole | Designed for transportation. |

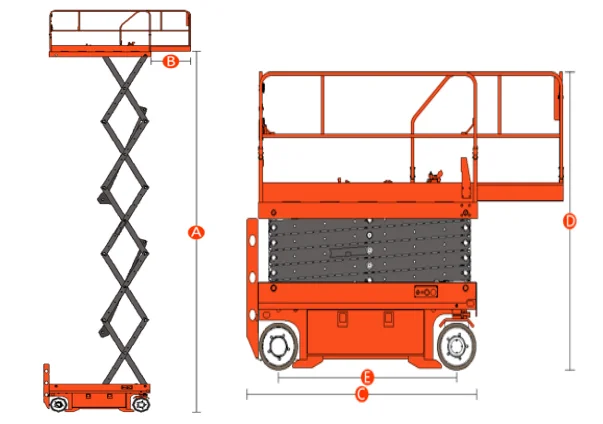

PRODUCT SPECIFICATIONS
Model | SJYZ06A | SJYZ06 | SJYZ08A | SJYZ08 | SJYZ10 | SJYZ12 |
Max lifting height | 6m | 6m | 8m | 8m | 10m | 12m |
Max working height | 8m | 8m | 10m | 10m | 12m | 14m |
Load capacity | 380kg | 550kg | 230kg | 450kg | 320kg | 320kg |
extension platform capacity | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
Platform size | 2.26*0.81*1.1m | 2.26*1.13*1.1m | 2.26*0.81*1.1m | 2.26*1.13*1.1m | 2.26*1.13*1.1m | 2.26*1.13*1.1m |
Min ground clearance | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m |
wheel base | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m |
Turn radius | 0/3.1m | 0/2.2m | 0/3.1m | 0/2.2m | 0/2.2m | 0/2.2m |
lifting motor | 24v/4.5kw | 24v/4.5kw | 24v/4.5kw | 24v/4.5kw | 24v/4.5kw | 24v/4.5kw |
lifting speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
charger | 24v/30A | 24v/30A | 24v/30A | 24v/30A | 24v/30A | 24v/30A |
self-weight | 1850kg | 2060kg | 1980kg | 2190kg | 2430kg | 2960kg |
