EN 74 Drop Forged Scaffolding Clamp Swivel Coupler for Sale

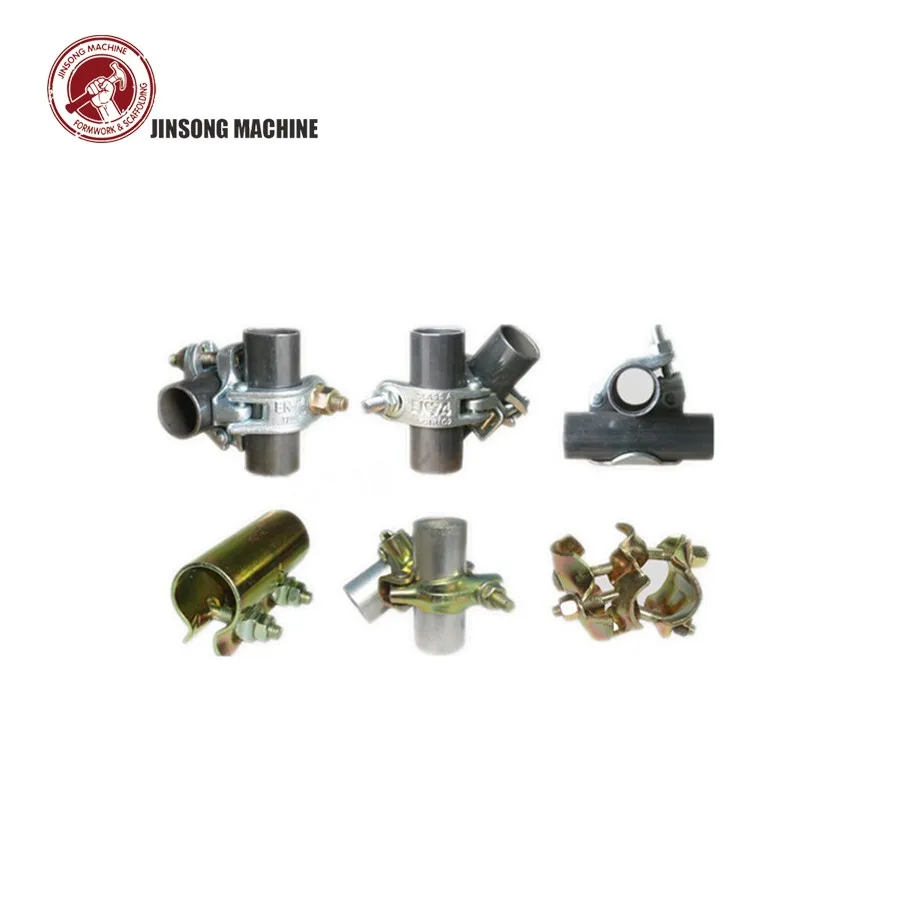

Right angle coupler:A coupler used for connecting two tubes crossing at right angle.

Class A and class B right angle couplers have the same requirements,except that class B couplers have a higher load capacity.And a minimum requirement for torsional rigidity.

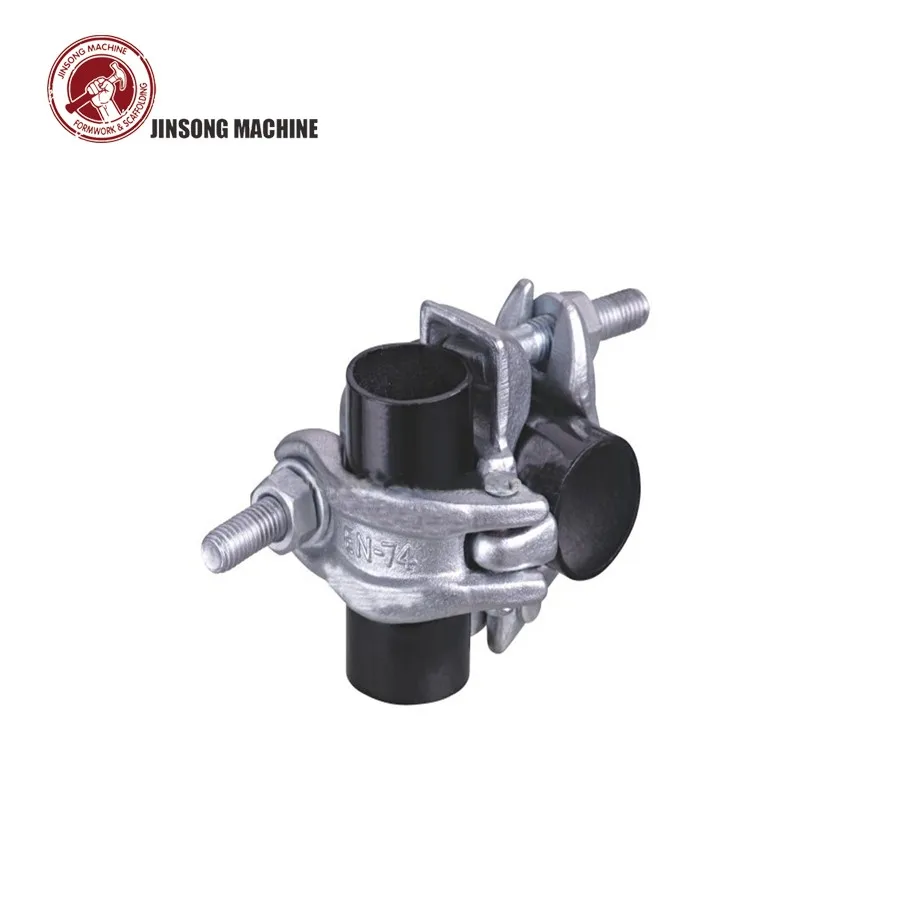

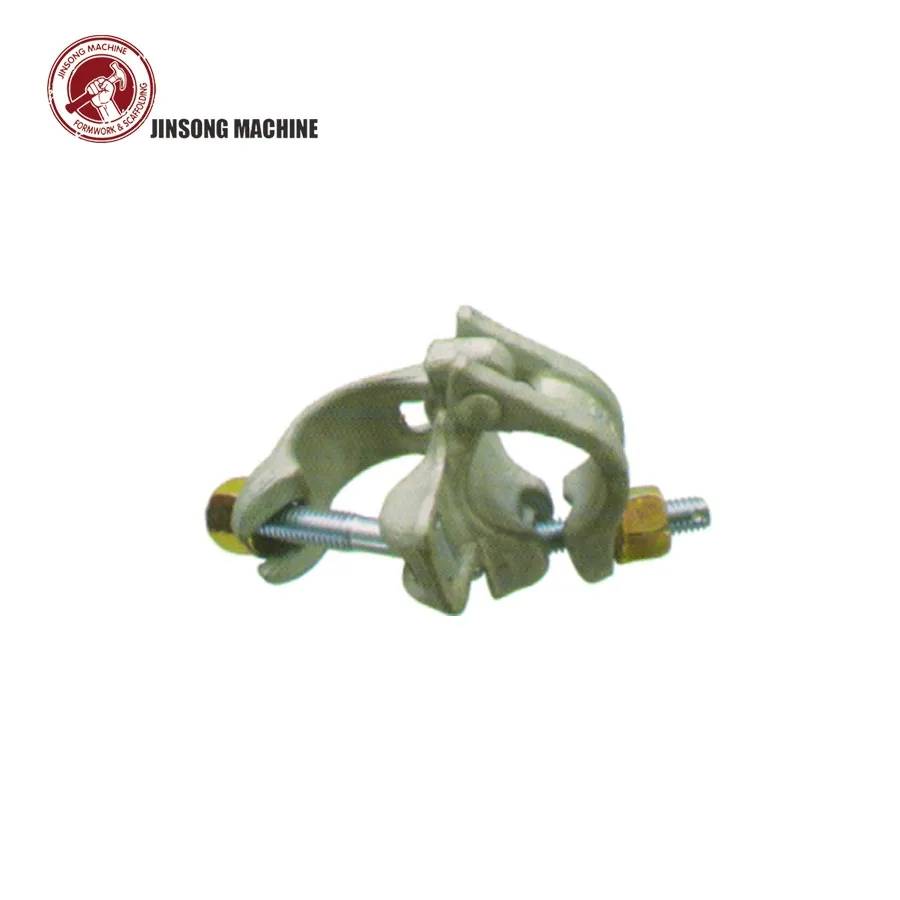

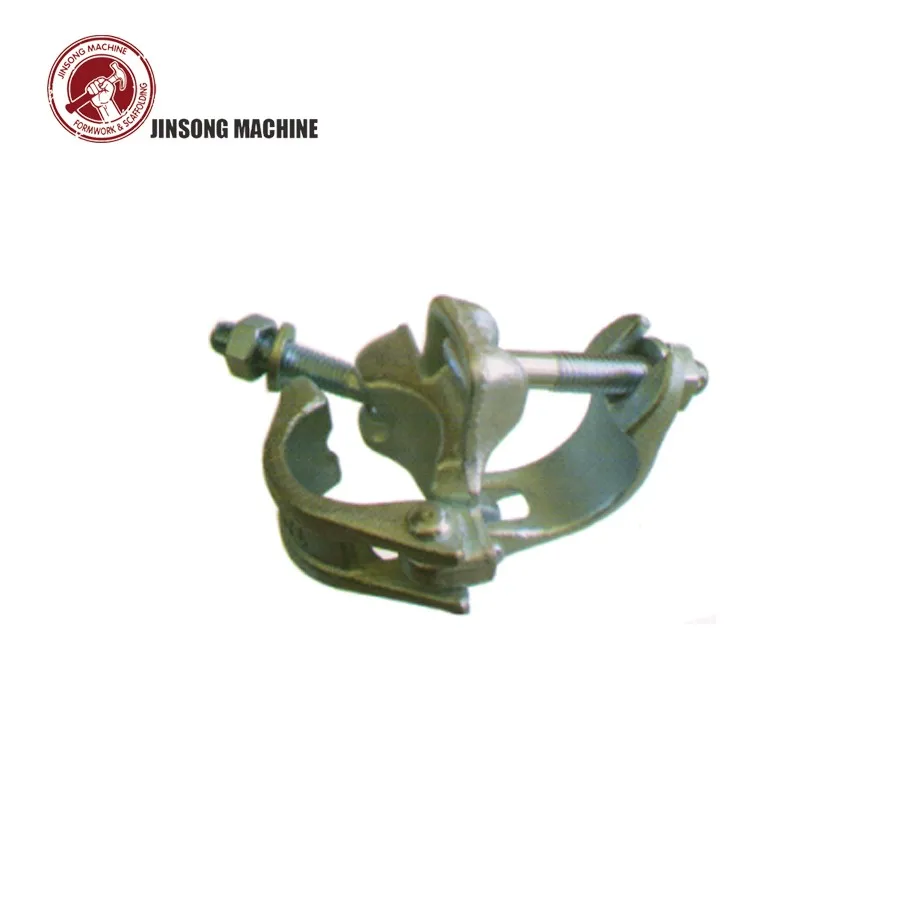

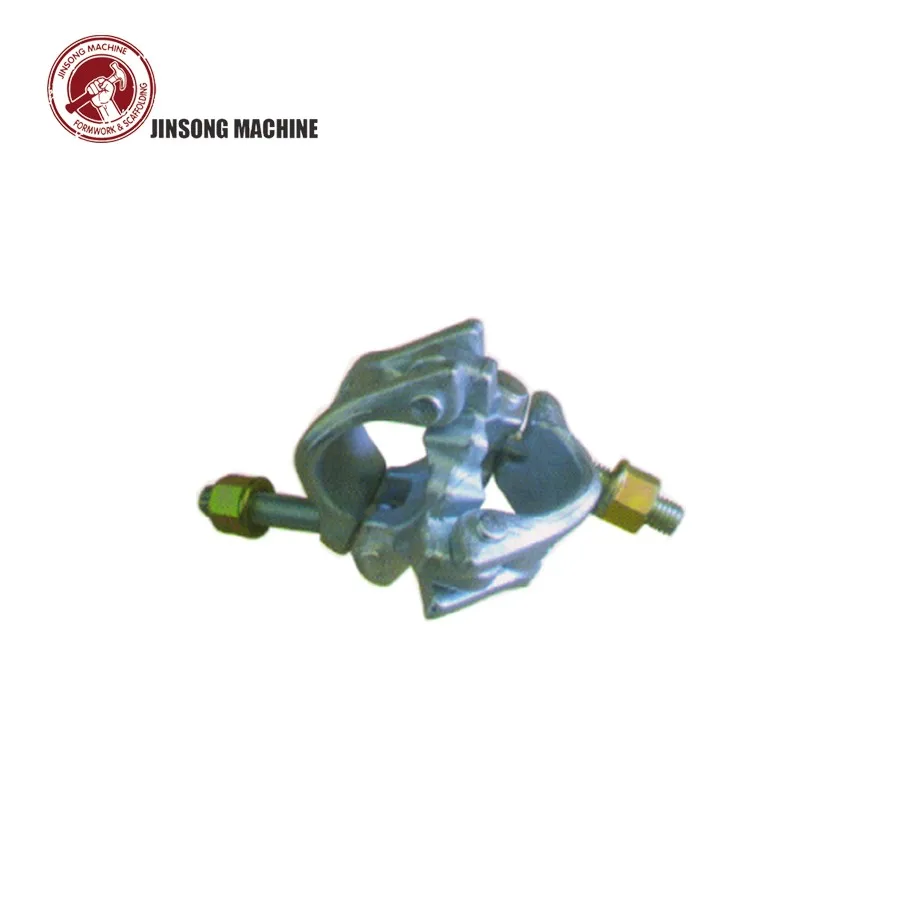

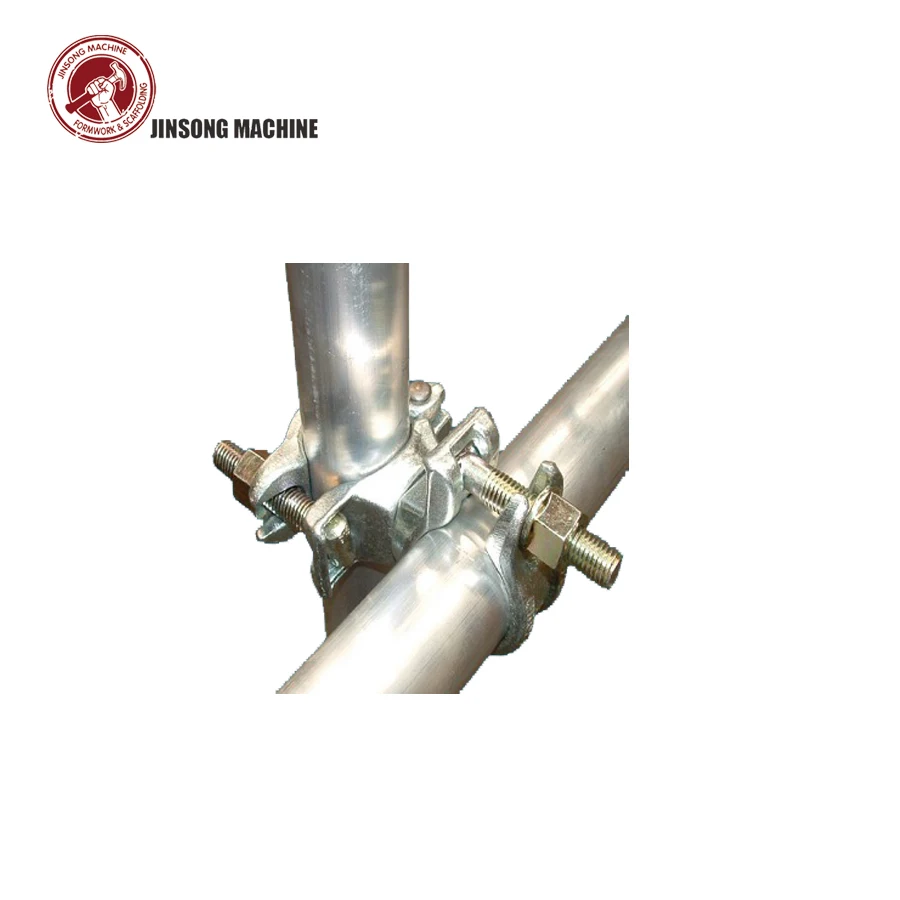

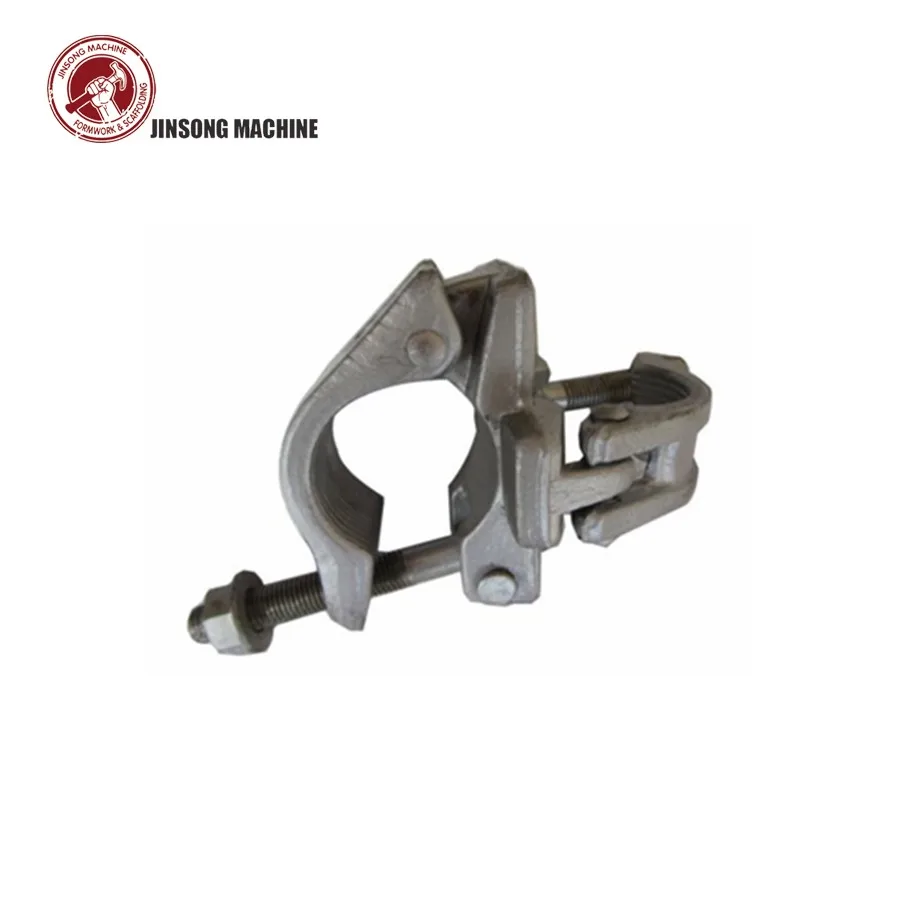

Swivel coupler:A coupler used for connecting two tubes crossing at any angle.

Parallel coupler:A coupler used for connecting two parallel tubes.

Sleeve coupler:A coupler used for jointing two tubes located co-axially and whose purpose is to transmit tensile and compressive and bending forces.

Class A and Class B sleeve couplers have the same requirements except that class B couplers have a minimum requirement for strength in bending and a higher tensile strength requirement.There are two basic types of sleeve couplers:Sleeve coupler functioning by friction and sleeve couplers working with shear pins.

Putlog coupler:A coupler used for fixing a putlog or transom to a ledger.

Loose spigot:An internal component used for aligning tubes co-axially and able to transmit compressive forces.

Product Introduction

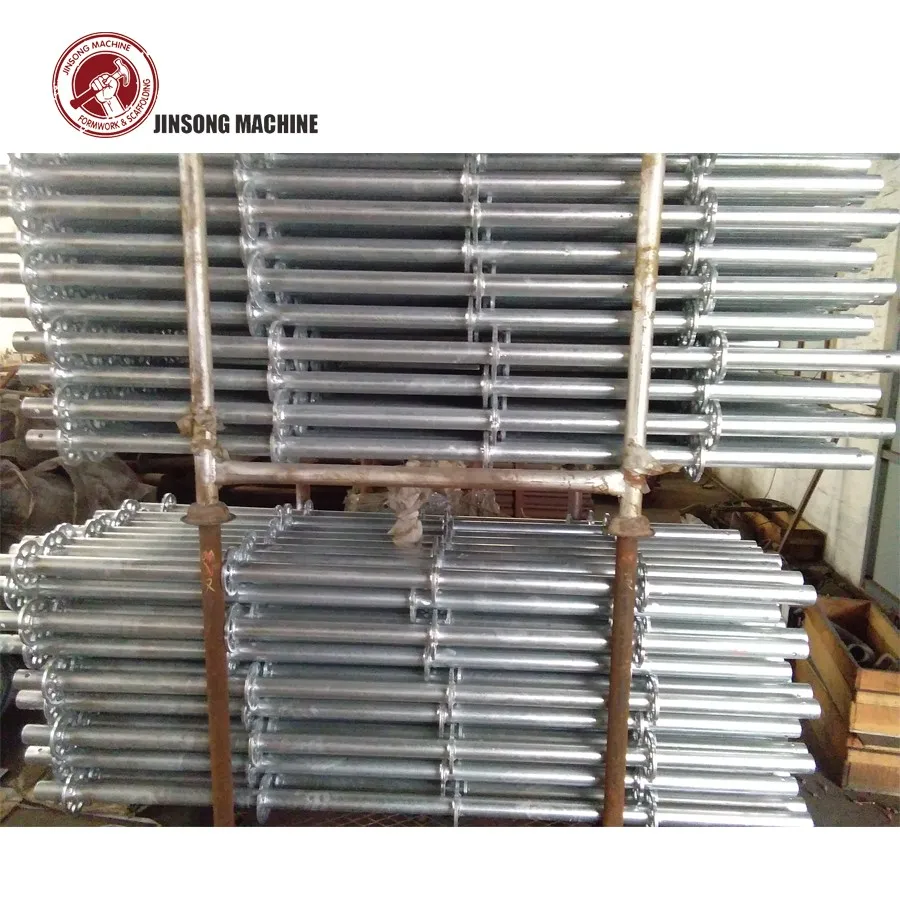

AS1576 Australian Vertical Standard for Kwikstage Scaffolding System

1.Raw Material: Q235
2.Outside Diameter:48.3mm
3.Thickness:4mm
4. Function : Vertical standard is the vertical support, and are made from 48.3mm diameter scaffold
tube. They have several series of V presses welded on to provide a location for Ledgers Transoms and Brace.
5. Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements
6.Length:500mm,1000mm,1500mm,2000mm,2500mm,3000mm
Dimension,surface(H.D.G/Painted/E.G),material and style can be customized

Double Coupler

Product Name 1	Product Name 2	Product Name 3	Product Name 4
British Double Coupler	American Double Coupler	Australian Double Coupler	Germany Double Coupler

Product Details Show

Why Choose Us

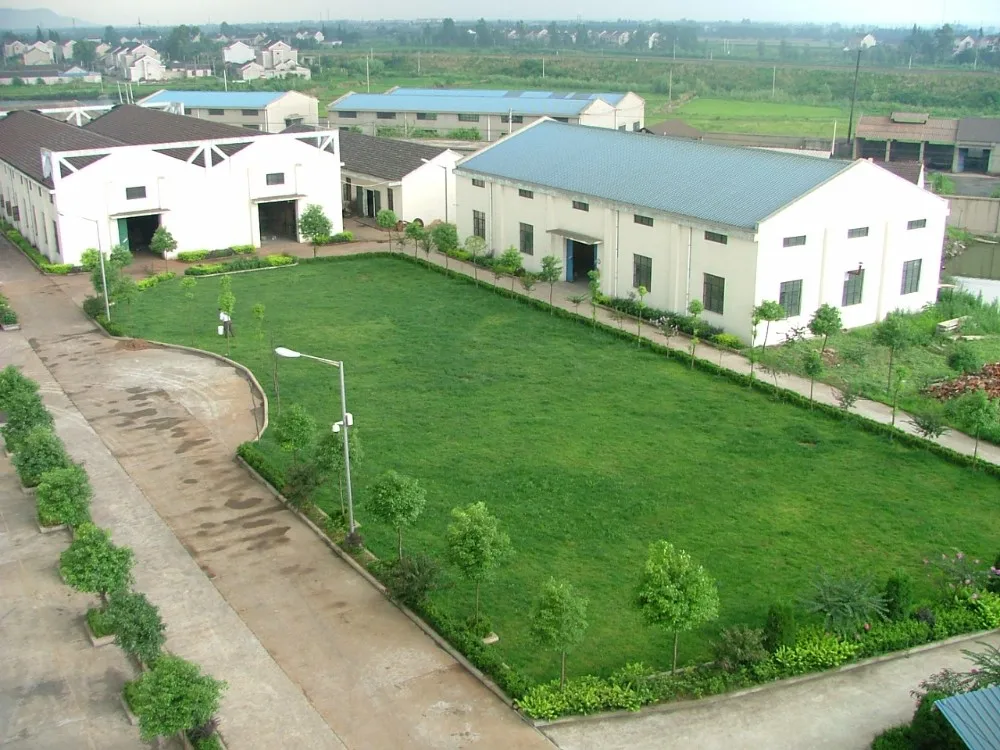

Factory

1, We are a factory specilized in producing scaffoldings.

Office Building

2, We have a sales and service team,can provide you better service

Exhibition

3, From 2005 year,every year,We attend the Canton fair for two seasons every year.

Exhibition Photos

Product Packing

Related Products

Shoring Props,scaffolding tripod and Fork head Screw Jack

Many Types Scaffolding Shoring Props

                    Scaffolding Tripod

Ringlock Scaffolding System

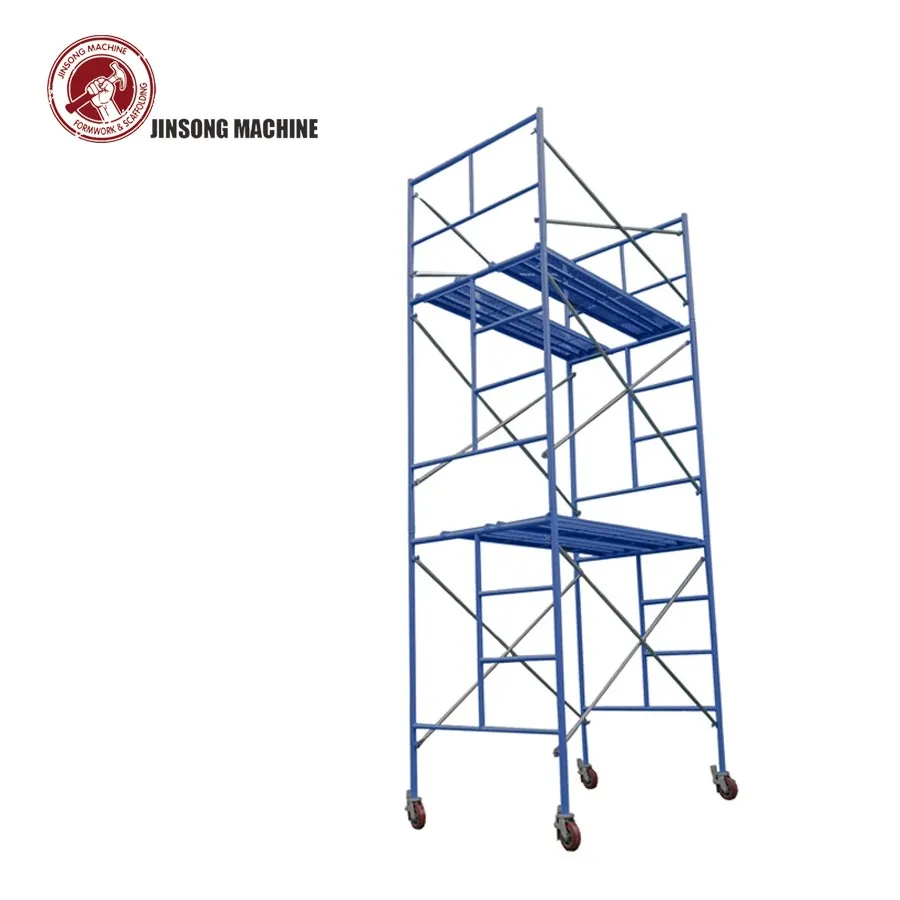

Frame Scaffolding System
