industrial use Binocular Stereo Microscope/Industrial Microscope/Digital microscope
- Category: >>>
- Supplier: Wuxi Oceanedu Import And Export Co. Ltd.
Share on (62420100564):
Product Overview
Description
Product Description

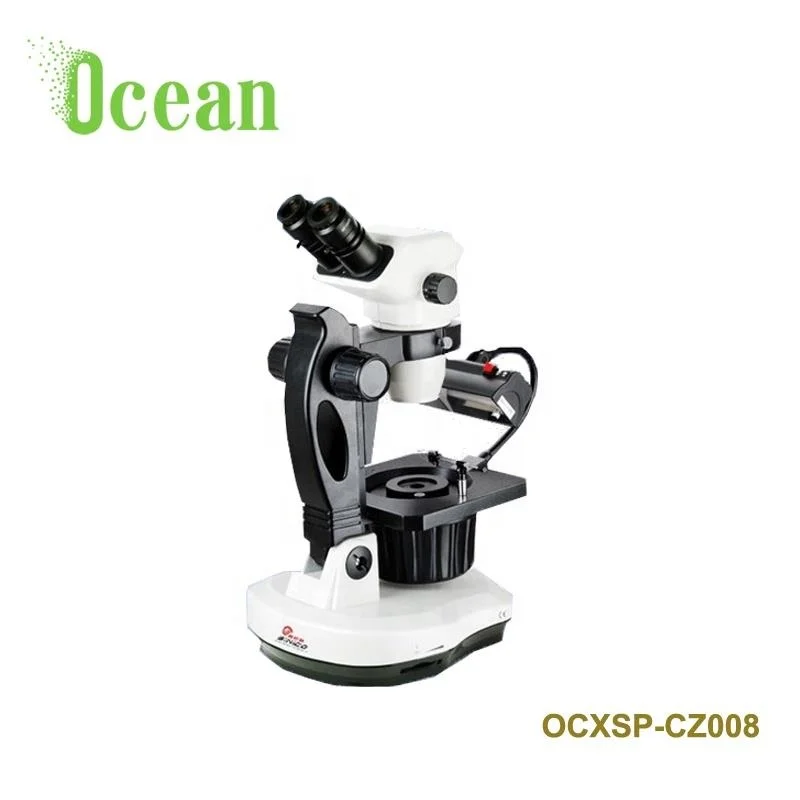

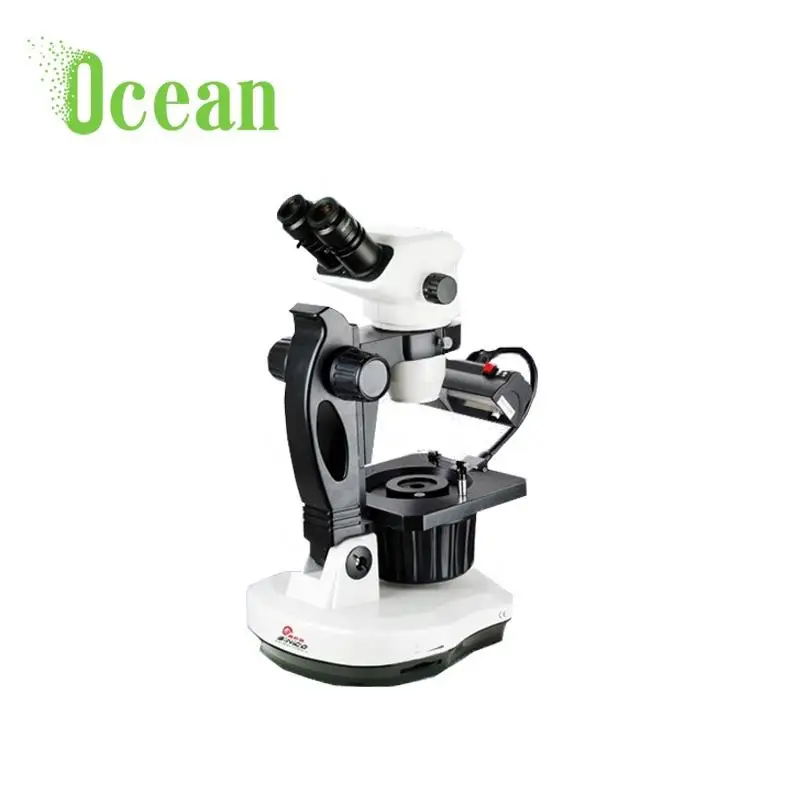

OCXSP-CZ008 Jewelry exterior Microscope
The 1:6.7 continuous optical system and 0.67x-4.5x continuous objective lens are adopted. The magnification Settings meet the needs of jewelry exterior observation and internal fine identification. The excellent optical system provides images with high definition, high contrast and high resolution, as well as large depth of field, so that the final image has a strong 3D effect.
Detailed Images
SPECIATION
The 1:6.7 continuous optical system and 0.67x-4.5x continuous objective lens are adopted. The magnification Settings meet the needs of jewelry exterior observation and internal fine identification. The excellent optical system provides images with high definition, high contrast and high resolution, as well as large depth of field, so that the final image has a strong 3D effect
Multi-functional base bracket design, professional jewelry microscope bracket, with chassis rotation, observation Angle adjustment, mirror body lifting and other functions, according to different habits and different samples, can be adjusted at will.
A variety of lighting and imaging methods, including fluorescent lamp and halogen lamp lighting, can achieve parallel light, oblique light, transmission light and other lighting methods; It can be used to analyze various components and properties of gemstones.
Eyepiece with high eye point and large field of view adjustable eyepiece WF10X/22mm (micrometer can be installed)
Watch head SZN745: binocular vision, 45 ° inclined, continuous variable X 0.67 X to 4.5 X object lens, then the working distance is 100 mm. The pupils from the adjusting range is 54 mm - 76 - mm, with built-in interlock machine, fixed eyepiece barrel
Magnification objective 0.67X- 4.5x
Auxiliary objective lens 0.3x /287mm 0.4x217mm 0.5x177mm 0.75x177mm 1.5x47mm 2x 26mm
Adjusting mechanism to adjust schedule for 110 mm thick dynamic adjusting mechanism, the bent arm as a 0 ~ 45 ° rotation; Provide two different lighting methods of dark field and light field; The aperture of the light bar is adjustable from a 44mm-3mm variable light bar, with 110V ~ 220V wide voltage system inside the hin
Lighting system reflects 7W fluorescent lamp 1W single high-power LED, white, brightness adjustable
Transmission 6V 30W halogen lamp, 5761, brightness adjustable
Diamond clip steel clip, flat mouth clip
Polarizer/polarizer (optional)
Camera receiver 0.35x / 0.5x / 1.0x C camera receiver
Areas of use: jewelry, antiques, (observe clarity characteristics, observe and evaluate the color level of diamonds)
Select accessories industrial camera, hd display

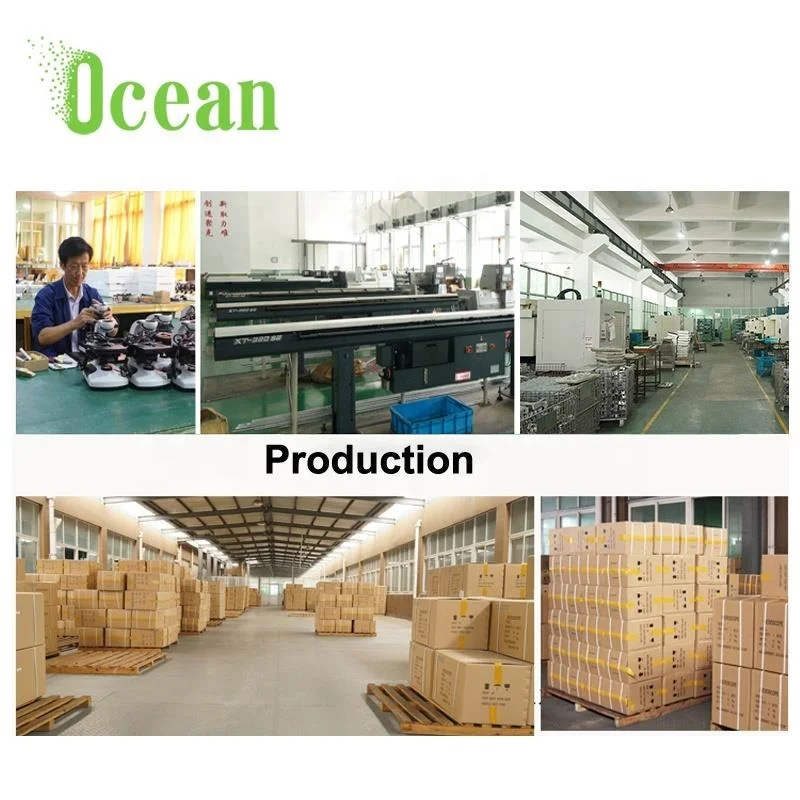

Packing & Production
