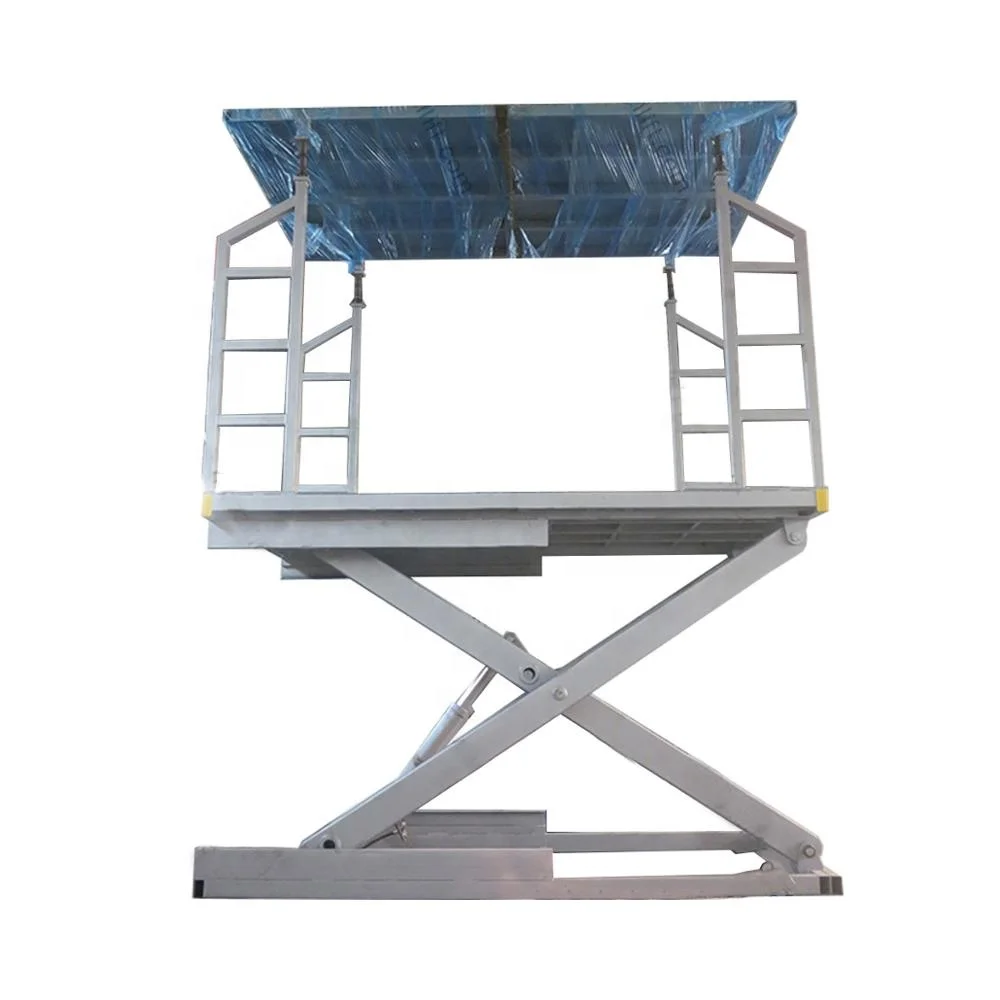

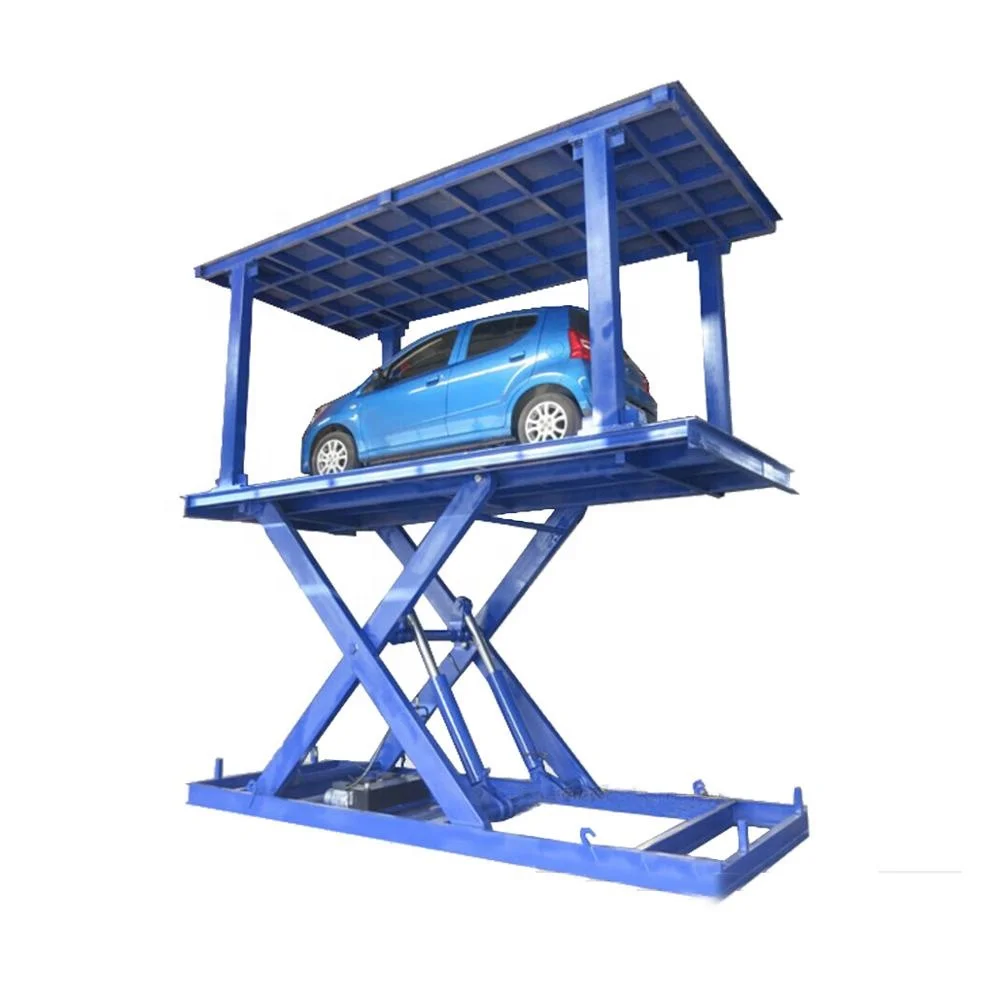

Car lift equipment double scissor jack
- Category: >>>
- Supplier: Jinan Moral International Co. ltd
Share on (62420186962):
Product Overview
Description
Product Description

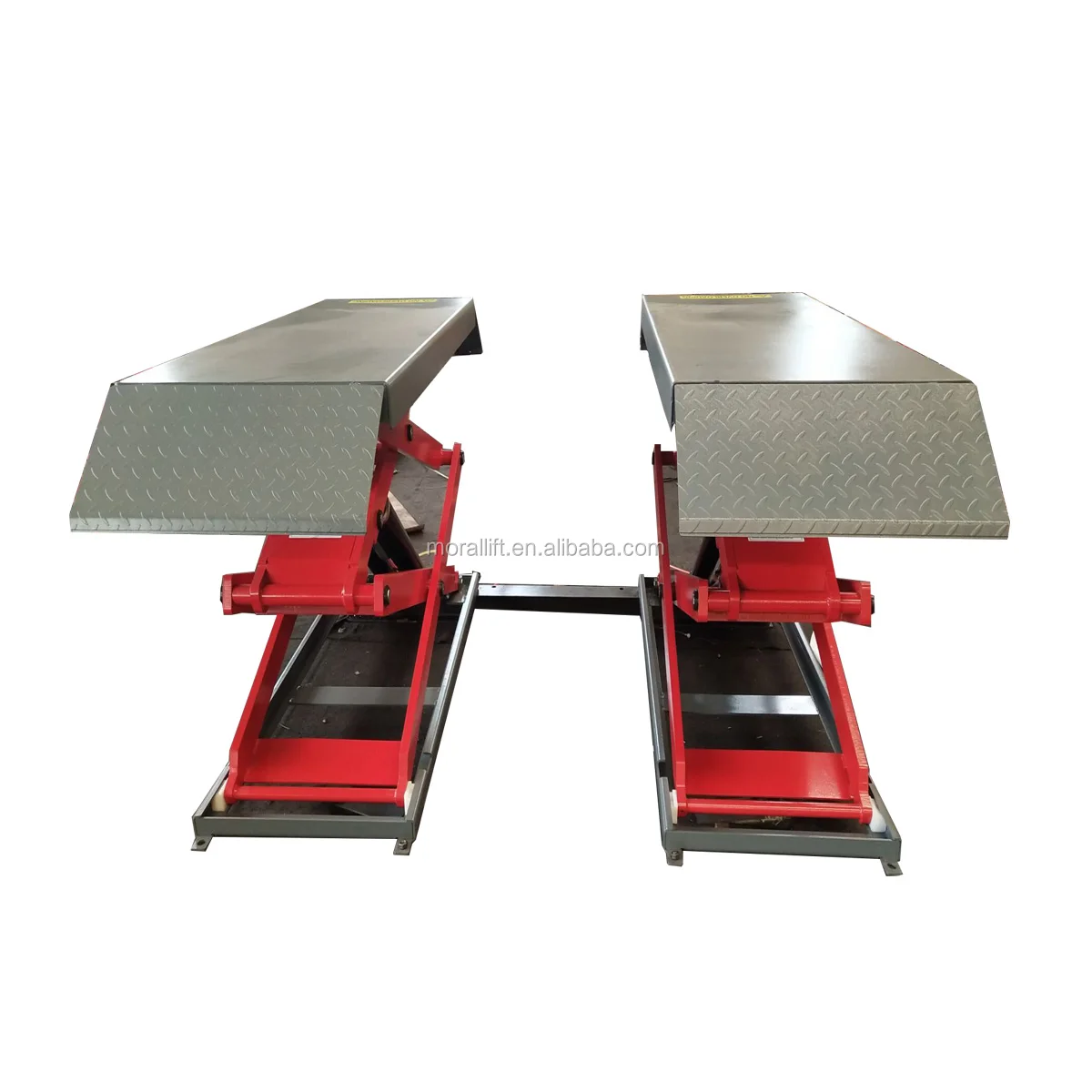

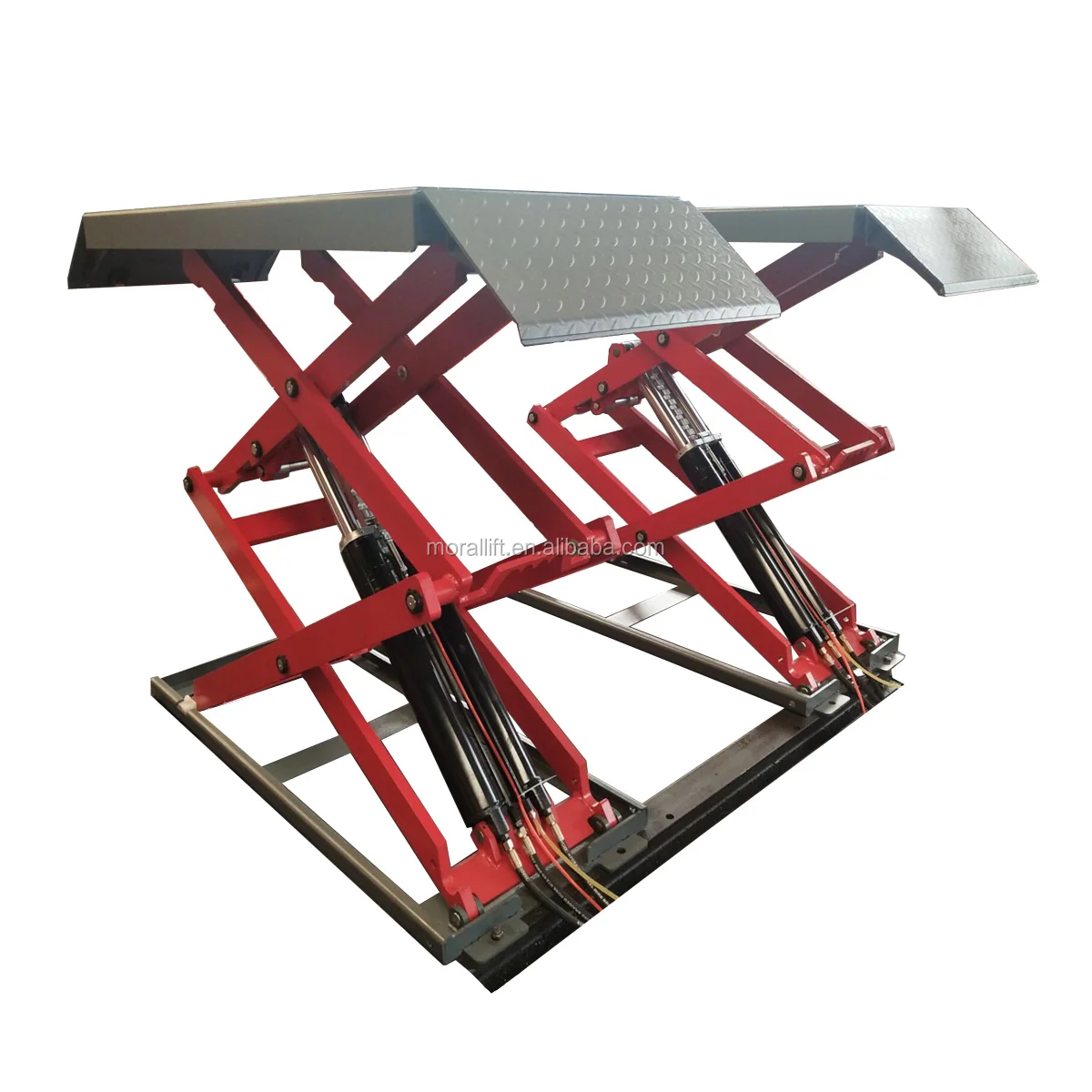

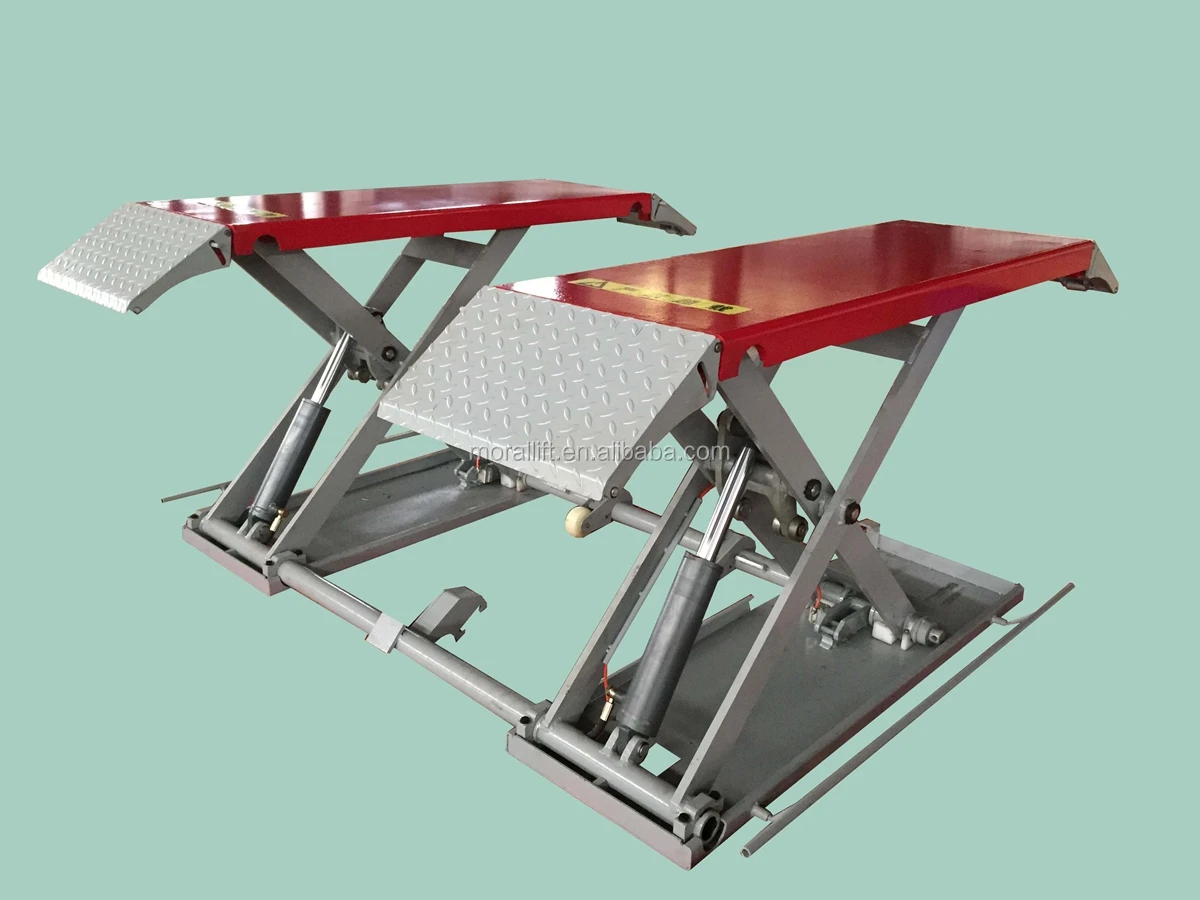

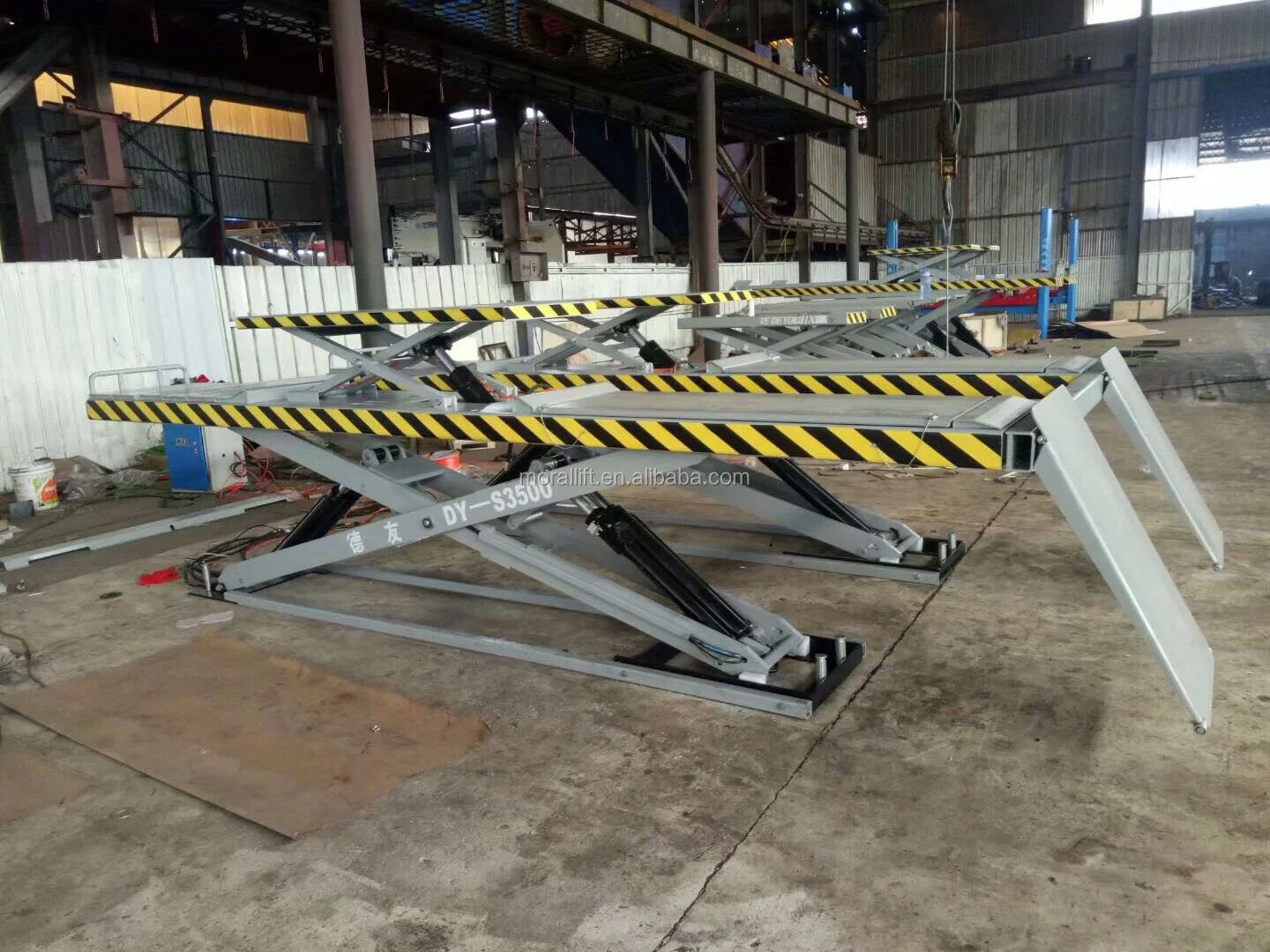

The full rise small scissor lift is applicable to lifting, detecting, repair and maintenance of various cars and small vehicles Flush-mount design, takes less place Flush-mount installation, equipped with foot injury proof alarm device Dual mechanical self-lock gears and hydraulic lock for more safety, the locks will be released while descending Safety and reliable, high performance and excellent synchronously, easy for tire changing and chassis maintenance The elongated track make the lift suitable for long vehicles 24V electric control box and 24Vlimit switch Pneumatic lock device, anti-crack valve and Italian ball valve are standard configuration Italian hydraulic pump station for optional
Product Paramenters
Model | SJG | ||||||
Lifting capacity | 3000kg | ||||||
Lifting height | 1850mm | ||||||
Min height | 110mm | ||||||
Platform length | 1540-2120mm | ||||||
Platform width | 640mm | ||||||
Total width | 2080mm | ||||||
Lifting/Lowering time | 60S/50S | ||||||
Air pressure | 0.4mpa | ||||||
Oil pressure | 20mpa | ||||||
Motor power | 2.2kw | ||||||
Voltage | AC 220V/380V | ||||||
Weight | 960kg | ||||||
Unlock method | Pneumatic unlock | ||||||

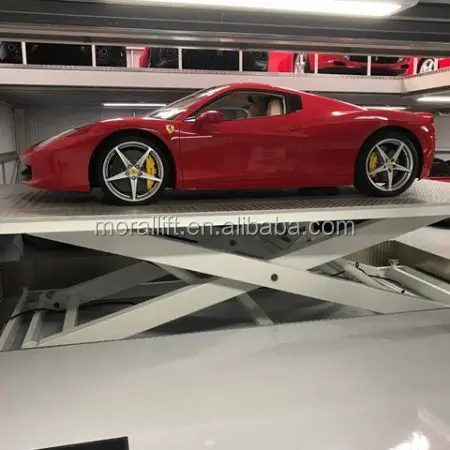

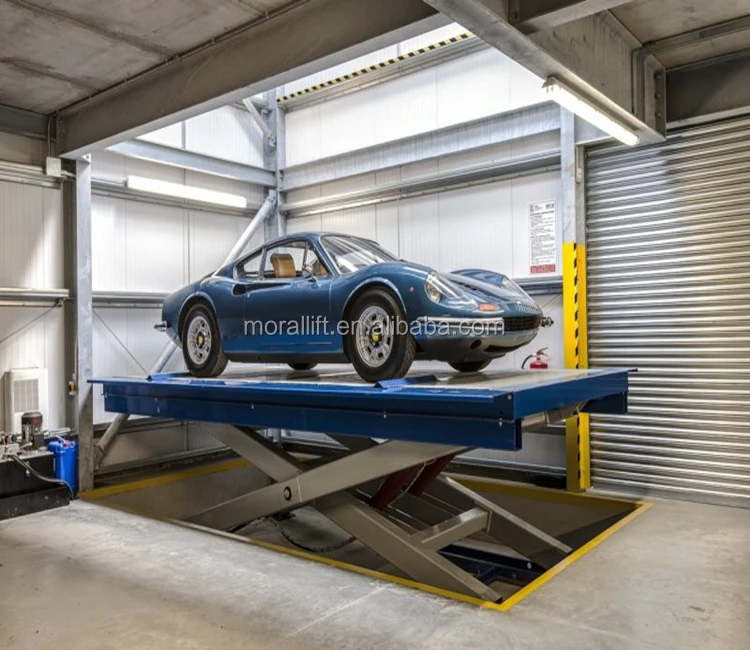

Details Images

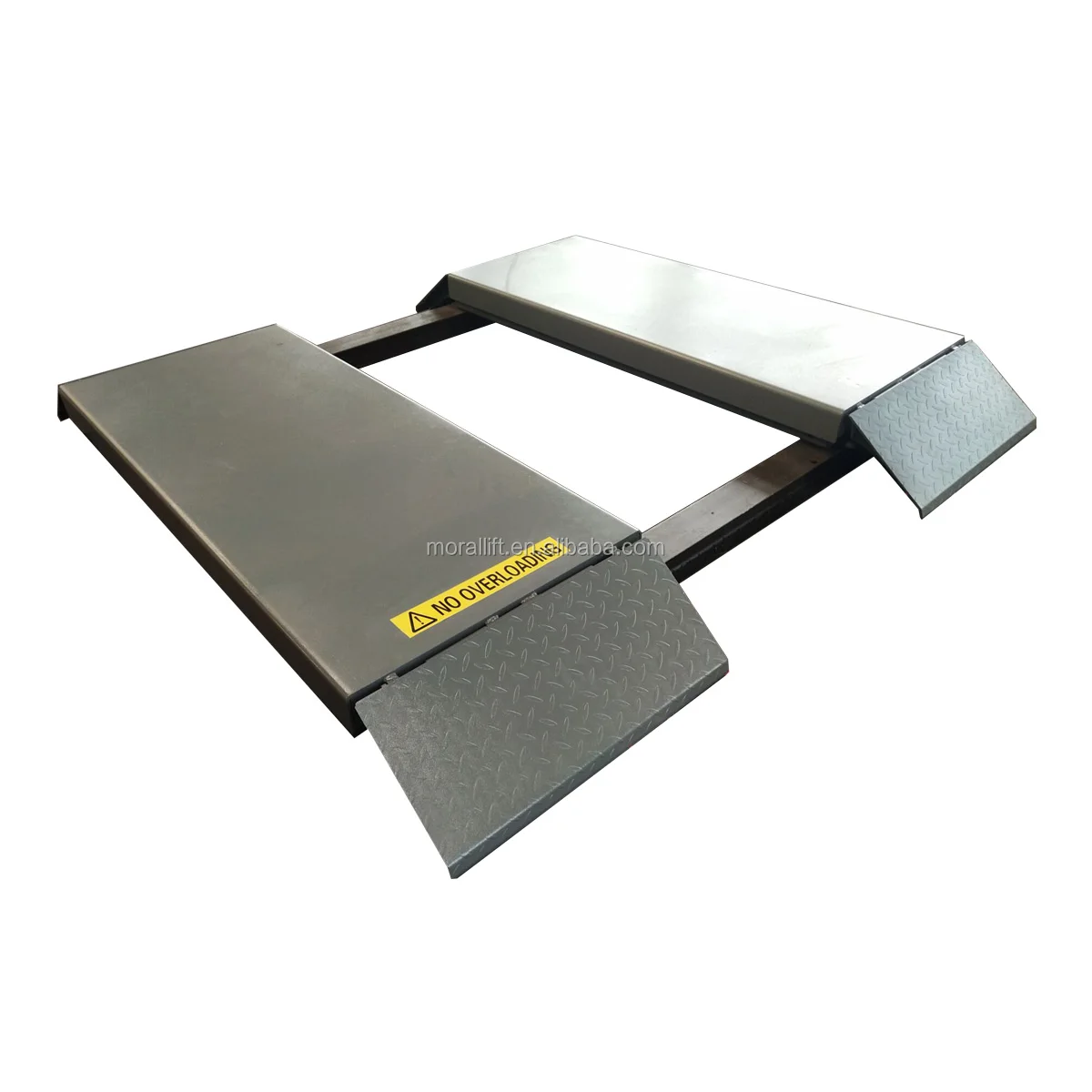

Platform | Checkered Steel Plate reinforced by high strength channel steel. |
Scissor structure | Manganese steel rectangular tube, I-iron sealed by steel plate ormanganese steel plate. |
Control apparatus | Brand DEXILI, Siemens or Schneider. |
Pump station | Brand Italy Hydrappp or Lisheng. |
Hydraulic cylinder | Both way high precision wear-resiting hydraulic cylinder with locking device for fall protection. ement system. |
Hydraulic pipe | High pressure pipe with double expanded metal protected. |
Hydraulic oil | 32# antiwear hydraulic oil. (according to the local temperature |
Our Advantages
SAFETY
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.
Q&A:

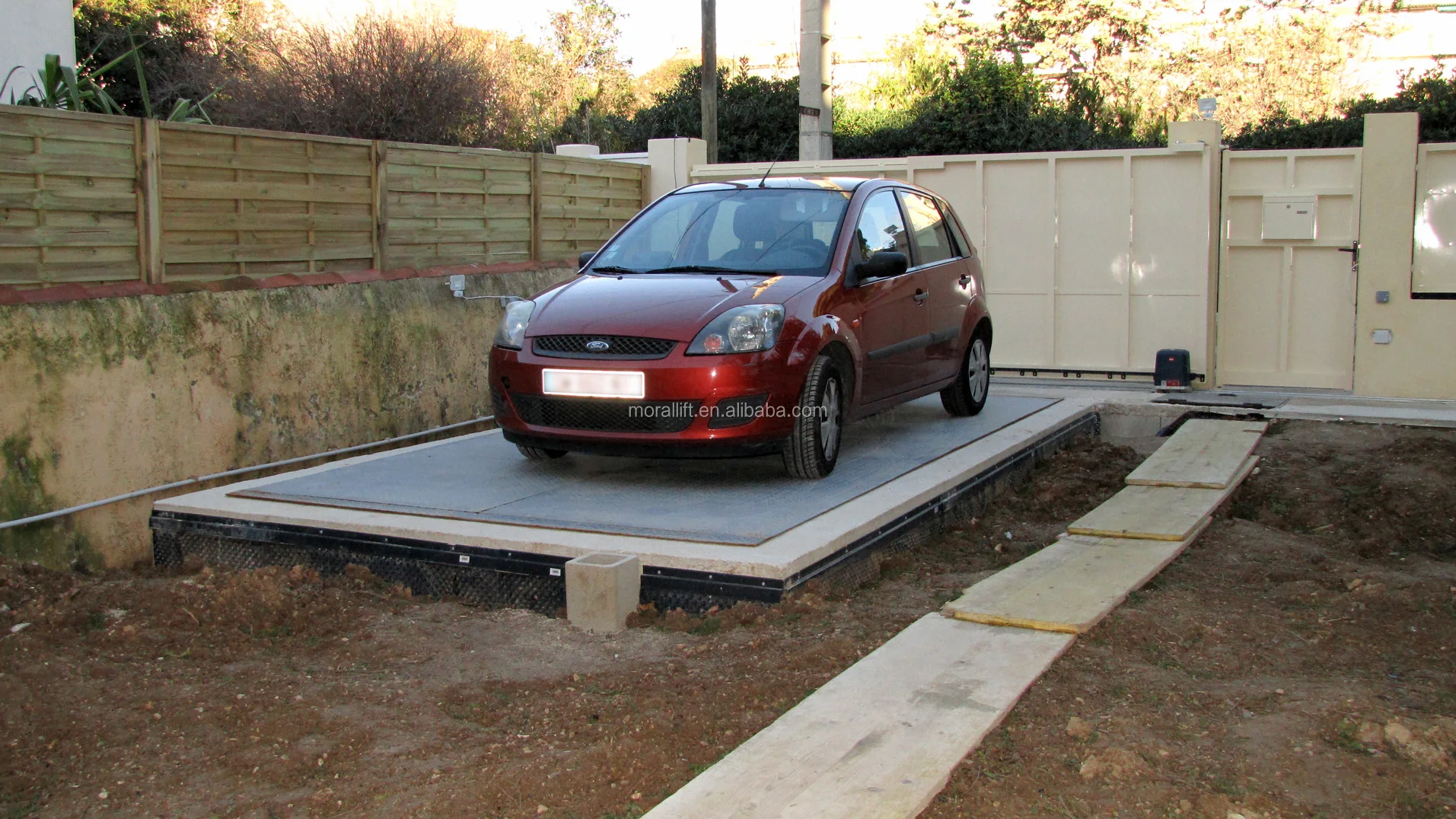

1.Is it necessary to excavate the ground for lifts installation.
Yes,standard parking solutions, Moral lift recommend a 10-foot garage ceiling for adequate clearance.

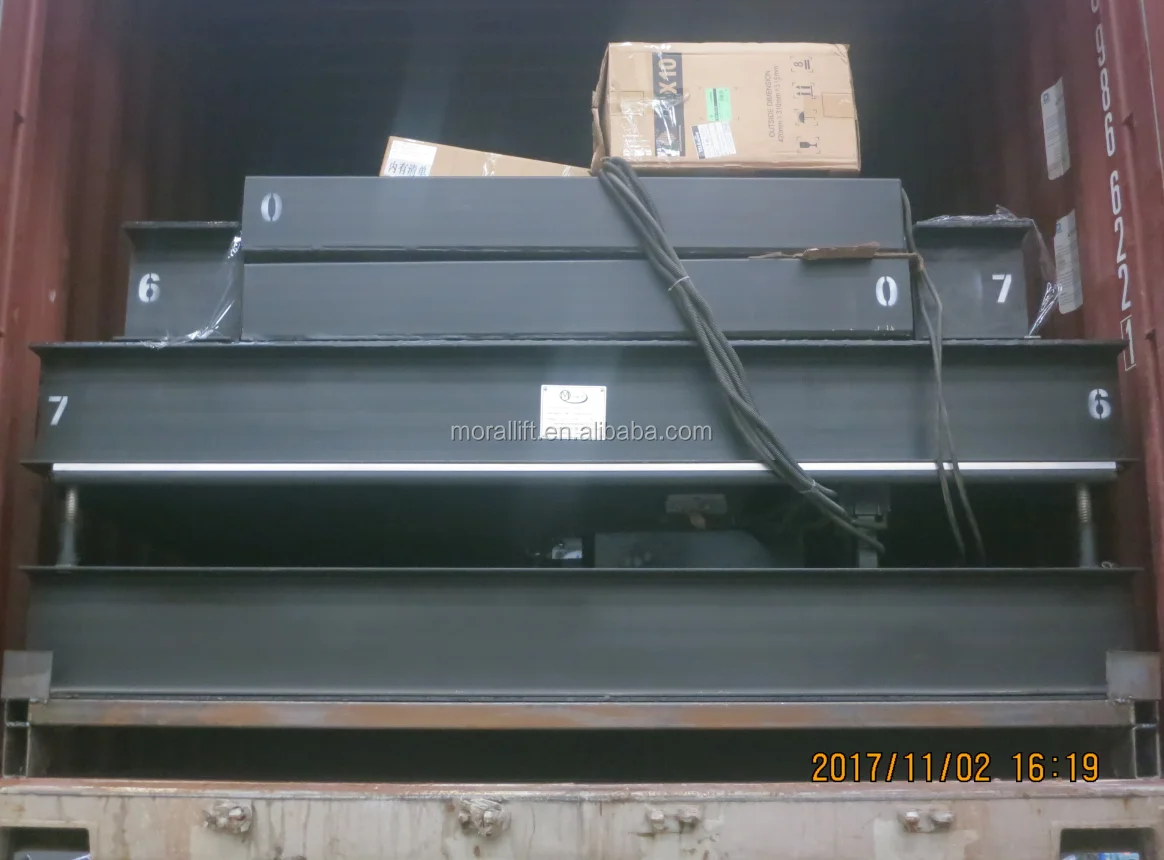

2.How to shipping for one lifts?
Need one 20 container for shipping lifts.
3.Is it easy for delivery and installation?
Lifts are sectional so they are easily taken apart for shipping. Top platform and mainly lifts are separated. When you get lifts, need to connect them with screw or bolts, it is easy!
Yes,standard parking solutions, Moral lift recommend a 10-foot garage ceiling for adequate clearance.
2.How to shipping for one lifts?
Need one 20 container for shipping lifts.
3.Is it easy for delivery and installation?
Lifts are sectional so they are easily taken apart for shipping. Top platform and mainly lifts are separated. When you get lifts, need to connect them with screw or bolts, it is easy!

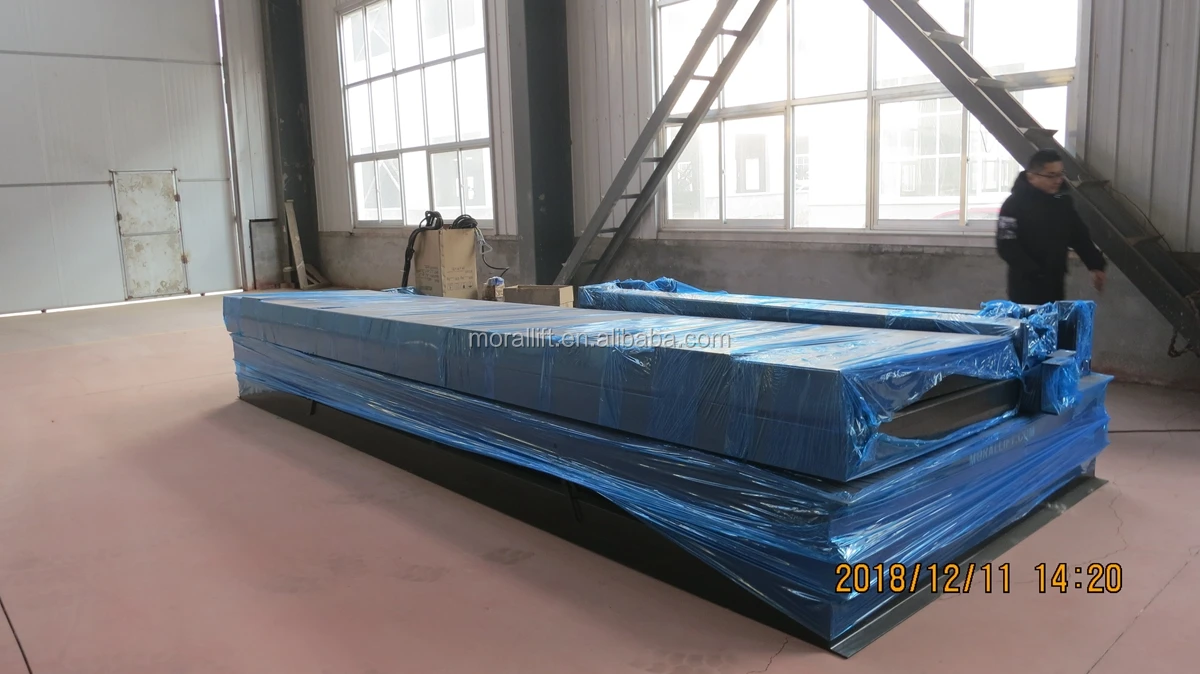

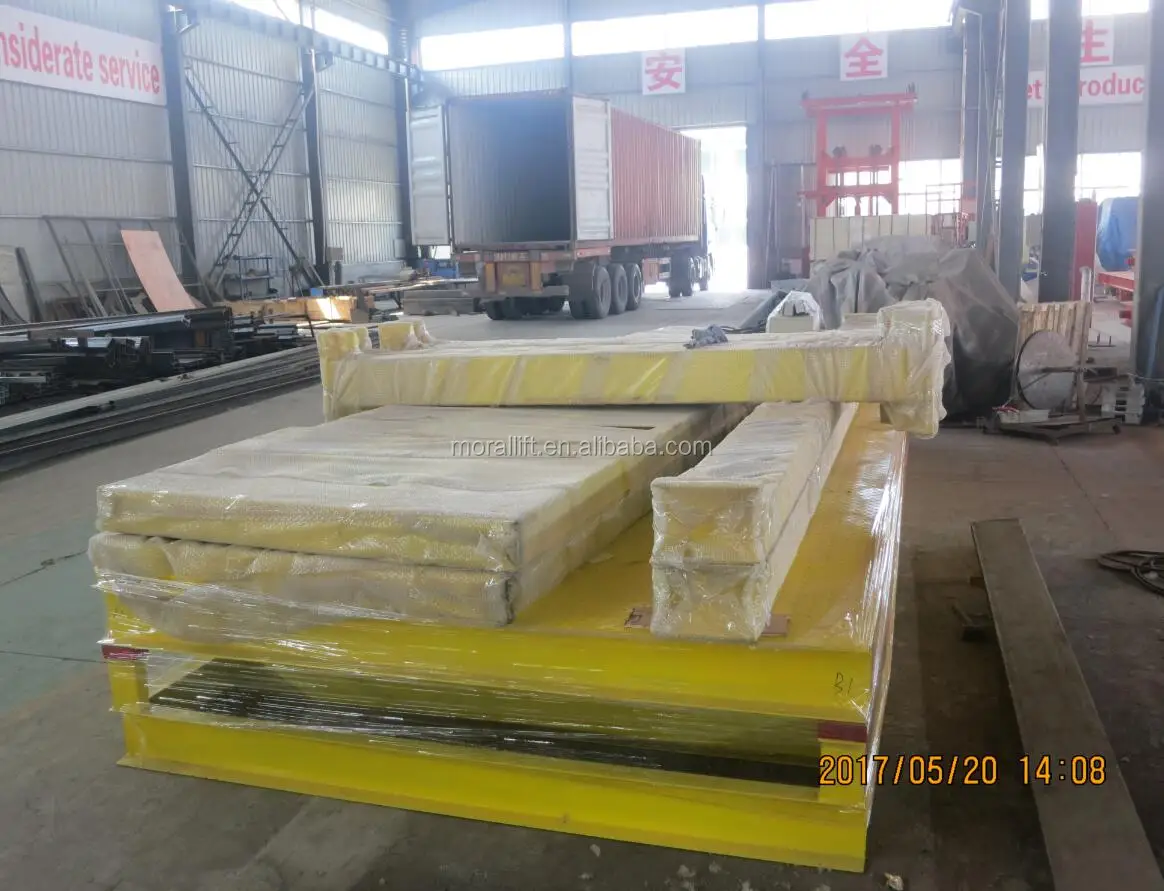

Package
Company Profile
Welcome to Moral lift,we are professional manufacturer for CAR PARKING LIFTS with good quality and low price, We
are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced

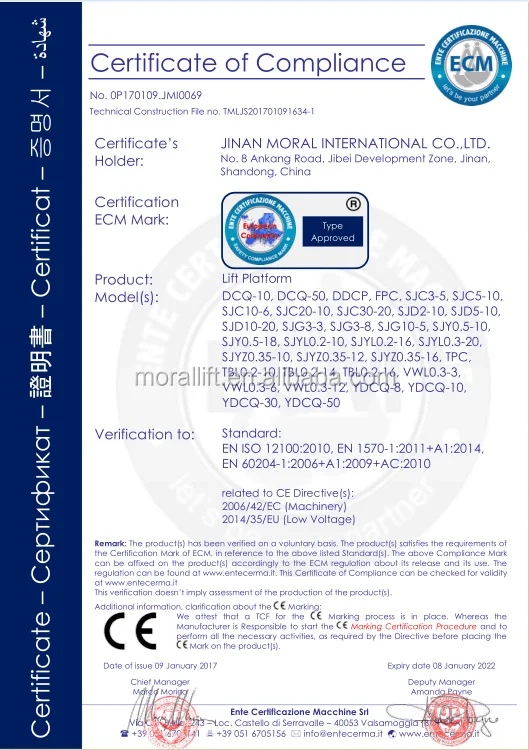

technology and complete testing equipment. Our promise, quality first, customer above! We have CE certification and
rich experience about this equipment, we will customize for your every inquiry!
Why Choose Us
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
