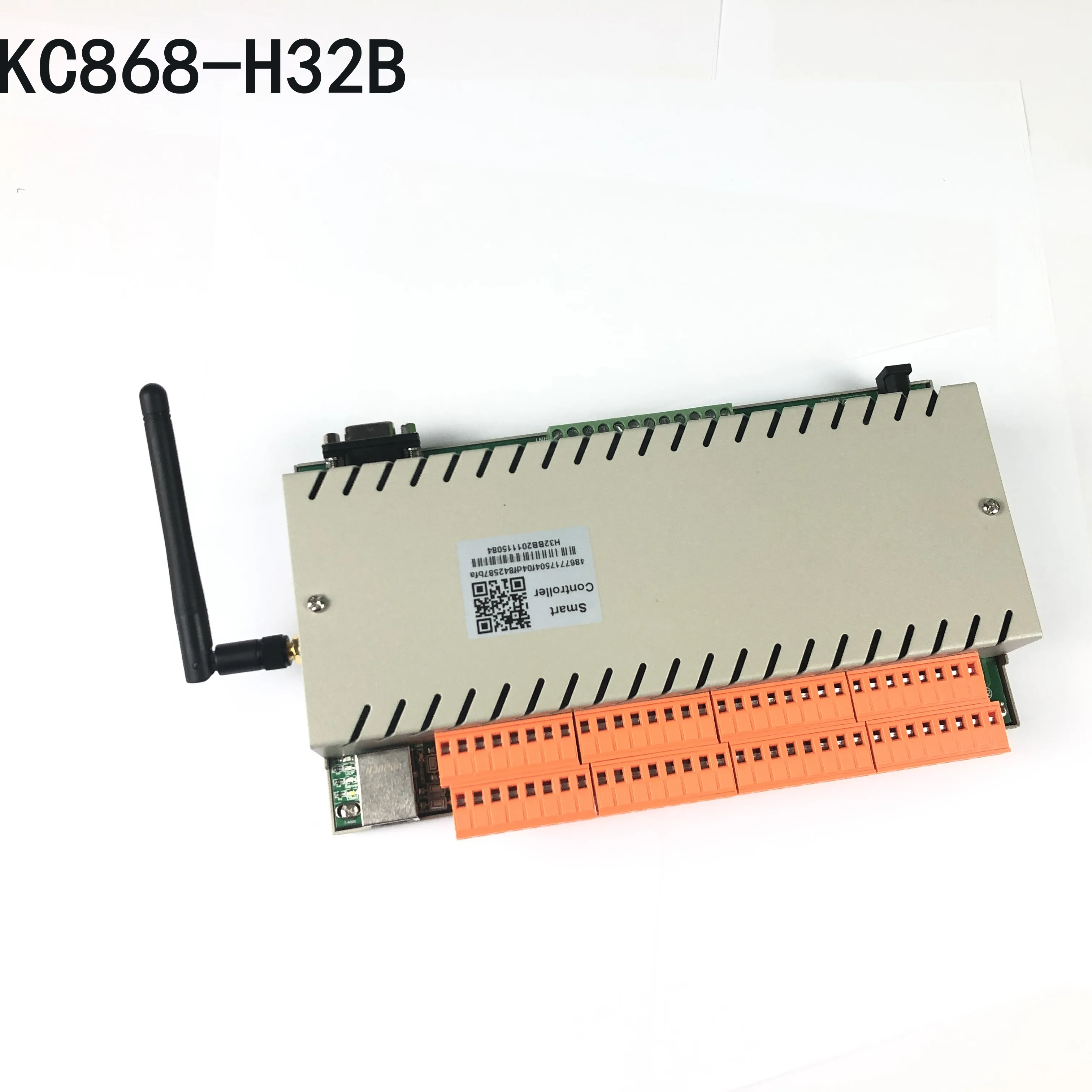

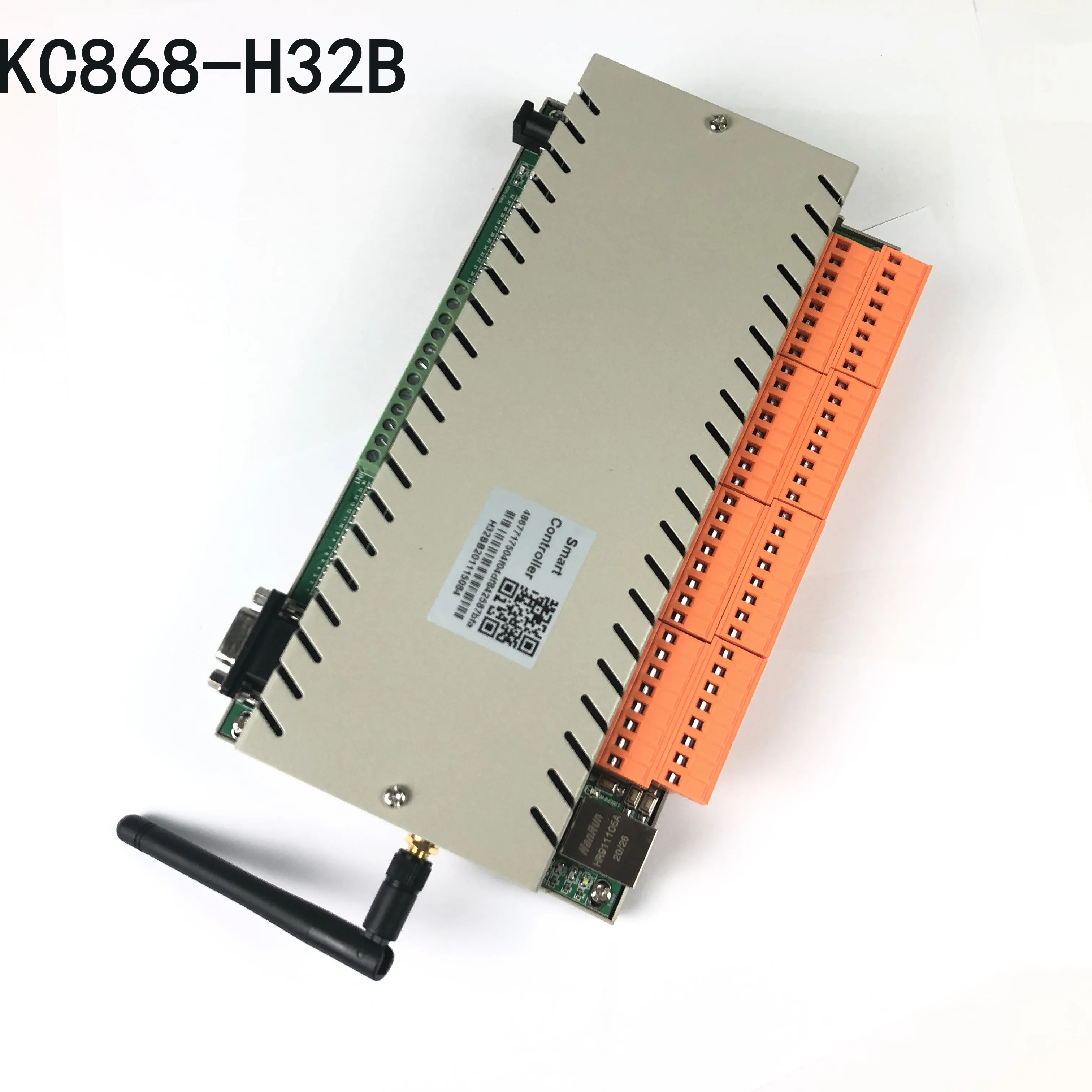

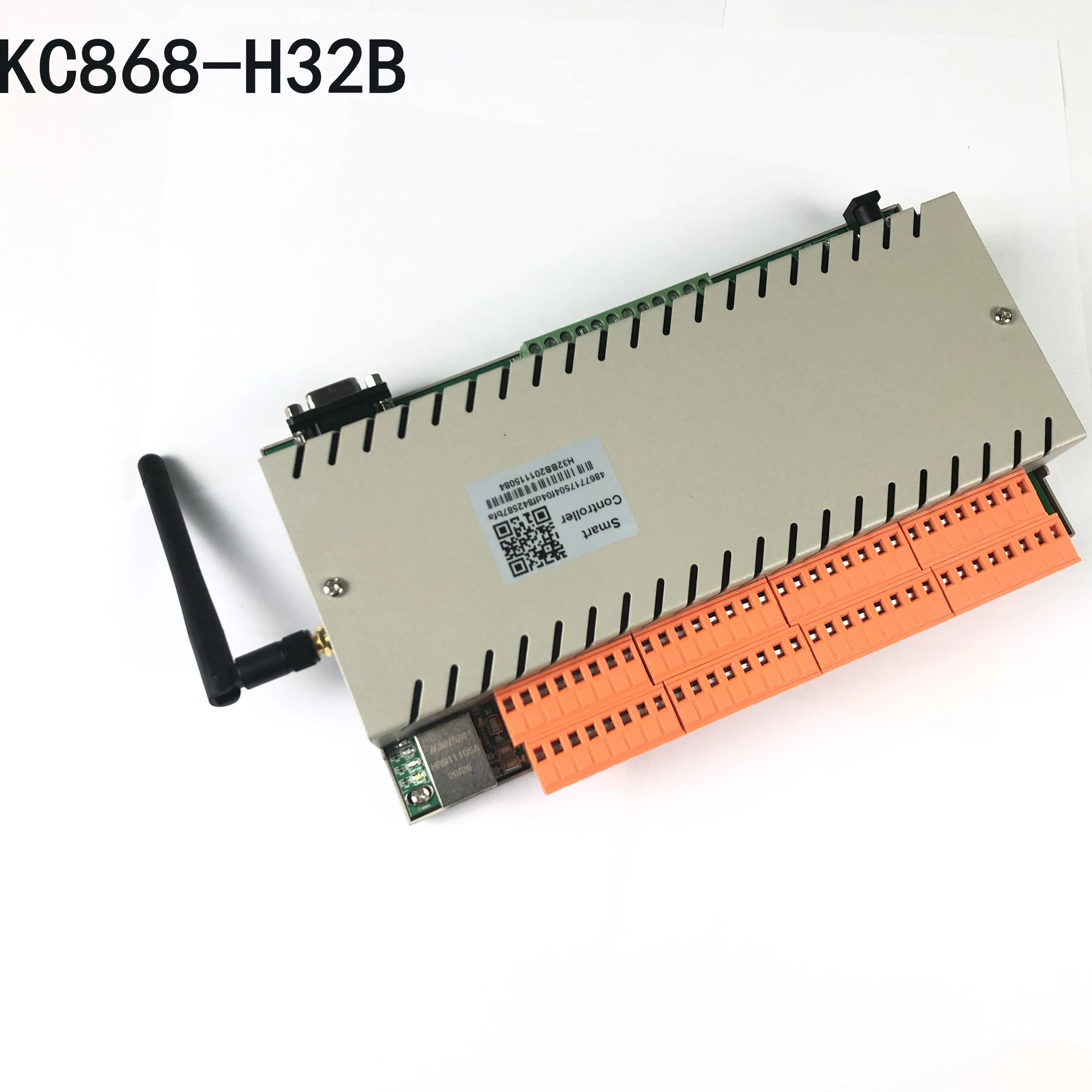

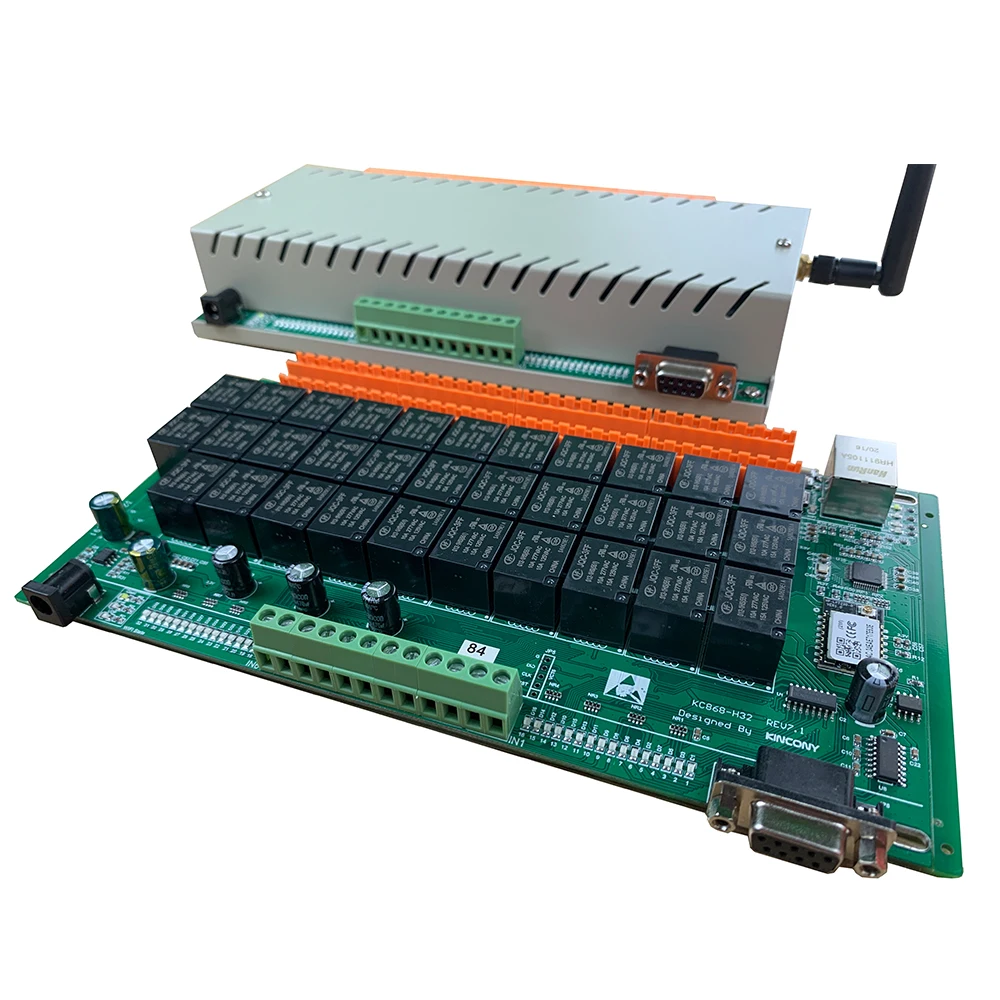

1. KC868-H32W is a 32-gang switch and 6-gang security alarm smart home system with DIN rail mounting. 32-gang switch supports to connect and control 32 electrical appliances. Which can be turn ON/OFF separately by extended manual control panel or iOS/Andorid APP or PC software.
1.Remote ON/OFF – Turn electrical devices ON/OFF from anywhere
2.APP/PC Support– Free iOS and Android mobile App and PC software
Fire resistance ABS、metal shell
20%RH ~ 80%RH
Ethernet and Wifi and RS232
Input port qty
Output port qty
The newest Andorid Software , Download form our webpage(not in Google Play): https://www.kincony.com/download/Smart-Home_Eng.apk
This is KC868-H32's PC software of remote control version, It support rename and change ICO file by yourself. Also support kinds of languages of different countries.
This is Config window. Set device name and ON ICO and OFF ICO file.
This is main window. All device can be controled.
new software support CCTV (only use for KinCony's ipcamera product). When you see the video control the relay switch. 2 cctv screen.
4 cctv screen.
If you connect with "KC868 Voice Assistant" module, controller can control voice control by Amazon Alexa or Google Home Speaker or Amazon Alexa or Google Home phone APP.
KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :

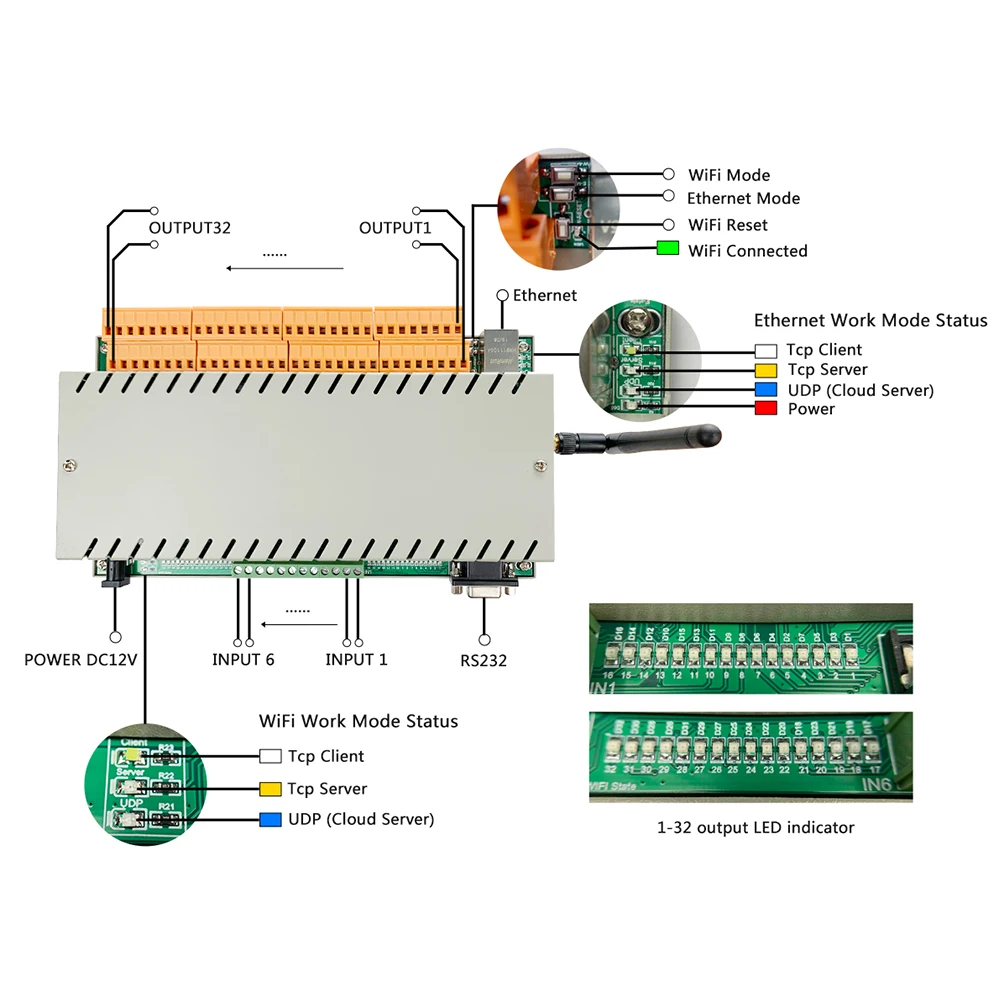

KC868-H32 Interface Definition Diagram
KC868-H32 Application Solution -- Smart Lighting Control
If the load is larger than 700W, the power expansion can be achieved by using solid state relay. Its working principle is as follows:
Security and Intelligent Linkage Control Solution
Intelligent Remote Pumping & Irrigation Solution
Servers Restart Remote Controlling Solution
Power Strip Intelligent Controlling Solution
Cameras Restart Remote Controlling Solution
Remote Access Controlling Solution
Intelligent Power Distribution Box Solution
Every KC868-Hx's input can remote control every KC868-Hx's output
Products Usage Instructions
Wiring and Installation
1. Connecting network line or RS232 serial port
2. Connecting the lamp and power into the corresponding output pole, according to below diagram.
3. When need to control one group or groups lights, connecting the line into the corresponding output poles.
4. Connecting the 12V power adapter to charge
5. When the detection sensors are available, connecting them into the input port.
This is our client's successful application case of smart power box used by KC868-H32 controller and manual control board.
Follows are our demo video on youtube can help you :
KC868-H32 Control Building Model by PC's video: https://youtu.be/wuxG8v1XXPU
KC868-H32 Control in LAN by PC VB.net demo video: https://youtu.be/bzGqjfezX74
KC868-H32 Remote Control by APP video: https://youtu.be/hPWLbGwdGmM
Manual Control Board work with KC868-H32 video: https://youtu.be/poH3PHd_yQ8
How to use web browser send http string control relay video: https://youtu.be/RVWvRN8yKWs
How to use PC software remote control KC868-H32 video: https://youtu.be/r19RnDqlDi8
How to DIY Smart Power Distribution by KC868-H8: https://youtu.be/nV82j-AleMk
How to Produce KC868-H32's PCB: https://youtu.be/XKu-aDMa9ws
Some Smart Control application cases used by KC868-Controller
Remote control AC380V power for pump
Use 4G/3G GPRS connect with KC868 Controller
Remote control 6 channel AC220V & 2 channel AC380V power
Remote control 1 channel AC380V power
32 Channel Relays control
32 Channel Relays control
Following is the introduction and solutions of KC868-H8/KC868-H32 controller which we plan to introduce in January-December 2019 on "Radio Magazine" in China. There are only Chinese language,but some of them will be translated into English language. You can visit our website www.kincony.com for viewing.We will continue to update.
This is a sample code for Turn ON/Off 's Hello World demo.
This is anlysis KC868-H32&KC868-H8 Controller's communication protocol
how to remote control relay by http string
This is smart lighting control system implementation case
We also writed some kinds of Smart Home DIY books to help people learn IOT knowledge.
Software Operation (For Engineer Development)
1. Opening the network debugging tool to detect the IP address and port of the device (see below figure)
2. Clicking【Device】, see below figure
3. Double clicking 【the Name】, set up the network parameter of the device
4. Choosing the working mode, TCP is for local area network setting or secondary development; UDP is for APP controlling.
5. Opening 【Relay】software, inputting IP address and port, clicking 【connecting】(see below figure)
6. It’s 8 ways, choosing 8 output is ok.
Secondary Development Communication Protocol & Secondary Development Program Toolkit
We supply complete source program Toolkit of VS2005(Microsoft Visual Studio 2005) , and we give the controlling examples through RS232 serial port and Ethernet socket,to help customers carrying on the secondary development.
The PC software can control the relay switch and also show the input state.Details showed from below screenshots.
We can supply the DEMO code of C++Builder, Delphi, VB.Net, Python and iOS versoins.
More documents,APP&PC software and tools for download : https://www.kincony.com/document
Videos List on YouTube:
0-KC868-H8&H32 Overall operation manual.pdf
1-KC868-H8&H32 UDP&TCP mode setting(Vircom tool).pdf
2-KC868-H8&H32 APP User Manual.pdf
3-KC868-H8&H32 relay User manual(Demo tool).pdf
4-KC868-H8 Product Parameter and Installation.pdf
5-KC868-H32 Product Parameter and Installation.pdf
6-KC868-H8 Comminucation Protocol for Secondary development.pdf
7-KC868-H8 NetRelay Control User manual(Demo tool).pdf
8-KC868-H32EXE User manual.pdf
9-KC Demo-AccountControl User manual.pdf
Software Tools List on webpage:
VirCom4.88_en (WAN and LAN config tool)
Relay.rar (KC868-H8/KC868-H32 LAN Control DEMO EXE)
Net_Relay_Control (KC868-H8 Local & Remote Control Demo ExE )
KC-Demo_account_control.rar (KC868-G,KC868-S,KC868-H8,KC868-H32 Remote Control By App Account)
Demo Sample Source Code List on webpage:
KC868-H8_H32_LAN_local_control_demo_source_code_VB2005.rar (relay.rar's source code)
KC868-H32_EThernet_remote_control_demo_source_code_BCB10.2.3.rar (C++Builder 10.2.3)
KC-Demo_Remote_Control_By_App_Account_demo_source_code_VB2017.rar (KC-Demo's source code)
KC868-H8-relay-control-hello-world-demo-source-code-delphi.rar (Delphi 10.2.3)
KC868-H8-relay-control-hello-world-demo-source-code-python.rar (PyCharm IDE 2018)
KC868-H8-relay-control-hello-world-demo-sample-source-code-android.rar (Android Studio3.2)
KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :
The following are FCC and RoHS certificates
A. Before Sale Service
Q1. How many applications can the device KC868-H32 control?
Answer: 32 ways applications
Q2. How many inputs are there in the device KC868-H32?
Answer: 6-way input
Q3. How many inputs are there in the device KC868-H32?
Answer: You can add 2pcs kc868-h32 in app. Then you can control 64 relays. Also if you add 3pcs of kc868-h32, then you can control 96 relays.and so on. All controllers will be add in one app account , not need to change app account to login and control device.
Q4.what is the maximum load per channel for the device kc868-h32?
Answer: 250V/5A each channel
Q5.What if the load power is greater than the rated power?
Answer: if it is overloaded, the external high power AC relay can be connected to crease the total load power
Q6.What type of equipment can be connected to the input of the kc868-h32 control box?
Answer: the equipments with switching value signal output
Q7.What is the size of the kc868-h32 control box? What are the fixed installation methods?
Answer: 272x117x40mm; to fix by hanging on the rail directly or to fix by screw
Q8.What is the interfaces the kc868-h32 control box supports?
Answer: support RS232 and Ethernet interface
Q9. Is there the version of Ethernet?
Answer: Yes. It’s the KC868-H32.
Q10. What are the network control methods for KC868-H32 control boxes?
Answer: Mobile phone APP remote control, PC local or remote control
Q11.What kind of software and user manuals can be provided?
Answer: Network configuration tool, Demo software, Or Instructions and Secondary development protocol etc. For more details, pls visit www.kincony.com/document to download
Q12. When there is no internet, how to remote control the device KC868-H32?
Answer: under local network, using the PC to achieve local remote control; or using the wireless internet router to provide wired network or Wi-Fi signals to achieve controlling.
Q13. Where the mobile phone APP software can be easily downloaded from?
Answer: For IOS, log in to Apple app store, searches 【Kincony smart home】 to download; for Android, log in Google app store, searches【Kincony smart home】 to download or visit the official website to scan the QR for downloading
B. Development By Yourself
Q1. Is it supporting the users to write their own programs to control the device?
Answer: Yes, supporting. And the related program example is avialble.
Q2. Is it supporting to control the device through a browser?
Answer: Yes, supporting. And one relevant case can be provided.
Q3. What are the ways to remote control the device when the users program themselves?
Answer: the PC software, the browser for controlling.
Q4. Is it provided the source code of the secondary development package example?
Answer: Yes, providing the detail information.
C. After sale service
Q1. Where to download the relevant information after purchasing?
Answer: From the Chinese website www.hificat.com/services/
And the English website www.kincony.com/document
