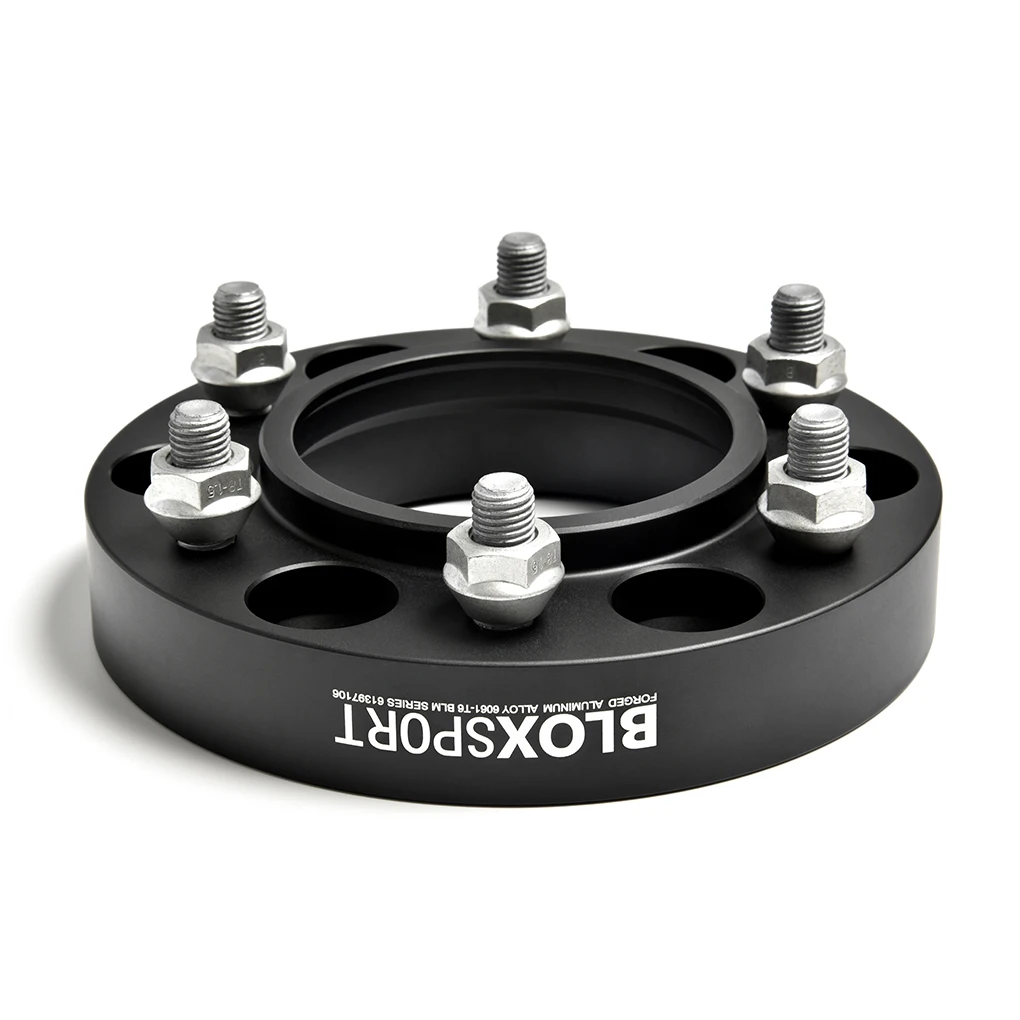

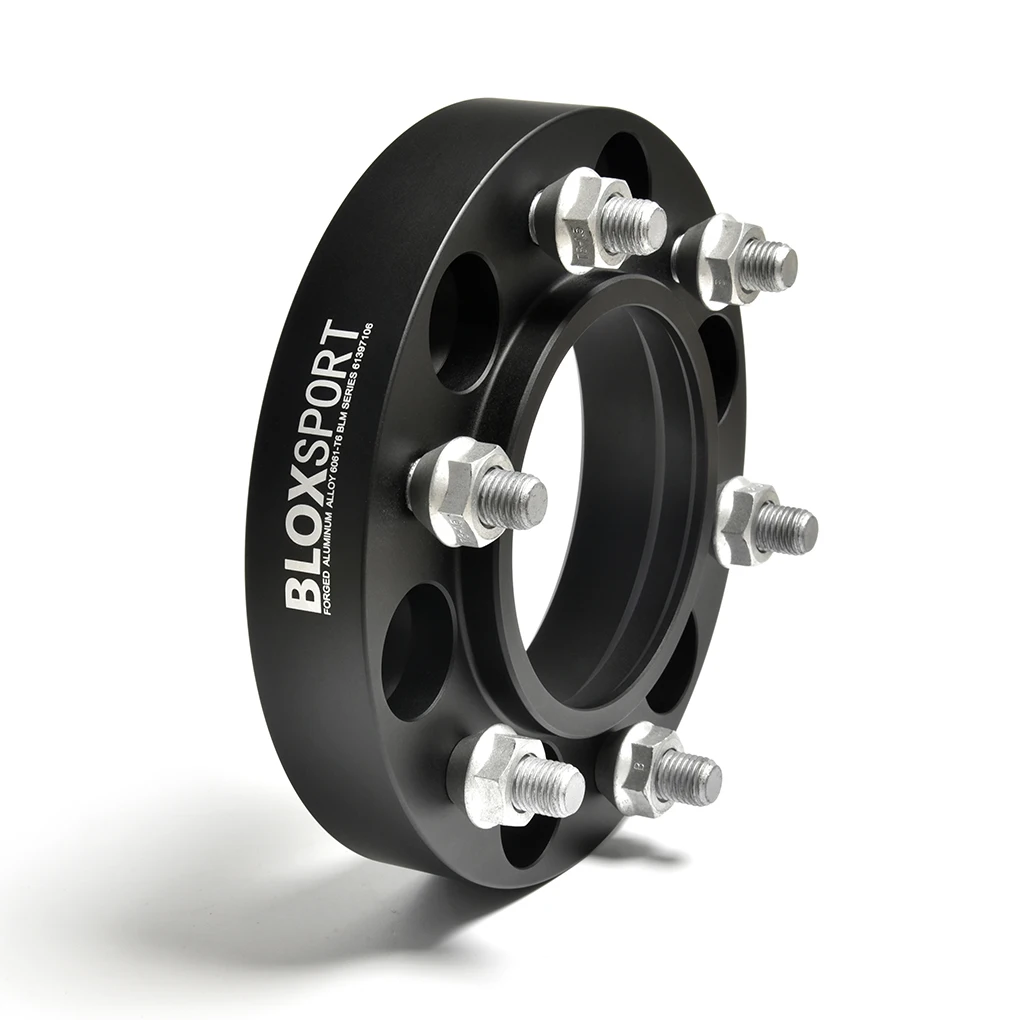

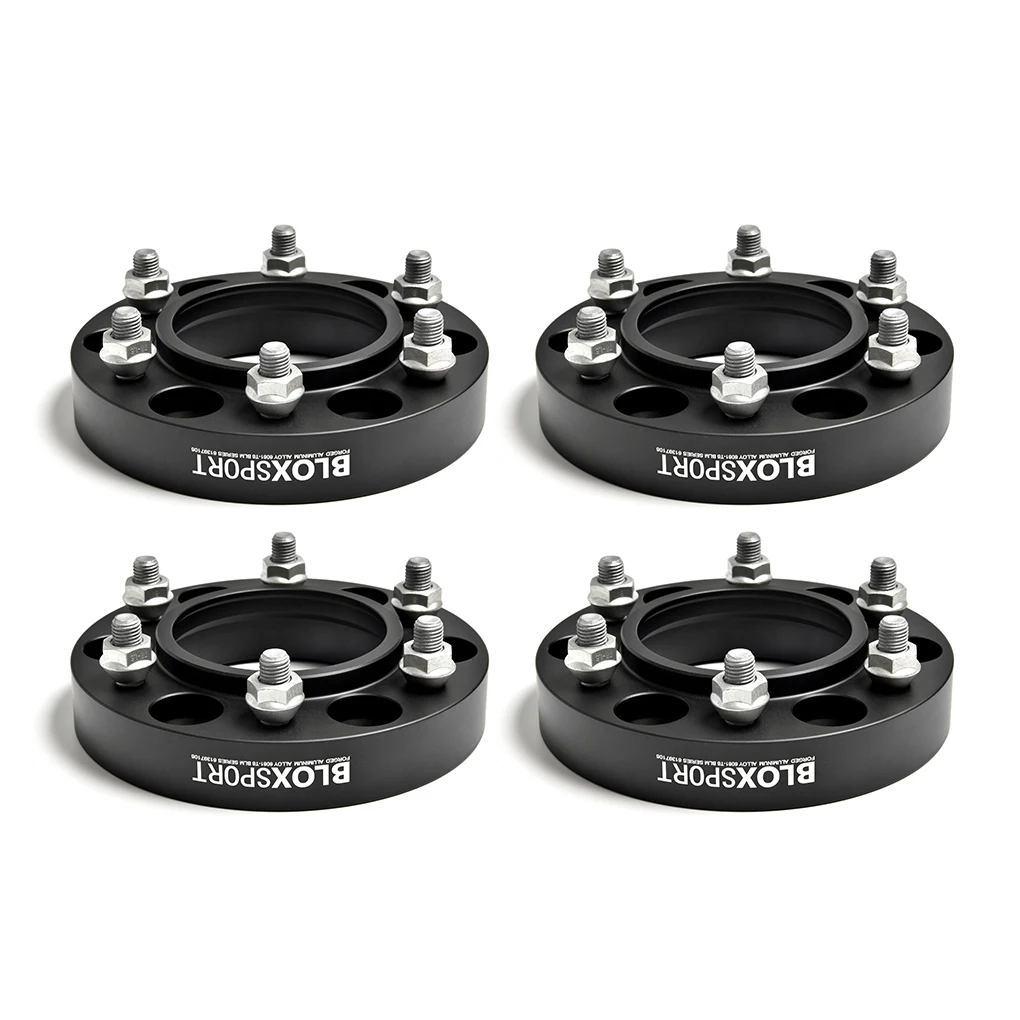

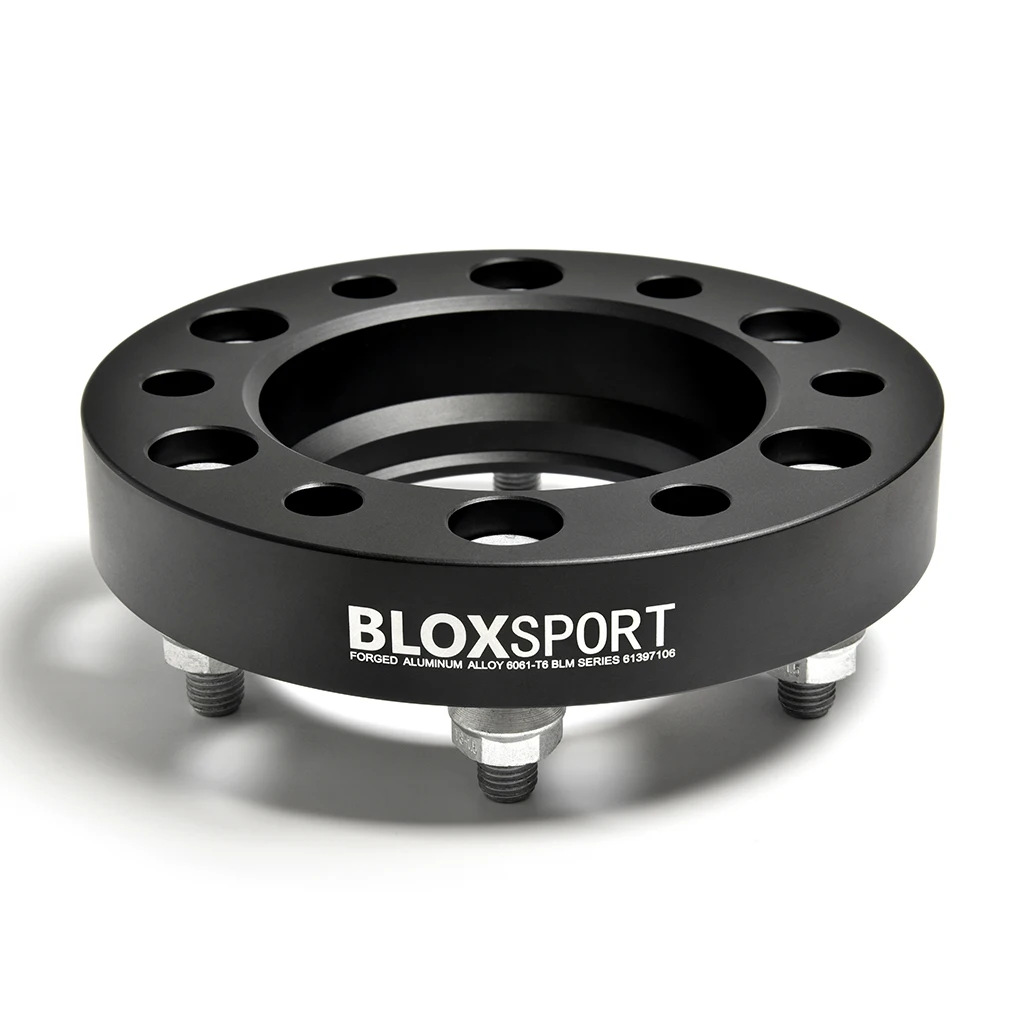

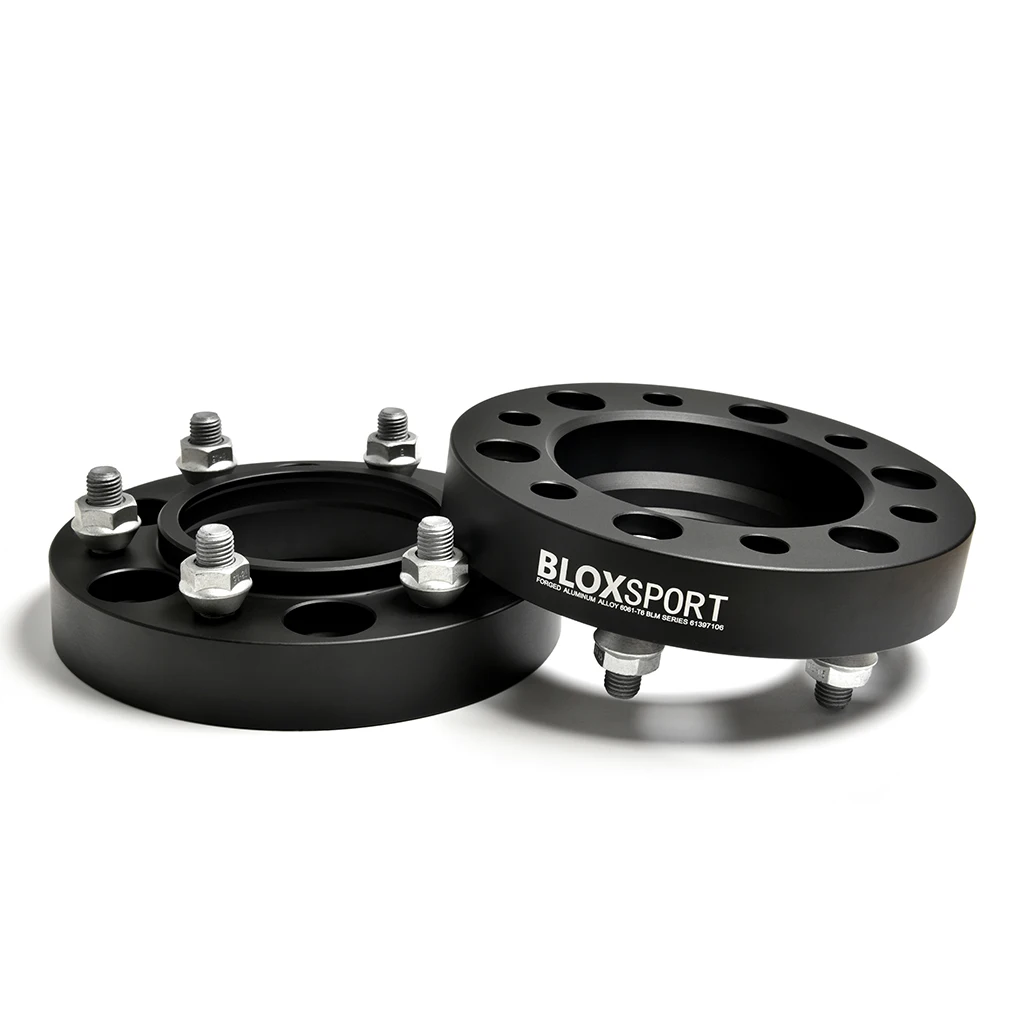

Black Forged 6 139 Wheel Spacers Hub 106mm for Toyota Land Cruiser Prado J120 1996

Product Overview

Description

Product Description

We are the Manufacturer for Auto Wheel Parts,Wheel Spacer can be customized by your request, EOM service add your logo, design packaging boxes.









Specification:
Condition	100% Brand New	Materials	Forged Aluminum Alloy 60601 T6 / 7075-T6
Wheel Bolt Pattern(PCD)	6x139.7 6x5.5	Color	Black or Silver Anodized
Vehicle Bolt Pattern	6x139.7 6x5.5	Stud Grade	12.9 SGS Tested
Hub Bore (Center Bore)	106mm	Placement on Vehicle	Left,Right,Front,Rear
Thread Pitch	M12x1.5	Brand	BLOXSPORT
Thickness	20-100mm	Surface finish	Hard Anodized for durability and corrosion protection

Features:

1.High-Strength Aircraft Aluminum Alloy 6061-T6 / 7075-T6,Forged Material.

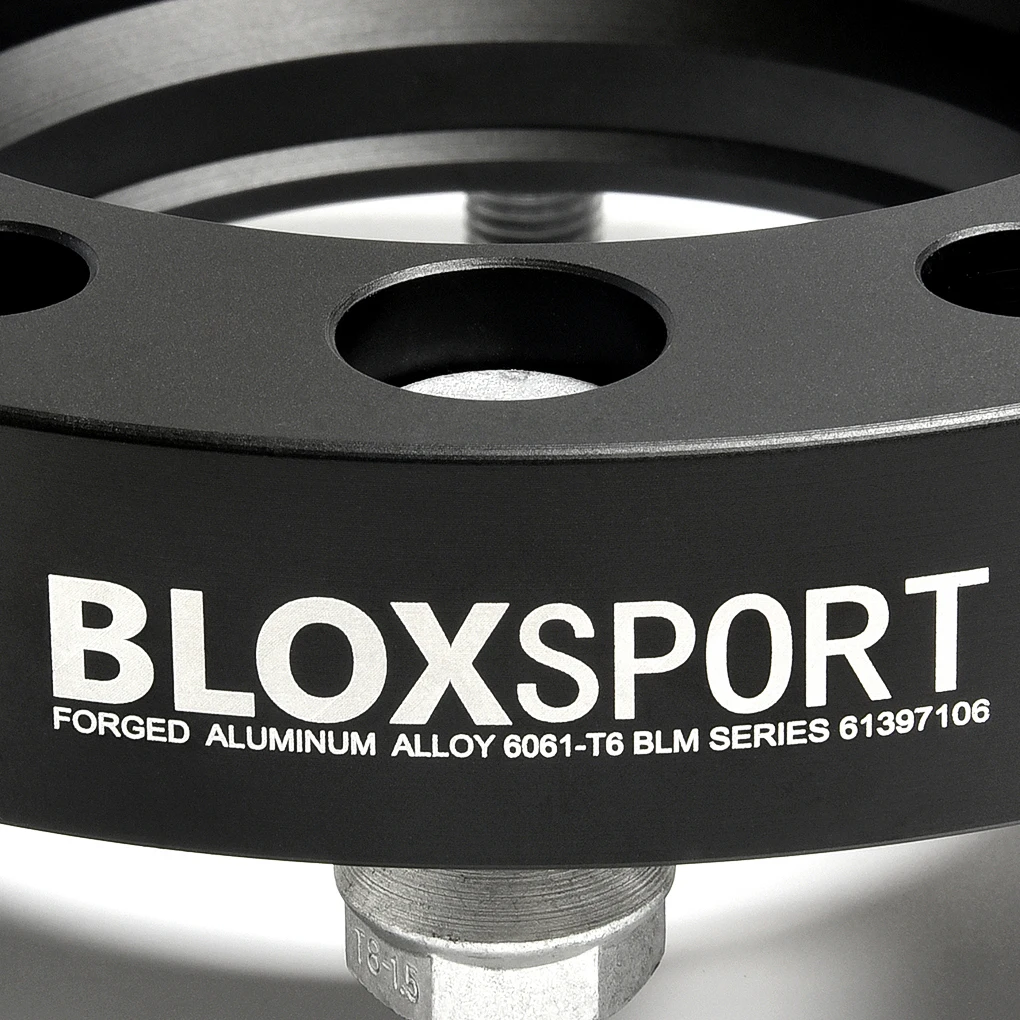

2.Brand Wheel Spacers, Real Material, Laser Material Number and Logo on Spacers/Adapters.
3.Hard Anodized for durability and corrosion protection.
4.Precision Engineered Hub-Centric and Model Specific for Perfect Fit and Wheel Balance.
5.Limited Life Range Tested for Wheel Bolts/Stud (1 Million Times) in accordance to ISO3800.
6.Machine pressed high tensile, heat treated studs.

Detailed Images

With Hubcentric Wheel Spacer & The Non-Hubcentric Wheel Spacer

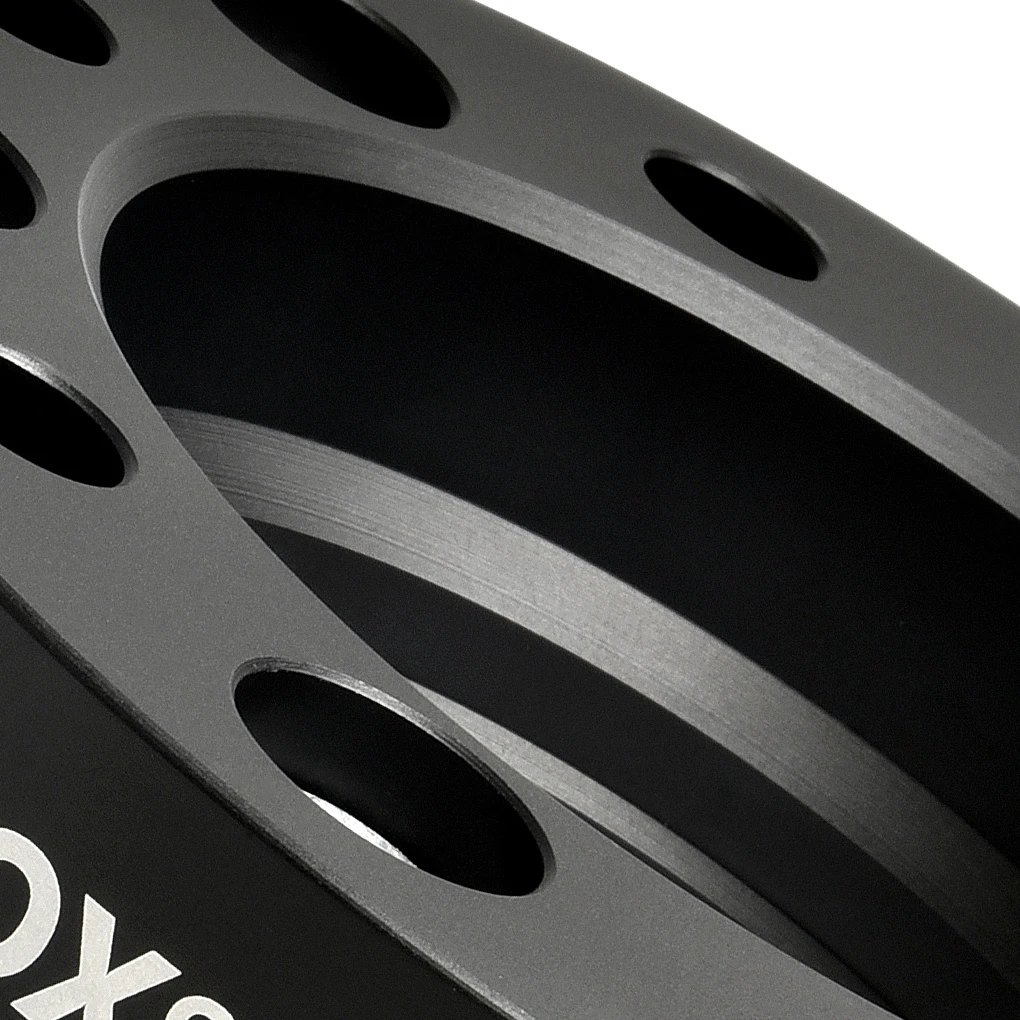

 The With Hubcentric Wheel Spacer:
The locating ring fits into the space on the wheel exactly as the hub's locating ring would.
This means that the weight of the car is still resting on the hub rather than the wheel studs, the vehicle is set up just like it came from the factory,no vibrations from the wheels, and also protect the studs.
The Non-Hubcentric Wheel Spacer:
The weight of the car isn't on the locating ring any more and is on the studs,it will suffer more vibrations from the wheels easily , so that the studs will bear all weight of the car. That doesn't mean you can't choose non-hubcentric wheel spacer,but you have to choose the studs are in good quality.

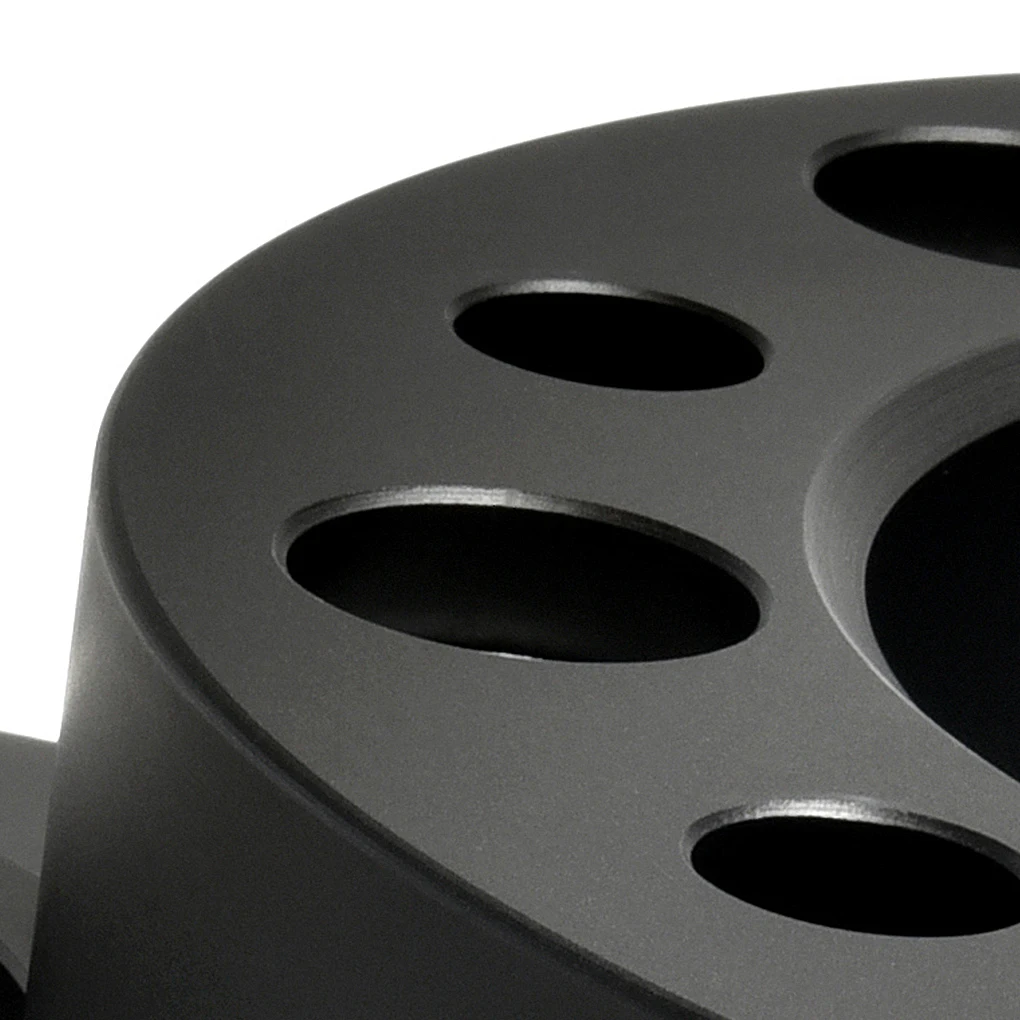

CNC machined:

BLOXSPORT Wheel Spacers were modern CNC machined, the surface was more smooth, increasing car driving more stable and more secure and no vibration. 0.02mm Machining precision, the consummate data comes from constant practice,We always make perfection more perfect..

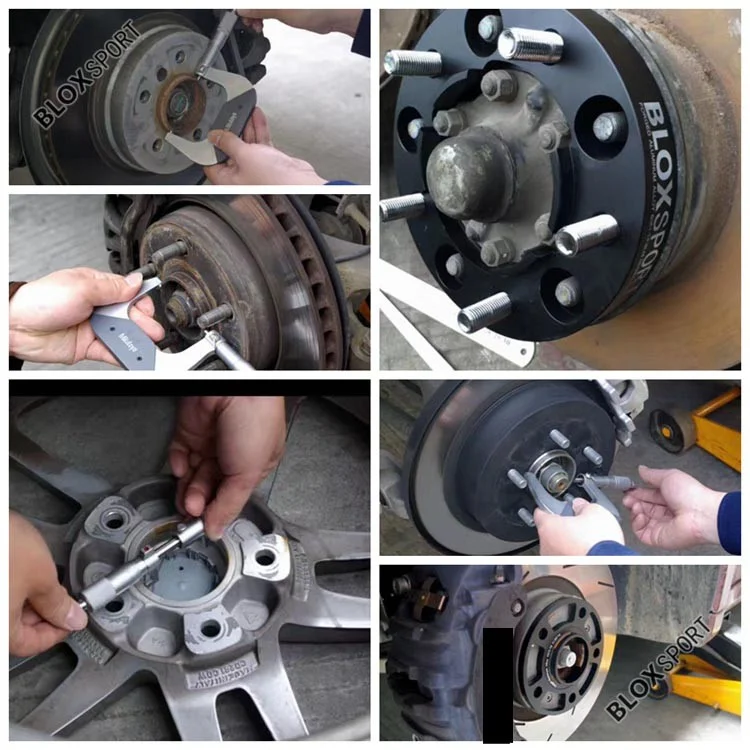

BLOXSPORT Wheel Spacers have professional technology engineers,each car model with each precise data have measure by our engineers.We always insist on the conception of” Carrying Responsibility and Delivering Security, Safety First” for the customer.

BLOXSPORT Wheel Spacers Wheel Spacer insist on CNC Machined with 60 degree taper bulge seat lug nuts,Precision Engineered Hub-Centric and ModelSpecific for Perfect Fit and Wheel Balance.Machine pressed high tensile,heat treated studs.



Forged Wheel Spacer VS Casting Wheel Spacer

BLOXSPORT Wheel Spacer Made from High-Strength Aircraft Aluminum Alloy (7075-T6 or 6061-T6), Lightweight,Forged Hard Anodized for durability and corrosion protection insist on using the forged material, insist on the conception of putting safety in the first place and reject to use the casting material.

The Casting Wheel Spacer material made wheel spacers performance is terrible,it will snapped off and pose a very serious threat to the driving safety.

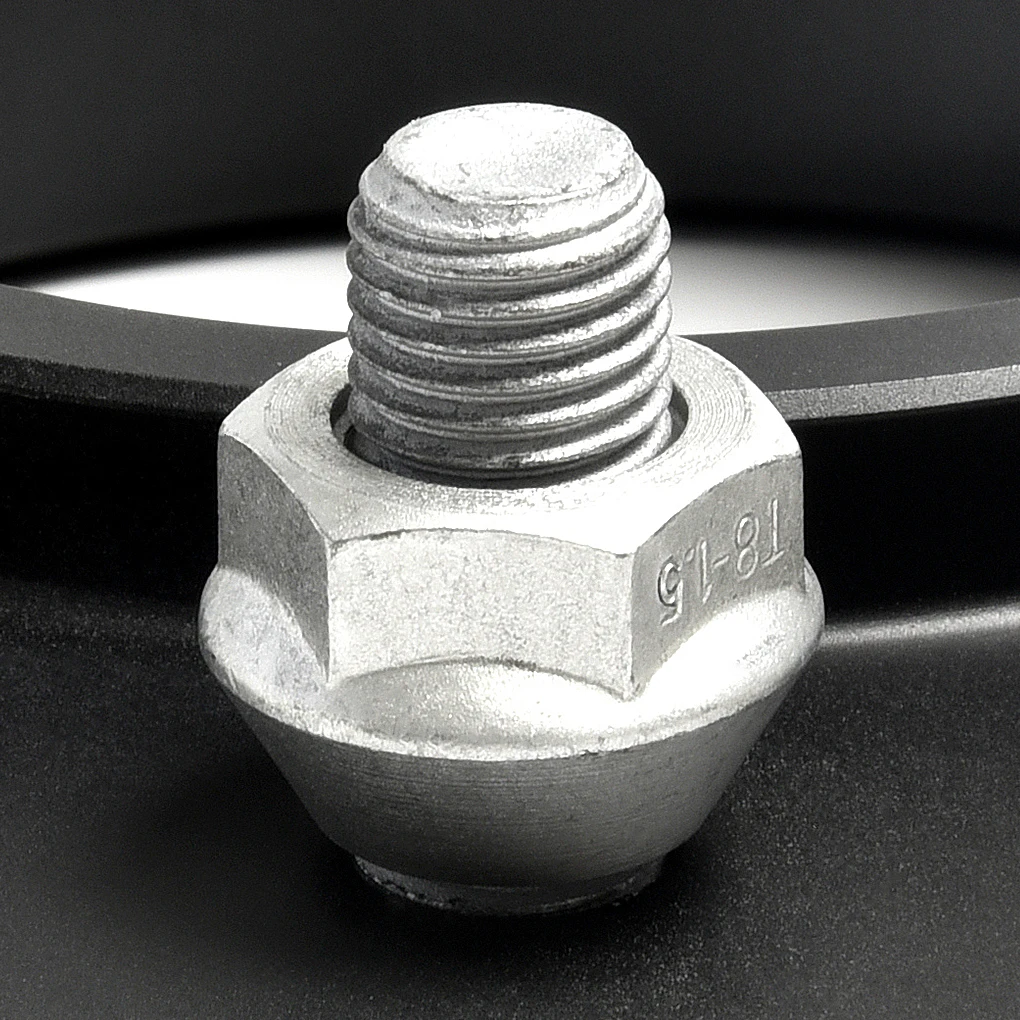

Heat Treatment Stud/Bolts VS Normal Stud/Bolts

BLOXSPORT Wheel bolts/studs lug nuts used Heat-Treatment working processes to improve their performance to make sure the safety during long-term use.Limited Life Range is very important for Long life drive. Normally, The 12.9 Grade Wheel Bolts/Studs Only test the Tensile, Proof Load, Hardness. they are for Strength but NOT for Toughness,but in our view, the Toughness is as important as Strength. So, our Bolts/Studs passed SGS 1 MILLION Times Fatigue Strength Test, For Safe,For long life Safe.
The ordinary stud/Bolt has not the flexibility and anti-fatigue performance is terrible, easily being snapped off after long-term use.

Installation

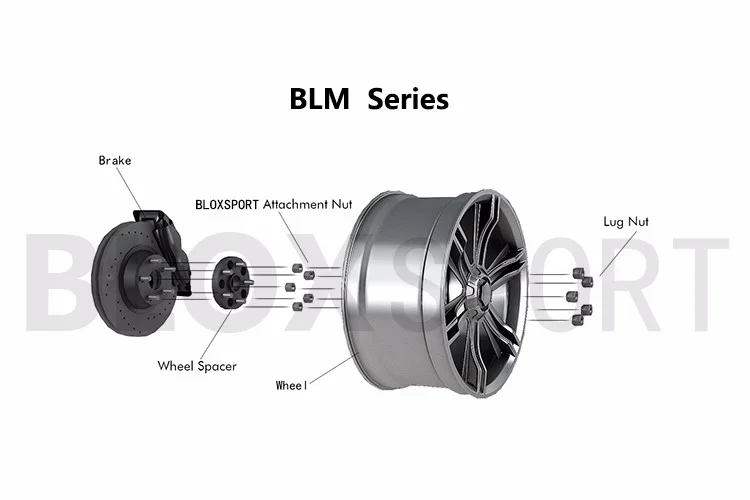

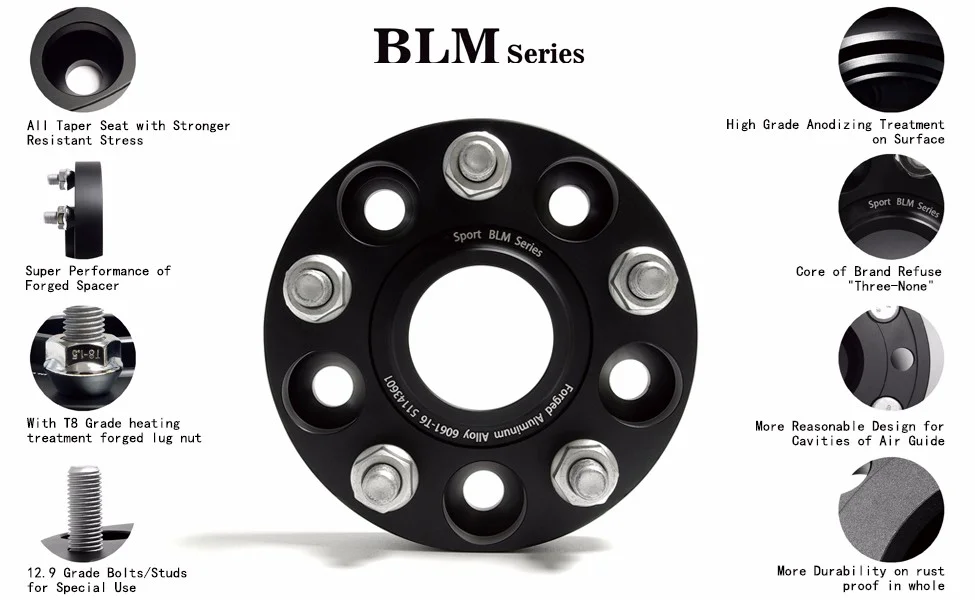

BLM Series Installation Tips

1.Remove wheel.
2.Place BLOXsport Wheel Spacer on hub of car making sure that the spacer is fully seated and flush with the hub.
3.Use supplied nuts to fasten spacer to original studs. Carefully hand turn nuts making sure that they spin in easily so as to not cross-thread.
4.Repeat step 3 with the remaining nuts.
5.With hand wrench, snug up the nuts in a star pattern.
6.Tighten nuts in a star pattern using torque wrench set to manufacturers specification.
7.Make sure original studs do not protrude past spacer, see note 8.
8.Place wheel onto the new studs and firmly seat against wheel spacer.
9.Fasten wheel with original nuts. Carefully hand turn nuts making sure that they spin in easily so as to not crossthread.
10.Repeat step 9 with the remaining nuts.
11.With hand wrench, snug up the nuts in a star pattern.
12.Before fully tightening, spin the wheel and tire to check for any noise or interference.
13.Tighten the wheel nuts in a star pattern with a torque wrench set to wheel manufacturers specifications.

Item Benefit



1.Increase the car wheel track, reduce the body center of gravity, reducing the body deformation.
2.To improve vehicle stability and improve handing and other functions.
3.To ensure that the car is more flexible, smooth and safe.
4.To be able to make the sability of the vehicle greatly ascend.
5.Increasing camber at the race track gives greater fender clearance.
6.Installing of wheel spacer widens track th fill increased fender gap-improving handling and performance.

SGS Certificate:

We have got the SGS Test reports for Bolts/Studs/Lug Nuts, passed the SGS 72 Hours NSS Test,ISO9227, 72hours Neutral Salt Spray Test to make sure 6 YEARS does not rust under normal circumstances.





Standard Package

We choose the standard export packing,Protective Bag + OEM Box + Carton Package to protect the wheel spacer.After purchase,you can get it within 4-10 days through Expedited international shipping DHL,FedEx or UPS etc.



Protective Bag + OEM Box + Carton Package

And international transport cooperation

CNC Machined

Owing to the good quality of the Forged Aluminum Alloy Wheel Spacer, our wheel spacer received high reputation and positive feedback from all over the world.Choose us and we won't let you you down.



Company Info

We specialize in the supply of Wheel Spacer,Wheel bolt Accessories and Styling products. We stock a wide range of products for all Makes / Models of vehicles including OEM and Accessories for European car, Seat models and many more and all 4x4's (for Japanese car etc.)
We are a China based company, supplying products to USA,UK, Ireland, Canada Europe and Internationally .
We provide ourselves in delivering top quality products,at unbeatable prices and 'second to none' customer service.





FQA

Q1. Are you a factory or trading company?
We are a factory, and founded in 2010.We stock a wide range of products for all Makes / Models of vehicles.

Q2. What's your MOQ?
The MOQ of the wheel spacer are 2pcs for per model per size with BLOXSPORT logo.

Q3. Can I get some free samples?

If you need to test our quantity, the sample will be provided. But you need to pay the sample fee and shipping freight.

Q4. How long about the delivery?

No matter how large quantity do you need, we can promise you the delivery time is 60 days after we receive your confirmation order.We can delivery the wheel spacers by DHL,fedex or other international express.

Q5. What's your terms of payment?

30% T/T prepayment, 70% balance before shipment.

Q6. Can I order other size products?

Yes, but please let us know the specific size of the product.

Q7. Can I customize the wheel spacer logo and product packaging?

Yes, we will customize the logo as customer request.
