Product Overview
Description
Product Description
First cost price New condition Corrugated box making plant, carton box making machine prices

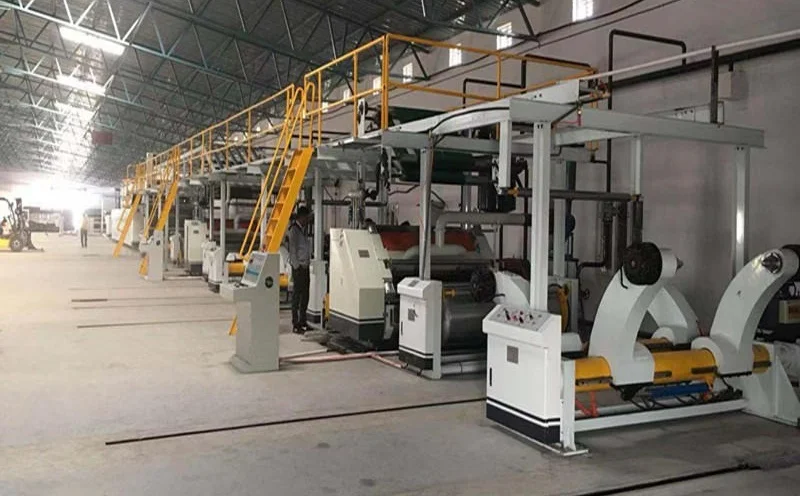

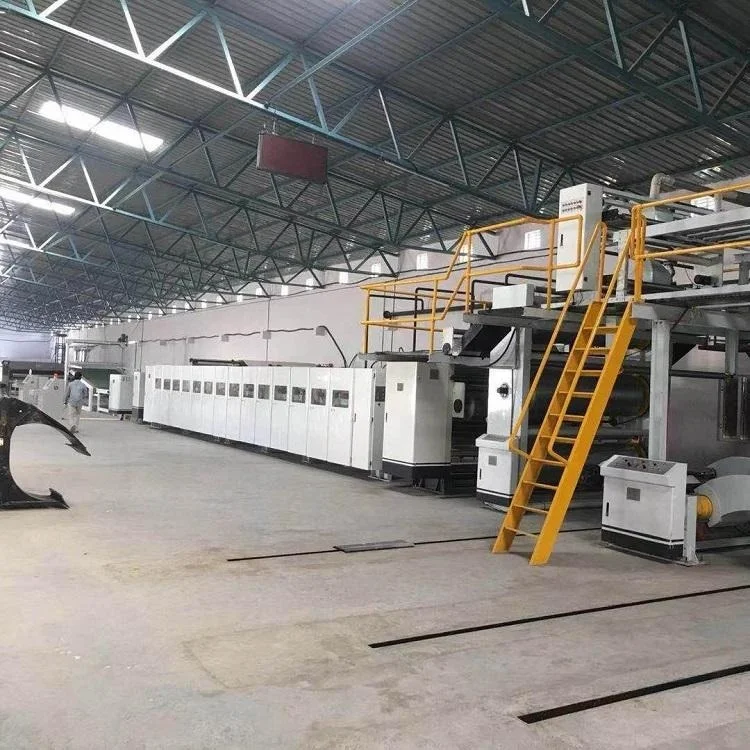

corrugated box manufacturing plant

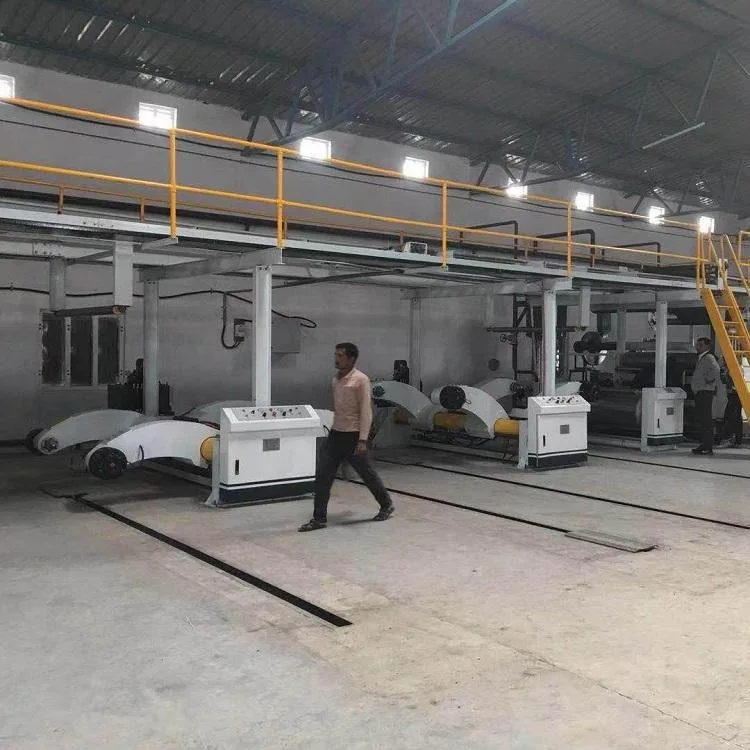

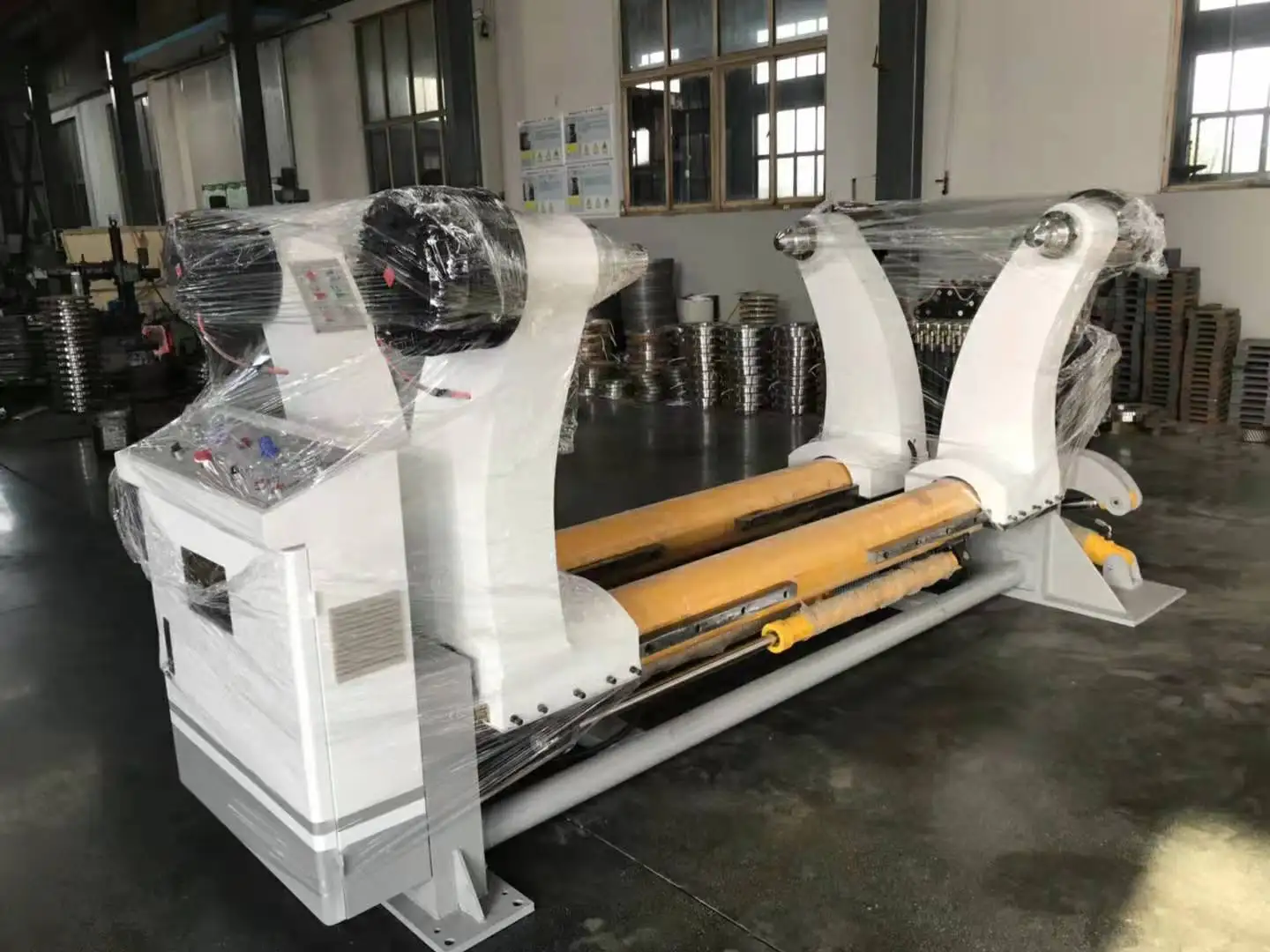

Hydraulic Mill Roll Stand
The machine is designed for holding and fixing natural paper, and providing paper for produce whose main specification between 1600mm and 2200mm. This machine could meet different demands of our customers.
Single facer
Adopting outside absorb non-scorched V-shape low noise decentralization fan. We have rotation equipment and the space between adhesive wheel and down flute, manual linkage venire regulation and showing by pointer tray. Scorched and serum tray air-power raising and lowering, electric separation serum equipment( electric machine installation outside of left and right) in order to clean conveniently; it always can latitudinal shift-out and convenient to maintain. Electric machine work synchronous with above bridge traction and the main electric machine with frequency conversion control.
Double Glue Machine
Double Glue Machine is a machine to scorch for top of the single flute paper and have different specification choices. The surface cylindrical grinding hard chrome polished treatment which could prolong the use life
Double facer
Double facer is attached by machine sizing paste into the hotplate heating after molding and then cooled by cooling to form the paper board. The whole machine girder of double –sided machine adopted heavy type channel steel system, good rigidity, stable system, aesthetic appearance. Designed to canvass belt on the left and right device for automatic correction, making sure the canvass belt stable in working and the air pressure automatic control tightness.

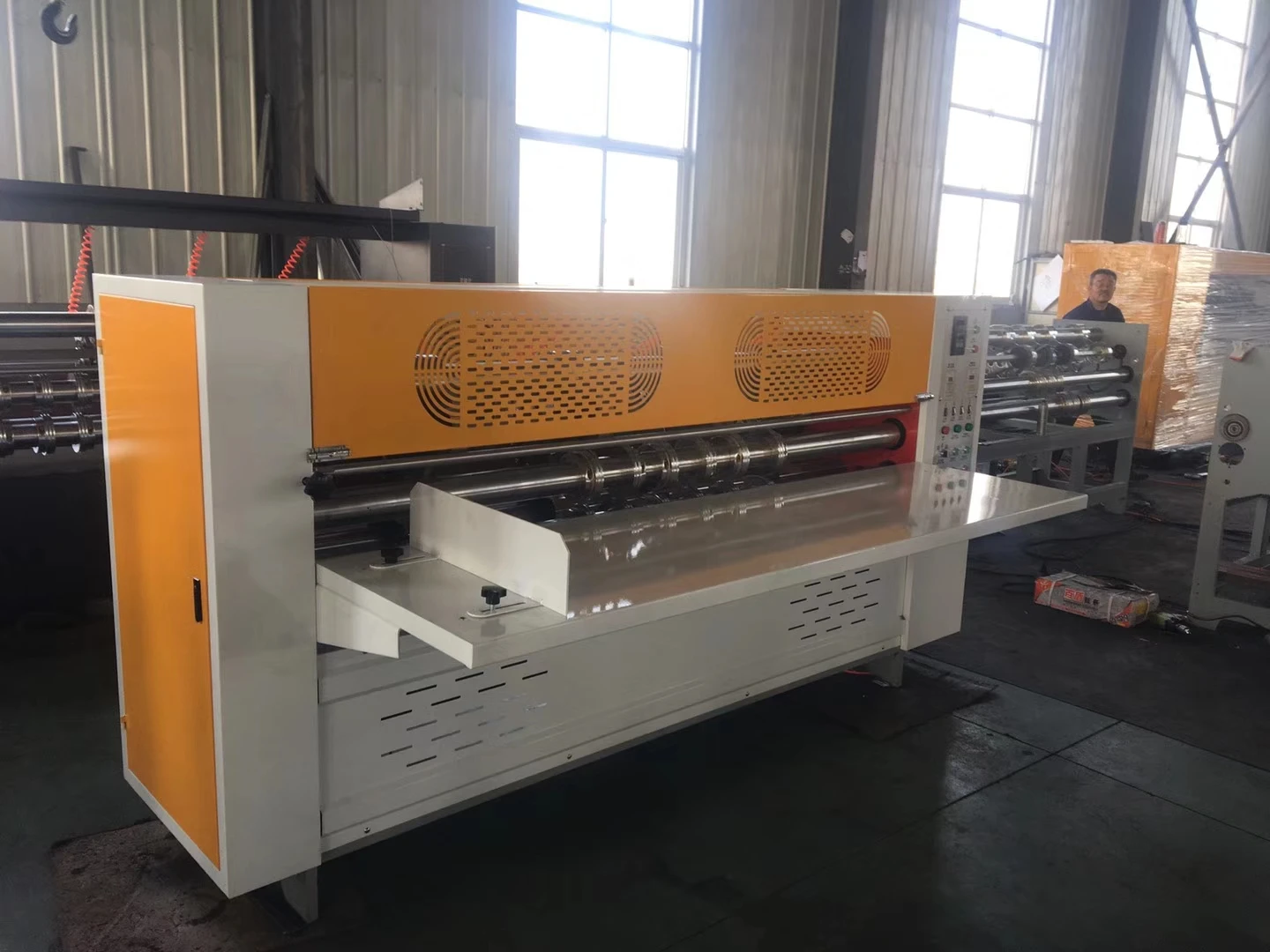

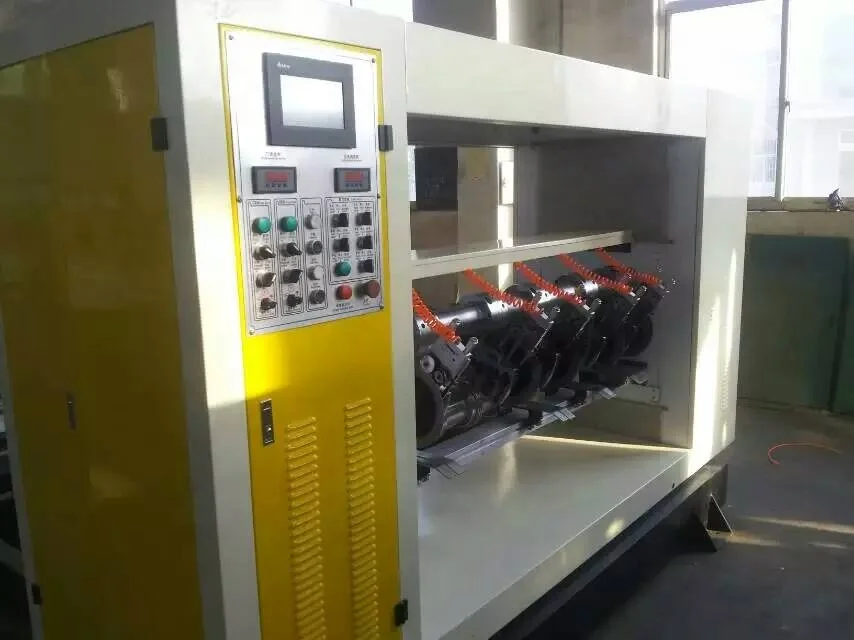

Slitter Scorer
Adopting the famous variable-frequency converter of motor and keep in the same step as the production line with high precision.
The auto-milling system can achieve the purpose of blade milling without halt during the process of production. The milling system can also set up the interval length and grinding time according to materials or the situation of trimming at any time.
The auto-milling system can achieve the purpose of blade milling without halt during the process of production. The milling system can also set up the interval length and grinding time according to materials or the situation of trimming at any time.

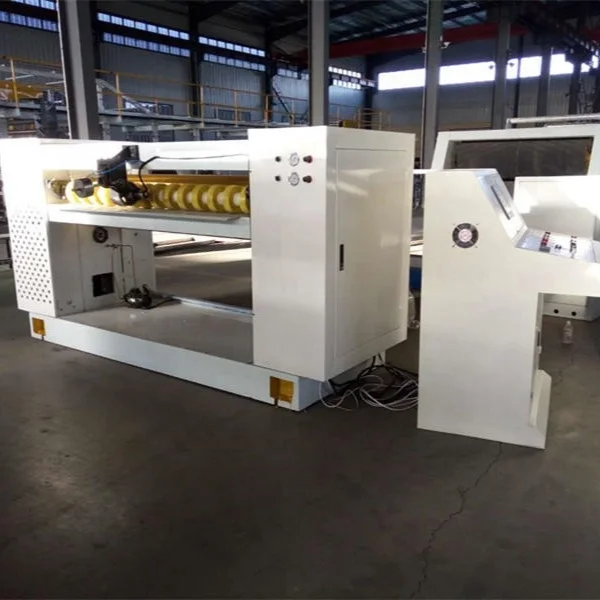

Computer Cut-off
The structure of the machine are special, strength excellent, high degree of accuracy, high hardness grinding gear, special high precision knife rest, cutting quickly and very stable, lower noise. Machine framework, the master all by precision designed, stable, elegant appearance. Having special tool setting system, cutting knife timing saving both time and labor. The system has a function to automatic test, and prevention equipment damage for abnormal use and operation negligence. The important bearing of machine is export from Japan.
Product Paramenters
No. | Name | Qty. | Remarks |
1 | Hydraulic Mill roll stand | 5 | Hydraulic control ,pneumatic brake,two-point |
2 | Paper Feeding Trolley | 10 | |
3 | SF-DW320S Single Facer | 2 | Outer adsorption,Φ320mm,material of corrugated roller: 48CrMo alloy steel of good quality made by Shanghai Dasong, variable-frequency motor, electrically adjusting and showing the pasting width |
4 | TO-B double-layer Overbridge | 1 | Adsorption type, electrically deflection-corrected |

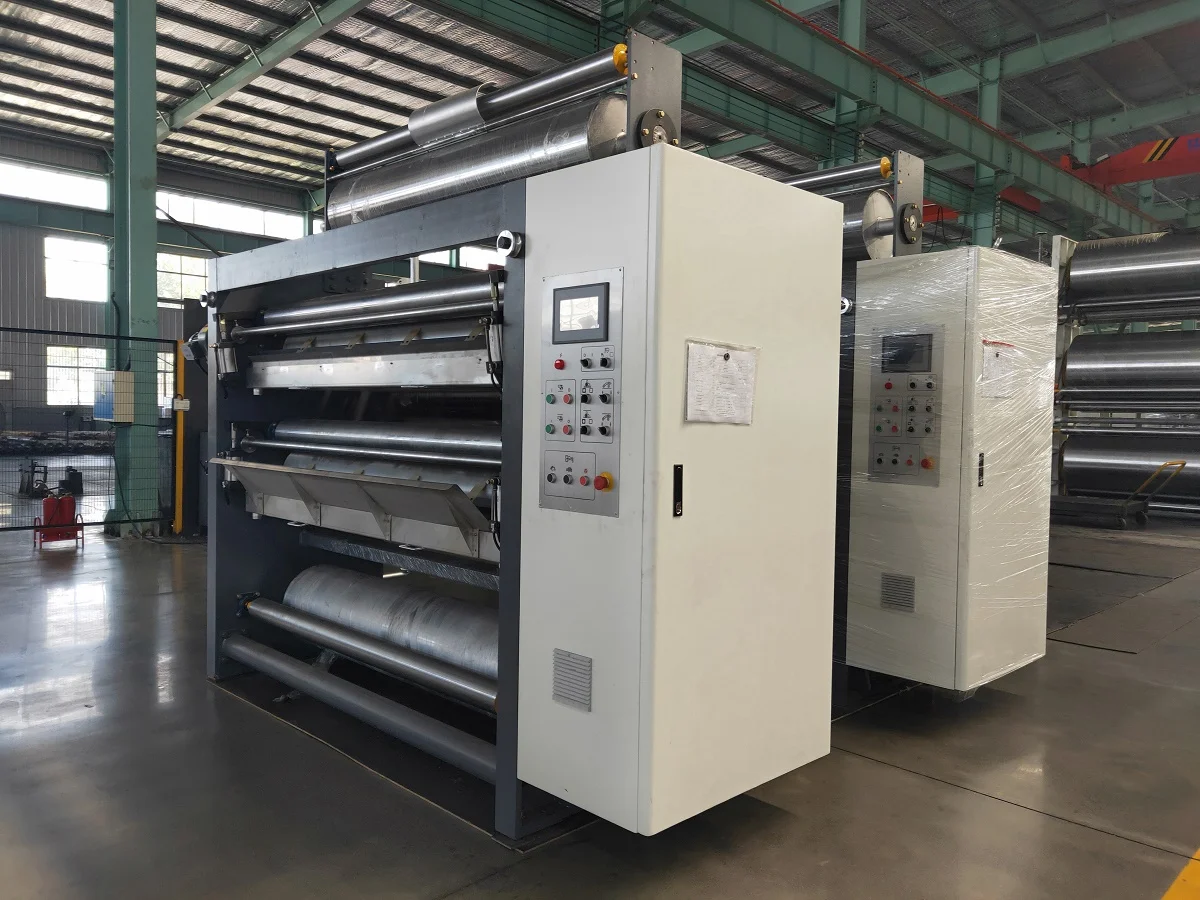

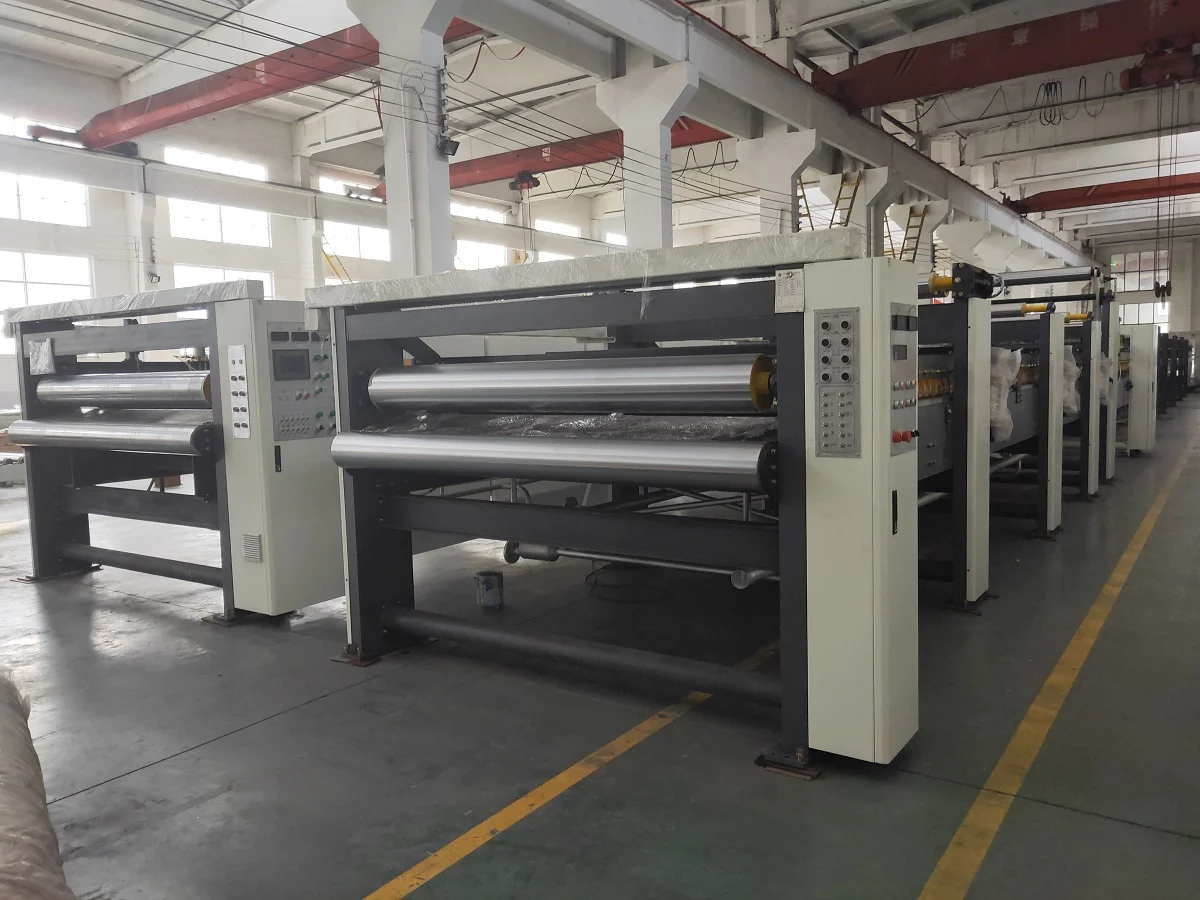

5 | PH-B Pre-heater | 4 | Φ600mm electrically adjusting wrap angles |
6 | PM-C Three-roller Pre-heater | 1 | Φ600mm electrically adjusting wrap angles |
7 | TJ Dual Pasting Machine | 1 | Glue roller Φ210mm,variable-frequency controller, variable-frequency motor |
8 | DF-C Binding & Drying Machine (Double Facer) | 1 | Main structural channel:300mm, 600x12pcs heating plates, intensive pressure rollers, long belt hydraulic lifting up or lowering down, pneumatic straining, automatic deflection-corrected |
9 | Main Transmission System | 1 | Independent drive box, variable-frequency controller |
10 | BFY Thin Blade Slitting Machine | 1 | Electrically up and down, electrically deflection-corrected |
11 | RC-15F Rotary Helical Cutoff Machine | 1 | Germany KEB servo controller |
12 | Stacker | 1 | Transversal output |
13 | Glue Making System | 1 | Including 1 main body tank, 1 carrier tank, 1 glue storing tank, 2 glue pumps for pumphouse, 2 glue pumps for single facer, 1 glue pump for glued part. Pipeline provided by the customer. |
14 | Pneumatic System | 1 | Including gas and water separator. Gas pump and pipeline provided by the customer. |
15 | Electric System | 1 | Schneider or other Chinese famous brand |
