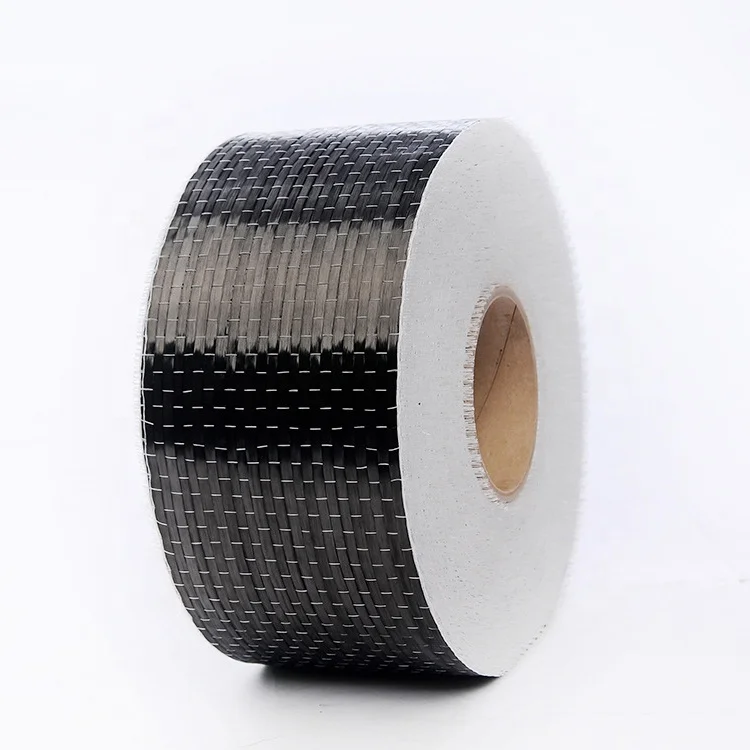

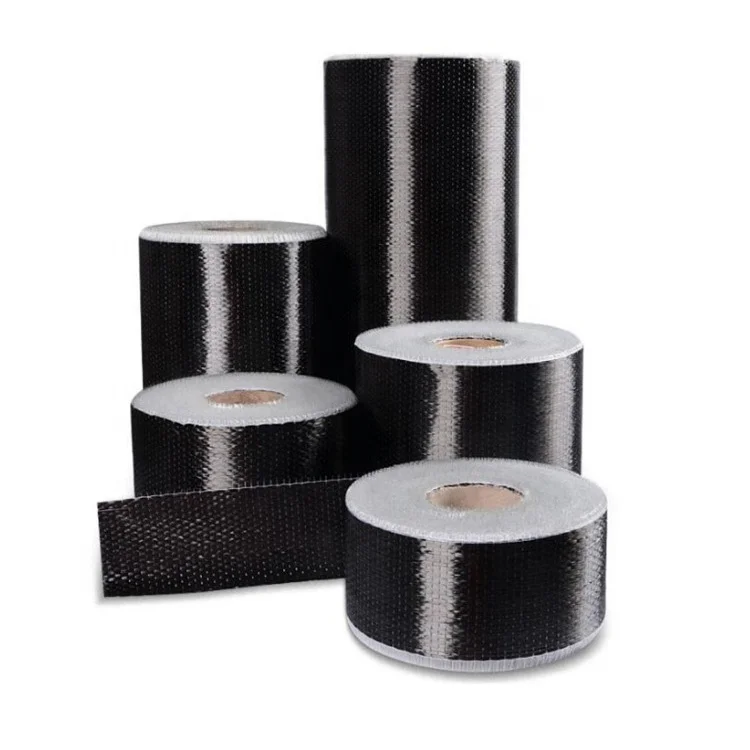

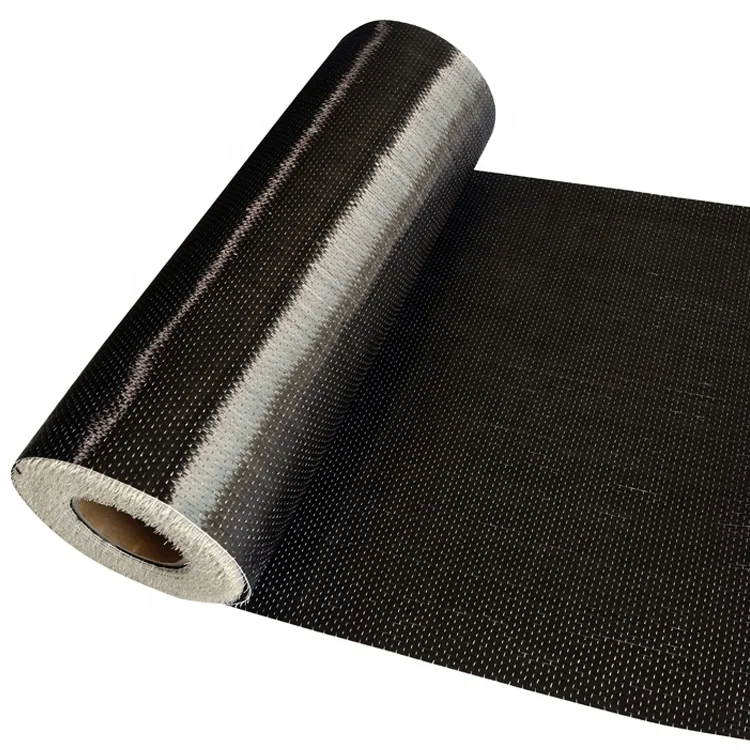

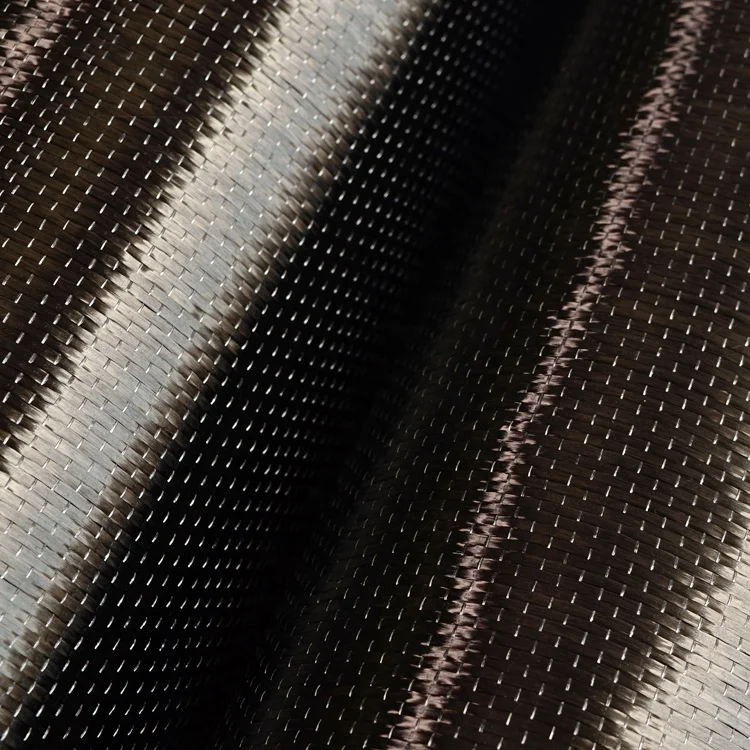

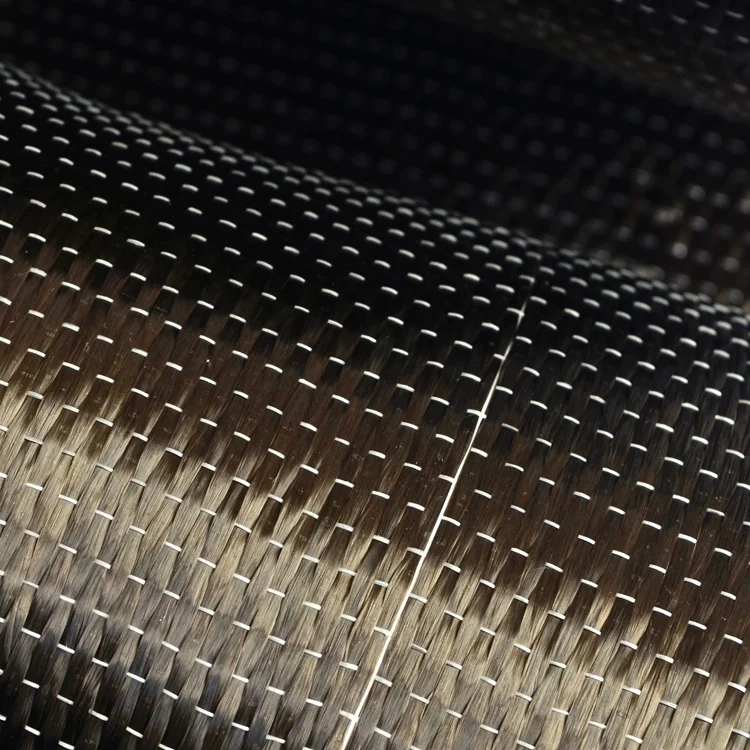

12K 600g/m2 UD Carbon Fiber Fabric For Building Reinforcement
- Category: >>>
- Supplier: Hitex Composite (Ningbo) Co. Ltd.
Share on (62420633484):
Product Overview
Description
12K 600g/m2 UD Carbon Fiber Fabric For Building Reinforcement
Product Description
Unidirectional carbon fiber fabric is a type of carbon reinforcement that is non-woven and features all fibers running in a single, parallel direction. With this style of fabric, there are no gaps between fibers, and those fibers lay flat. There is no cross-section weave that divides the fiber strength in half with another direction. This allows for the concentrated density of fibers that provide maximum longitudinal tensile potential—greater than any other weave of fabric. For comparison, this is 3 times the longitudinal tensile strength of structural stee at one-fifth of the weight density.

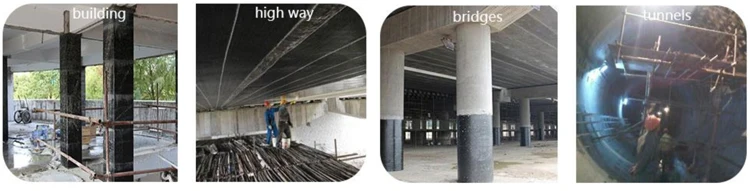

Application
l Construction Field.
l Aerospace Area.
l Sporting Goods.
l Mechanical Equipment.
l Ship Building.
l Automobile
l Advertising Panels
Feature
l High Tensile Strength And Light Weight.
l Abrasion And Corrosion Resistance.
l High Electric Conductivity.
l High Elastic Modulus.
l High Temperature Resistant.
l Weave Ways : Unidirectional Woven.
l Width Can Be Customized.
Specification
Specifications | I | I I | ||||||
Areal density | 200g/m2 | 300g/m2 | 400g/m2 | 600g/m2 | 200g/m2 | 300g/m2 | 400g/m2 | 600g/m2 |
Thickness | 0.111mm | 0.167mm | 0.2mm | 0.44mm | 0.111mm | 0.167mm | 0.2mm | 0.44mm |
Tensile Strength | ≥3400Mpa | ≥3400Mpa | ≥3400Mpa | ≥3400Mpa | ≥3000Mpa | ≥3000Mpa | ≥3000Mpa | ≥3000Mpa |
Tensile Modulus | ≥240GPa | ≥240GPa | ≥240GPa | ≥240GPa | ≥210GPa | ≥210GPa | ≥210Gap | ≥210Gap |
Elongation | ≥1.7% | ≥1.7% | ≥1.7% | ≥1.7% | ≥1.5% | ≥1.5% | ≥1.5% | ≥1.5% |
* Other specification fabrics not included above are upon requested.

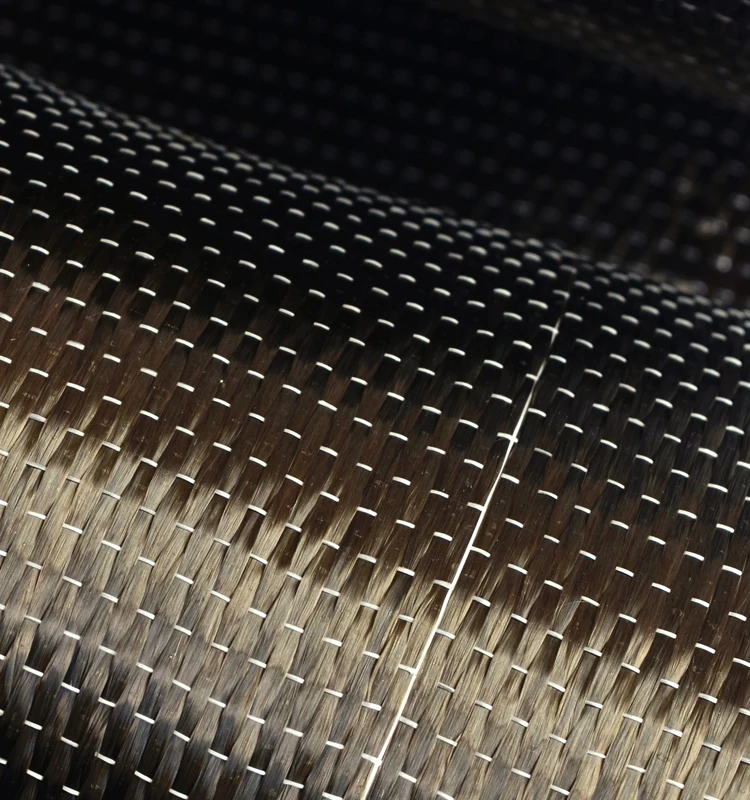

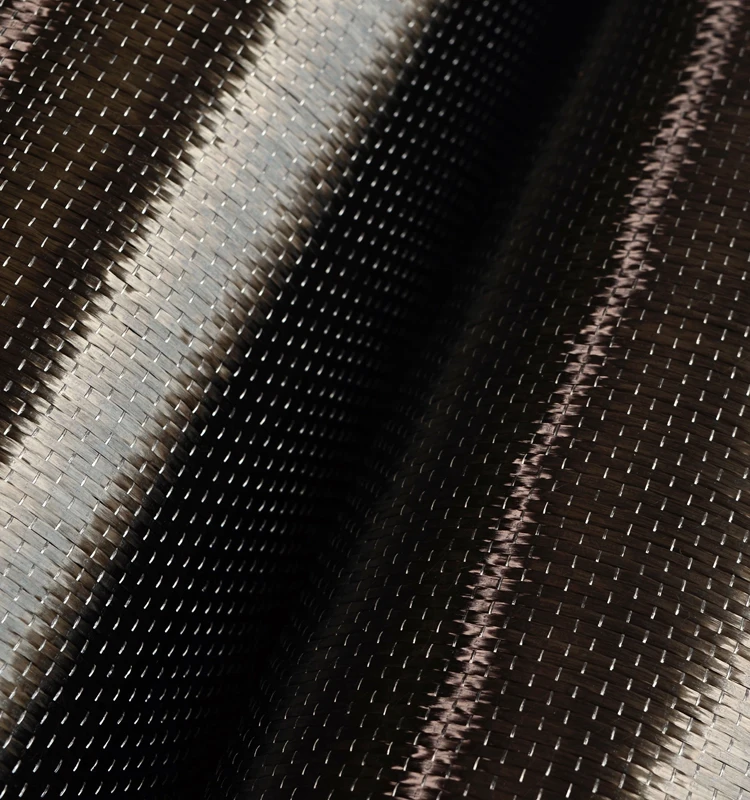

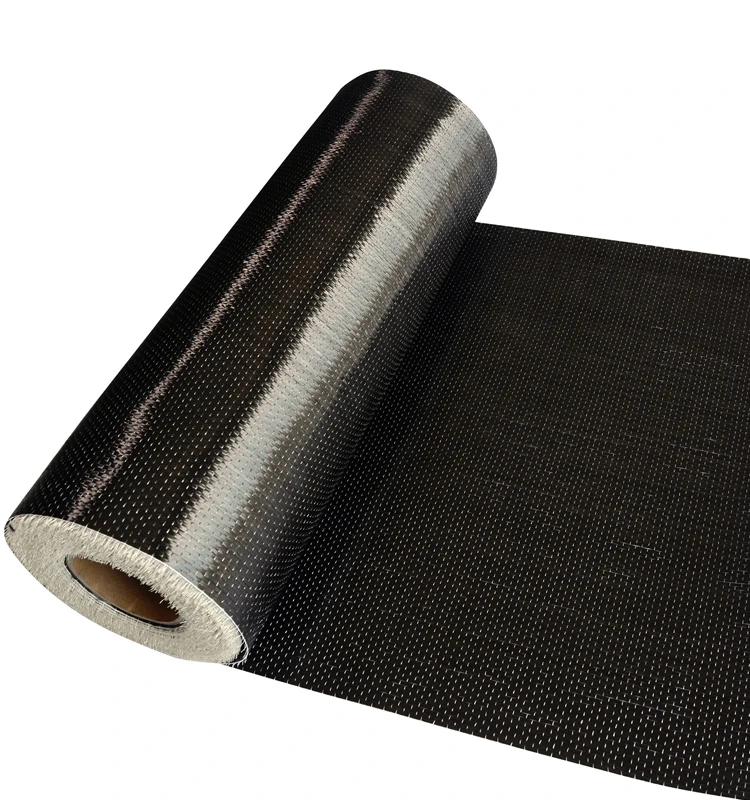

Detailed Images
About US
Hitex established in 2002, is a leading manufacturer and supplier of fiberglass products for the applications of transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, etc. Hitex engages in the export of fiberglass yarn and roving, fiberglass chopped strand mats, fiberglass woven roving,fiberglass fabrics etc. We design, build, manufacture and quality control our own products allowing the strictest of specifications, which directly benefit from Hitex years of experience gained in the global Composite market. Hence, all of our production plants are certified with ISO9001/ISO14001.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side.
Q3.Mode of transportation?
By sea or by air.
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed.
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A.
