Product Overview

Description

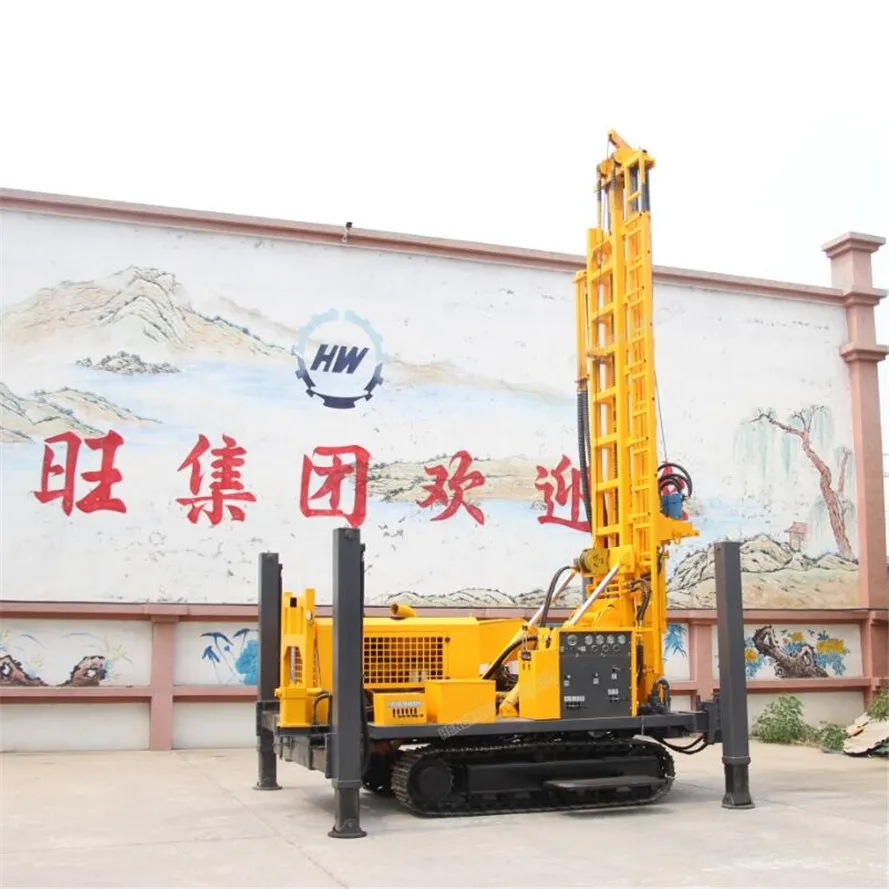

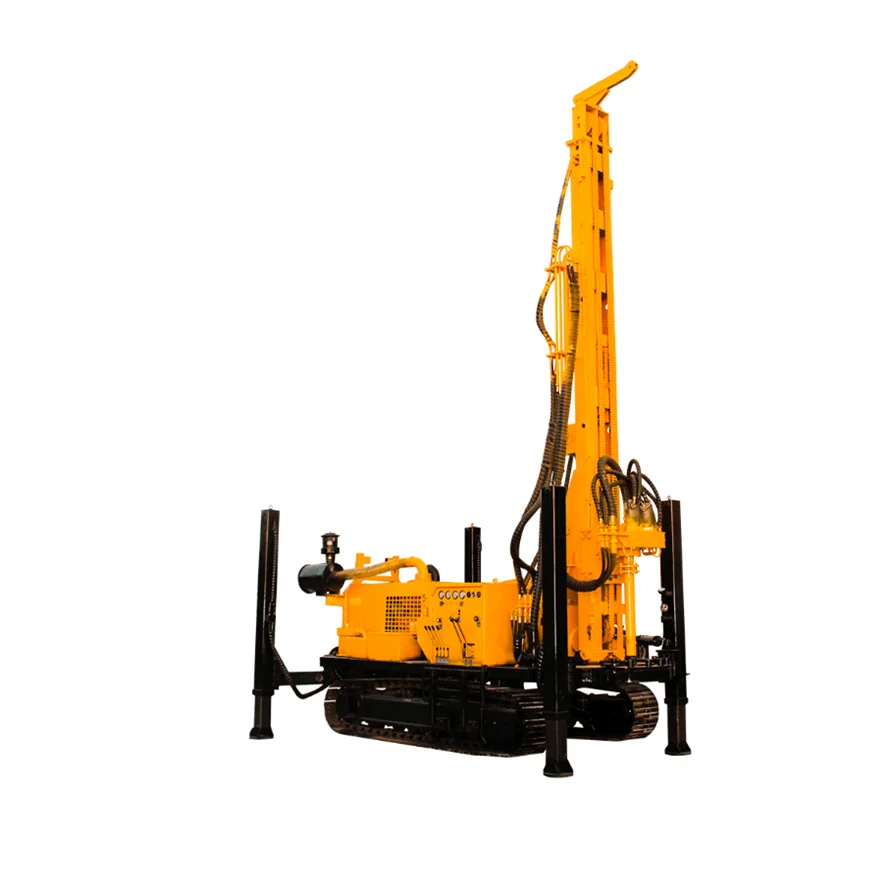

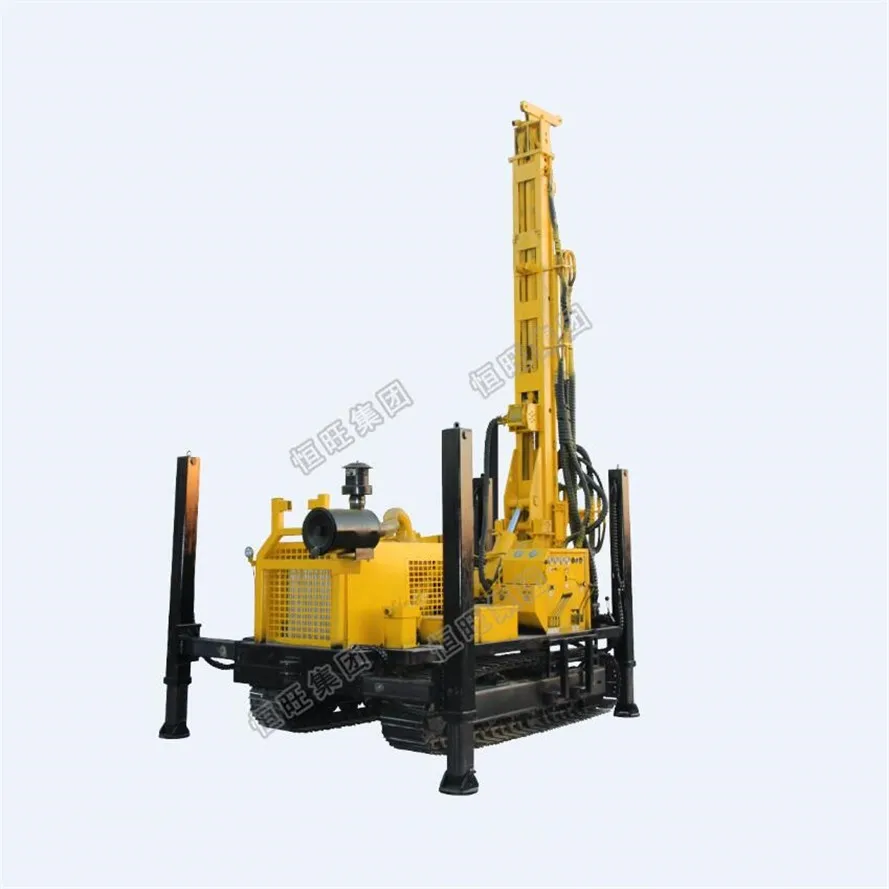

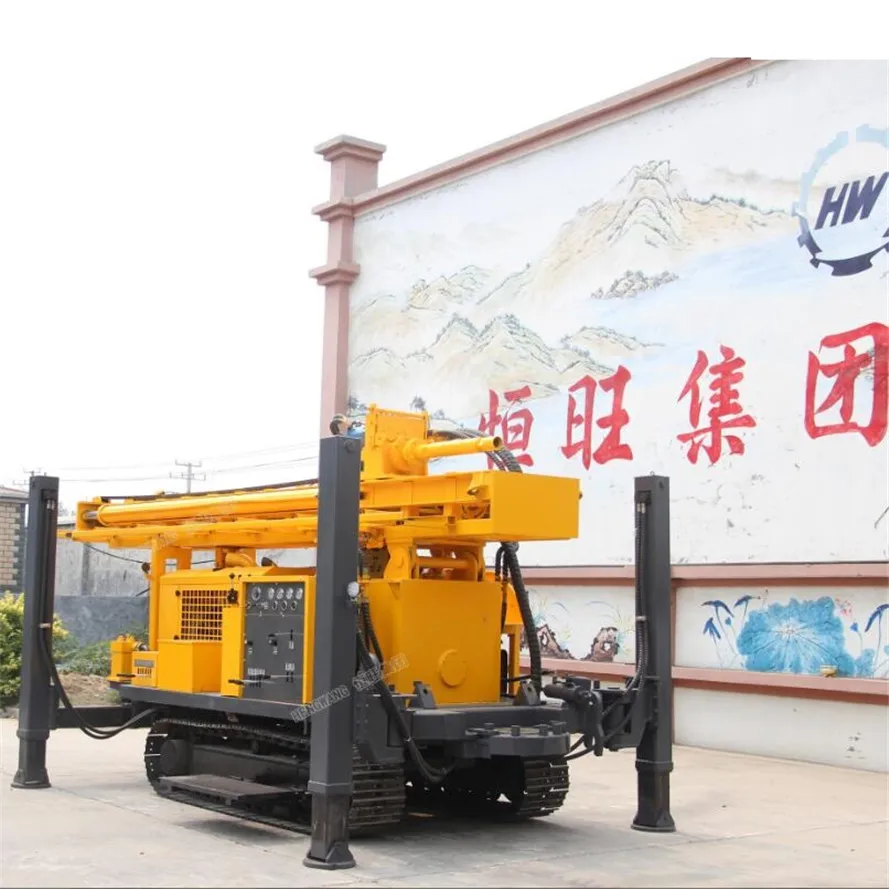

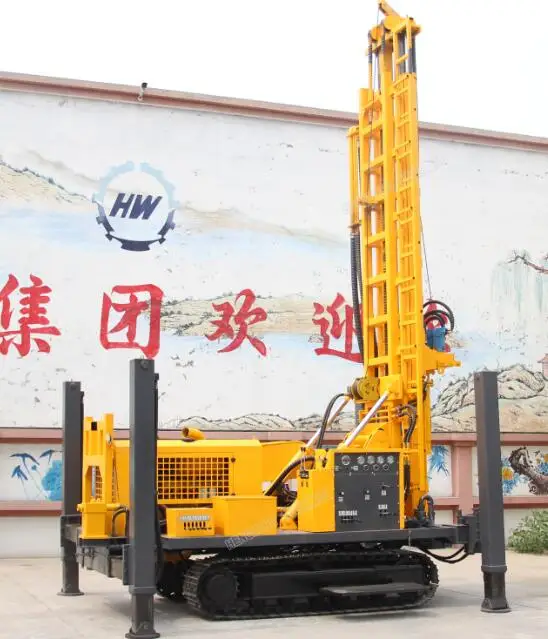

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig machine
Drilling Rock Speed:40M/Hour
Easy Operate
Competitive Price

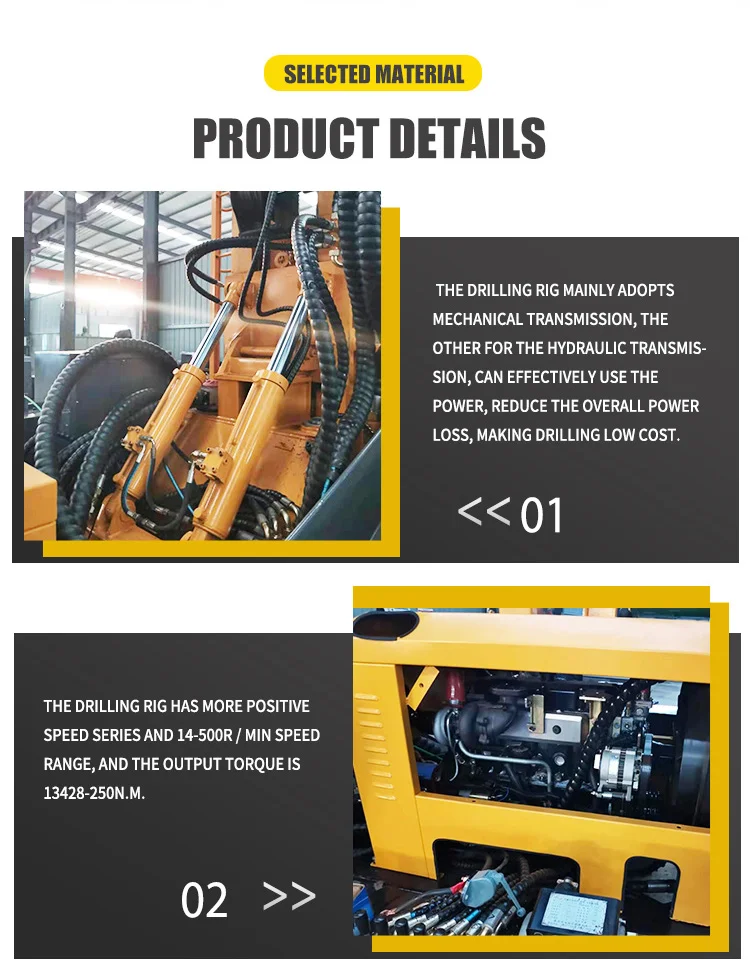

Imported Accessories With CE 1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.

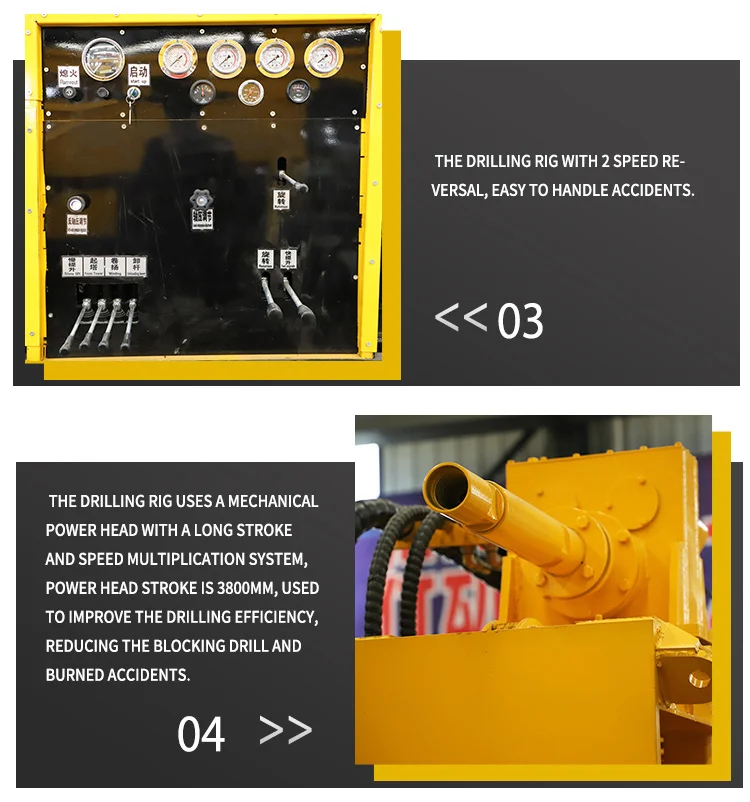

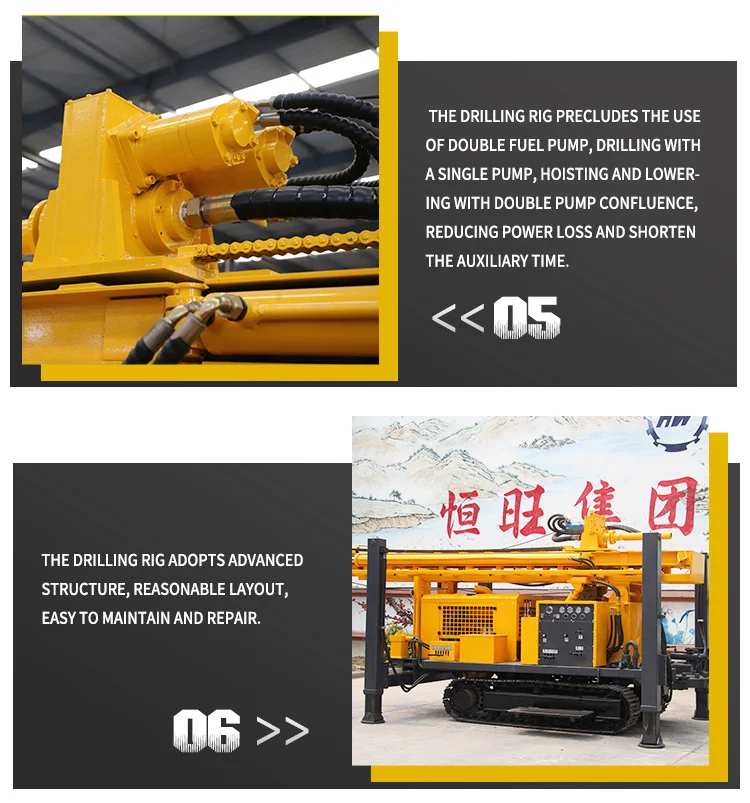

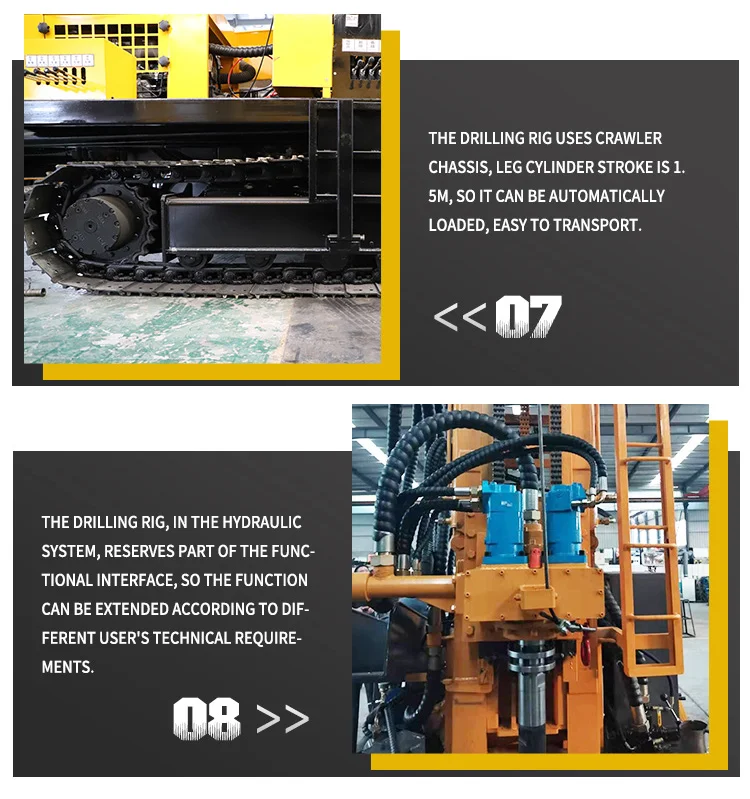

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig 2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m. 3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents. 4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents. 5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short. 6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair. 7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation. 8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig machine

Air Compressor Exploration Water Well Drill rig,Water Drilling Machine HW150  Model

The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600

Walking speed(Km/h)0.8
Climbing angles(Max.)30

Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5

Air consumption(m³/min)15-29

Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89

Air Compressor Exploration Water Well Drill rig,Water DrillingMachine HWL180 Model

The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89

Air Compressor Exploration Water Well Drill rig,Water DrillingMachine HWL200 Model

The Weight(T)5.5

Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102

Air Compressor Exploration Water Well Drill rig,Water Drilling MachineHWL300 Model

The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102

Air Compressor Exploration Water Well Drill rig,Water Drilling MachineHWL600 Model

The Weight(T)12

Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100

Drill pipe diameter(mm)Φ89 Φ102 Φ114

Air Compressor Exploration Water Well Drill rig,Water Drilling Machine HWL800 Model

The Weight(T)13
Dimensions(mm)6100*2200*2900
The hole diameter(mm)140-400
Drilling Depth(m)700
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-42
Swing speed(rpm)55-120
Swing torque(N.m)8850-13500
Drill pipe diameter(mm) Φ102 Φ108 Φ114

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

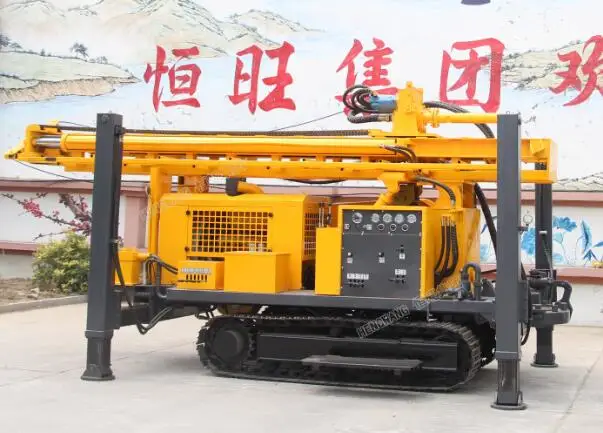

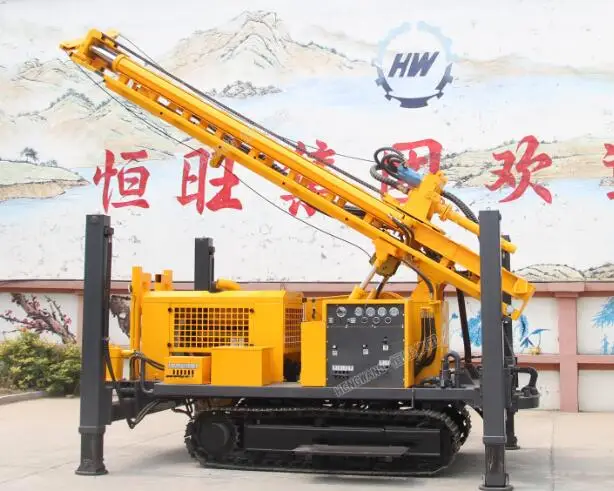

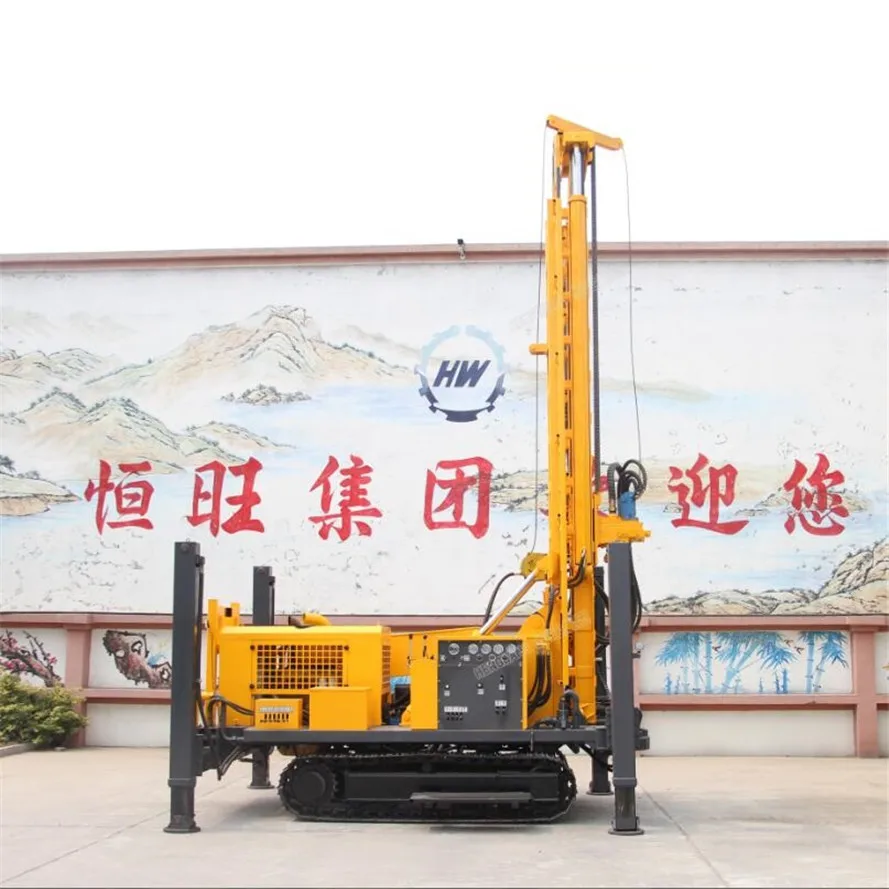

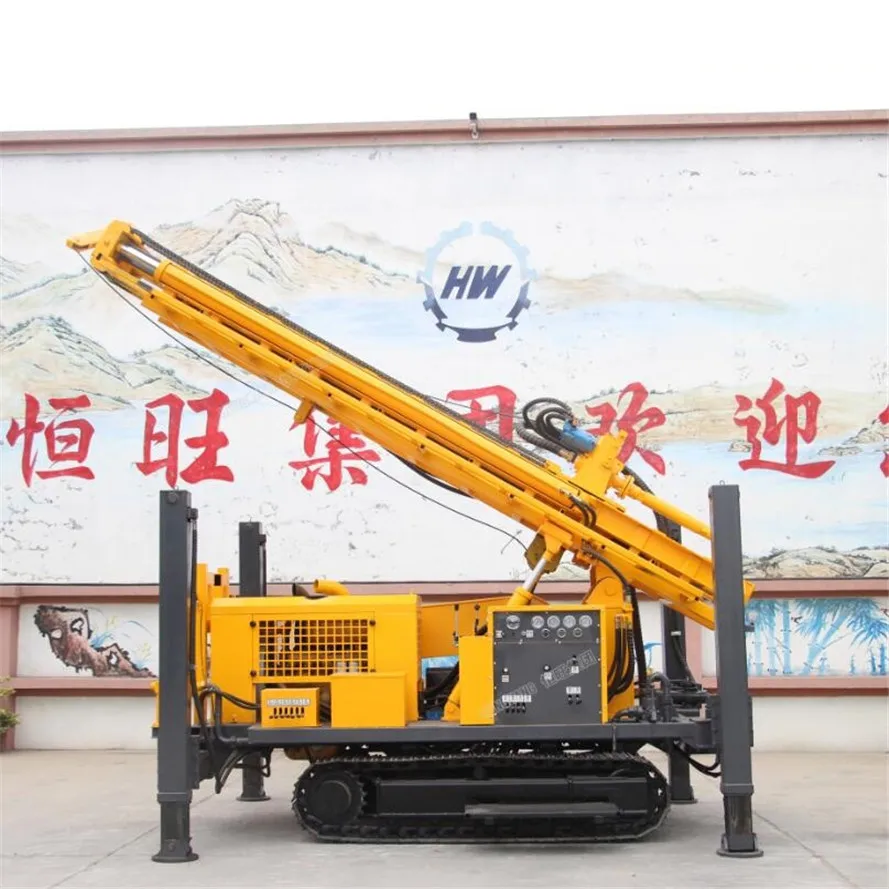

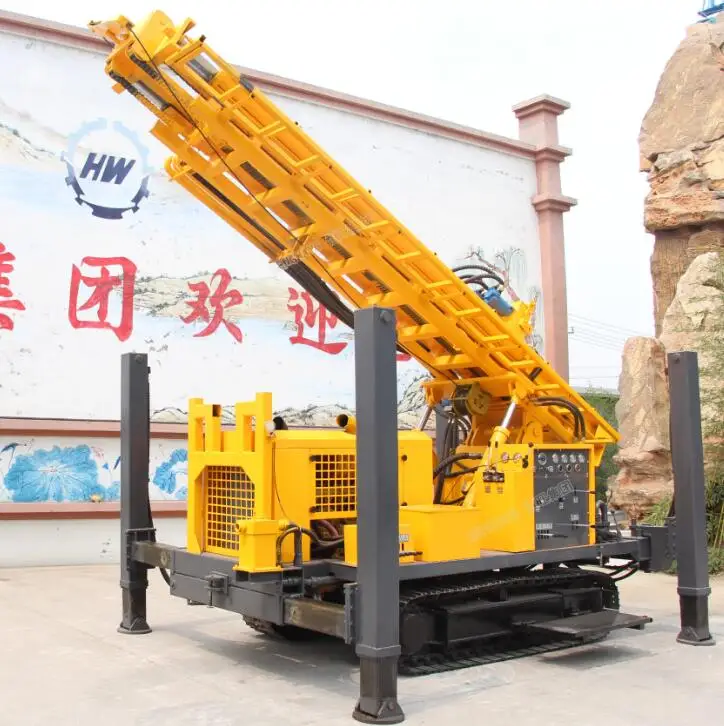

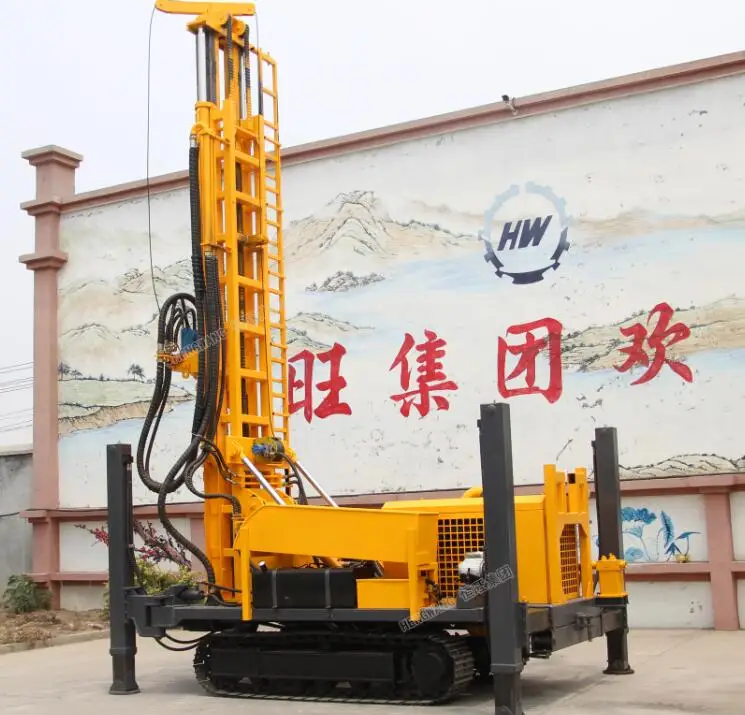

Detailed Images

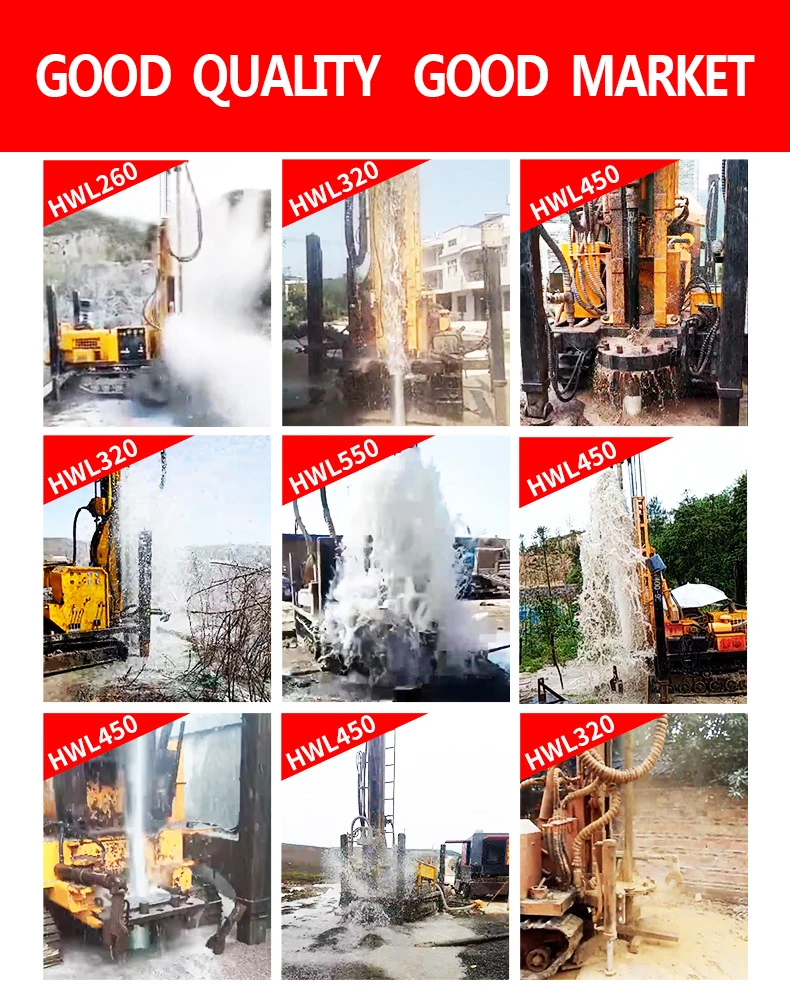

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

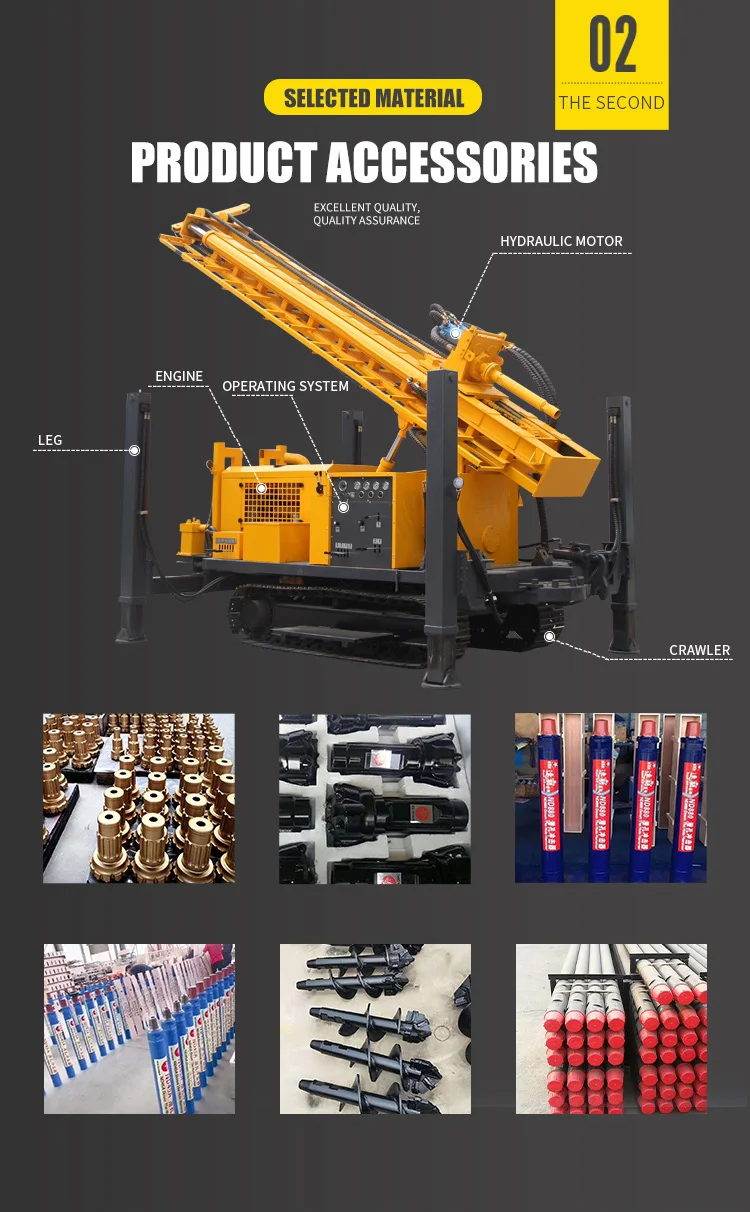

Spare parts
200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig
200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

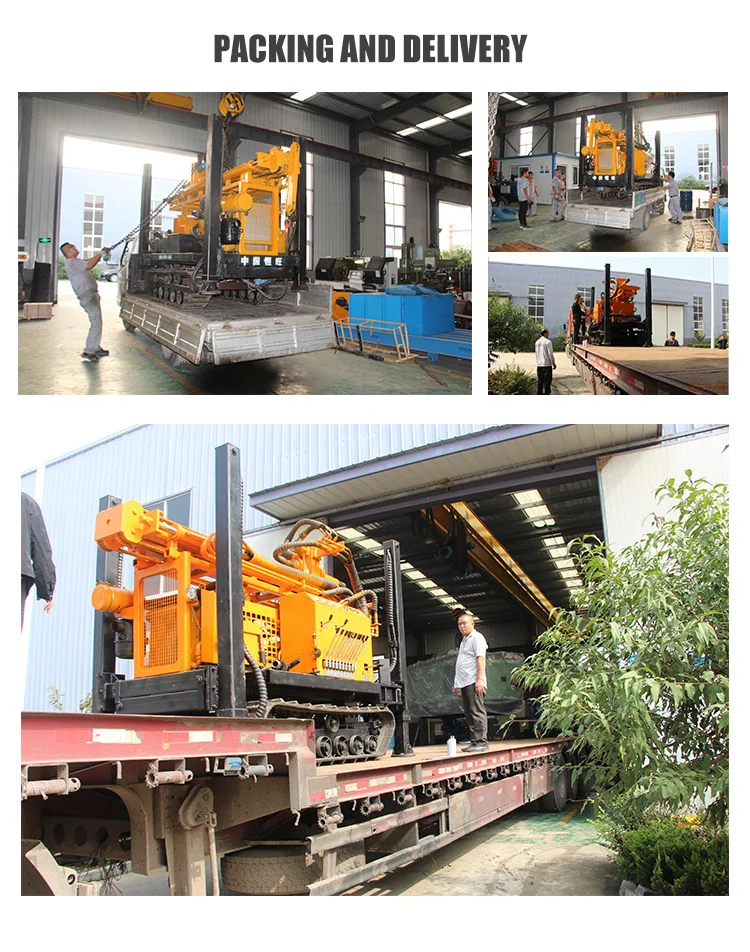

Packing & Delivery

200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig

Certifications
