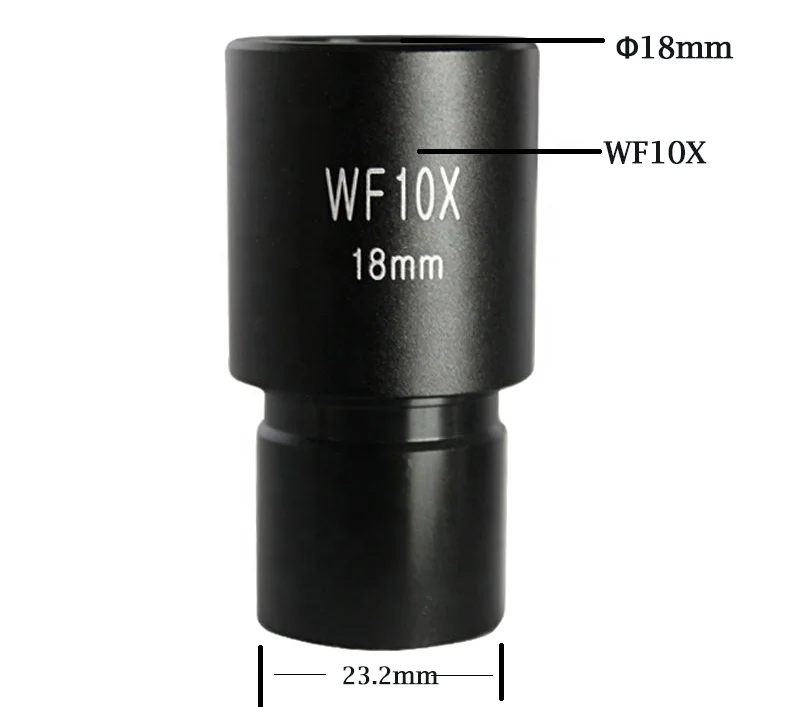

WF10X 18mm Ocular Micrometer Eyepiece for Biological Microscope 23.2 mm with Scale
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62420935510):
Product Overview
Description
 | Wide Field 10X Insert aperture: 23.2mm High Refractive & Euphotic Index Suit for Biological Microscopes |
Product Description
Scale Eyepiece is a round glass with printed scale, it must be put into the eyepiece so it works. Eyepiece with scale is used to measure the size of specimen under the microscopes.
This kind of eyepiece has two straight lines intersecting vertically. The total length is 10mm, divided into 100 cells. When measureing, the straight lines are overlapped with the images so that the dimensions of specimen can be measured.
The length of each cell changed because the magnifications of various group of the eyepiece and the objective are different. Therefore, it is necessary to calibrate with the microscope micrometer on the stage when measuring the specimen’s sized with the scale eyepiece.
Features
---Wide field 10X
---Insert aperture: 23.2mm
---Minimun Unit: 10μm
---High Refractive & Euphotic Index
---Suit for Biological Microscopes
Specification
Specification for WF10X 18mm | |
|---|---|
Optical Magnification | 10X |

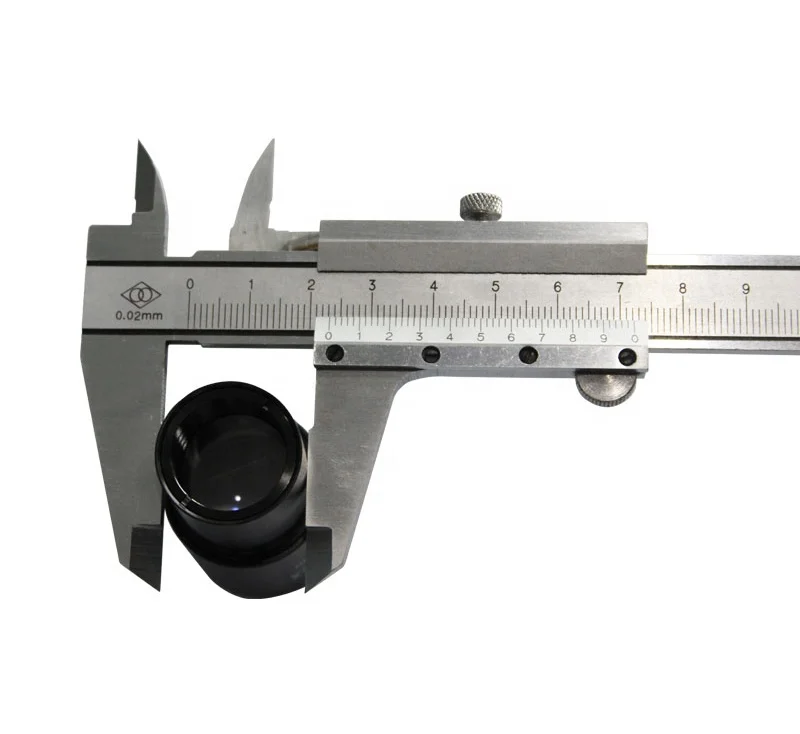

Size for Eyetube | 23.2mm |
Field of View | 18mm |
Material | Metal |
Reticle material: glass | |
Minimum Unit | 10μm |
Product Details

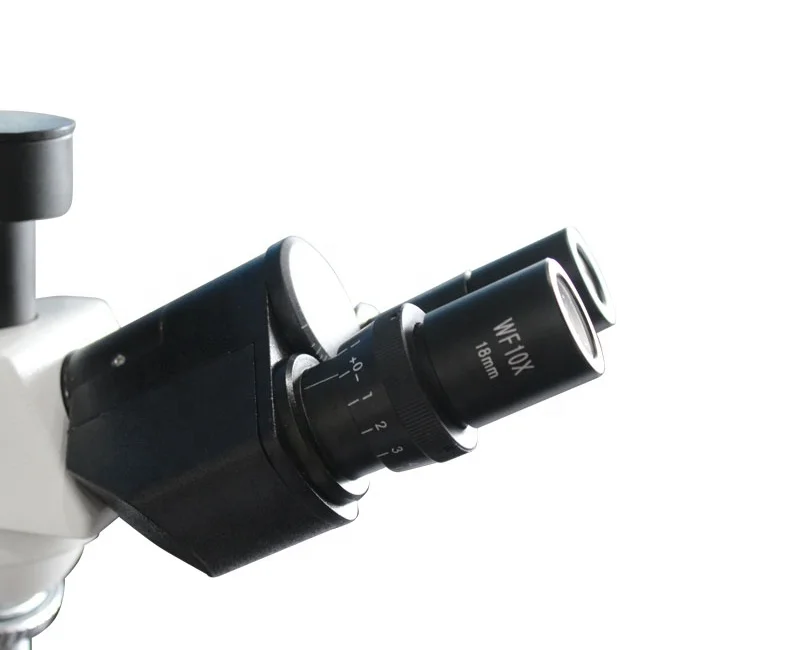

01 |
 |
02 |
 |
03 |
 |
Note
When using the eyepiece with scale, it must be calibrated with the C1 microscope micrometer, or the measured data won’t be accuracy.
