Maytech 85165 200KV 100% waterproof motor 300A 60V ESC V2 remote for jet board motorized surfboard
- Category: >>>
- Supplier: Shanghai Maytech Electronics Co. Ltd.
Share on (62421264032):
Product Overview
Description
Related Products
Products Description
Maytech 85165 200KV 100% waterproof motor 300A 60V waterproof ESC remote for efoil jetboard motorized surfboard
Fully waterproof /watercooling, hall sensor, KV, shaft can be customized. Please send message for customization cost and production time.

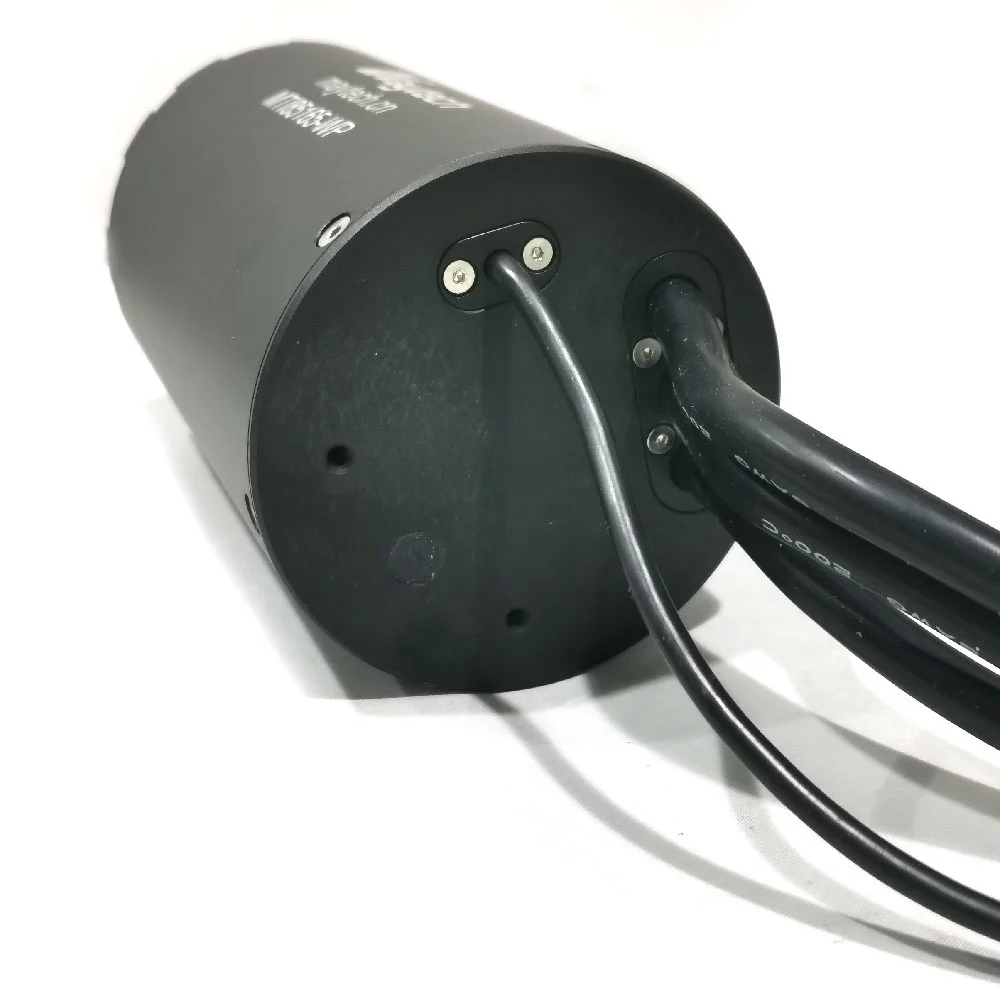

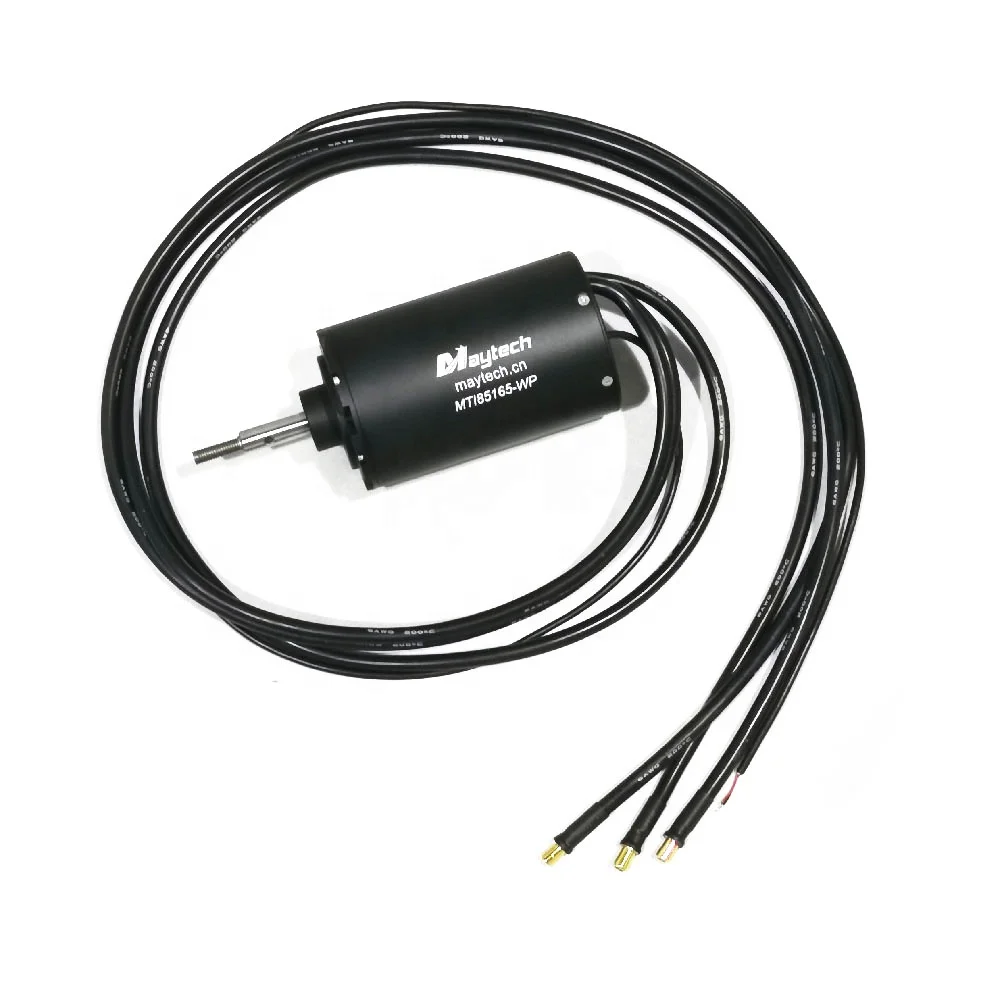

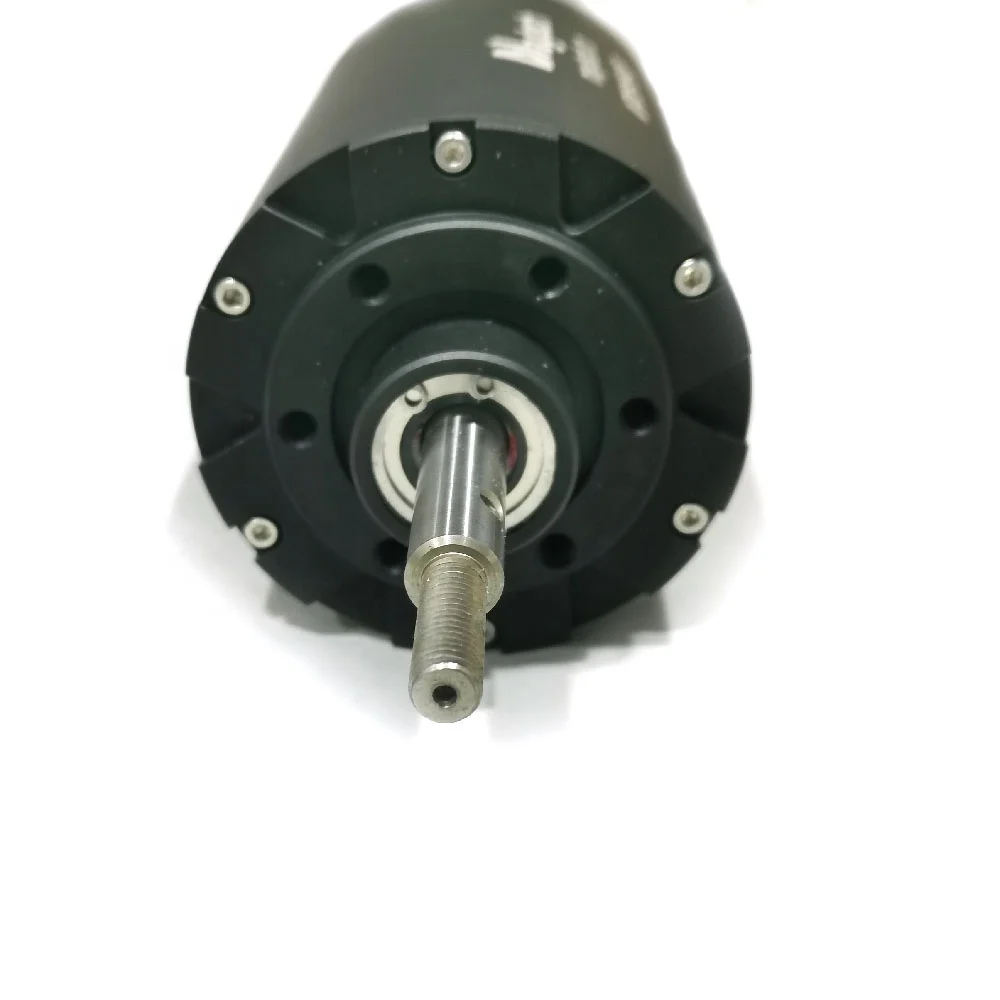

Item 1: 1PCS Maytech 100% waterproof motor 85165 for efoil electric surfboard hydrofoil boat jetski watercraft | ||||||
Model number | MTI85165-WP | Avaiblable KV | 200KV/Other KV can be customized | |||
Shaft | 12mm | Slots/Poles | 12N10P | |||
Motor type | Inrunner motor without hall sensor | Max Lipo Cell | 10-14S | |||
Motor Weight | 3.3kg | Max Current | 300A | |||
Max Power | 10.5KW | Rated power | 9KW | |||
Max torque | 15.5N.m | Motor cable/connectors | 1.2 meter cable with 8mm connectors | |||

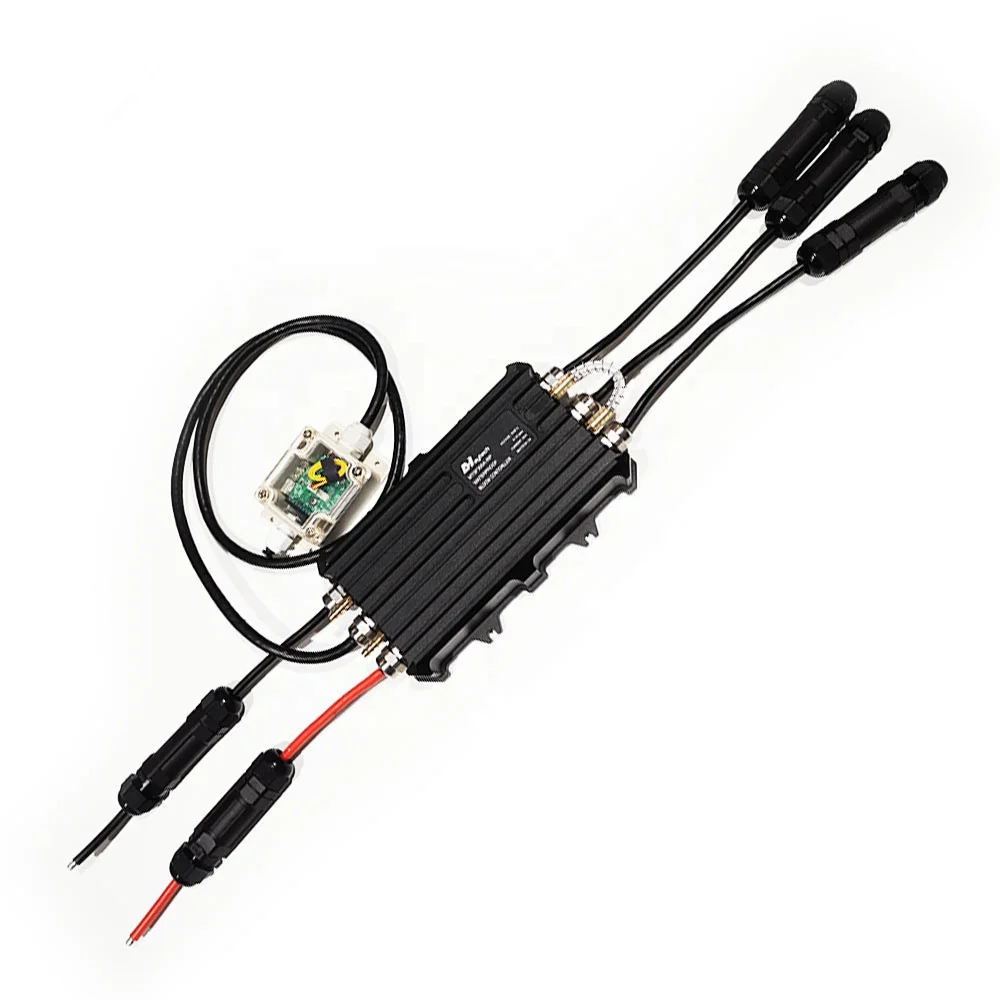

Item 2: 1pcs Maytech efoil motorized surfboard fully waterproof 300A ESC for electric jet board watercraft | ||||||
Model no | MTSF300A-WP | Lipo | 6-14Cells | |||
Cont. Current | 300A | Burst Current | 1000A | |||
BEC | Yes, with BEC in the waterproof case | Case | fully water-proof and watercooled aluminum case | |||

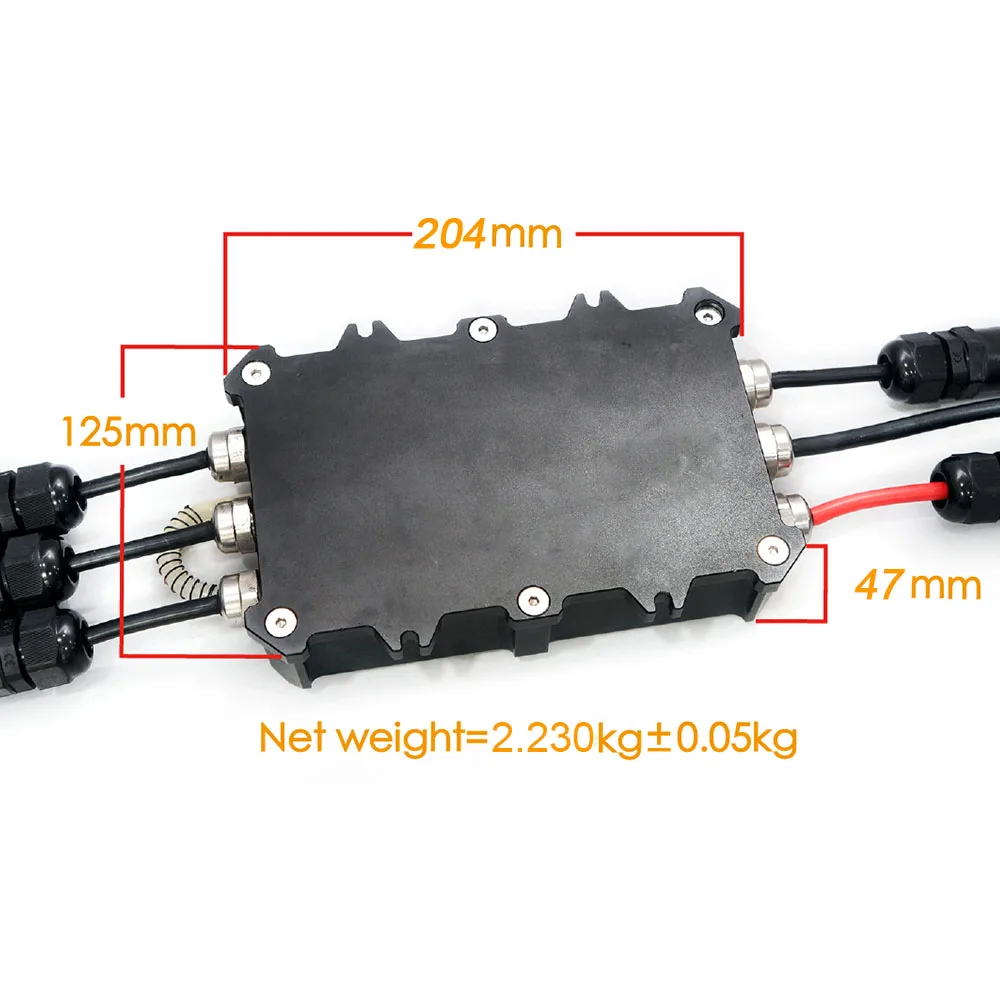

Size | 204x125x47 mm | Weight | about 2.2kg | |||
Connectors | 8mm with waterproof protectors | Progcard | Yes | |||
Waterpcooling tube | Gold plating | Default parameters | suitable for Maytech motor and remote | |||
Feature | Great start-up torque with sensorless motors | |||||
Receiver | Built-in or output cable for receiver | |||||

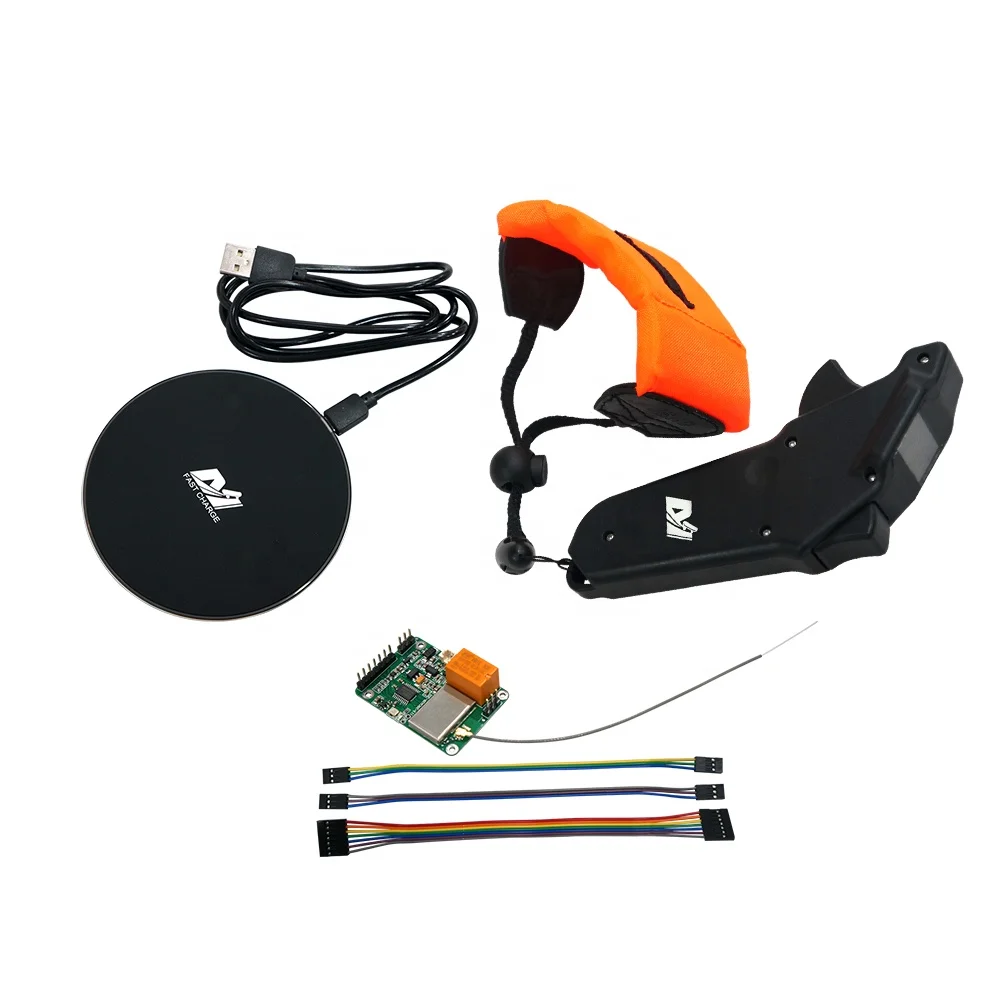

Item 3: 1PCS Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard | ||||||
Model no | MTSKR1905WF updated version | Packing | cartons box | |||
Function | wireless charging | Display screen | Yes | |||
Accessory | receiver and charging pad | Signal type | PWM | |||
FREE Accessory | Strip (color is random) | Esurf mode | with cruise control | |||
Batt voltage display | 3-18S | Esk8 mode | with brake | |||
New remote updated functions:
1. Display shows more:
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.
2. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
3. Waterproof function is updated:
Two layers of nanometer-coating are added to remote.
4. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
5. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power .
6. Firmware is wirelessly upgradable.
