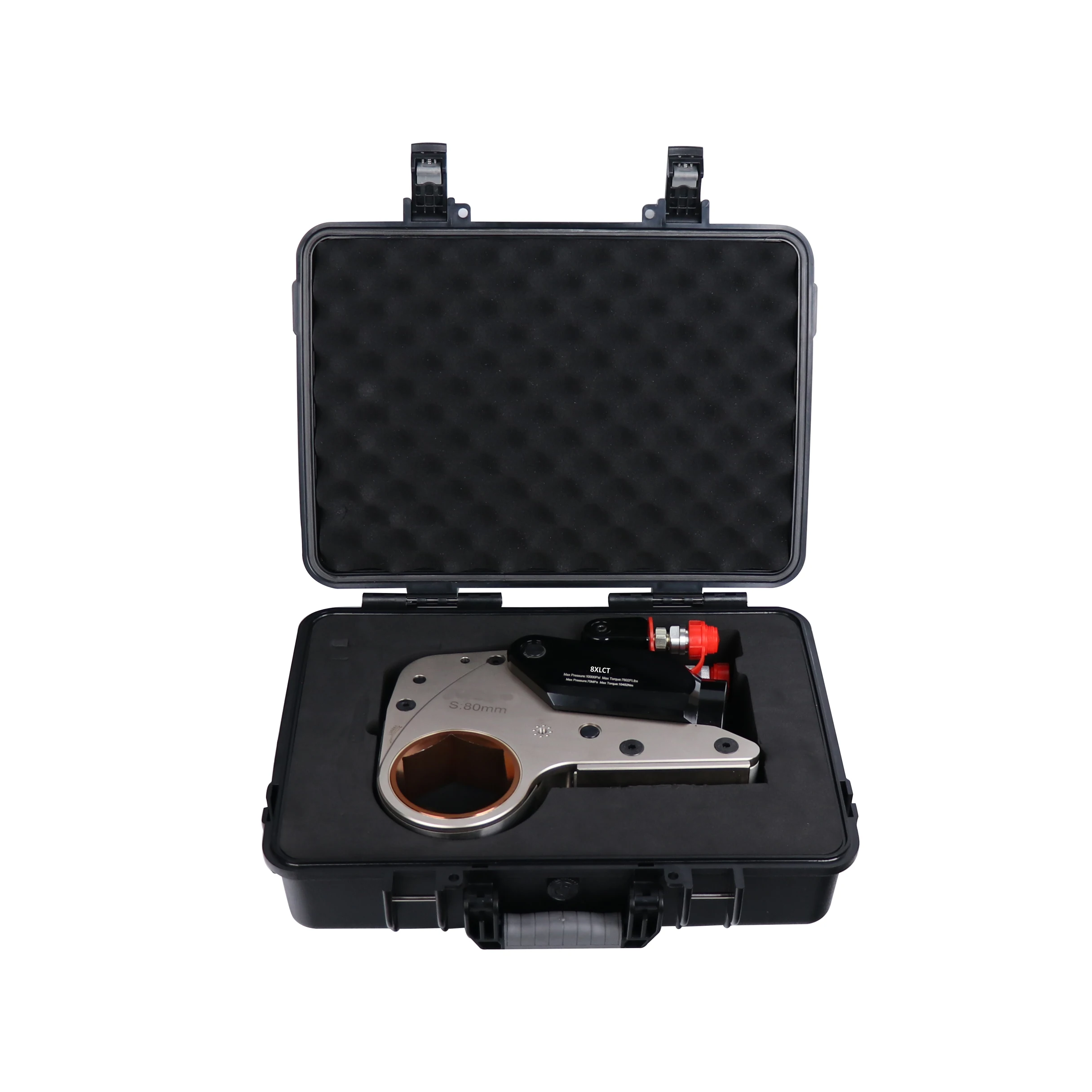

2534Nm Ratchet Cassette Low Profile Hydraulic Torque Wrench 10000 psi
- Category: >>>
- Supplier: Taizhou Kashon Power Equipment Co. ltd.
Share on (62421363113):
Product Overview
Description

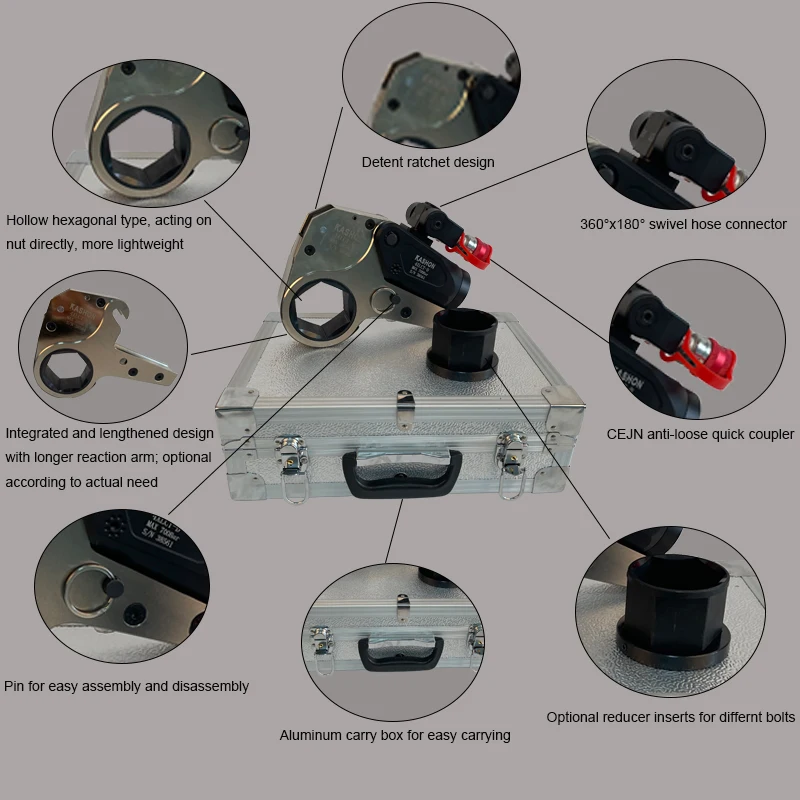

Features:

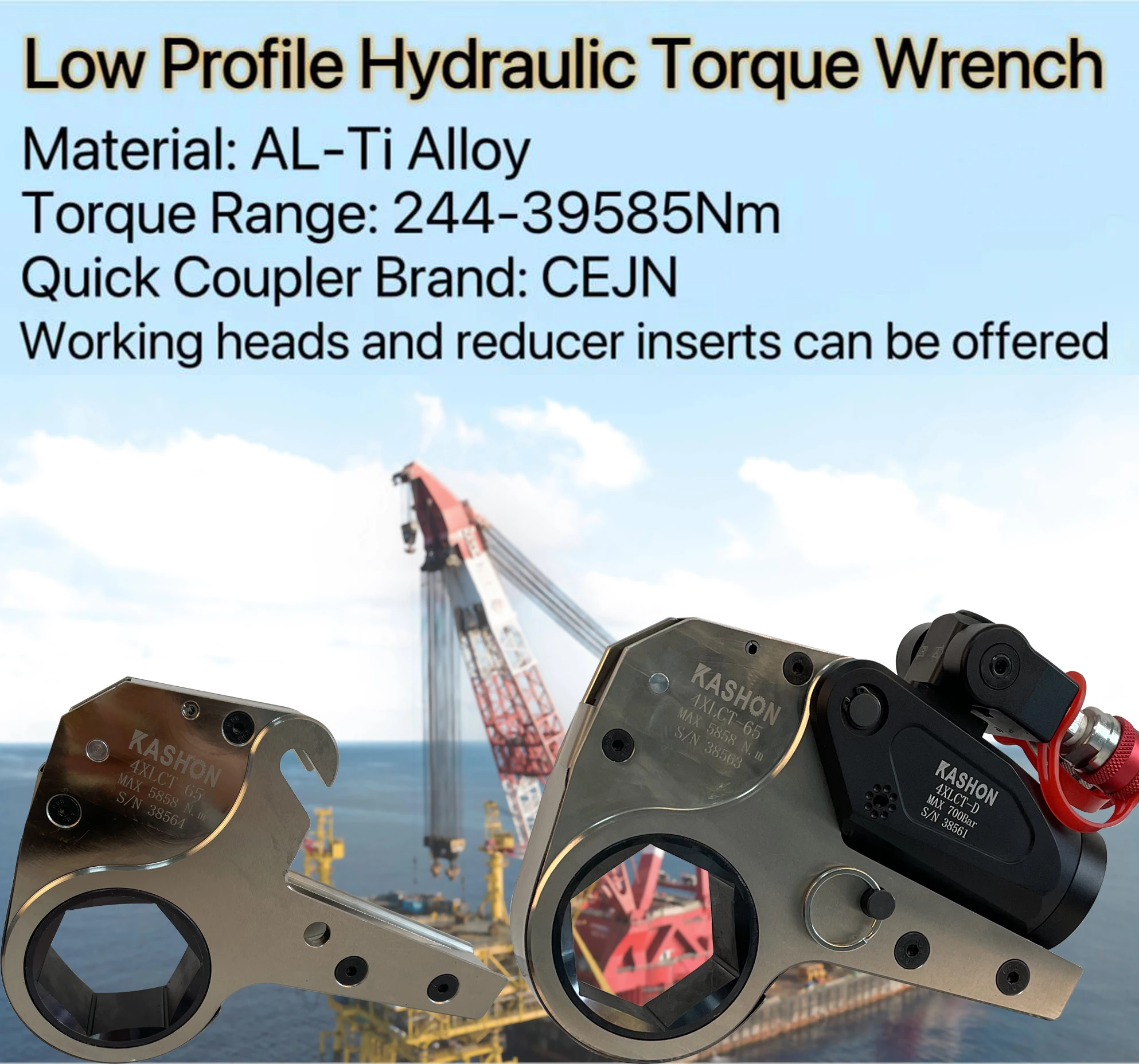

1. Thin design, made of high-strength aluminum titanium alloy material to improve strength and life;2. Card-fit, interchangeable plug-in, a driving force for the first will be in line with the first use of a variety of work;
3. 360 x 360 rotary hose connectors, completely free of space restriction;
4. Torque repeat accuracy of up to 3%;
5. Wrench full strength design, the overall reaction arm, without the use of space constraints, durable, reliable;
6. Power head and cassette interchange with Hytorcs

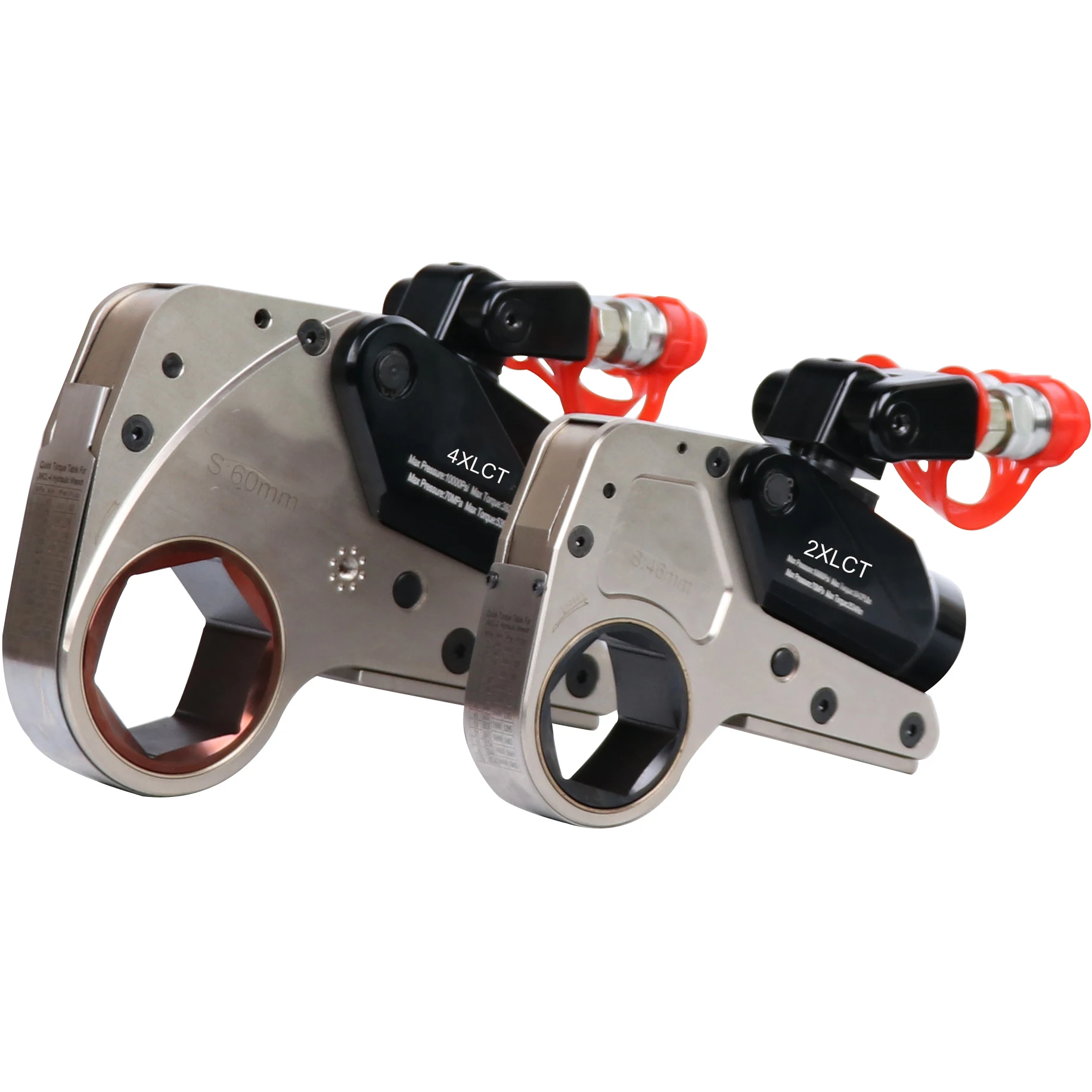

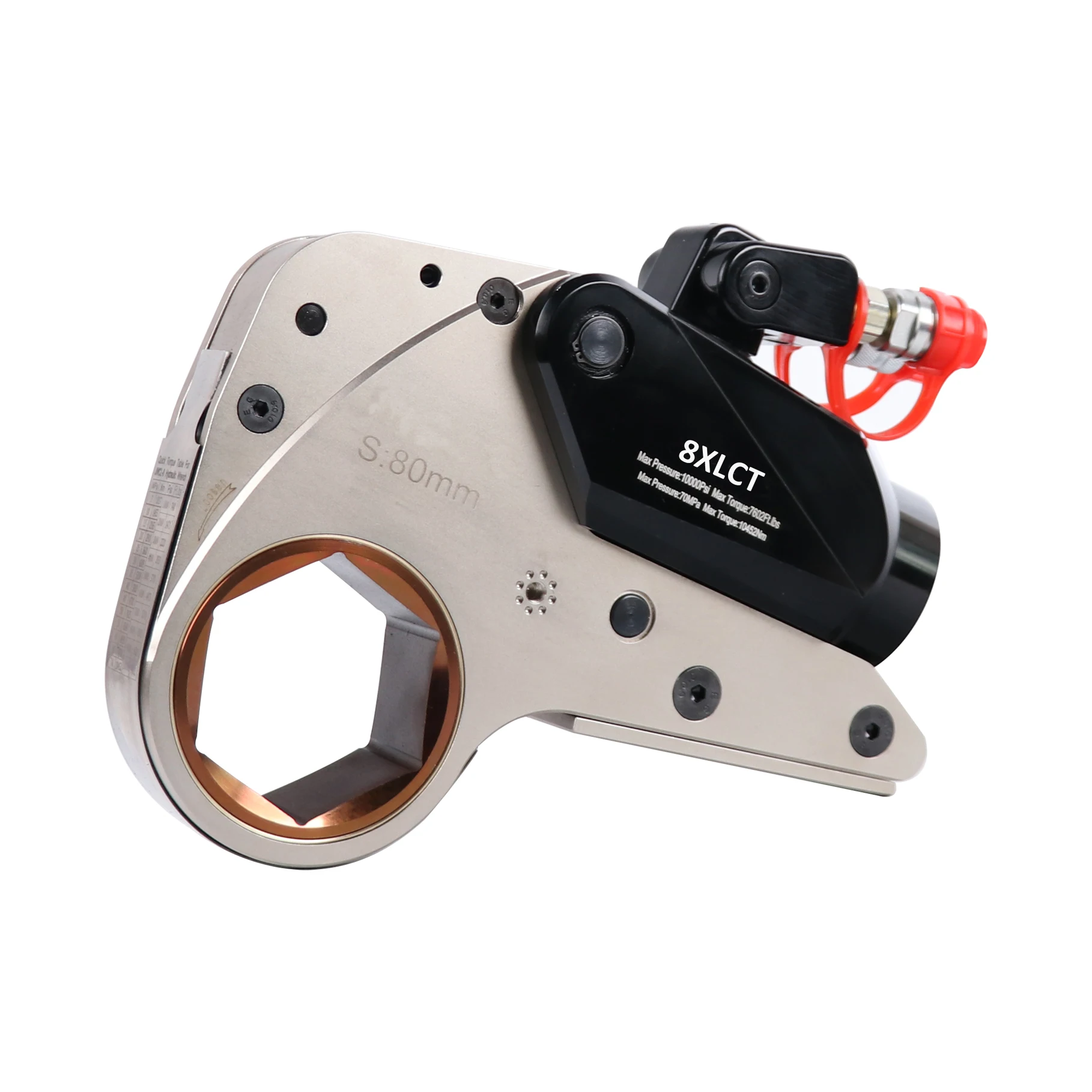

Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 18XLCT | 30XLCT |
Torque Range (in Nm) | 244-2534 | 489-5392 | 1017-10452 | 1724-16245 | 2247-22899 | 3768-39585 |
Torque Range (in ft.lbs) | 177-1842 | 355-3921 | 740-7602 | 1254-11816 | 1634-16654 | 2740-28788 |
Bolt Size（M） | 18-33 | 18-42 | 33-60 | 42-80 | 48-95 | 52-110 |
Nut A/F Size Range (mm) | 27-50 | 27-65 | 50-90 | 85-115 | 95-135 | 100-155 |
Power Head Model | 2XT | 4XT | 8XT | 14XT | 18XT | 30XT |
Working Head Model | 2LC-50 | 4LC-65 | 8LC-90 | 14LC-115 | 18LC-135 | 30LC-155 |

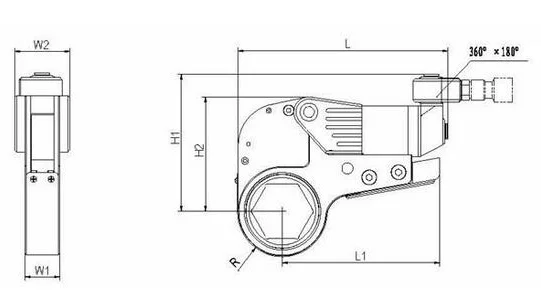

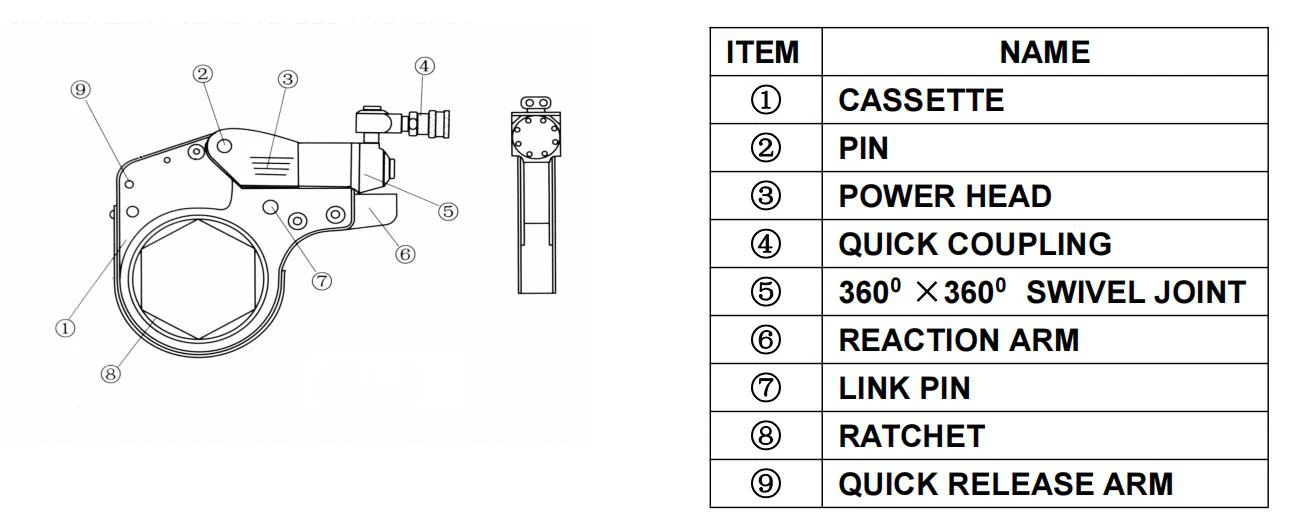

L (mm) | 205 | 251.3 | 302.5 | 367 | 400.5 | 457.5 |
L1 (mm) | 147 | 188 | 233 | 283 | 308 | 364 |
H1 (mm) | 142 | 188 | 233 | 283 | 308 | 364 |
H2 (mm) | 100 | 136 | 166.5 | 198 | 224 | 265 |
W1 (mm) | 32 | 41 | 53 | 64 | 70 | 84 |
W2 (mm) | 50 | 66 | 83 | 99 | 110 | 132 |
R (mm) | 41.3 | 53.8 | 68.8 | 85.3 | 98.8 | 115.8 |
Weight (KGS) | 2.2 | 5.0 | 9.6 | 16.9 | 22.9 | 38 |
Note: All Kashon hydraulic wrenches go with calibration certificates. Large torque can be customized.

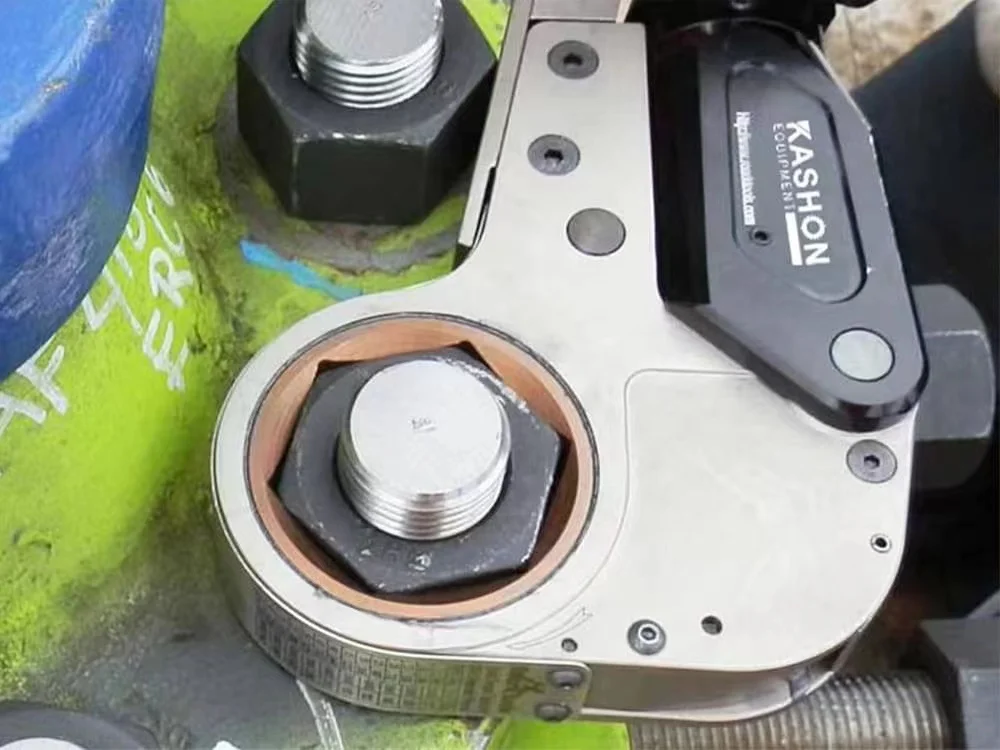

Application
