FL-160 vibrating pharmaceutical powder fluidized bed dryer
Product Description
Application
Fluid-bed processing is mainly used for the mixing of powder material, drying and granulating (coating) in pharmaceutical, food, chemical, agricultural and sideline product processing industries, such as tablet, instant powder and condiment granules. The process of feeding and discharging material for this equipment should be finished in the airtight space to avoid the powder spreading to the working environment. It‘s controlled by PLC. For wet type granulating machine, it adopts negative pressure or air blast to make the finished granules enter the fluid bed for drying in airtight way.
Working Principle
Under the suction of induced draught fan, the heated and purified air will form into high-speed hot air flow to turn the materials in material chamber into fluid state under the function of stirring and negative pressure. The water will be evaporated quickly and discharged to dry the material.
Characteristics
Round structure inner fluid bed to avoid dead angle
The hopper can be set with stirring function to avoid wet material caking, especially for powder material, which is easy to clump together because of electrostatic adsorption.
It adopts manual rotation to discharge the finished products, convenient, fast and complete; it also can be designed with automatic inlet and outlet system as required.
This machine can be connected with high-efficiency wet mixing granulator and swing straightening granulator to suck the wet materials (powder and granules) into chamber for drying under the function of negative pressure, avoiding multiply transfers of materials.
Technical Parameter
Item Parameter
FL-160 Fluid Bed Granulating and Coating Machine
Material tank
Volume
L
520
Diameter
MM
1285
Production capacity
Kg/time
120-160
Power supply
Three-phase
380V/50HZ
Steam
pressure
MPa
0.4-0.6
Consumption
Kg/h
100
Compressed air
Pressure
MPa
0.4-0.7
Consumption
Kg/h
1.2
Draught fan
Power
Kw
15
Material temperature
℃
Auto-control and auto-display
Application range
Mainly used for producing and drying the instant granules, tablets and capsules in both Chinese and western medicines.
Obtaining ratio
%
≥99%
Product moisture
%
Can reach 5‰-5% after drying
Noise
db
With isolating treatment, the noise of draught fan is less than 75 dB.
Material
All stainless steel and surface SUS304 with matte treatment, mirror-polish until Ra0.3-0.5 inside.
Sealing type
Head pressure type with pneumatic cylinder, good sealing effect.
Filtration of inlet air
It’s equipped with primary, medium and sub-high efficiency filters, so the air filtration level reaches 100000 (3μm).
Air capacity regulation
Frequency control to regulate the air capacity.
Steam heater
Use steam to heat, the material of heater is SUS304
Control method
PLC control, frequency converter regulating the air capacity, touch screen operating system, Chinese operation interface.
Steam angle seat valve
Famous brand with high temperature control precision.
GMP standard
Designed and manufactured according to GMP standard, in accordance with GMP requirements.
Product standard
According to JB/T13755-92 standard
Machine dimension
Refer to the installation drawing
Working Process

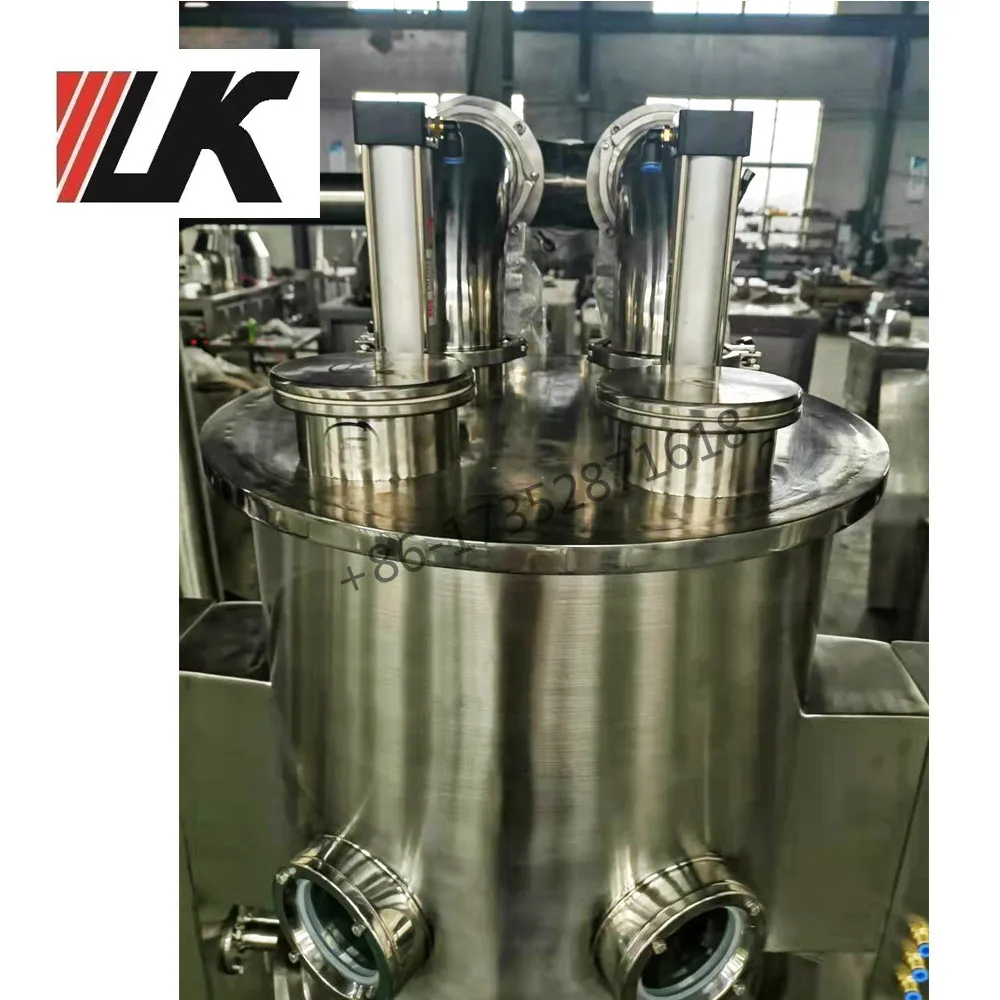

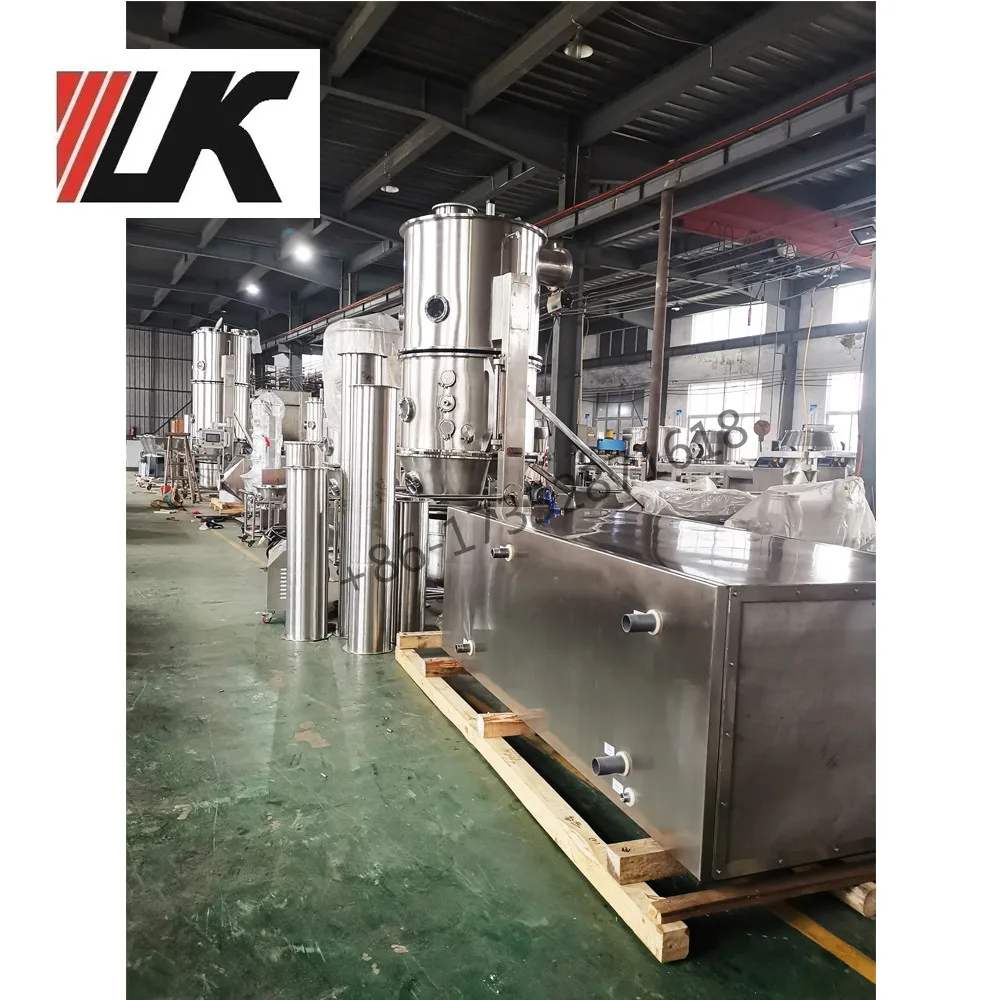

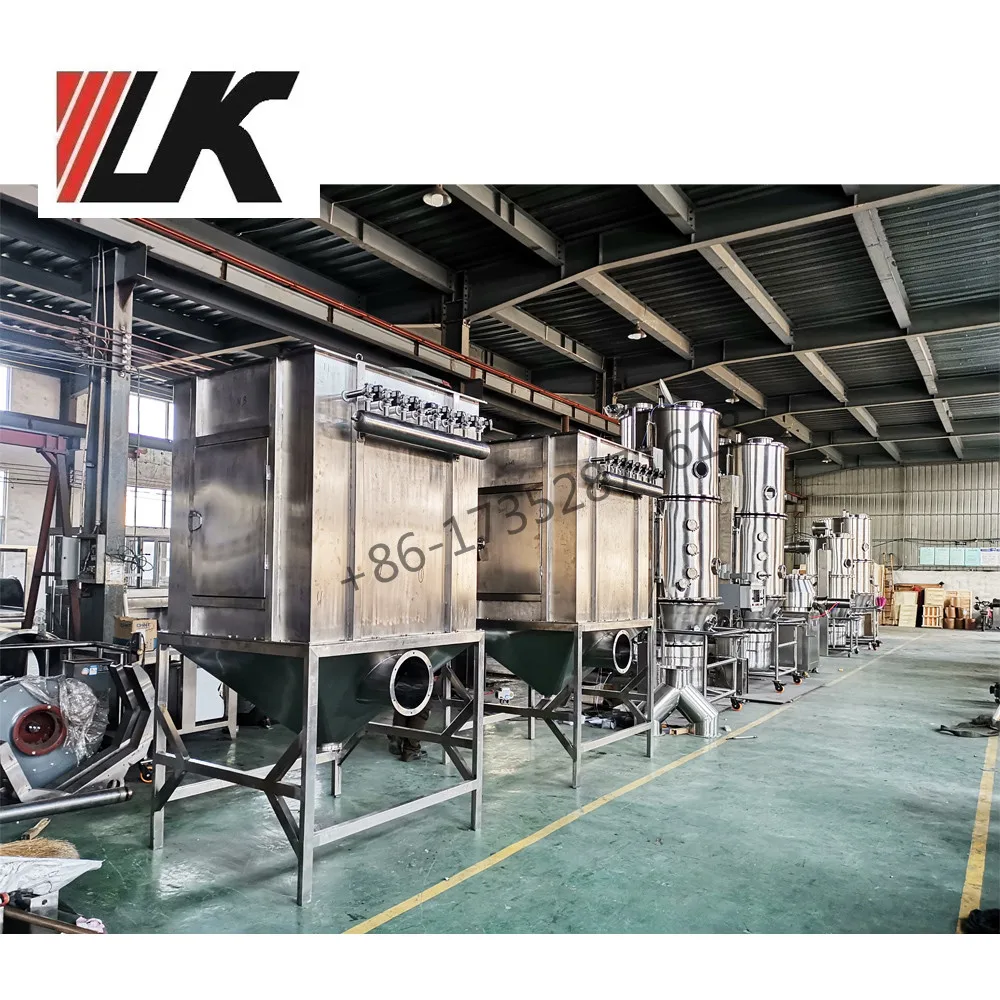

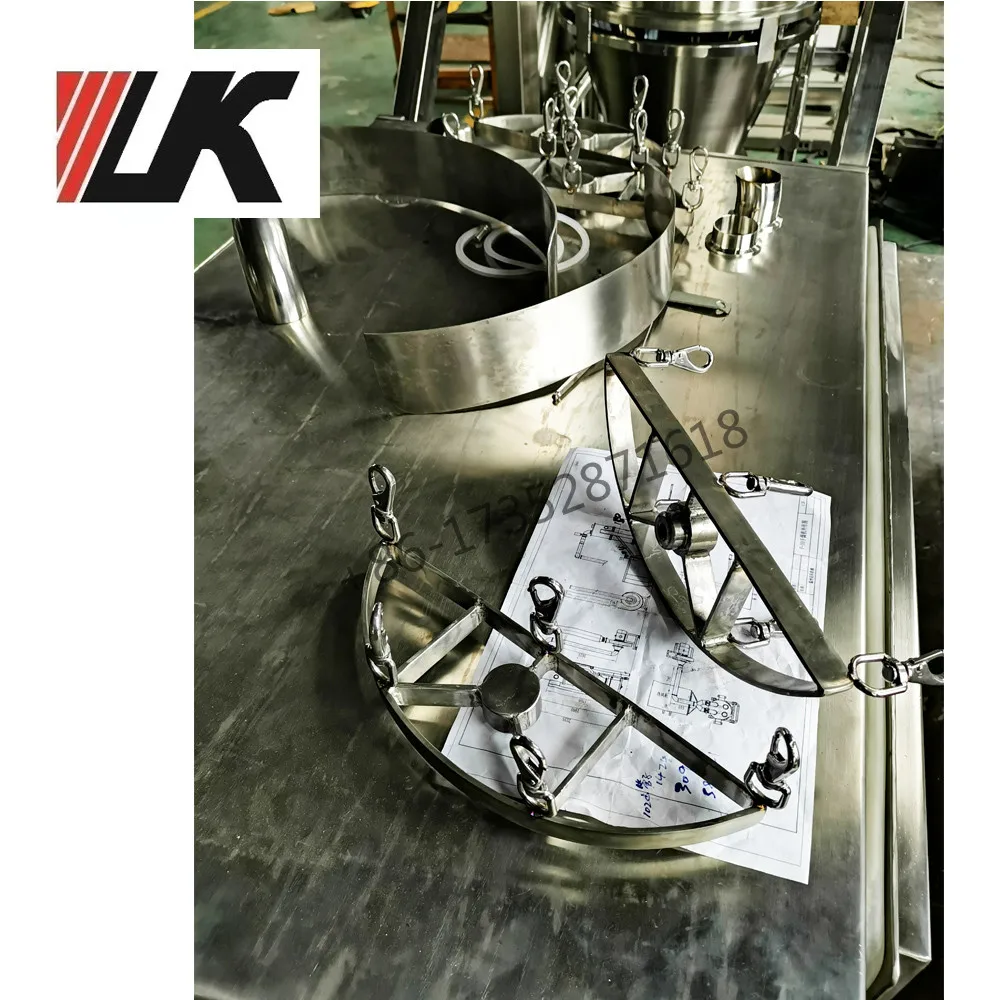

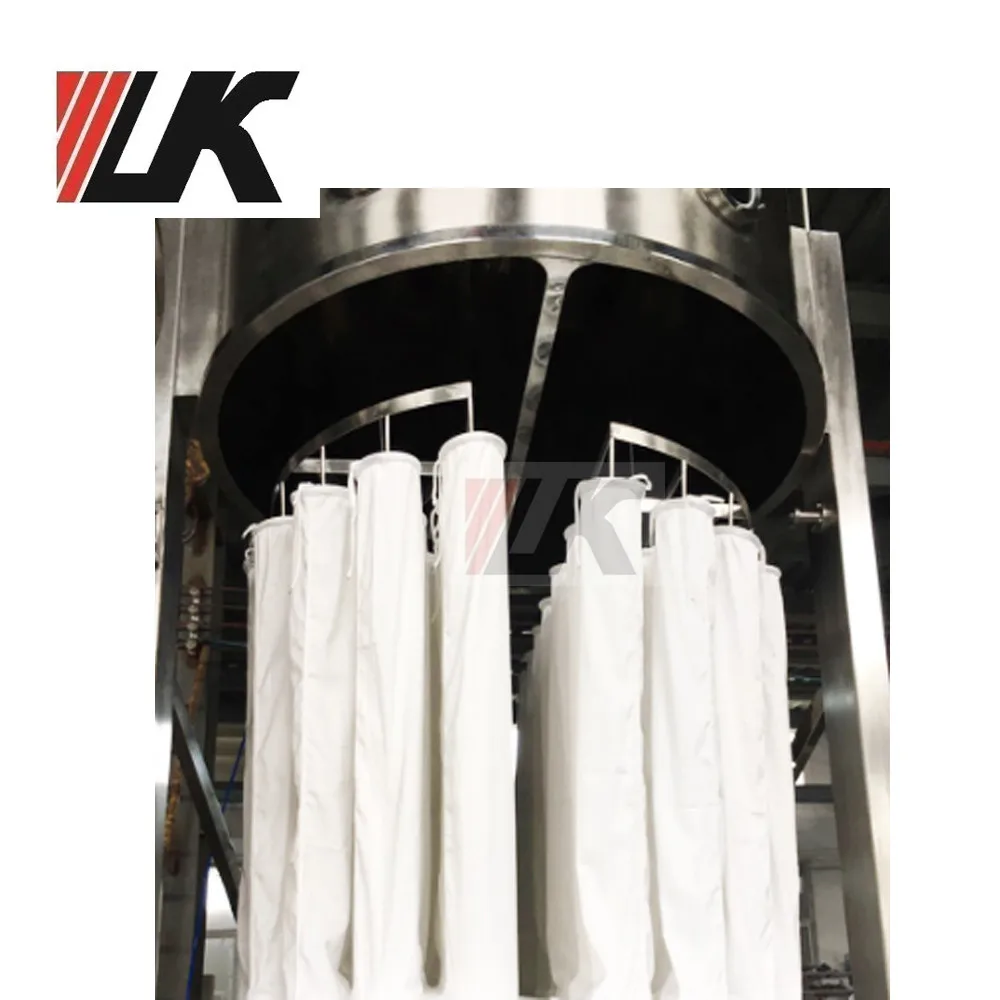

Detailed Photos
Sample Display
Company Information
Packaging & Shipping
FAQ
Q1:Are you manufacturer or trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What does your factory manufacture?
A2: We are mainly engaged in pharmaceutical machines, including wet granulator, roll compactor, fluid bed dryier, mixer, tablet press, film coating machine, capsule filling machine etc.
Q3: What’s the lead time of your machine?
A3: Normally it’s about 30~45 working days.
Q4: What’s the payment terms?
A4: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.
Q5: Can we check machine before order?
A5: Yes, welcome to visit our factory and check machine anytime.
Q6: What you can do for us if machine has problem at our factory after order?
A6: At first, please send us the report and video showing the problem, we will help solve it through the information you provide, and if need any spare parts, we will send to you by international express. If can’t solve it well, then we will dispatch our engineer to your site and check & solve the problem.
