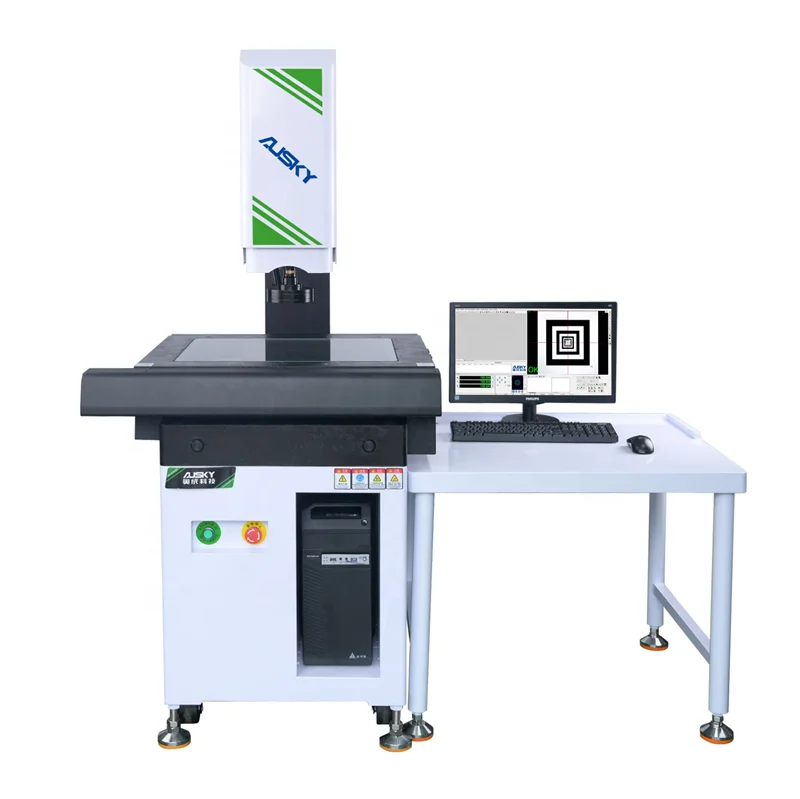

Высокая точность HD Видеосистема визуальная измерительная машина для возможна погрешность измерения
- Category: Other Optics Instruments >>>
- Supplier: Shenzhen Aocheng Instrument Technology Co. Ltd.
Share on (62421497485):
Product Overview
Description
Insturment features

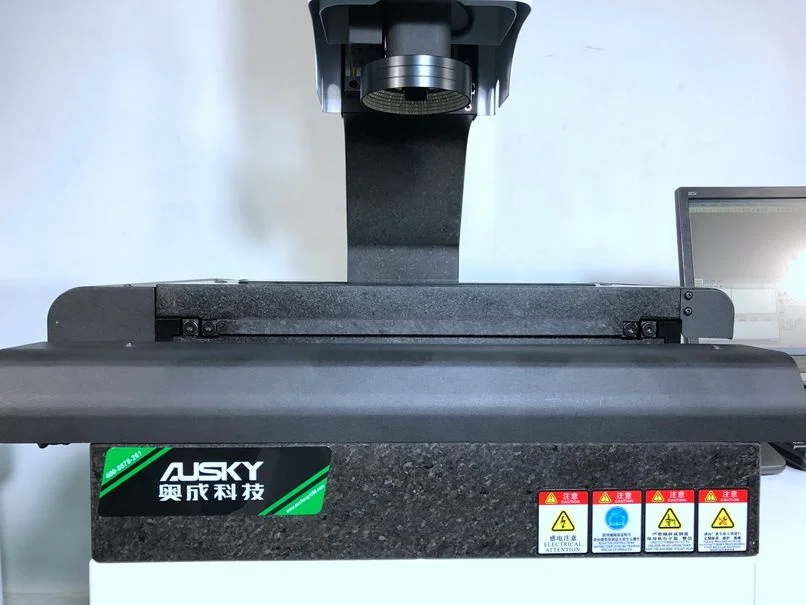

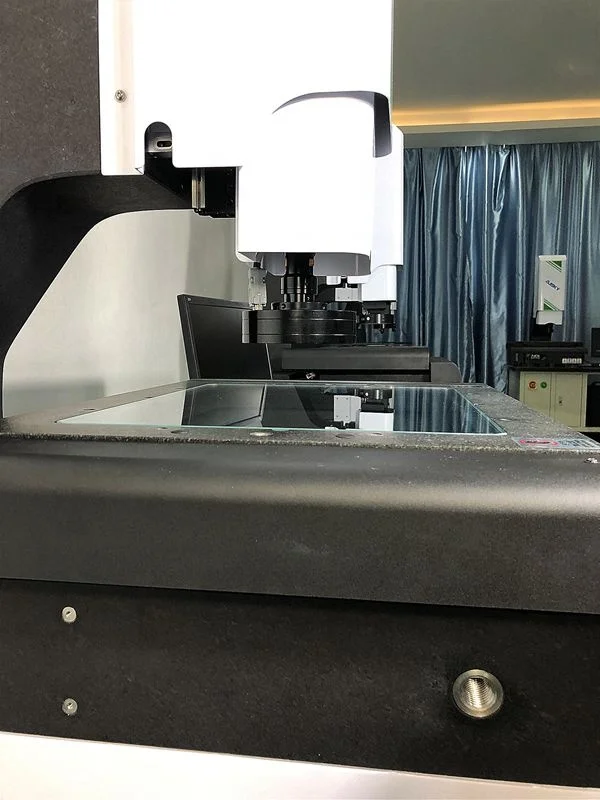

1. High-precision granite structure ,never deformation, high stability, high-end good looking.
2.High precision grating system and TEO high -resolution CCD.
3.P-grade guide railand high precision transmission.
4.High performance servo system ,high-precision,high-efficiency ,high-stability .
5.Zoning adjustment of LED light source ,available for multi directional projection .
6.Manipulator control CNC software ,Auto focusing,Auto edge tracing ,Auto light
Sensing , Auto measuring ,Assurance measuring high efficiency .
7.Auto zoom ratio switching ,Achieve measuring high efficiency and high precision.
8.Configured with leading edge specialized proprietary measuring software.

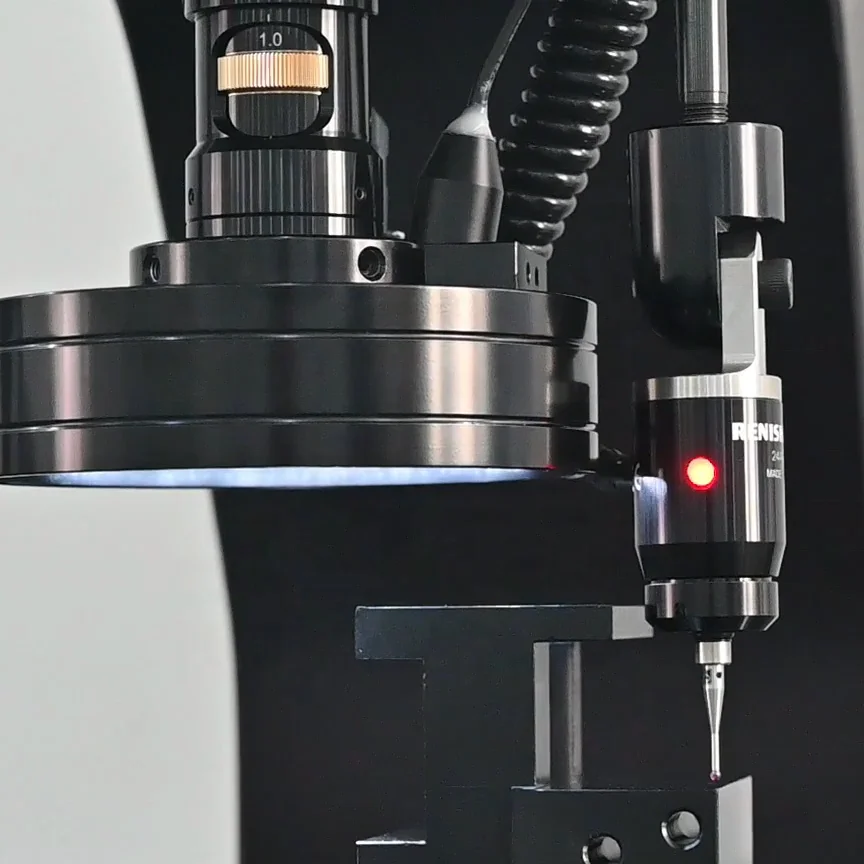

9.Configured with import RENISHAW high precision contacting type probe group .
10.Configured with high precision laser tester, realizable Auto programming Co-axial complex measuring image /probe/ laser .
Technical parameters
| Paramter and Model | AMQ320 | AMQ430 | AMQ540 | |
| Workbench | Platfom size(mm) | 460X360 | 560X460 | 720X620 |
| Glass table size(mm) | 350X250 | 450X350 | 550X450 | |
| Load-bearing weight(kg) | 20 | 20 | 20 | |
| Travel | X axis(mm) | 300 | 400 | 500 |
| Y axis(mm) | 200 | 300 | 400 | |
| Z axis(mm) | 200 | 200 | 200 | |
| Image and Measurement System | Display resolution(μm) | 1/0.5(Optional) | ||
| Instrument precision(um) | (3+L/200)um | |||
| Imaging system(CCD) | HD Digital Camera | |||
| Zoom objective(X) | High Precision Zoom Lens 0.7~4.5X | |||
| Total video magnification(x) | 30~200X | |||
| Working distance(mm) | 96mm | |||
| Light source | LED programmable partiton light source(Coaxial light source optional) | |||
| Outline dimension(mm) | 740X610X1685 | 870X710X1680 | 1090X820X1700 | |
| Weight(kg) | 400 | 450 | 550 | |
| Power Supply | 220V AC 50Hz,110V AC 60HZ | |||
Product Overviews
Main Function
1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.
2.element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.
3.preset elements: point, line, circle, arc.
4.graphics: coordinate translation, straighten the work piece.
5.arbitrary axis straightened, coordinate system reset.
6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.
7.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.
8 .Set the gray scale image, saturation, contrast, image saved as a BMP format.
9.a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.
Advantages
Company profile
Located at Shenzhen city, Baoan District Guangdong Province.High-tech enterprise integrating R & D and production.
Mainly engaged in video measuring system,have been professional in the industry of video measuring system for 15 years.
Our main products are :Manual Image Measuring Instrument, CNC Video Measuring System,Gantry Large Stroke Vision Measurement Machine, One Key Rapid Video Measuring Machine, CMM Coordinate Measuring Machine, Profile Projector ,3D scanner and so on .
Products widely applied in industrial applications such as machines,
electronics, molds, plastics, metals, die-cutting, electrical appliances, mobile,
phone, home appliance, computer, LCD TV, printed circuit board (PCB), automotive, aviation etc.
AUSKY always carries on the scientific manage system ,strong adhere to the policy :Quality Firstly,Customer Firstly and Credit Firstly .
We also have a perfect after sale service system ,These can ensure that we provide customers with the best products and services.
Our Services
FAQ
1. How to Choose the Appropriate Specification
After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.
2. What is the delivery term of your products?
Normally we have standard products in stock. For bigger sizes (larger than 1000mm),
we can discuss and determine on the delivery time, generally,7-10 working days after receipt of the
payment. in urgent , we will try to make special arrangement.
Various shipping modes choices,shipping from Shenzhen port.
3. Do you accept customized service?
Yes OEM is welcome .
4. What is your warranty period?
12 Months warranty,after the warranty,the professional after-sales service team will provide
comprehensive technical support to help customers solve problems encountered when using our products and promptly handle customer problems and complaints.
5.Have you ever had clients in our country before?
Our equipment has been widely supplied to Malaysia,India,Japan,
Pakistan, Philippines, Singapore,Thailand and Vietnam, Korea, UK, Italy, Germany,USA, Poland, Russia,
Turkey,Mexico,Ecuador,Canada,Israel and so on more than 30 countries.
6.How to install and use your product .
We will provide operating instructions or video instructions, if near our agent the service is easier.
or we can send engineer to your country to finish installation and training with cost .
