Factory price 50kg 100kg 200kg Small electric furnace for melting copper steel iron
- Category: Industrial Furnace >>>
- Supplier: Luoyang Ding Hong Electric Technology Co. Ltd.
Share on (62421552379):
Product Overview
Description
Why Choose Us
Products Description

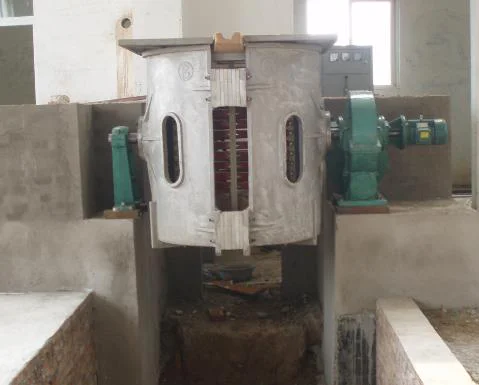

500kg aluminum shell induction furnace
1.There is a large leakage of magnetic flux during the operation of the aluminum-clad induction furnace. The case (aluminum) will be oxidized strongly under high temperature conditions, which will result in the decrease of metal toughness.If the aluminum shell is not thick enough, it will deform and be damaged.
3.The copper tube of the sensor should be of good quality.This will save electricity.Long service life. If not good use of copper pipe.It can cause the device to consume a lot of power.There is a breakdown and maintenance is inconvenient.
2.Good insulation treatment gives workers safe work and production, and the furnace will not leak electricity even if it works for many years.If power leakage is found and needs to be stopped for maintenance, it will be very troublesome and will also bring economic losses to the factory.
Product Advantage
1.Main control board built-in multifunctional protection system - the complete chenghua veneer, rectifier, inverter, protection and starting control into an organic whole, intermediate frequency furnace control board over voltage, over current, load pressure limiting, current limiting, frequency sweep, frequency, intermediate frequency lock detection, restart, power, system and other status indication, make the medium frequency furnace has high reliability, high precision, easy to debug, less relay component, adjust the intuitive, easy maintenance.
2.Water pipes need to be of good quality.So that it is not easy to age leakage.Make the equipment safer.
3.Copper bars need to be of high quality so that they can save energy and electricity.
Model | Inside Diameter | Tube ThIckness | Steel Thickness | Magnet Yokes | Size |
0.5T | 550mm | 5-6mm | 8-12mm | 6 sets | 1250*1250 mm |
0.75T | 630mm | 5-6mm | 8-12mm | 6 sets | 1310*1310 mm |
1T | 700mm | 5-6mm | 8-12mm | 6/8 sets | 1400*1400 mm |
1.5T | 760mm | 5-6mm | 8-12mm | 8 sets | 1540*1540 mm |
2T | 820mm | 6-8mm | 12-16mm | 8 sets | 1600*1600 mm |
2.5T | 860mm | 6-8mm | 12-16mm | 10 sets | 1740*1740 mm |
3T | 935mm | 6-8mm | 12-16mm | 10 sets | 1950*1950 mm |
5T | 1175m | 8mm | 16-20mm | 12 sets | 2100*2100 mm |
8T | 1380mm | 8mm | 16-20mm | 12 sets | 2200*2200 mm |
Product Advantage
Technology
Cooperation Cases
About Us
Luoyang Dinghong Electric Technology Co.,Ltd. Located in Luoyang city ,China. We are specialized in designing and manufacturing all kinds of induction furnace and Diathermy furnace for more than 30 years.
Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and own 24 patents.
FAQ
Q1: How to choose melting furnace if it is first time we have used furnace?
A1:Don't worry, inform us what you want to melt, how about the capacity and your solution/ requirement. we will provide professional proposal for your reference. Overseas service will be provided when installation,commission, and training during using process. until the workers can operate by themselves.
A2: We are manufacturer with 30 years experience, which is specialized in manufacturing all kinds of induction furnace. We can also provided OEM service as customer requirement.
Q3: Which kind of power supply do you supply? Electricity or gas?
Q4: What is your QC measure?
A3:The power supply we provide is electricity.
A4: 1. sound quality system to ensure products quality.
2. Process inspection during each step production line.
3. All accessories of induction furnace are from well-known brands both China and abroad.
4. Strict test and inspection before leaving the factory and will provide ex-factory inspection report to customer.
Q5: How about the delivery time of induction furnace?
A5: Usually induction furnace will be finished within 30 days once receipt the prepayment.Spare parts will be sent out at most 10 days, and will be sent immediately if it is in stock.
