Full Automatic Cigarette Paper Tobacco Rolling Paper Machine

Product Overview

Description

Full Automatic Cigarette Paper Tobacco Rolling Paper Machine



This model is designed to produce ”link type” drawing cigarette paper , that’s mean, each sheet is link together. When you draw one sheet ,the end of next sheet will come out the packaging at the same time. The machine is controlled by PLC , touch screen frequency control. High automatic degree, strict structure , low invoice, less waste, safety and simple operation.

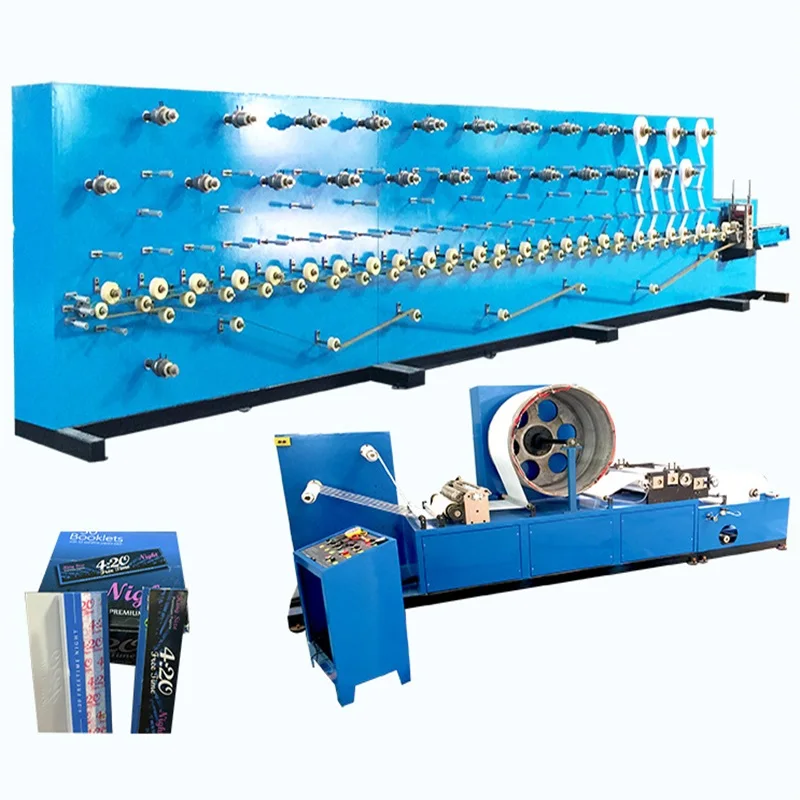

Main Configurations:





A. Automatic spray glue, slitting machine , one set.

B. Automatic folding, cutting machine, one set.





Main technical parameter:





1. Production capacity : 15m/min. 16460boxs(25sheets)/8hour

2. Power of glue machine: 2.2KW (main frame frequency control )

3. Power of folding machine: 2.2KW(main frame frequency control )

4. The Max. plies for folding: 25 plies.

5. Weight: 10 tons

6. 25 rolls of Raw material

7. 3 size of finished product (width:55-35mm length:60-100mm)
