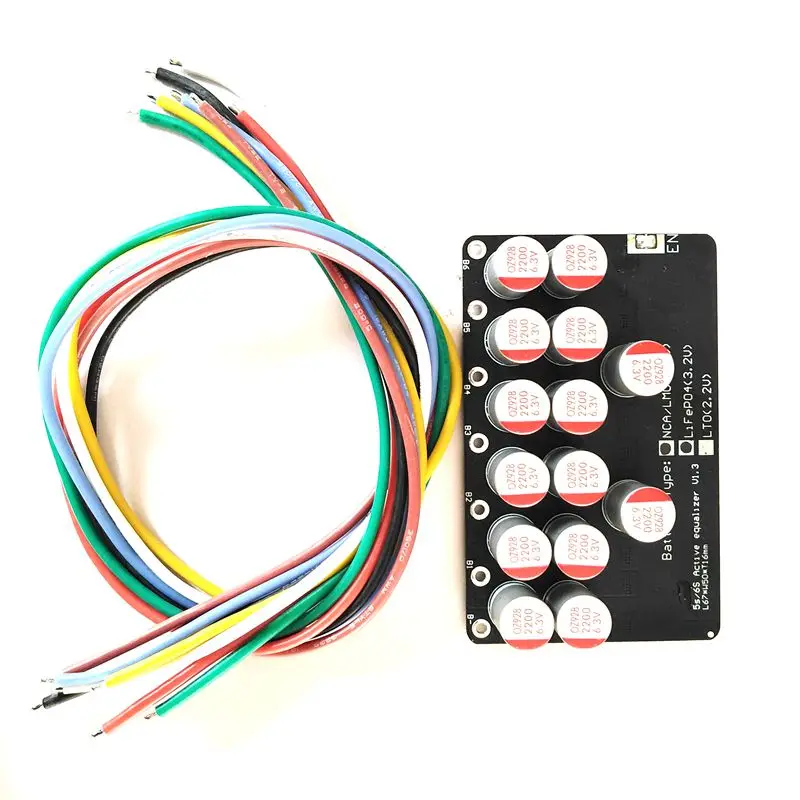

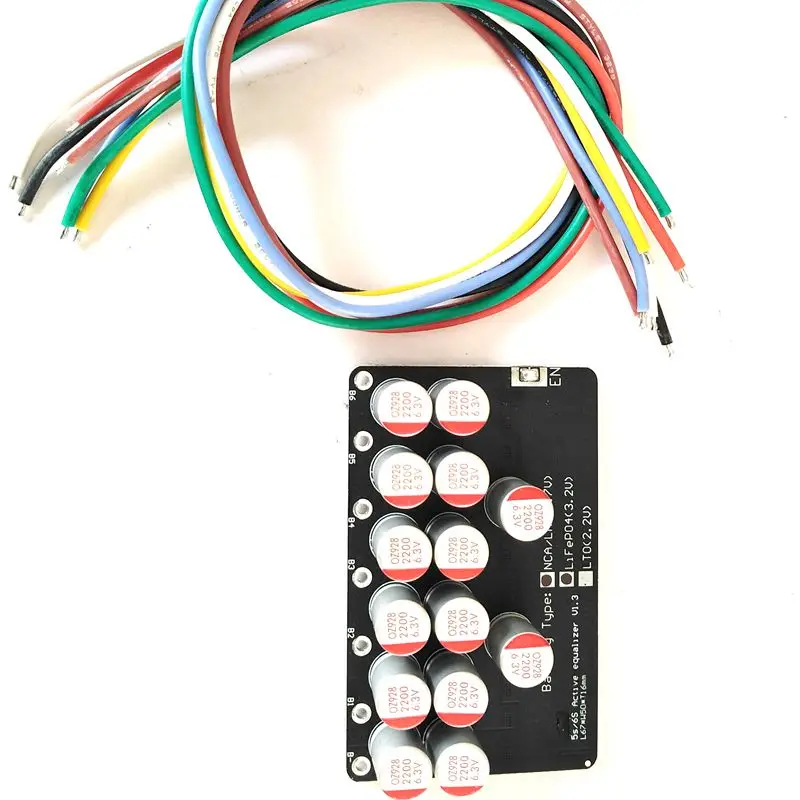

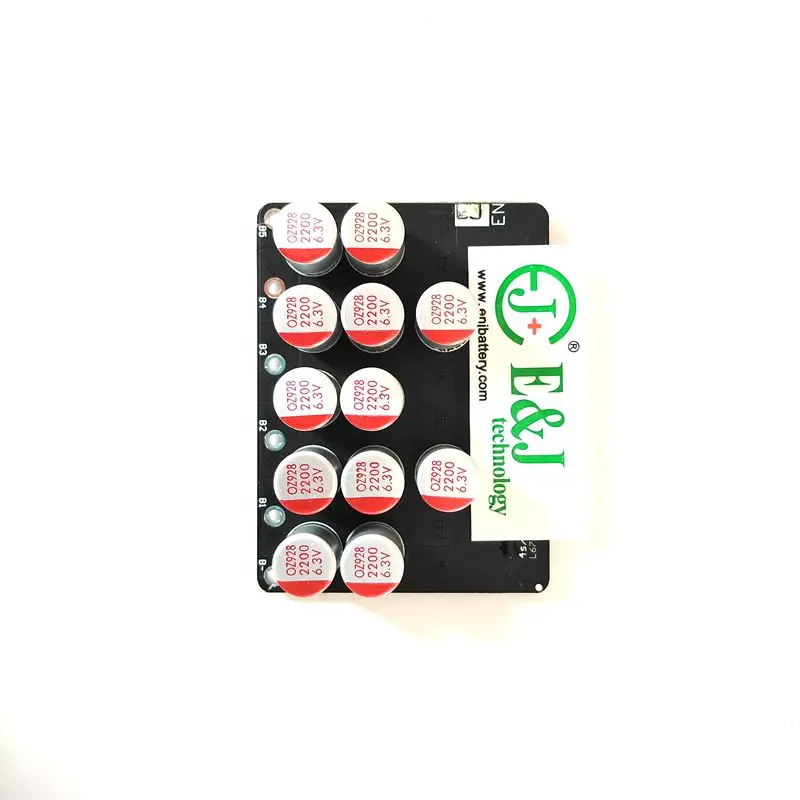

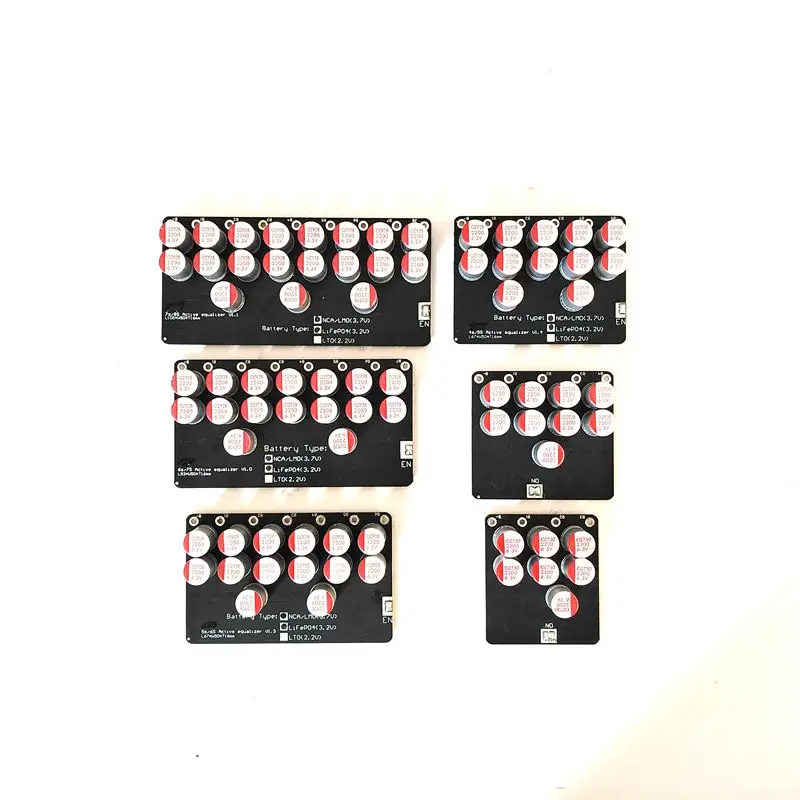

6S LTO Battery Balancer Active equalizer 1A 3.5A 5.5A For 14.4V Yinlong 66160 Battery
- Category: >>>
- Supplier: Shenzhen Yirui Technology Co. Ltd.
Share on (62421669688):
Product Overview
Description
Related Products
Product Description
Advantages | Up to Max.5.5A Continuous Balancing Fit for LTO Battery Pack |
Size | 67* 50 * 16 mm |
Function | Balance for LTO battery pack |
Related Product | There are other models for optional,such as 5S,6S,7S,8S,15/16/17S |
6S LTO Battery Balancer Active equalizer 1A 3.5A 5.5A For 14.4V Yinlong 66160 Battery
LTO version
Balance start voltage: 2.0V-2.8V
Balance start voltage: 2.0V-2.8V
Balance stop voltage: 1.9V (undervoltage sleep state)
Maximum Balance current: The whole group error is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)
5S LTO static current Full state: 2.8v*5cell） 14V 12mA
6S LTO static current Full state: 2.8v*6cell） 16.8V 15mA
6S LTO static current Full state: 2.8v*6cell） 16.8V 15mA
External power supply is required: no external power supply is required, and the internal energy transfer make the whole battery pack in balance .
Working environment temperature: 0-60 degrees
Working environment temperature: 0-60 degrees
Product Usage

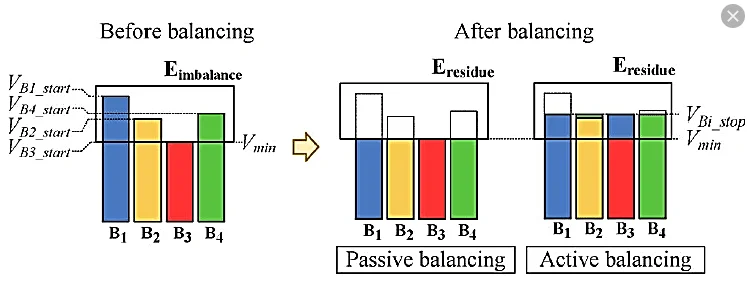

Before balancing VS After balancing
The effect of active and passive balancer before and after balancing.

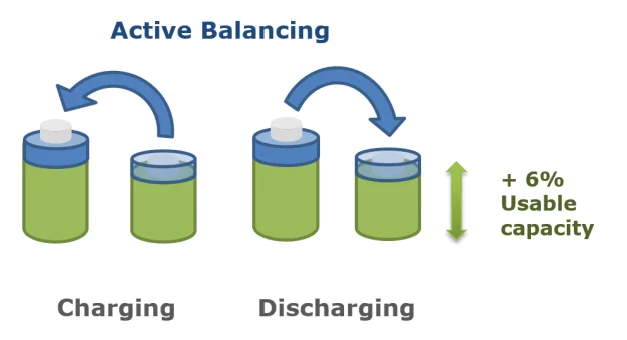

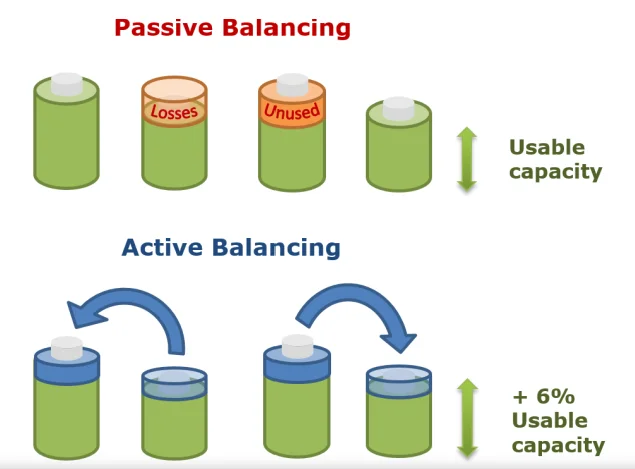

Active balancer VS Passive balancer
Active balancer is More avdanages than passive balancer.
Active balancer work range
Active balancer can balance in the charge and discharge and storage.
