lRandom access, discrete automatic biochemistry analyzer, insert emergency at any time
lHigh performance and reasonable price, It is the best economical choice from semi-auto upgraded to fully-auto analyzer

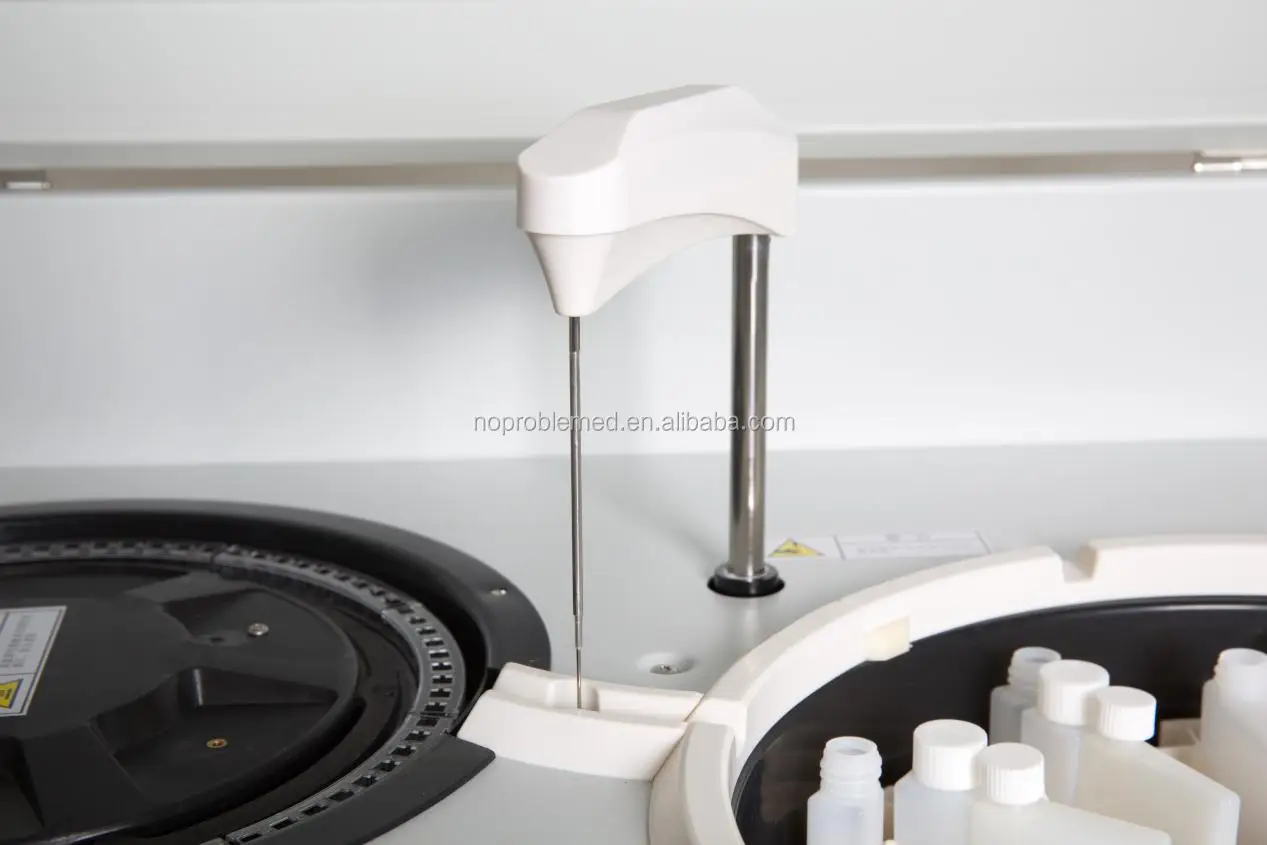

lProbe performance: Liquid level detection, all-round anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle
lProbe cleaning: Automatic washing for both interior and exterior
Analysis System
lTest Speed: constant 160tests/hour, up to 220tests/hour
lTest method: End-point, Fixed-time (two point method), kinetic
lReaction tray: 81 UV cuvettes (disposable)
lMini reaction volume: 150μl, save reagent cost
lInsert emergency at any time
lSupport linear and non-linear calibration
lHeating method: solid constant temperature closed direct heating
lTemperature equilibrium time: less than 3minutes,
lReaction Temperature: 37±0.2°C
lTemperature Fluctuation: ± 0.2°C
Optical System
lIntegrated full closed optical system, after spectrometric method, no mechanical parts, not moldy, no maintenance cost
l8 wavelengths, selectable among 340-800nm
lAbsorption range: 0.00-4.00Abs
lHalogen-tungsten lamp has more than 2000hrs service time
lCenter wavelength deviation: ±2nm, half wave width less than 12nm
lInspection and Judgment: Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, reaction limit inspection, reagent blank absorbance judgment
lRS232 standard interface, support the intranet and remote printing
Bench-top design, compact size
White or blue sample tray cover
Technical Specifications
Type
Discrete Automatic, Random Access
Principle
Absorption Spectrometry, Turbidimetry
Throughput
Constant 160tests/hour (without ISE)
Test method
End-point, Fixed-time, Kinetic
Support dual reagents/double wavelength
Test sequence
Run tests in strict accordance with sample sequence,
Insert emergency at any time
Optical System
Light Source
Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric Method
After spectrometric method
Wavelength
8 wavelengths, selectable among 340-800nm
Absorption Range
0-4.0Abs
Optical System
ntegrated full closed optical system
Reaction system

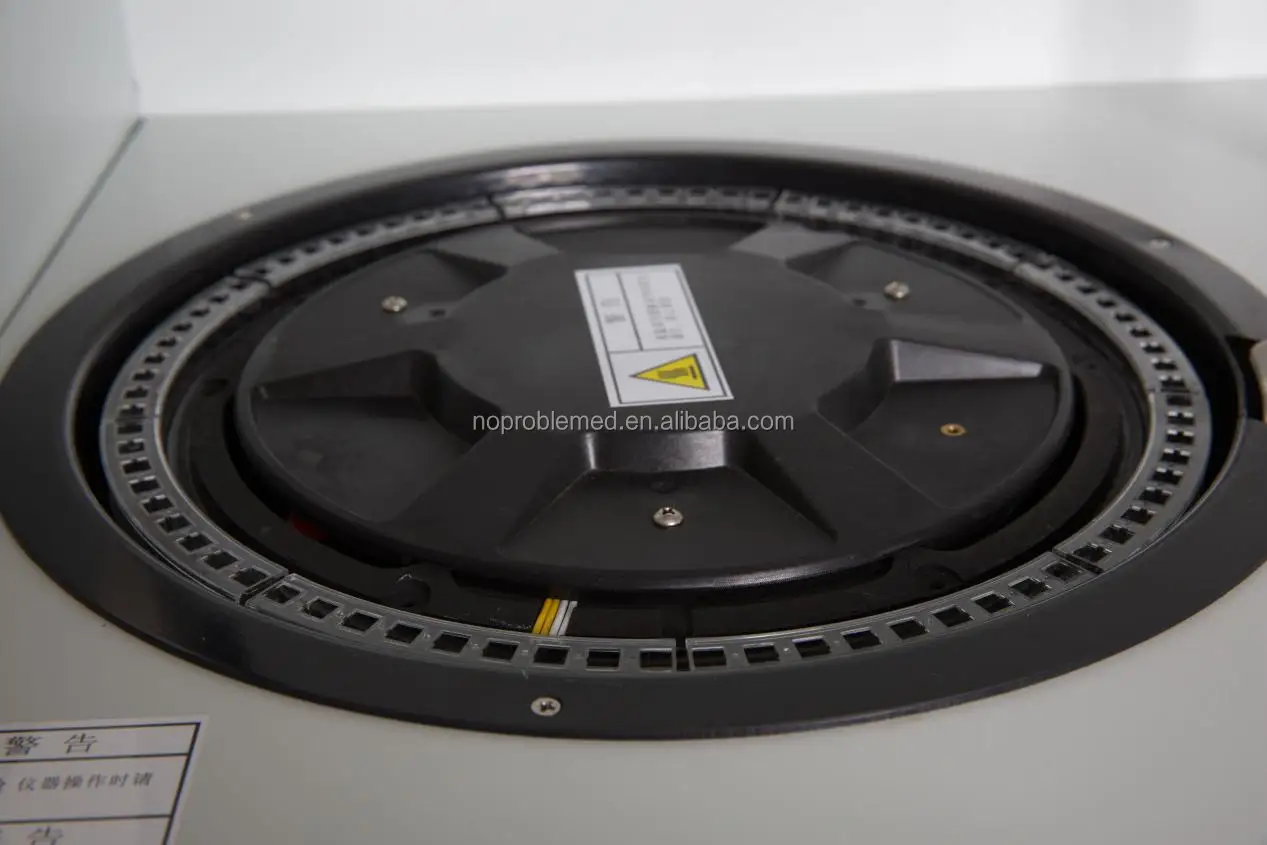

Reaction Tray
81 positions for cuvettes
Reaction Volume
Mini 150μl
Sample system
Sample Tray
30 positions
Sample Volume
2-100μl, 0.1μl by step
Online Sample
30 samples/ batch, unlimited batch input
Reagent System

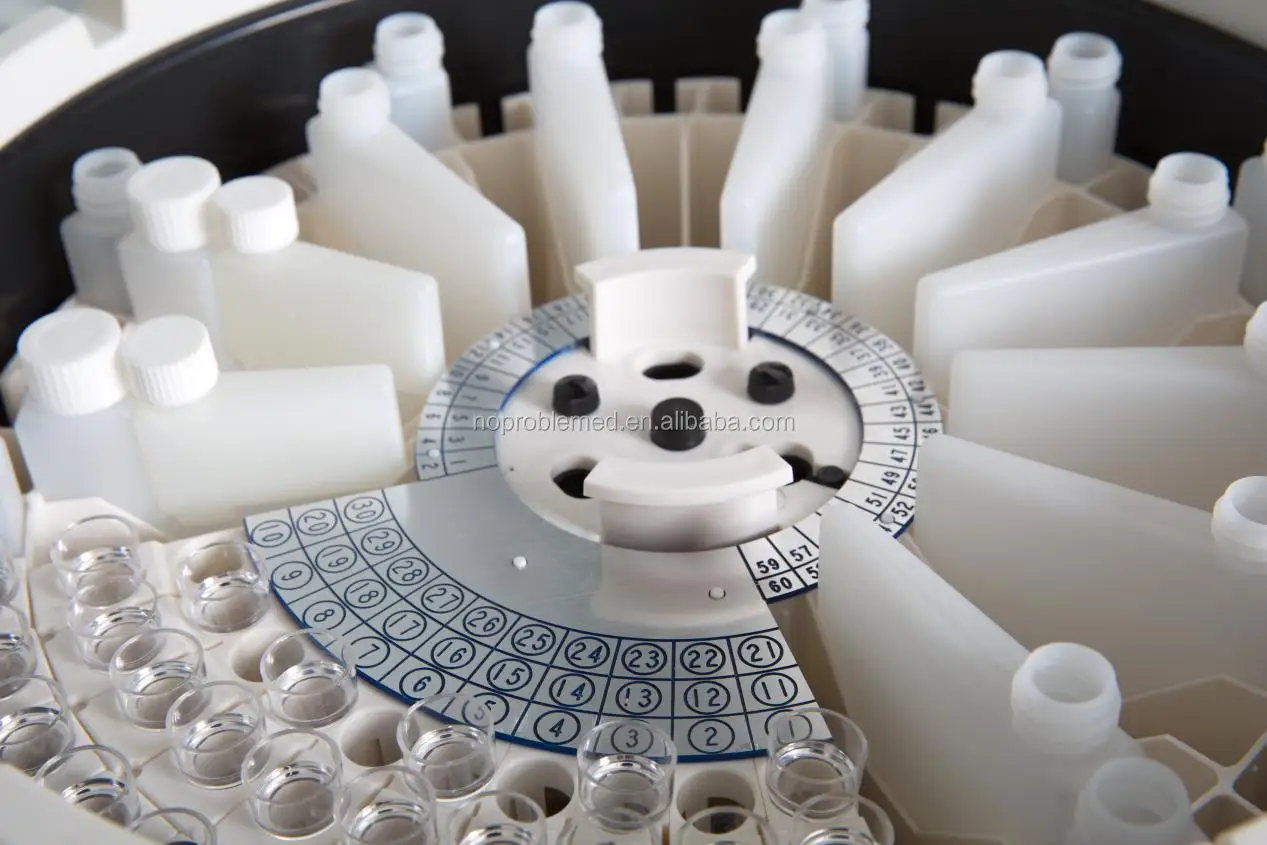

Reagent Tray
60 positions, open system
Reagent Volume
20-500μl, 1μl by step
Reagent Bottle
Bottles with 15ml,20ml,30ml,50ml,70ml are available
dead volume 1ml
Product Details

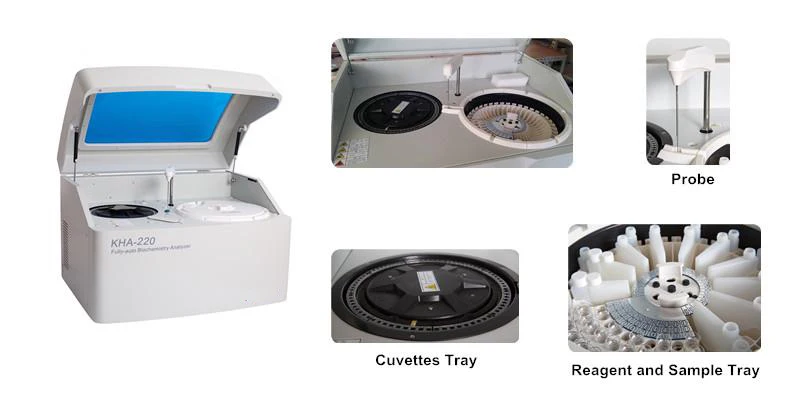

(1) Appearance Details
Packaging & Shipping
More picture:
Our Services
One year warranty
Logistics service of different way of shipment
Company Information
GUANGZHOU NOPROBLEM MEDICAL EQUIPMENT COMPANY LIMITED we offer full of range of medical device which are selected by a scientific way of supply chain management, we have online shop on ALIBABA where we can make deal online.
As a longtime and leading plastic consumable injection provider, we can CNC the mould, make prototype sample, ETO sterile. Different to normal injection product, our workshop is Dust-free workshop as well as ISO13485 certified.
At the same time, our seasoned R&D consultants work collaboratively with you to define your near- and long-term R&D needs and solve them with the cost-effective, innovative solutions your organization needs to thrive. Get to know more about us from our official web: ww.noproblemed.com
