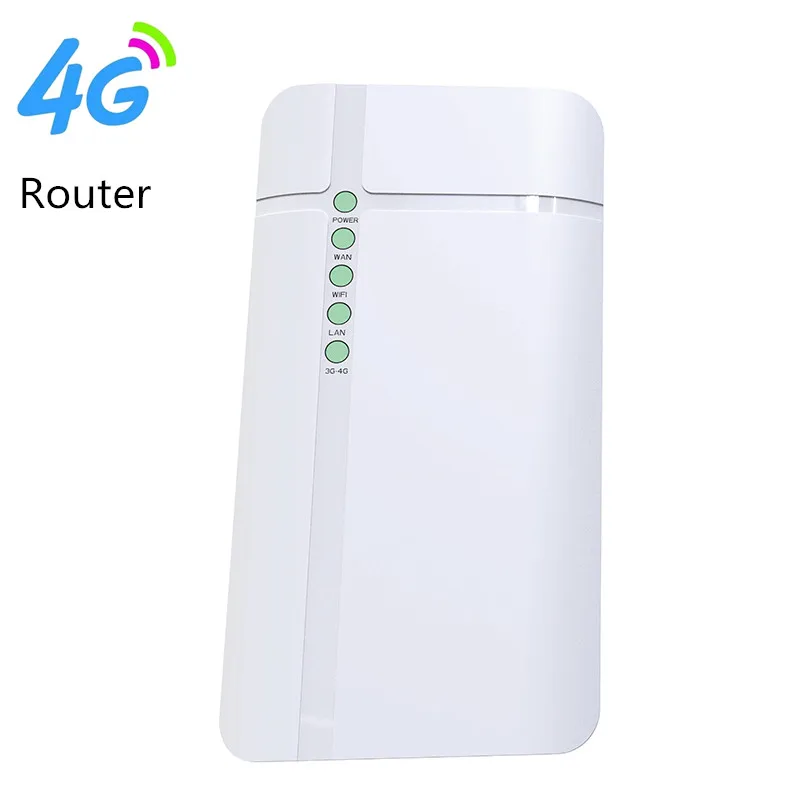

Howell New 4G Lte Router Wireless Router 4G with 10W Solar Panel and 10Ah Battery Wireless Wifi 4G Router with Solar Power
- Category: >>>
- Supplier: Shenzhen Howell Intelligent Technology Co. Ltd.
Share on (62421801845):
Product Overview
Description
Ø The 4G router can been used in each country, we will produce the 4G router according to different 4G standard
Ø Qualcomm Multimode industrial chip，support TDD-LTE/FDD-LTE/UMTS/TD-SCDMA/EVDOØ WiFi MIMO 2*2,Max 300Mbps
Ø LTE CAT4 MIMO 2*2,Max 150Mbps
Ø 2 RJ45 LAN（optional POE 48V）
Ø Support 32 WiFi users, support 12 WIFI device at the same time.
Ø Waterproof IP66
Ø Qualcomm Multimode industrial chip，support TDD-LTE/FDD-LTE/UMTS/TD-SCDMA/EVDOØ WiFi MIMO 2*2,Max 300Mbps
Ø LTE CAT4 MIMO 2*2,Max 150Mbps
Ø 2 RJ45 LAN（optional POE 48V）
Ø Support 32 WiFi users, support 12 WIFI device at the same time.
Ø Waterproof IP66
Electrical Specifications | |
Maximum power(Pmax) | 10W |
Tolerance | ±5% |
Maximum power voltage(V) | 6 |
Maximum power current(A) | 1.67 |
Open circuit voltage(V) | 7.3 |
Short circuit current(A) | 1.79 |
Maximum system voltage(V) | 600 |
Serises fuse rating(A) | 5 |
Operating Temperature | -40℃～+85℃ |
NOCT | 48±2℃ |
Storage temperature | indoor temperature |
Application class | Class A |
Maximum mechanical load | Wind：2400Pa Snow:5400Pa |
Temperature Characteristics | |
Current temperature coefficient α(Isc) | 0.03%/℃ |
Voltage temperature coefficient β(Isc) | -0.32%/℃ |
Power temperature coefficient γ(Isc) | -0.42%/℃ |
Mechanical Characteristics | |
Dimensions(mm) | 335×185×17mm |
Weight(kg) | 0.8Kg |
Solar cells | Mono-crystalline |
Encaosulant material | EVA |
Front sheet | PV-glass; |
Frame | Aluminum frame |
CPE Specifications | ||||
CPU | MDM9207, CAT4, DL 150Mbps, UL 50Mbps | |||
Standard | All 4G and 3G standard | |||
TDD-LTE | 3GPP,3GPP2 Release10，Category 4,up to 150M DL and 50Mbps UL | |||
FDD-LTE | 3GPP,3GPP2 Release10，Category4,up to 150M DL and 50Mbps UL | |||
DC-HSPA+ | 3GPP,3GPP2 Release8, up to 21Mbps ,category 24，5.76Mbps UL | |||
HSPA+ | 3GPP,3GPP2 Release7, up to 14.4Mbps ,category 10，5.76Mbps UL | |||
HSPA | 3GPP,3GPP2 Release6, up to 7.2Mbps DL,category 7,8，5.76Mbps UL | |||
UMTS | 3GPP Release4, up to 384 Kbps DL and UL | |||
EDGE | 3GPP Release4, Multislot class 12, up to 237 Kbps | |||
GPRS | 3GPP Release4, Multislot class 10, up to 85.6Kbps | |||
Network band | ||||
Frequency band | All 4G and 3G frequency band | |||
TDD-LTE | B38,B39,B40,B41 | |||
FDD-LTE | B1,B3,B5 | |||
UMTS | B1,B5 | |||
GSM | NA | |||

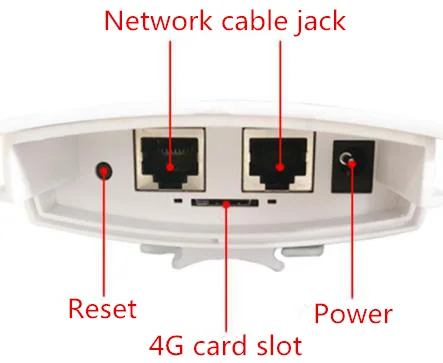

Interface parameters | ||||
Indicator light | WAN*1,LAN*3,LTE,Power | |||
Key | Reset/Power | |||
LAN | 3*RJ45 | |||
Power | 12V/1.0A | |||
POE power supply | 48V（optional） | |||

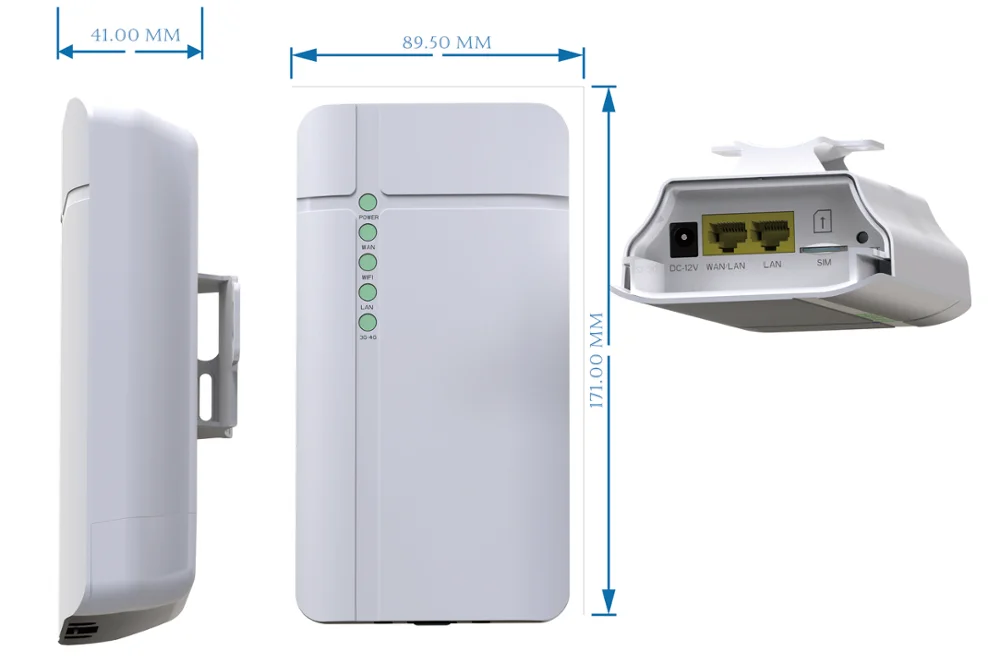

Inch: | 171*90*41mm | |||
