GSE airline catering equipment for aviation/airport catering truck /catering truck
- Category: >>>
- Supplier: Shanghai Chidge Industries Co. Ltd.
Share on (62421826293):
Product Overview
Description
Product Description

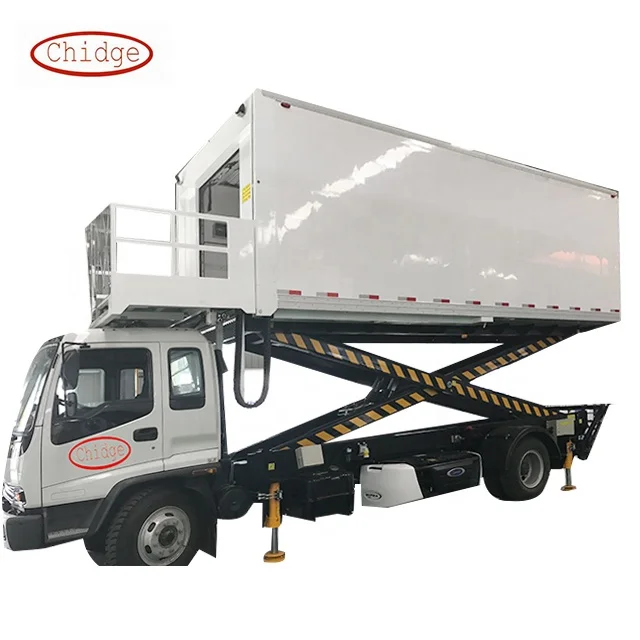

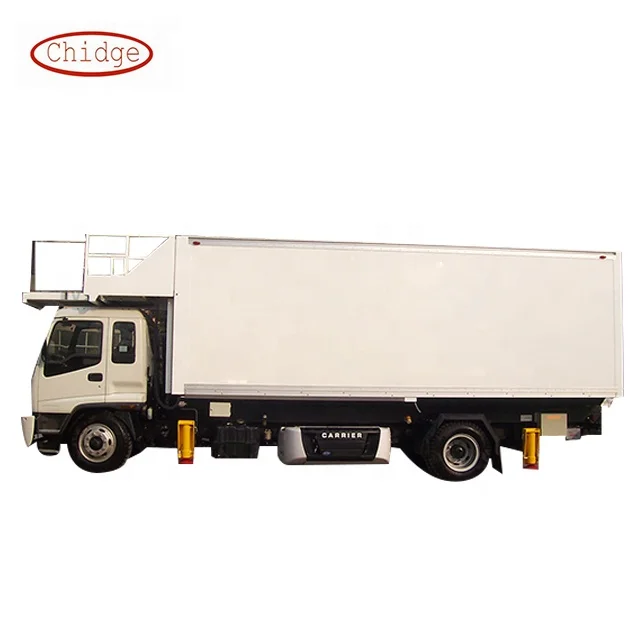

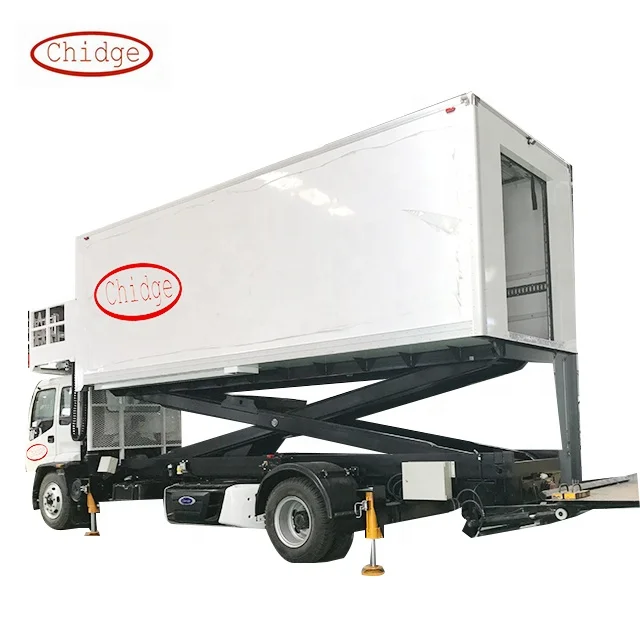

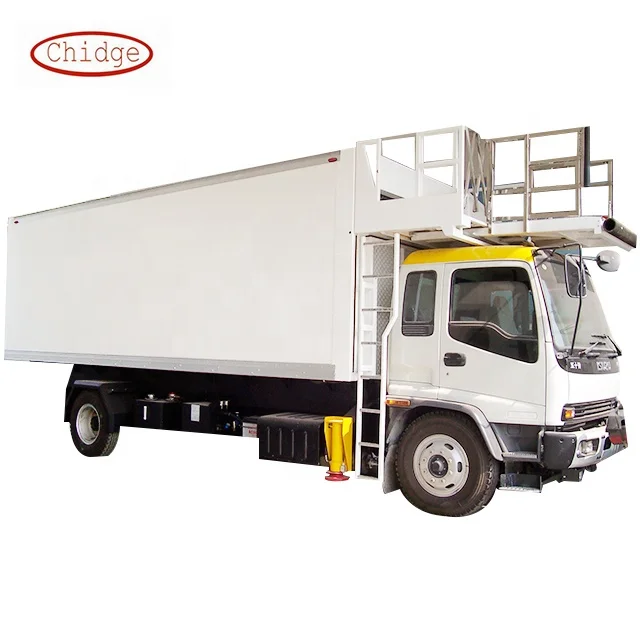

GSE catering truck
Chassis: ISUZU (LHD)
Overall dimension（L×W×H):
Overall dimension（L×W×H):
9800×2590×3800mm
Compartment dimension（L×W×H）mm
7200×2480×2400
Axle base mm:5550
Platform lift range mm:2750～6000
Fixed platform（L×W）mm
2480×1400
Platform left/right moving （L×W）mm
1200×930
Platform back/forward （L×W）mm
500×1080
Ground clearance（L×W）: Min mm
1400
Max. mm:6000
Total weight (kg）:12830
front axle (kg）:5200
rear axle (kg）:7630
Min ground clearance（mm）:200
Min turning diameter（m）:18
Max weight of compartment（kg）:4000
Max load of fixed platform（kg）:1000
Max load of movable platform（kg）:400
Transverse central distance between front and rear stabilizers （mm）5450
Vertical central distance between front and rear stabilizers （mm）0～500
Lifting time of compartment (S):70/55
Contracting time of stabilizers (S):15
Time for platform moving forward/backward（S）8/6
Allowable wind speed:8
Max vehicle speed:35
Vehicle speed for approaching aircraft
≤5
Hydraulic oil
hydraulic oil 46#
Volume of hydraulic oil tank (L):180
Volume of fuel tank (L):150
Refrigerated unit
Carrier 750S
Engine type:6HK1
Max working pressure（Mpa）:15
Compartment dimension（L×W×H）mm
7200×2480×2400
Axle base mm:5550
Platform lift range mm:2750～6000
Fixed platform（L×W）mm
2480×1400
Platform left/right moving （L×W）mm
1200×930
Platform back/forward （L×W）mm
500×1080
Ground clearance（L×W）: Min mm
1400
Max. mm:6000
Total weight (kg）:12830
front axle (kg）:5200
rear axle (kg）:7630
Min ground clearance（mm）:200
Min turning diameter（m）:18
Max weight of compartment（kg）:4000
Max load of fixed platform（kg）:1000
Max load of movable platform（kg）:400
Transverse central distance between front and rear stabilizers （mm）5450
Vertical central distance between front and rear stabilizers （mm）0～500
Lifting time of compartment (S):70/55
Contracting time of stabilizers (S):15
Time for platform moving forward/backward（S）8/6
Allowable wind speed:8
Max vehicle speed:35
Vehicle speed for approaching aircraft
≤5
Hydraulic oil
hydraulic oil 46#
Volume of hydraulic oil tank (L):180
Volume of fuel tank (L):150
Refrigerated unit
Carrier 750S
Engine type:6HK1
Max working pressure（Mpa）:15
