Набор нано разработчиков Jetson, маленький компьютер с искусственным интеллектом, оригинальный черный

Product Overview

Description

Jetson Nano Developer Kit Description

N Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.

Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated N GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

Jetson Nano is also supported by N JetPack, which includes a board support package (BSP), CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The SDK also includes the ability to natively install popular open source Machine Learning (ML) frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, enables the developers to integrate their favorite AI model / AI framework into products fast and easily.

Jetson Nano Developer Kit Features

• GPU: 128-core Maxwell™ GPU


• CPU: quad-core ARM® Cortex®-A57 CPU


• Memory: 4GB 64-bit LPDDR4


• Storage: Micro SD card slot (requires an external minimum 16G TF card)


• Video:



  • Encode: 4K @ 30 (H.264/H.265)


  • Decode: 4K @ 60 (H.264/H.265)






• Interfaces:



  • Ethernet: 10/100/1000BASE-T auto-negotiation


  • Camera: 12-ch (3x4 OR 4x2) MIPI CSI-2 DPHY 1.1 (1.5Gbps)


  • Display: HDMI 2.0, DP (DisplayPort)


  • USB: 4x USB 3.0, USB 2.0 (Micro USB)


  • Others: GPIO, I2C, I2S, SPI, UART






• Power:



  • Micro USB (5V 2A)


  • DC jack (5V 4A)






• Dimensions:



  • Core module: 69.6 mm × 45 mm


  • Whole kit: 100mm × 80mm × 29mm

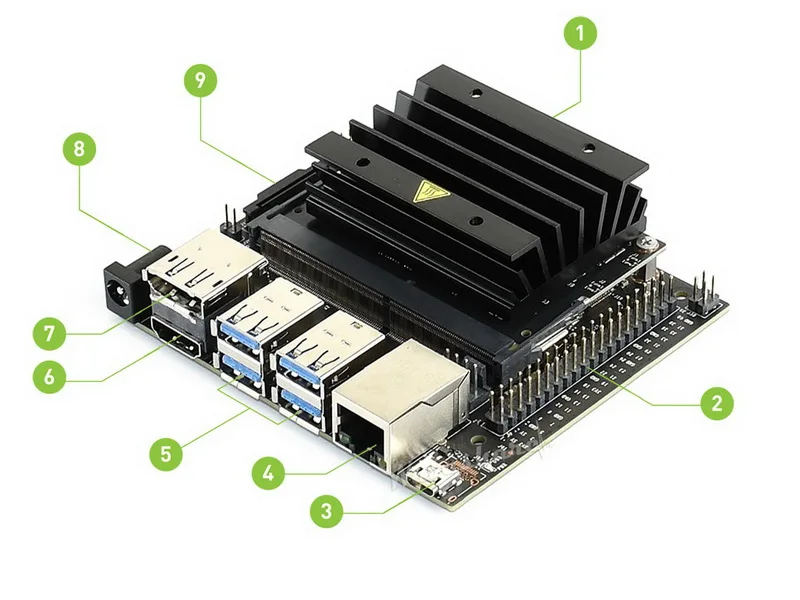

What's on Jetson Nano Developer Kit

1. Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image


2. 40-pin expansion header


3. Micro USB port: for 5V power input or for USB data transmission


4. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation


5. 4x USB 3.0 port


6. HDMI output port


7. DisplayPort connector


8. DC jack: for 5V power input


9. MIPI CSI camera connector:

Technical Comparison

	JETSON NANO	JETSON TX2
AI Performance	472 GFLOPs	1.3 TFLOPs
GPU	128-core N Maxwell™ GPU	256-core N Pascal™ GPU
CPU	Quad-Core ARM® Cortex®-A57 MPCore	Dual-Core N Denver 2 64-Bit CPU and Quad-Core ARM® Cortex®-A57 MPCore
Memory	4GB 64-bit LPDDR4 Memory	8GB 128-bit LPDDR4 Memory
Storage	Micro SD card slot	32GB eMMC 5.1
Video	Encode: 4K @ 30 (H.264/H.265) Decode: 4K @ 60 (H.264/H.265)	Encode: 4K x 2K 60 Hz (HEVC) Decode: 4K x 2K 60 Hz (12-bit support)
Connectivity	Gigabit Ethernet	Gigabit Ethernet, WiFi, blue
CSI	12x CSI-2 D-PHY 1.1 (Up to 18 GB/s)	12x CSI-2 D-PHY 1.2 (Up to 30 GB/s)
Display	Two Multi-Mode DP 1.2 eDP 1.4 HDMI 2.0 1x2 DSI (1.5Gbps/lane)	Two Multi-Mode DP 1.2 eDP 1.4 HDMI 2.0 Two 1x4 DSI (1.5Gbps/lane)
PCIE	Gen 2 | 1x4	Gen 2 | 1x4 + 1x1 OR 2x1 + 1x2
Power	5W / 10W	7.5W / 15W



Weight: 0.248 kg
