MPR4200: industrial Programmable Universal Digital 6/8/12 Channel Paperless Pressure Chart Recorder with Relay Ethernet TCP/IP
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (62421979582):
Product Overview
Description
Product Show
Programmable Universal Input 12 Channel Digital Paperless Pressure Chart Recorder Model No.: MPR4200 | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Power supply | 100-240VAC | |||||
Size/Installation Size | 144x144x73mm | 138x138mm | ||||
Dispplay | 5'' Color LCD TFT | |||||

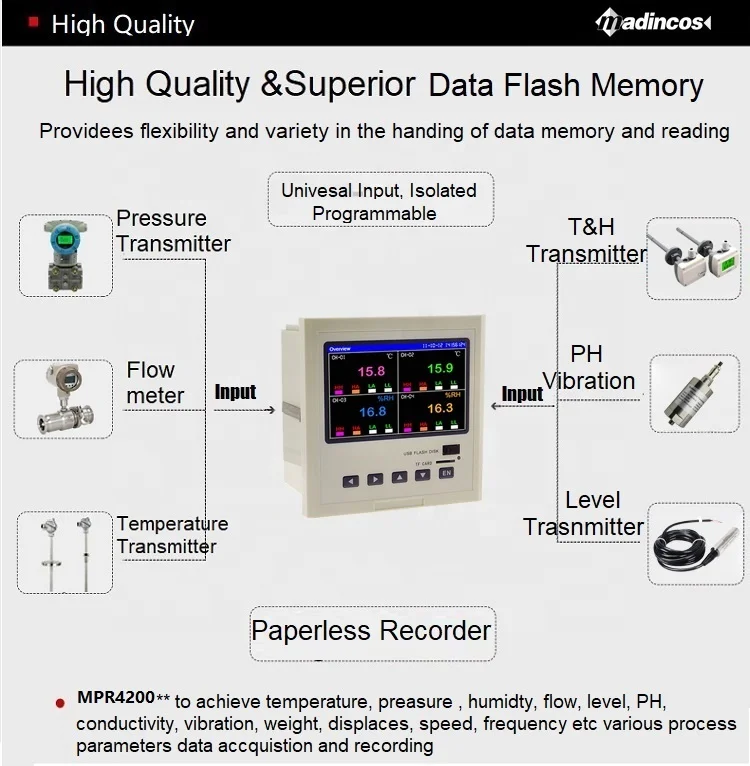

Input | Universal Input, programmable | Themocouple, RTD, Analog, mV,frequency input | ||||
Input Channels No. | 1,2,3,4,5,6,7,8,9,10,11,12 | |||||
Channels Isolation | 400VAC photoelectrical isolation | |||||
Sample Rate | 1 seconds /8 channels | |||||
Output (Optional) | Relay output | 3A, NO, max 8relay output, configurable for channels | ||||
RS485 communication | standard Modbus-rtu protocol, | |||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | |||||
feed output | auxiliary 24VDC output for transmitter | |||||
Print | printing output for data in digital and curve | |||||
Flow totalizer | with temperature, pressure compensation for channels | |||||
Math | +, -, x, /, ,max, min, average; linear math | |||||
Memory & Display Specification | ||||||
Memory Capacity | Memory capacity can be set flexibly according to the memory interval time setting. | |||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

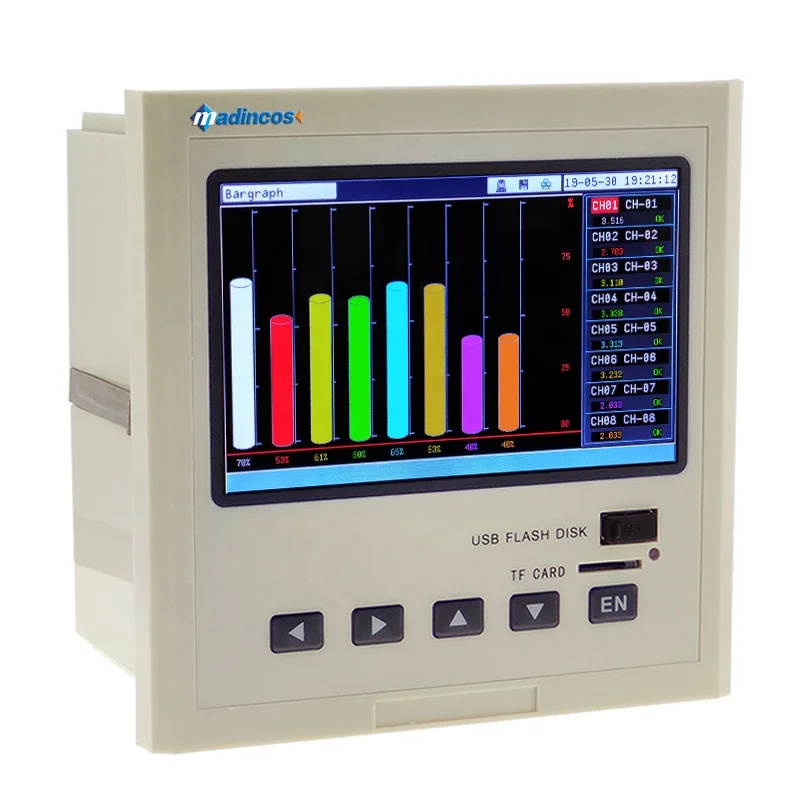

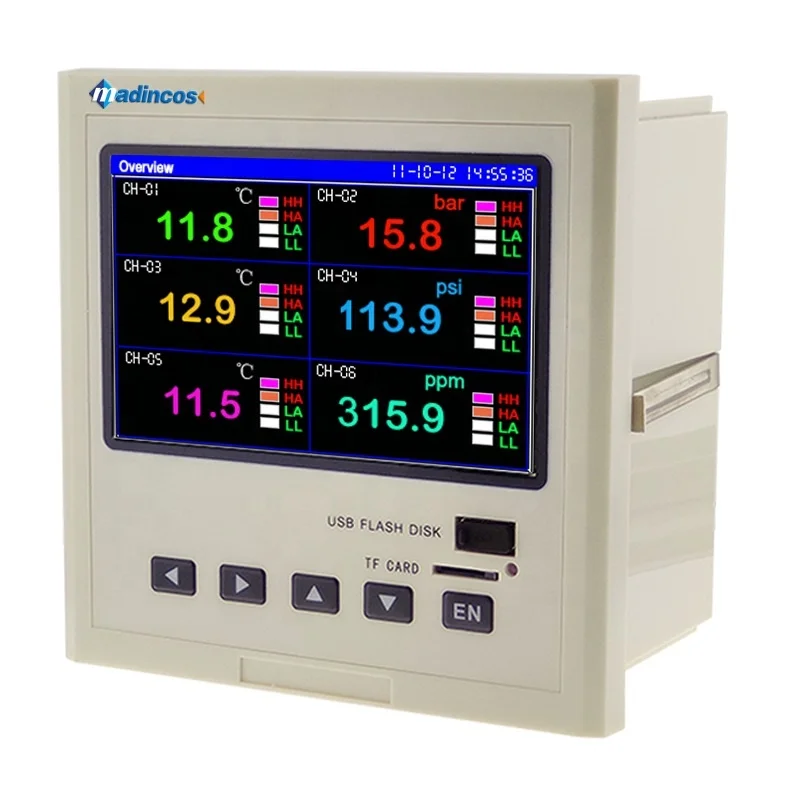

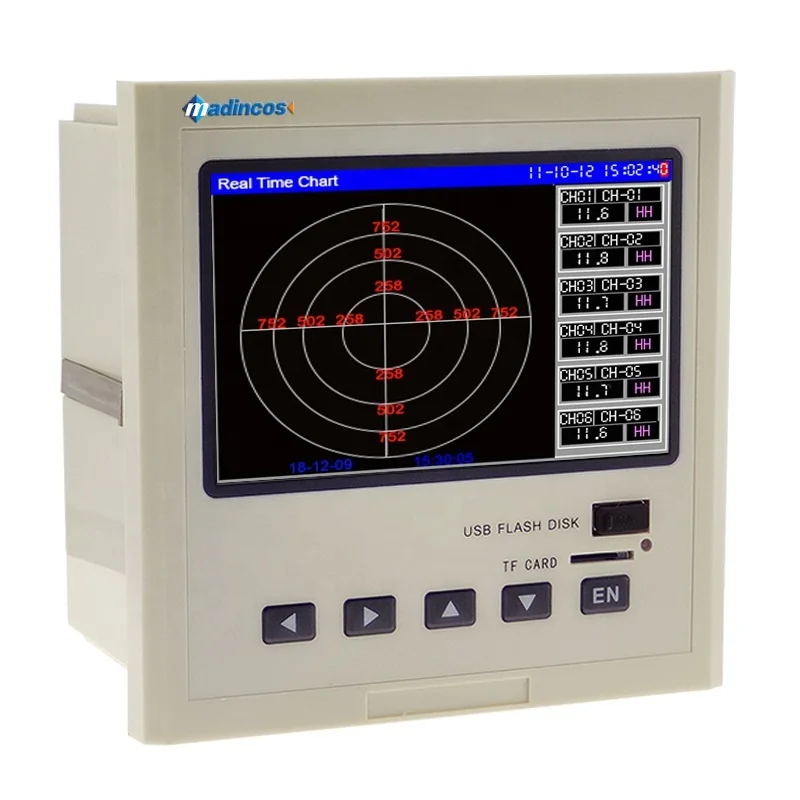

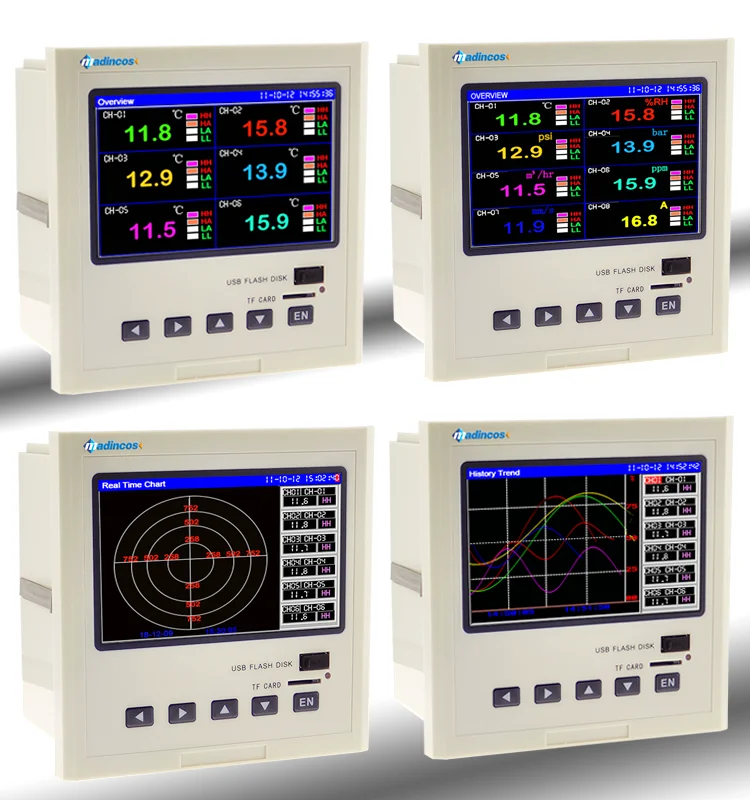

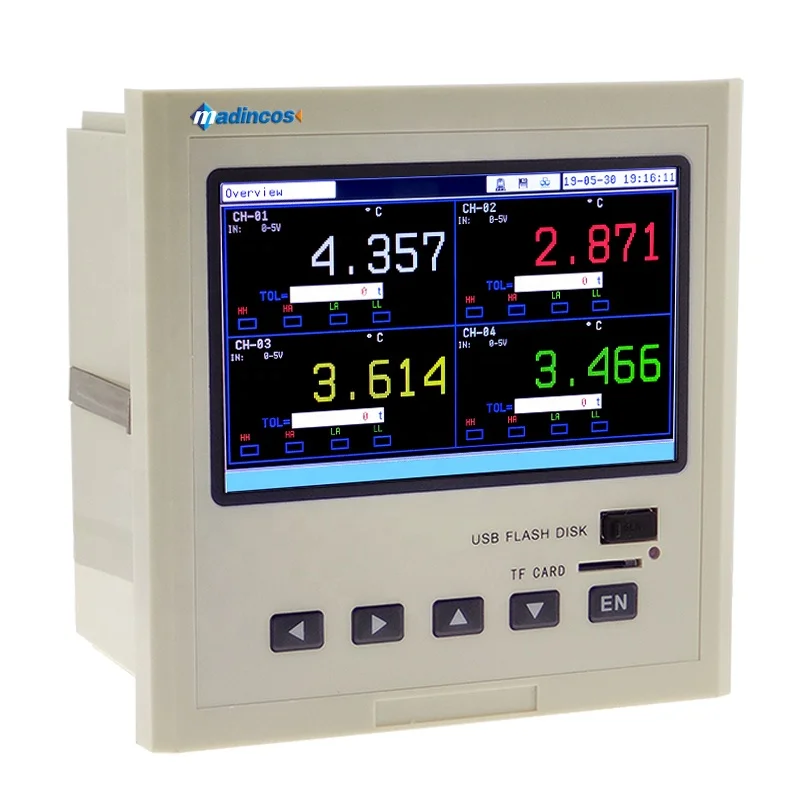

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Detailed Images

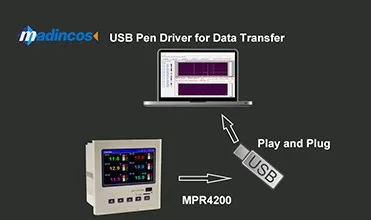

USB Data Transferring Automatically, Plug and Play
*Huge Capacity 8G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
To display and read the memoried data in digital and curve, print the chart data.; also export the data as Excel for further analysis.

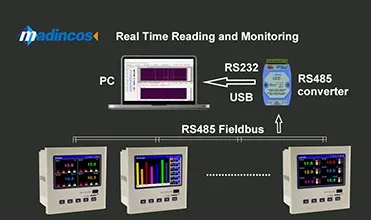

RS485 ,Ethernet for Real Time Reading
*Photoeltrical Isoalted RS485 MODBUS- RTU Comm.
*Photoeletrical-Isolated Ethernet MODBUS-TCP/IP Comm.
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Certificate
Packing & Delivery
Packaging | ||
Size | 144(L) * 144 (W) * 73(D)mm | |
Weight | 1.5kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 200L*240W*100HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Our Service
Pre-Sales Service
* Inquiry and Techinincal Solution support.
* Sample testing support.
* View our Factory.
Offer you proffesional solutions and service
After-Sales Service
* Warranty Offered . Guide how to install the machine, guide how to use the instruements with technical support
* Engineers available to service instruments in details
Offer you Good quality item and excellent service for you
Related Transmitter
MPT910 Pressure Transmitter
Absolute, Gauge, -100 to 60Mpa
Accuracy: 0.2%FS to 0.1%FS Range: 0 to 60Mpa
Output: 4-20ma, 0-10VDC
MPT2300 Smart Digital Pressure Transitter
Accuracy: 0.2%FS to 0.1%FS Range: 0 to 60Mpa
Output: 4-20ma, 0-10VDC,RS485
MLT6300 High Temperature Throw-in Level Ttranmitter
Accuracy: 0.5%FS, 0.2%FS Range: 0 to 20Mpa
Output: 4-20ma, 0-10VDC
MTH300S Wall Type Temperatue Humidity Transmiter
Accuracy: 0.3degc, 3%RH
Range:-20 to 80℃,-40 to 60℃,0-50℃
Output: 0-5V,0-10VDC, RS485
