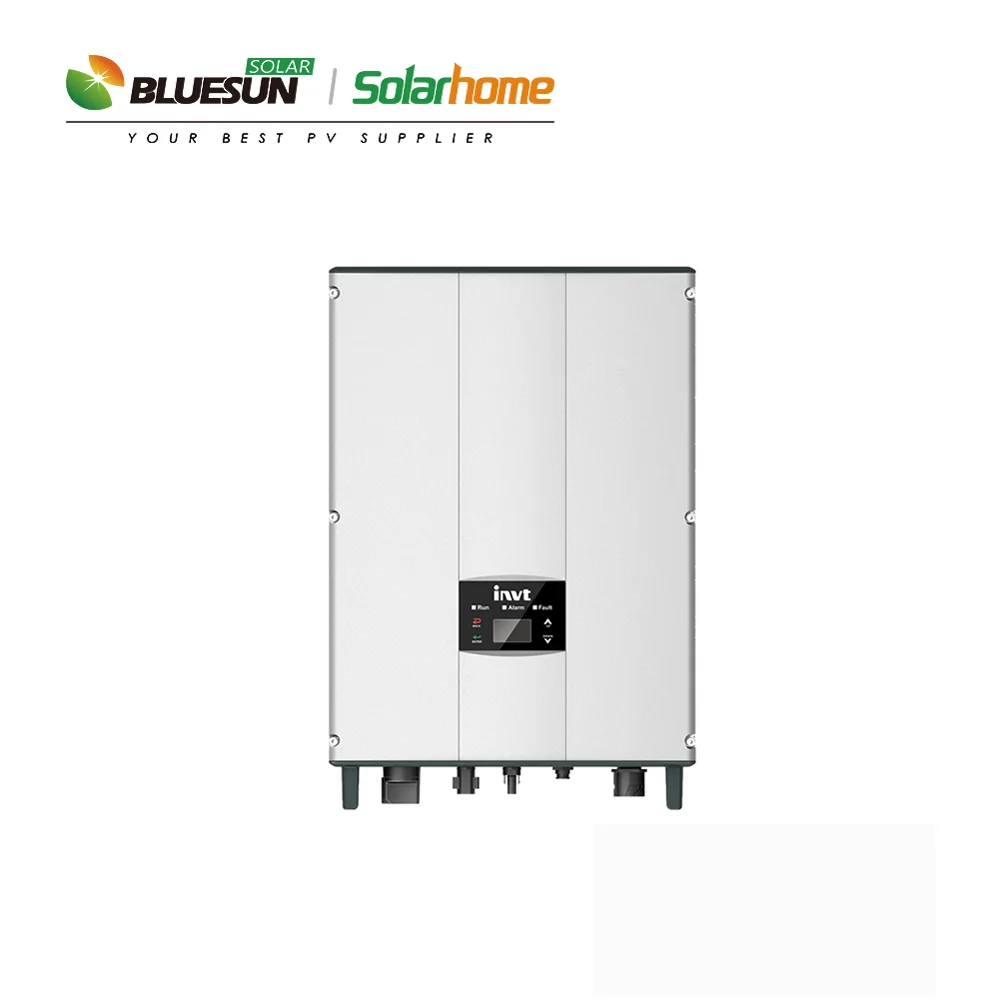

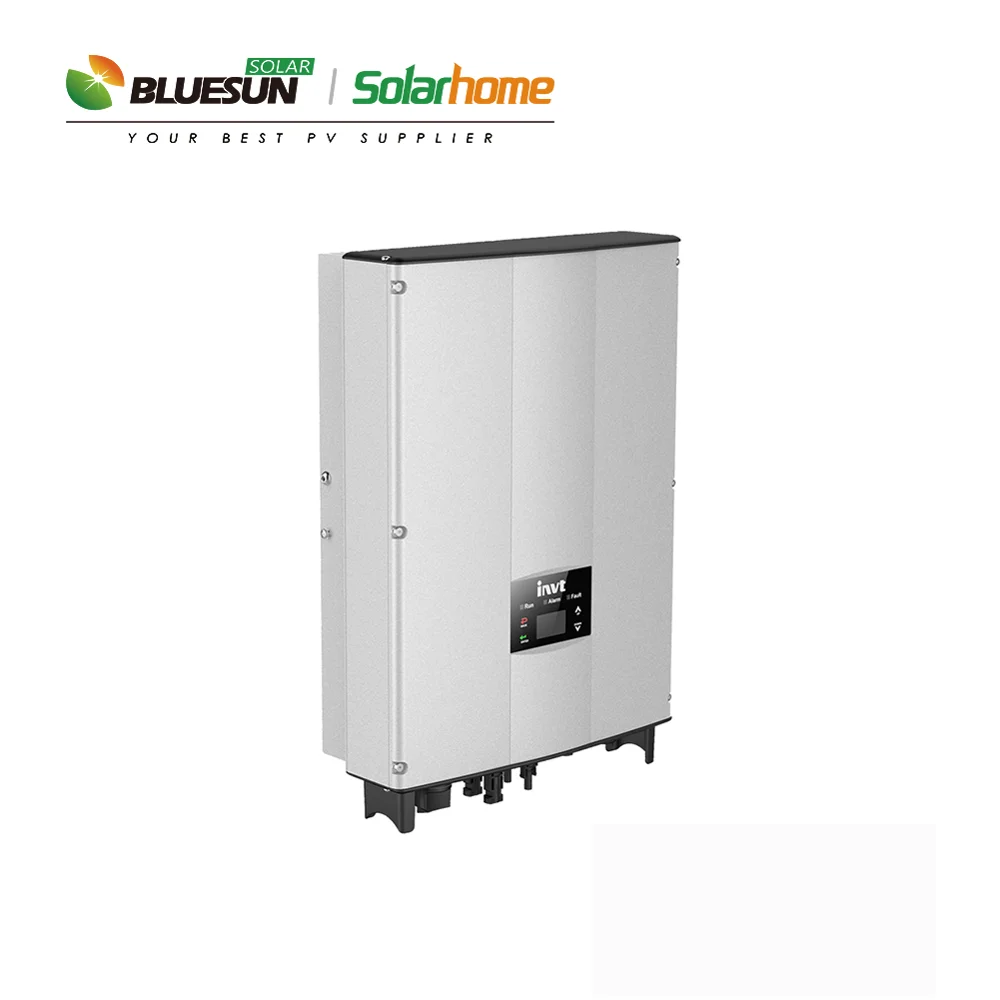

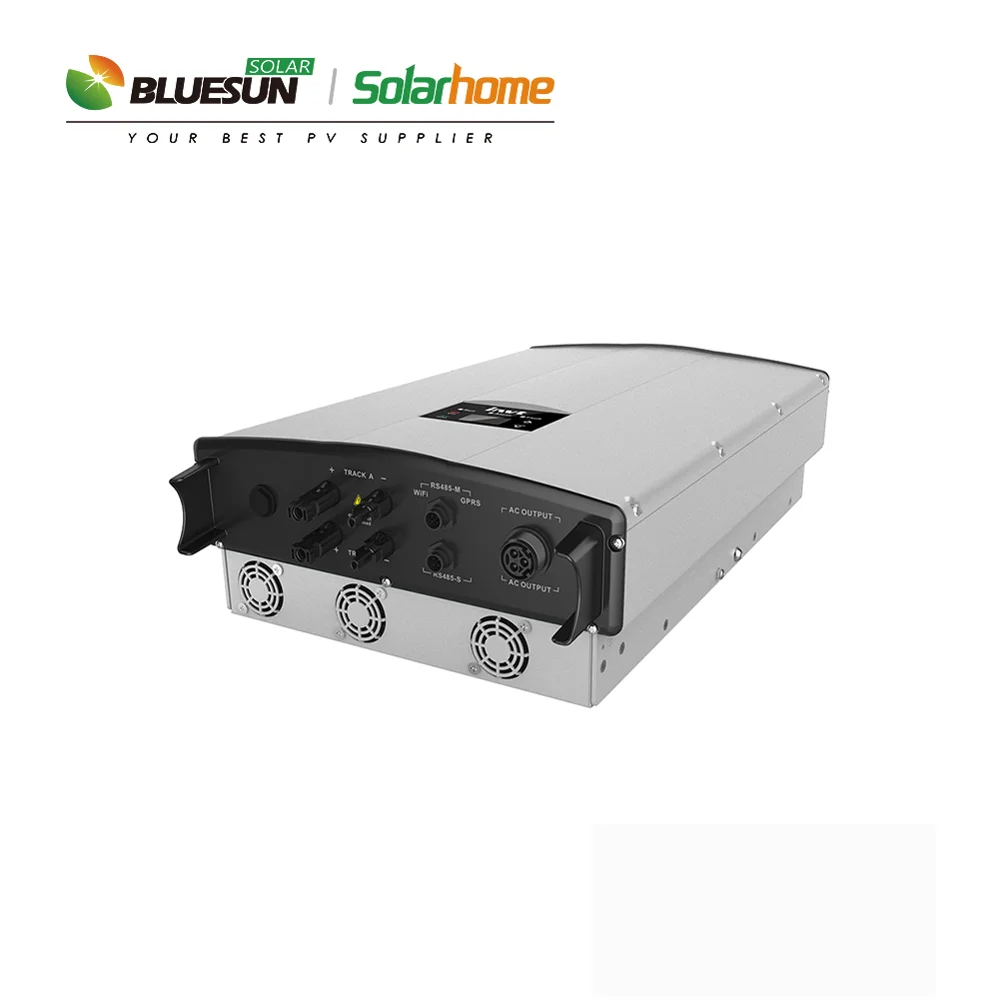

Bluesun 10kw 20kw 30kw 10kva 20kva 30kva solar power inverter 3 phase grid tied solar inverter
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (62422101770):
Product Overview
Description
Grid Tie Inverter
Equipments&Details
Model number | BG4KTR | BG4KTR-S | BG5TR | BG5TR-S | BG6KTR | BG8KTR | BG10KTR | |||||||
Input DC | ||||||||||||||
Max. DC input power (W) | 4200 | 4200 | 5200 | 5200 | 6300 | 9000 | 10000 | |||||||
Max. DC input voltage (V) | 900 | 1000 | ||||||||||||
Starting voltage (V) | 220 | |||||||||||||
Min. opration voltage (V) | 180 | 150 | ||||||||||||
MPPT Range(V) | 200-800 | |||||||||||||
Number of MPPT /string per MPPT | 2/1 | 1/1 | 2/1 | 1/1 | 2/1 | 2/1 | 2/1 | |||||||
Max. DC current (A) Per MPPT | 10 | 12 | 10 | 12 | 10 | 12 | 12.5 | |||||||
Output AC | ||||||||||||||
Rated output power (W) | 4000 | 4000 | 5000 | 5000 | 6000 | 8000 | 10000 | |||||||
Max. AC output current(A) | 6.4 | 6.4 | 8 | 8 | 9.6 | 12.5 | 14 | |||||||
Grid voltage range | 3/PE, 230/400V, (320~460V);3/PE,220/380V,(320~460V) | |||||||||||||
Grid frequency range | 50Hz(47~51.5Hz) / 60Hz(57~61.5Hz) | |||||||||||||
AC output | Three-phase (L1, L2, L3, N, PE)/(L1,L2,L3,PE) | |||||||||||||
System | ||||||||||||||
Cooling method | Natural cooling method | Smart cooling method | ||||||||||||
Max. efficiency | 98.1% | 98.1% | 98.2% | 98.3% | ||||||||||
Euro. efficiency | 97.5% | 97.6% | 97.7% | 97.8% | ||||||||||
MPPT efficiency | 99.9% | |||||||||||||
Protection rating | IP65 | |||||||||||||
Self-consumption(at night)(W) | <0.5 | |||||||||||||
Topology | Transformerless | |||||||||||||
Operating temperature range | -25℃~+60℃(derate after 45℃) | |||||||||||||
Relative humidity | 0~95%,no condensation | |||||||||||||
DC connection | MC4 | |||||||||||||
Dimension | 530*360*150 | 575*360*150 | ||||||||||||
Weight | 22 | 25 | ||||||||||||
Installation | wall mounting | |||||||||||||
Packing&Delivery
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL | ||||
Our Company

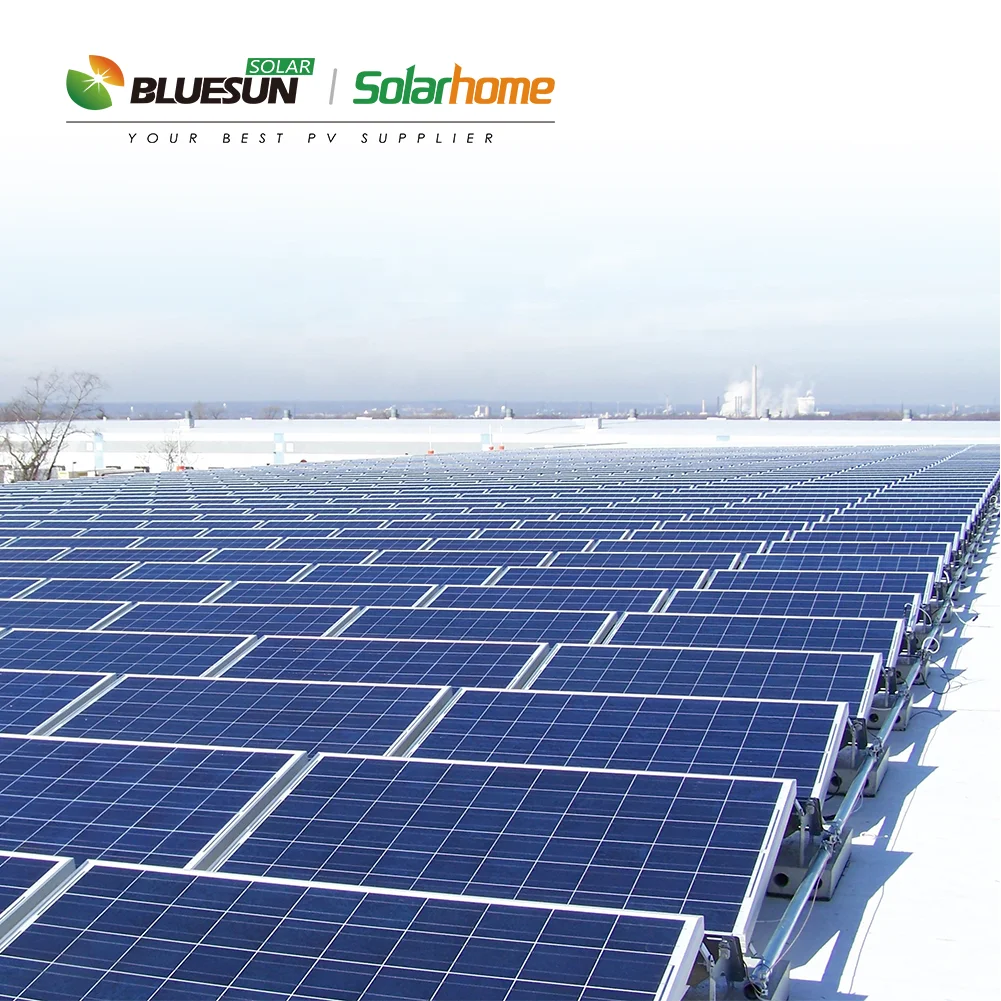

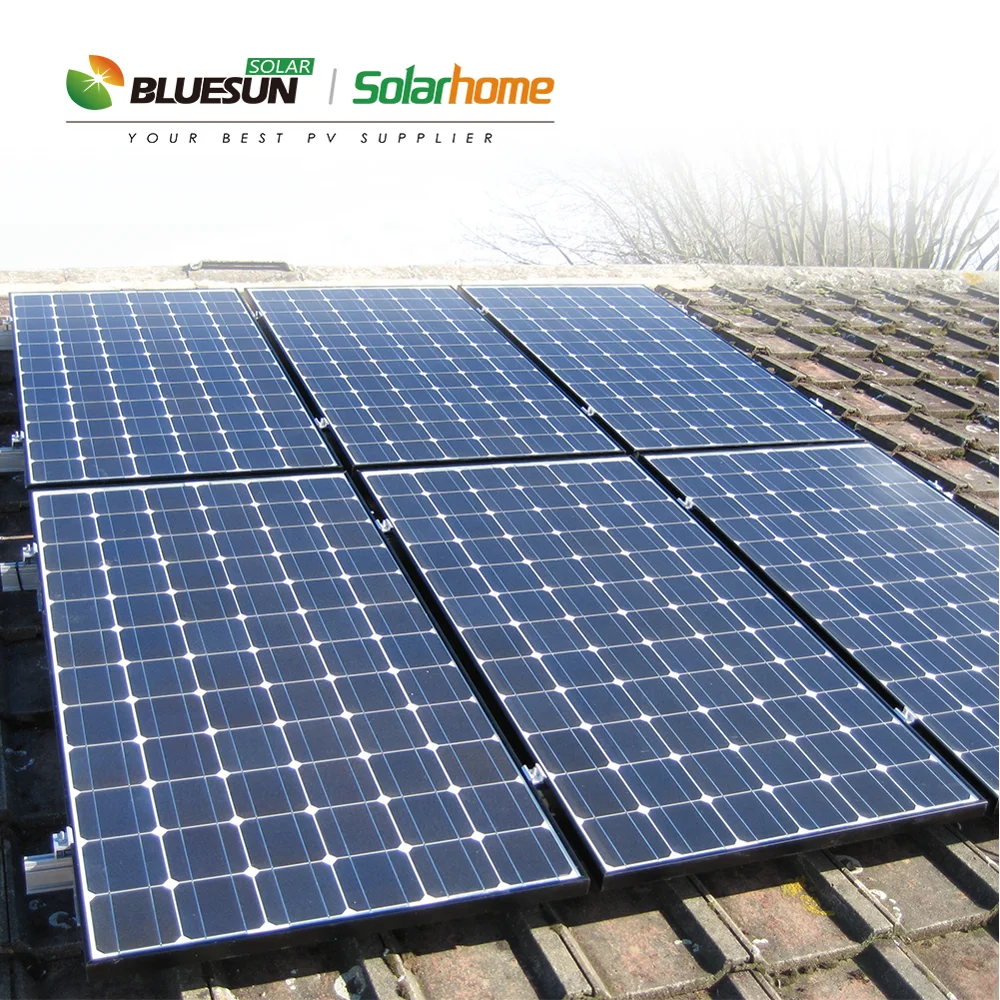

Project
