800Kg/h Plant oil solvent ultrasonic extraction production line
- Category: >>>
- Supplier: Zhejiang Shuangzi Intelligent Equipment Co. Ltd.
Share on (62422248690):
Product Overview
Description
Product Description
Plant oil low temperature ultrosonic solvent extraction machine production line
Dried biomass to Plant oil working processing flow diagram:
Dried Plant biomass---low temperatrue solvent extractor---falling film evaporator(solvent recovery)---winterizatioin(remove
wax)---decaboxylation---short path distillation---chromatography column system(remove ingredient)---falling film evaporator---finished product of broad spectrum Plant oil---crystallization to get Plant isolate
Successful project cases:
Zhejiang Shuangzi Intelligent Equipment Co.,Ltd has 4 sucessfull project cases of Plant oil field, we have mature technical
experience for Plant oil production line. And we have another 2 lines are building for our USA customers.
The Plant oil extraction production line we already built and are going to build, according to our customers` requirements, to produce different finished product, the finished products are:
1. Plant isolate
2. Crude oil(after the process of decaboxylation, gold oil)
3. Broad spectrum Plant oil(without ingredient)
Finished products test report:
Our customers Plant oil production lines run well, and they inform us that there finished product test well too.
The key date of the ingredient residual quantity content in Plant isolate and Broad spectrum oil is perfect, in Plant isolate, the ingredient content is less than 0.05%, some batch test result is ingredient free
Column chromatography system to remove ingredient:
Our engineer team who focuse on Plant field has upgrade the Column chromatography system, the result is that we will use very little solvent and to remove more ingredient compound from the Plant crude oil, means that the content of ingredient residue becomes lower by using our new column chromatography system.
Dried Plant biomass---low temperatrue solvent extractor---falling film evaporator(solvent recovery)---winterizatioin(remove
wax)---decaboxylation---short path distillation---chromatography column system(remove ingredient)---falling film evaporator---finished product of broad spectrum Plant oil---crystallization to get Plant isolate
Successful project cases:
Zhejiang Shuangzi Intelligent Equipment Co.,Ltd has 4 sucessfull project cases of Plant oil field, we have mature technical
experience for Plant oil production line. And we have another 2 lines are building for our USA customers.
The Plant oil extraction production line we already built and are going to build, according to our customers` requirements, to produce different finished product, the finished products are:
1. Plant isolate
2. Crude oil(after the process of decaboxylation, gold oil)
3. Broad spectrum Plant oil(without ingredient)
Finished products test report:
Our customers Plant oil production lines run well, and they inform us that there finished product test well too.
The key date of the ingredient residual quantity content in Plant isolate and Broad spectrum oil is perfect, in Plant isolate, the ingredient content is less than 0.05%, some batch test result is ingredient free
Column chromatography system to remove ingredient:
Our engineer team who focuse on Plant field has upgrade the Column chromatography system, the result is that we will use very little solvent and to remove more ingredient compound from the Plant crude oil, means that the content of ingredient residue becomes lower by using our new column chromatography system.
Project: | Plant oil solvent ultrosonic continous extraction line |
Function: | Turnkey project |
Material: | SUS316L or 304 |
Method: | Countercurrent extraction |
Solvent: | Ethonal |
Photo: | Shuangzi Project case |

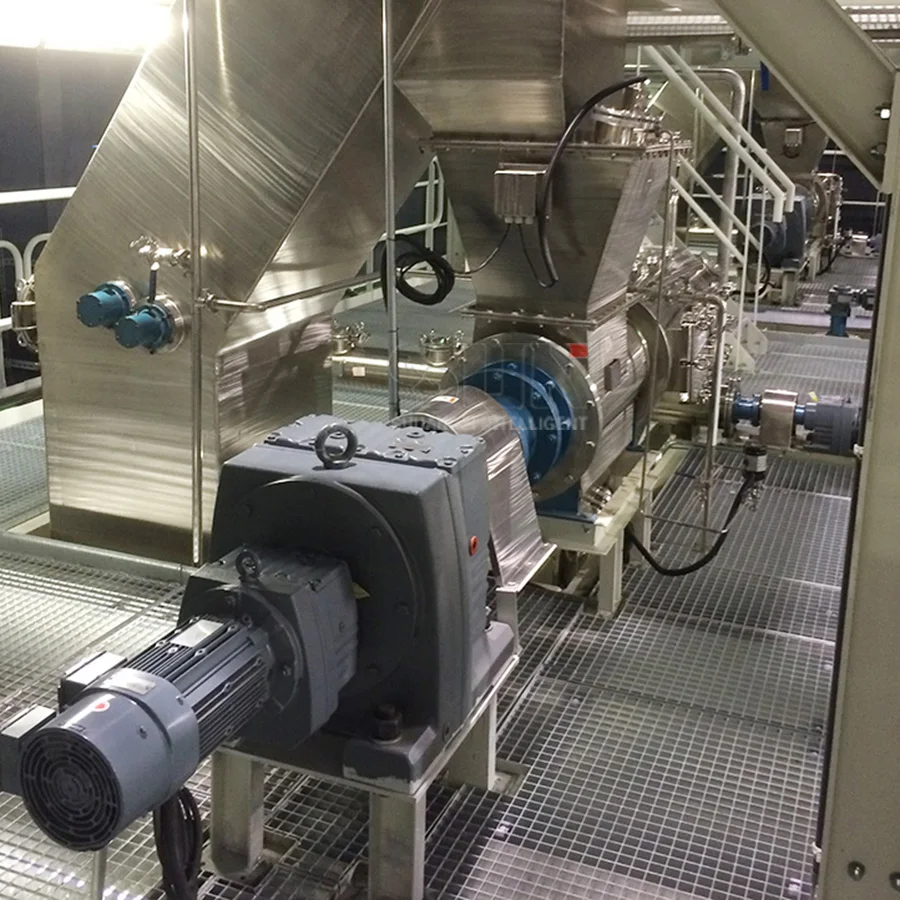

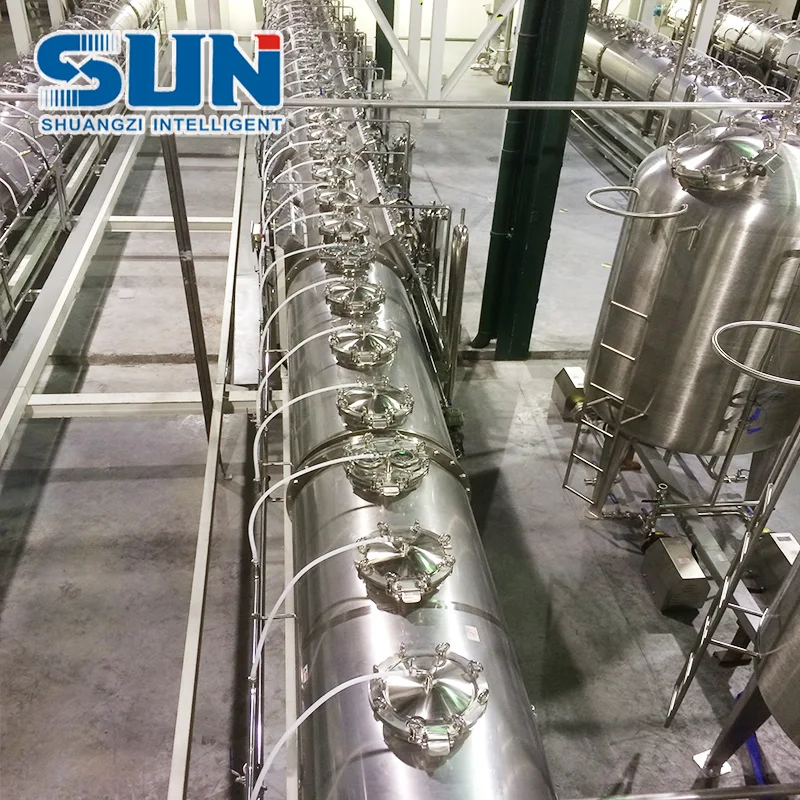

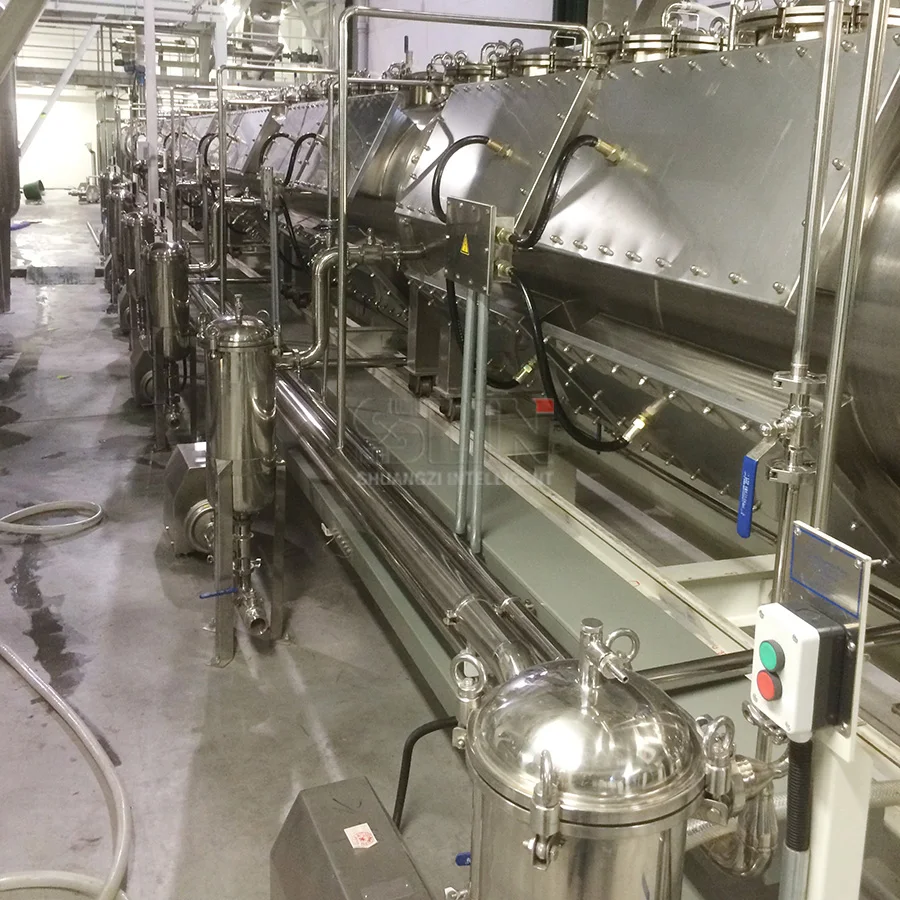

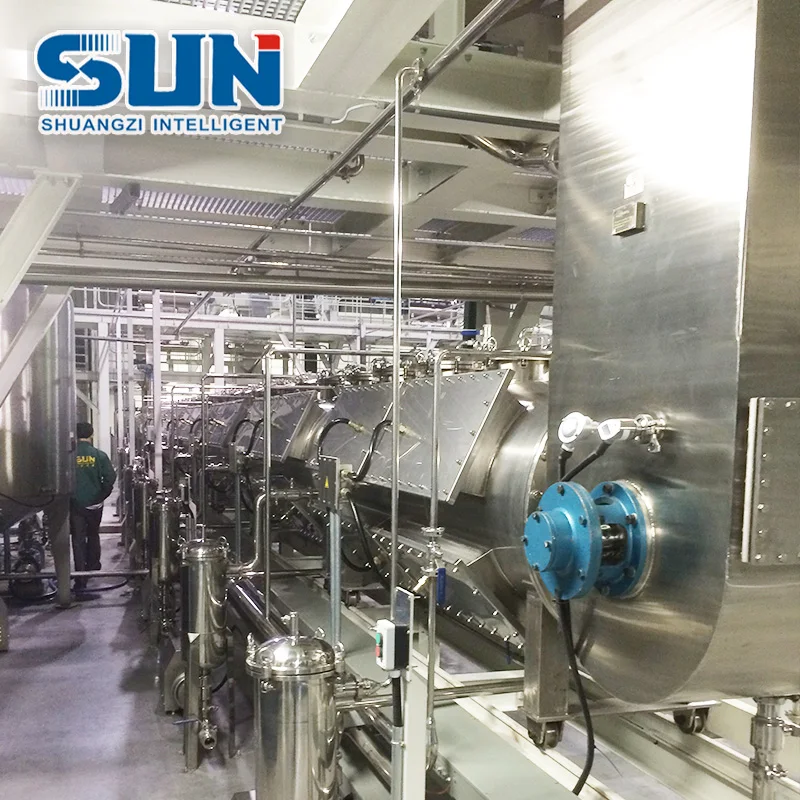

Plant continous countercurrent ultrosonic extractor
Continous working, saving solvent and automatic control
Falling Film Evaporator/concentrator
After the extraction process, we need to do the process of sovent recovery by falling film evaporator to recycle the solvent.
Short path distillation machine
After filtration, the Plant crude oil should do the process of short path distillation to separate different groups of compounds.

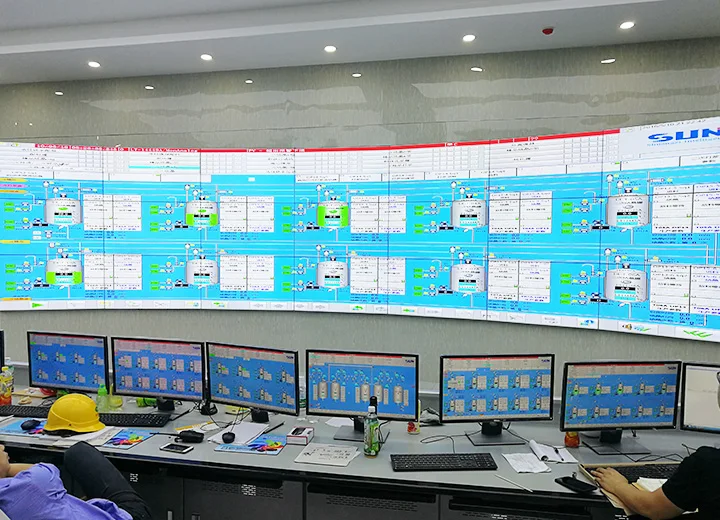

Automatic control system---Complete set of Plant oil extraction production line
333
Chromatography column
Chromatography column used for separating ingredient from Plant oil, we have mature technical and experience of chromatography column processing.
Chromatography column details
Automatic control, different compounds collect seperately, such as Plant, ingredient and other active compounds of Plant oil.

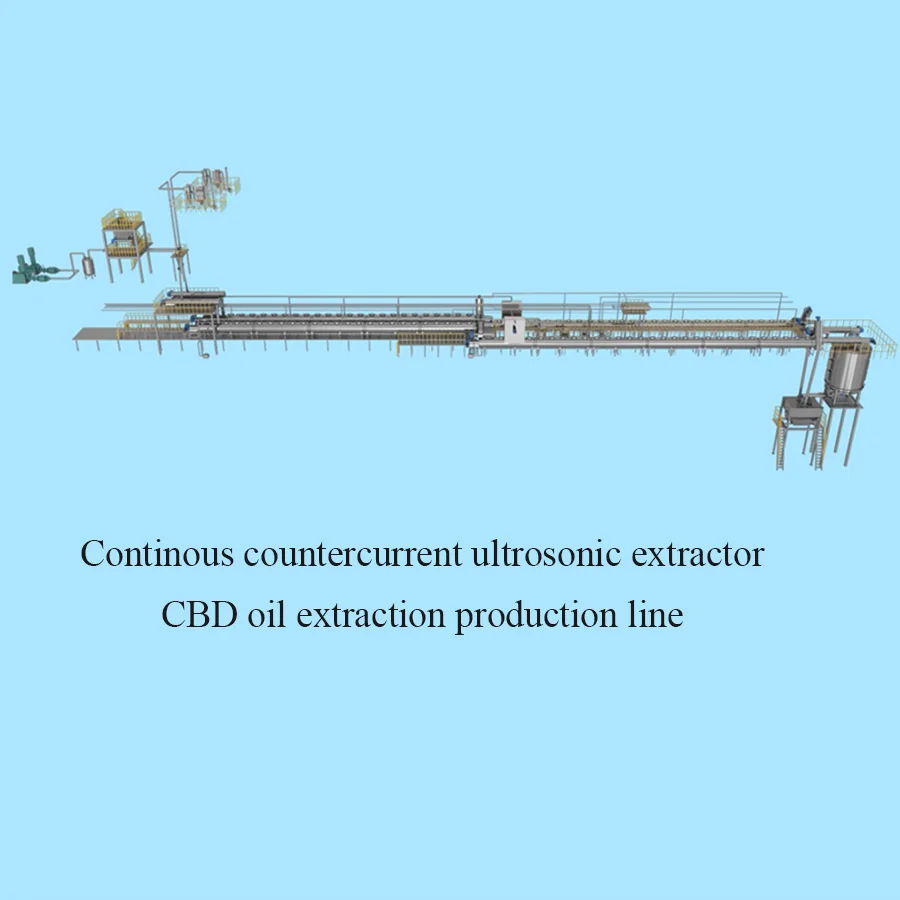

Plant oil extraction production line, turnkey project
Dried biomass to Plant oil working processing flow diagram:
Dried Plant biomass---low temperatrue solvent extractor---falling film evaporator(solvent recovery)---winterizatioin(remove wax)---decaboxylation---short path distillation---chromatography column system(remove ingredient)---falling film evaporator---finished product of broad spectrum Plant oil---crystallization to get Plant isolate
Dried Plant biomass---low temperatrue solvent extractor---falling film evaporator(solvent recovery)---winterizatioin(remove wax)---decaboxylation---short path distillation---chromatography column system(remove ingredient)---falling film evaporator---finished product of broad spectrum Plant oil---crystallization to get Plant isolate
Company Introduction
Zhejiang Shuangzi Intelligent Equipment Co.,Ltd has set up a technical team specialized in developing and designing Plant extraction production line. After several years efforts, the whole set of equipment developed by Shuangzi has been completed, which can meet the industrial production requirement of Plant oil extraction with different production scale specification.Since our first Plant oil extraction production line built for our customer, till today, we have built 3 lines, and has another 2 lines are underding building for our customers.
Welding
We have 23 welding mechanic with rich experience; Adopts to use auto plasma argon arc welding and manual bozzle welding, the work processing standard according to NB/T47-15-2011.
Finish test
Equipment surface treatment: Inside surface is mirror polish Ra≤0.45um, outside surface yogon treatment Ra≤0.8um
Factory lab
Extraction production line
Including countercurrent continous extractor, evaporator, short path distillation, chromatography column
HPLC
High performance liquid chromatography
Packing&Shipping
We adopt 2 kinds of packing method, one method is soft felt, another method is plywood box
Soft felt package
We will use soft felt wrapping on the equipment body, and then fix on one pallet
Plywood box
We will use plywood box to pack small size spare parts, pump, valves...
After Sales Service
After Service
There are 6 engineers and 15 workers have USA visa, so we can be easy to visit USA to supply installation services for our USA customers.
1. Technical trainning
2. Technical documents
3. Customers field installation
4. Customers field debugging
5. One year quality guarantee
