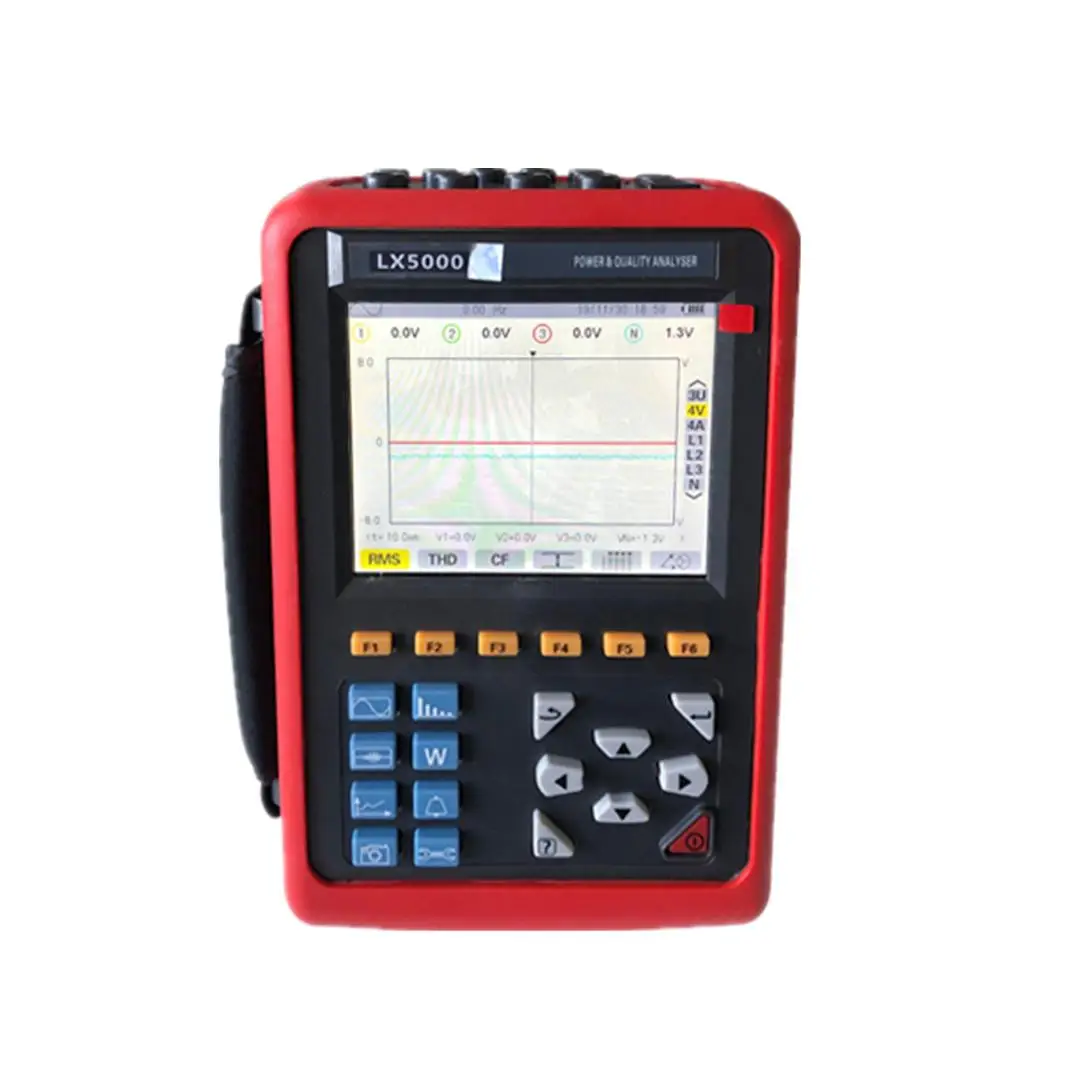

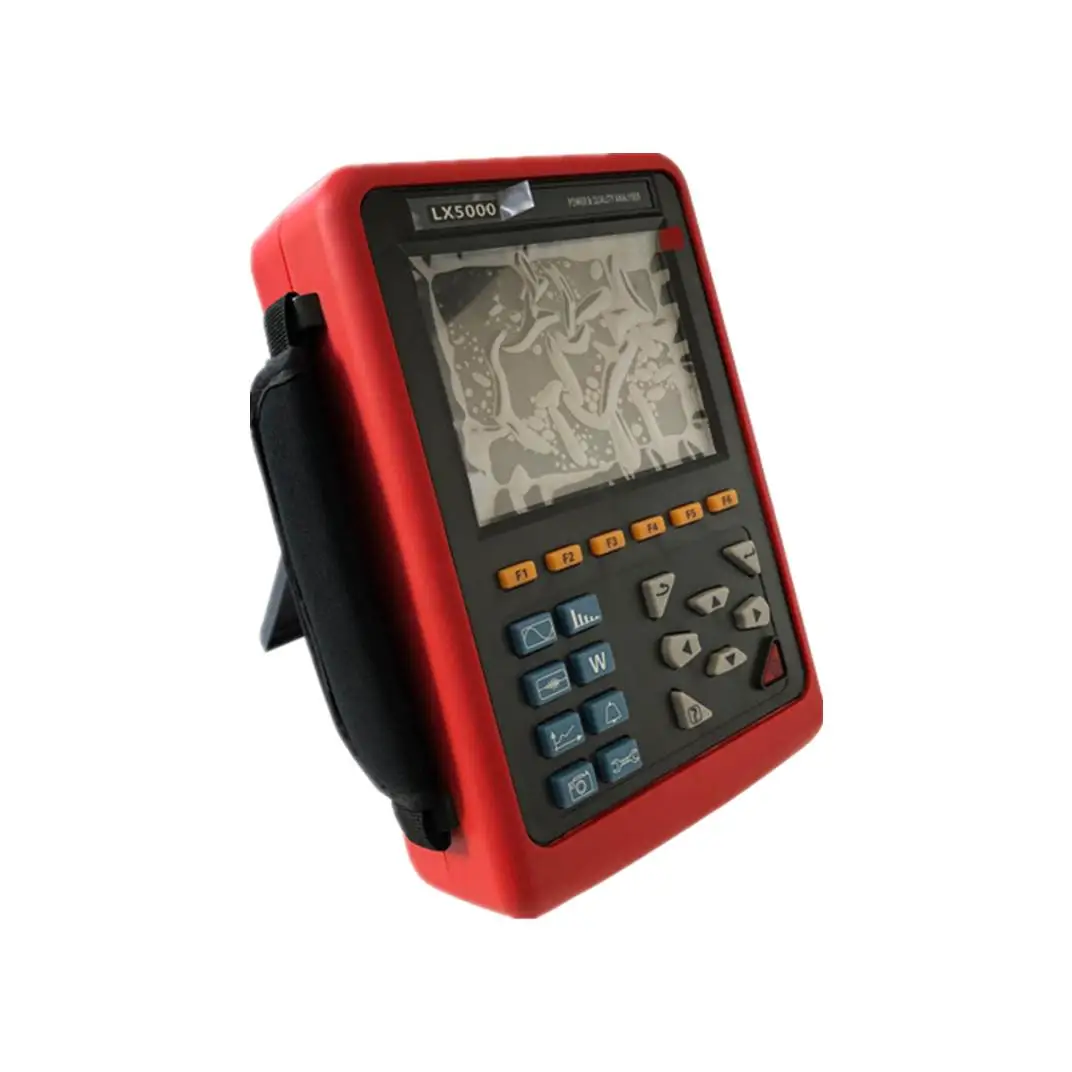

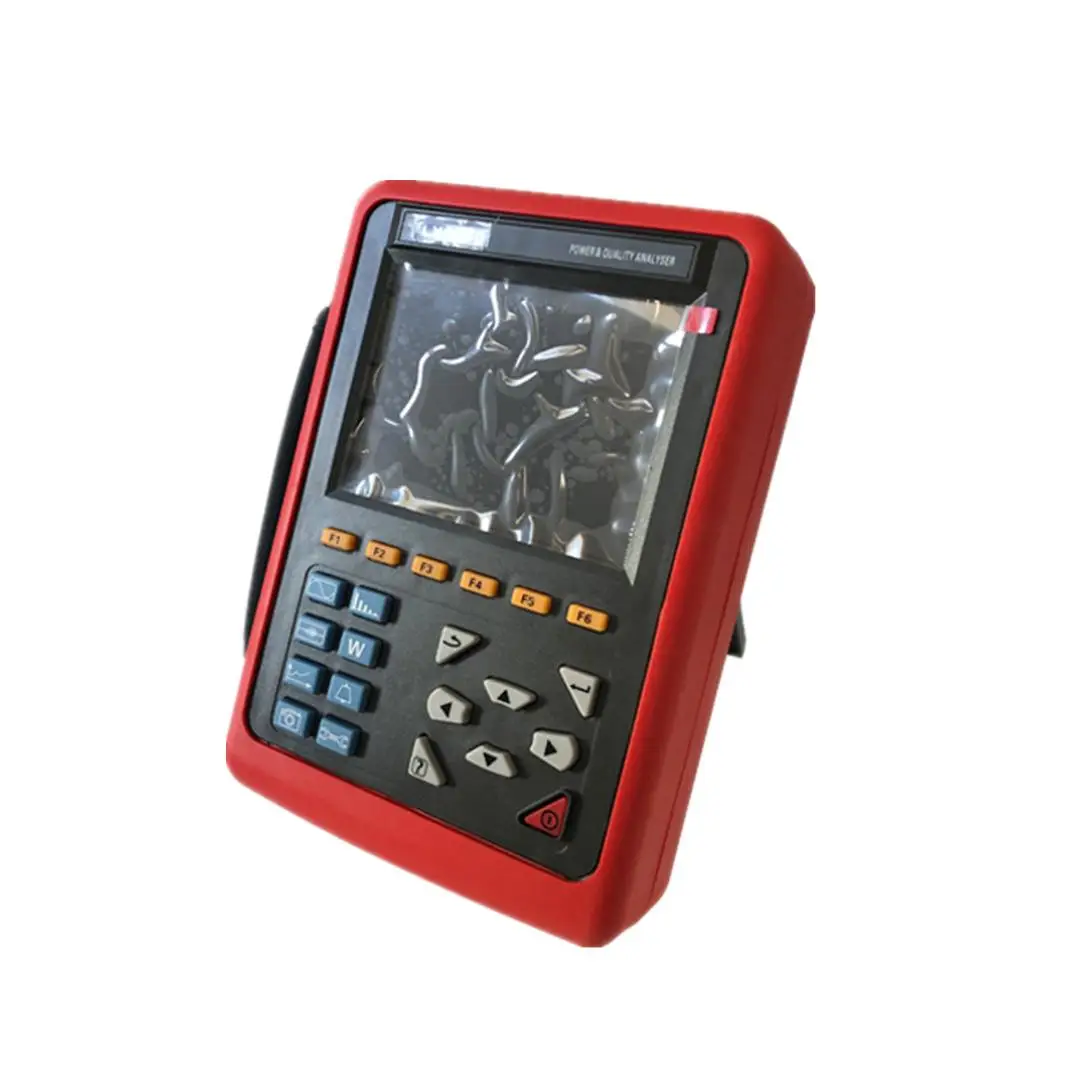

LX-5000 Three phase Electronic energy Power Quality Analyzer
The product description:
LX-5000 power quality analyzer special comprehensive tester, complete functions, high intelligence, simple man-machine operation. Easy to use, large LCD screen, high resolution, English interface, seismic shell structure. 4 - channel current can be measured at the same time (ABC three phase and neutral wire current), 4 - channel voltage (ABC three-phase voltage and neutral line to ground voltage), the current peak voltage, maximum/minimum value over a period of time, three-phase unbalance factor, short-time voltage flicker, transformer coefficient of thermal conductivity, active power, reactive power, apparent power, power factor and the displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Real-time display of current and voltage waveform, harmonic ratio bar chart; The instantaneous change of voltage and current was captured dynamically, starting current was monitored, power parameters were monitored and alarm list was generated, and the trend chart of test data was recorded during the growth time.
The product description:
LX-5000 power quality analyzer special comprehensive tester, complete functions, high intelligence, simple man-machine operation. Easy to use, large LCD screen, high resolution, English interface, seismic shell structure. 4 - channel current can be measured at the same time (ABC three phase and neutral wire current), 4 - channel voltage (ABC three-phase voltage and neutral line to ground voltage), the current peak voltage, maximum/minimum value over a period of time, three-phase unbalance factor, short-time voltage flicker, transformer coefficient of thermal conductivity, active power, reactive power, apparent power, power factor and the displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Real-time display of current and voltage waveform, harmonic ratio bar chart; The instantaneous change of voltage and current was captured dynamically, starting current was monitored, power parameters were monitored and alarm list was generated, and the trend chart of test data was recorded during the growth time.
Specification
Technical parameters:
Base condition and working condition
Influence factor | Test item | Base condition | Working condition | ||
Environment temperature | All parameters | (23±2)°C | (-10°C~ 40°C) | ||
Relative humidity | All parameters | 40%~ 60% | <80% | ||
Phase-to-neutral voltage | All parameters | (100±1%)V | 1.0V~ 1000V | ||
Phase-to-phase voltage | True RMS phase-to-phase voltage | (200±1%)V | 1.0V~ 2000V | ||
Current | True RMS current | (5±1%)A | 10mA~ 1000A | ||
Network frequency | All parameters | 50Hz±0.1Hz | 40Hz~ 70Hz | ||
Phase shift | Active power and active energy | Cosφ=1 | Cosφ: 0.2~ 1.0 | ||
Reactive power and reactive energy | Sinφ=1 | Sinφ: 0.2~ 1.0 | |||
Harmonic | All parameters | <0.1% | 0.0%~ 100% | ||
Voltage unbalance | All parameters | <10% | 0.0%~ 100% | ||
Working voltage of device | All parameters | DC9.8V±0.1V | DC9.5V~ 10.5V | ||
External electric field | All parameters | Should be avoided | |||
magnetic field | |||||
Test position | Measured related parameters of currentTested wire at the center of clamp. | ||||
General specification:
Power supply | Rechargeable lithium-ion battery pack 9.6V, backup charger. |
Battery indicator | Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute. |
Power consumption | Current consumption of normal test 490 mA, continuous working for 8 hours. |
Display mode | LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm. |

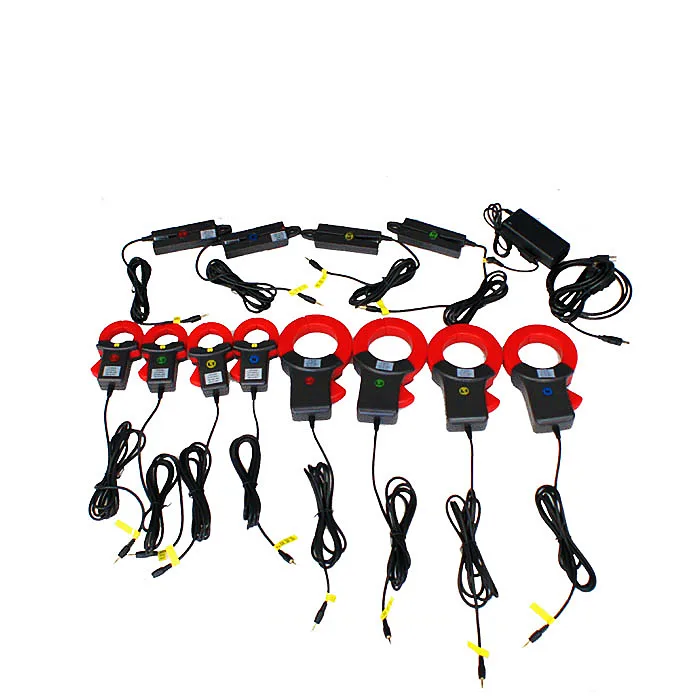

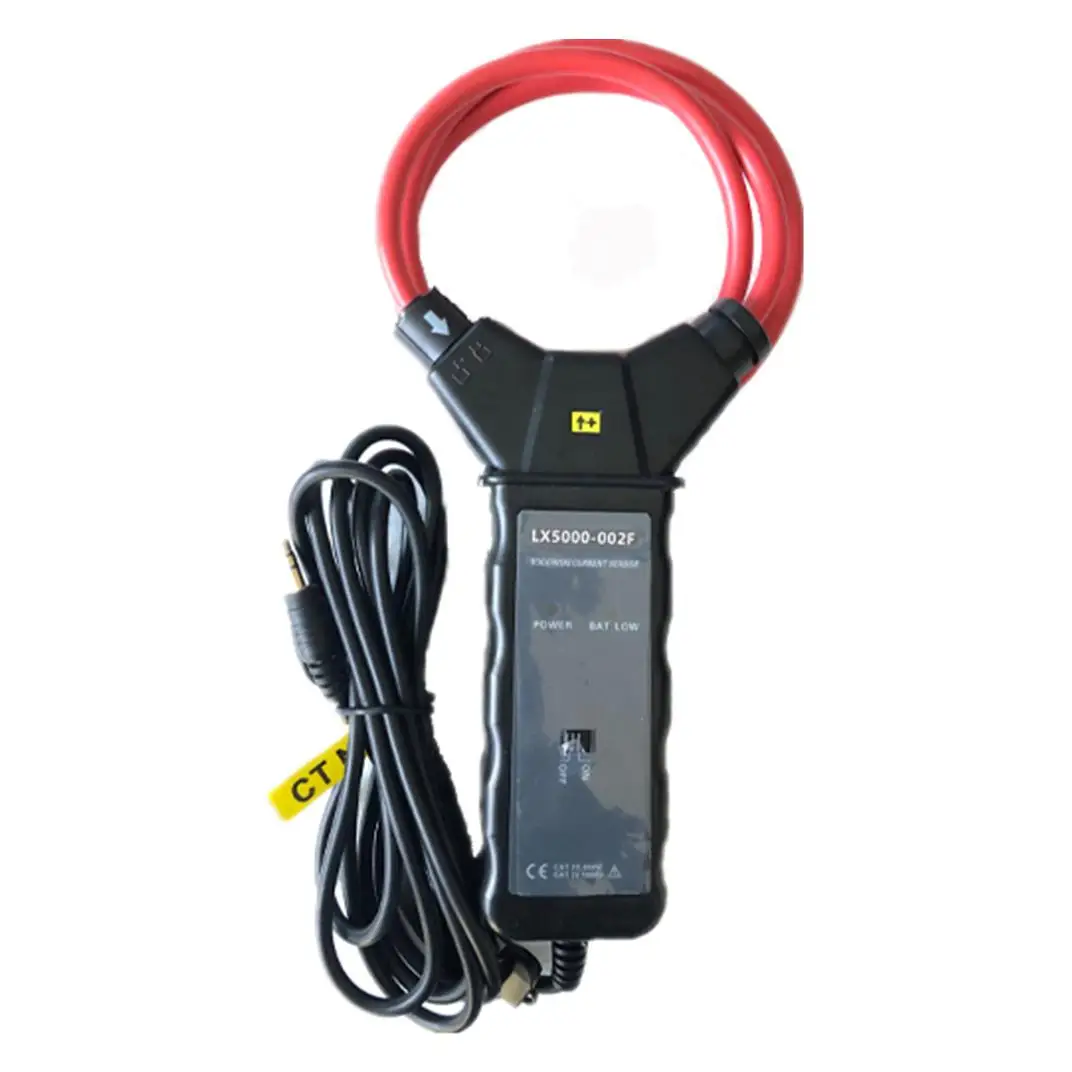

Size of clamp | 10Asmall sharp current clamp: 7.5mm×13mm; 100A circle current clamp: 35mm×40mm; 1000Acircle current clamp: 68mm×68mm. |
Instrument dimensions | L×W×H: 240mm×170mm×68 mm. |
Number of channels | 4U/4I. |
Phase-to phase voltage | 1.0V~2000V. |
Phase-to-neutral voltage | 1.0V~1000V. |
Current | 10Acurrent clamp: 10mA~10.0A; 100A current clamp: 0.10A~100A; 1000Acurrent clamp: 1.0A~1000A; Optional current transformer: instrument input current 1mA~500mA. |
Frequency | 40Hz~70Hz. |
Parameters of electricity | W, VA, Var, PF, DPF, cosφ, tanφ. |
Energy parameters | Wh, Varh, Vah. |
Harmonic | Order 0~50. |
Total harmonic distortion | Order 0~50, each phase. |
Expert mode | Yes. |
Number of Transient records | 150 sets. |
Voltage flicker | Yes. |
Starting current mode | Yes, 100 seconds. |
3 phases unbalance | Yes. |
Record | 300 days(simultaneous recording 20 parameters, record one point every 5 seconds). |
Min/Max recorded value | Measurement of maximum and minimum values over a period of time. |
Alarm | 40 different types of parameter selections, 12,800 sets alarm logs. |
Peak | Yes. |
Phasor diagram display | Automatically. |
Capacity of snapshots | 60. |
Menu language | English/Chinese. |
Communication | USB. |
Automatic switching off | When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off. |
In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute. | |
Backlight function | Yes, suitable for use at night and dark place. |
Weight | Host: 1.6kg (with battery). |
10Asmall sharp current clamp: 170g×4; | |
100A circle current clamp: 190g×4; | |
1000Acircle current clamp: 510g×4; | |
Test wires and power adapter: 900g; | |
Total weight: about 7.8kg (with packaging). | |
Length of current sensor wire | 2m. |
Working temperature and humidity | -10°C~40°C; below 80%Rh. |
Storage temperature and humidity | -10°C~60°C; below 70%Rh. |
Input impedance | Input impedance of test voltage: 1MΩ. |
Withstand voltage | Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. |
Insulation | Between instrument wiring and shell ≥10MΩ. |
Structure | Double insulation, with insulation vibration-proof sheath. |
Safely rules | IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2. |
