For CBD Oil Distillation West Tune Double-layer WTGR-100D 100L Jacketed Glass Reactor
- Category: Reactors >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

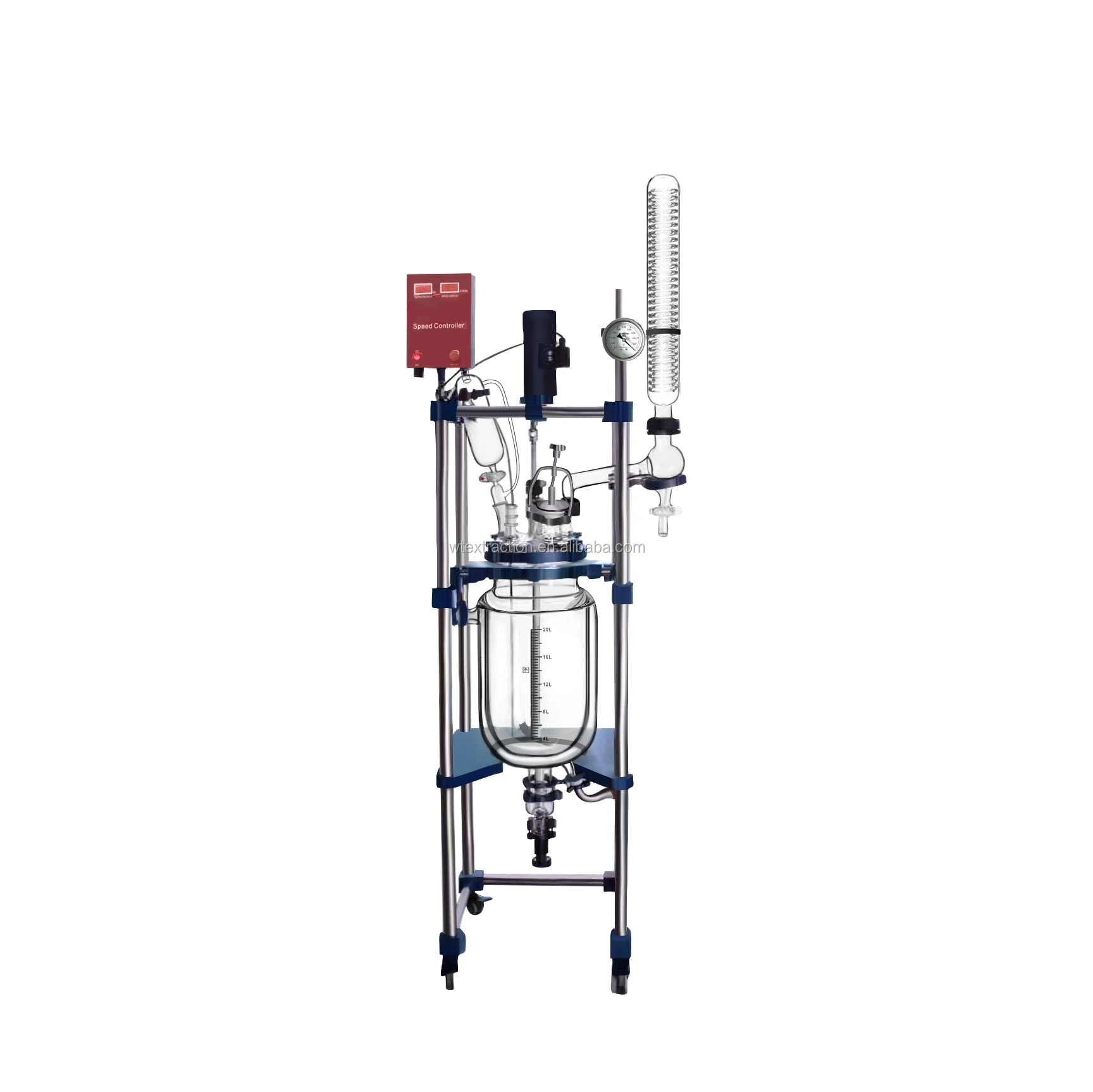

West Tune Double-layer Glass Reactor WTGR-100D
Reagents are set in the inner layer of double-layer glass reactor, at the same time, the reactor can he vacuumed and stirred in speed adjustable, interlayer can guide in refrigerating fluid, water and high temperature liquid to heat and cool the materials, which can be used for the experiment, pilot test and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. Products can be constituted system devices with circulating water type multipurpose vacuum pump, diaphragm pump, low temperature circulating (vacuum) pump, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other equipment
Details Images
Specifications
Type | WTGR-100D |
Glass material | GG-17 |
Frame material | Stainless steel |
Pipe material | 304 stainless steel |
Moving method | The band brake type universal angle wheel |
Reaction bottle volume | 100L |
Jacket capacity | 18L |
Flange inlet and outlet of the oil circulation | Low “in” and high “out” |
Number of kettle lid bottle | six |
Distance between Discharging valve opening and ground | 450mm |
Reaction temperature of reactor | -80-250℃ |
Vacuum | 0.098Mpa |
Stirring running speed | 0-450rpm |
Stirring axis diameter | 15mm |
Stirring power | 250W1/3 |
Voltage/frequency (V/Hz) | 220V/50Hz |
Exterior size (mm*mm*mm) | 610*610*2500 |
Packing size (mm*mm*mm) | 1900*700*870 |
Packing weight （KG） | 125 |
Speed regulation method | Electric stepless speed regulation |
Motor configuration | Power motor at low speed, speed ratio is 3:1 |
Rotary speed display | LCD digital display |
Humidity display | PT100 sensor digital display |
Sealing method | PTFE sealing, ￠60 flange stirring opening |
Condenser | Vertical efficient double-reflux condenser 120*640mm |
Reflow (distill) device | Reflux bend with feeding switch, 50# ball mill mouth |
dropping device | 8L dropping system |
Pressure reducing device | 34#standard pressure reduce valve |
Temperature measuring tube | 24#standard opening |
Solid feeding | ￠80flange opening with PTFE lid |
Discharging method | Inclined glass charging valve ￠80 flange opening |
Vacuum display method | Vacuum meter |
Stirring connection | Cardan joint connected (Gimbal) |
Stirrer | Writing stainless stick, coated by PTFE |
Main Frame | Tray type |
Collecting device | Collecting bottle |
Explosion-proof | Ex-frequency inverter, Ex-motor EX750W, 0-1400 running speed |
Frame parts | Plastic spraying or PTFE |
Attemperator | Insulated cotton |
Sealing parts | Ceramic bearing, mechanical seal |
Condenser | Horizontal condenser can decrease whole height |
Cover of reactor | Custom-made PTFE cover |
Features
High borosilicate glass materials, good physical and chemical properties
Can be used in wide temperature range from high temperature(300"C) to low temperature(80"C)
Can work in constant pressure and vacuum condition, vacuum degree is below 0.095MPa in quiet situation
Related products
1. 2L/5L Short path turkey:
2L/5L heating mantle+2L/5L glassware with all accessories+WTCH-2006 water chiller+WTVP-11PRO 11CFM high vacuum pump
2. 10L short path turkey
10L heating mantle+10L glassware with all accessories+WTCH-2006 water chiller+WTVP-21PRO 21CFM high vacuum pump
3. WTMD-04PRO 4inch 1.5~2.0L/h wipe film vacuum short path molecular distillation
Glass type/Stainless steel type
Fully 304/316 stainless steel wipe film molecular distillation, explosion-proof type
Dual stages 0.5m2 stainless steel wipe film molecular distillation
Dual stages 2m2 stainless steel wipe film molecular distillation
3 stages 2m2 stainless steel wipe film molecular distillation
Rotary evaporator: 1L, 2L, 5L, 10L, 20L, 50L, 100L
Rotovap+chiller+vacuum pump: eg: 5L turkey above
20L/50L rotary evaporator
with dual condensers
100L rotary evaporator
with single condenser---biggest capacity
WT800-N/WT600-N Flat Plate Filter Centrifuge are developped for Cannabis products
------PATENT products!!!
1. double layer drum, postive and negative rotate, soaking, washing, seperation ---Like household washing macine
2. Keep low temperature(lowest:-60C alcohol solution)
3. Completely closed design with a large cover structure.
Cover on the top----feeding port, washing port, observing mirror port, lamp port and nitrofen port
4. Advanced explosion-proof
5. PLC control
